1. Introduction
This manual provides essential information for the safe and efficient use of your Electrolux KODGS20TX Multifunction Oven. Please read these instructions carefully before installation and use, and keep them for future reference.
The Electrolux KODGS20TX is a 60 cm built-in multifunction oven featuring an anti-fingerprint stainless steel finish. It offers a variety of cooking functions and innovative cleaning solutions to enhance your culinary experience.
2. Consignes de sécurité
Always prioritize safety when operating electrical appliances. Failure to follow these instructions may result in injury or damage to the appliance.
- Sécurité électrique : Ensure the oven is correctly installed by a qualified professional and connected to a properly grounded electrical outlet. Do not use extension cords or adapters.
- Sécurité des enfants : Keep children away from the oven during operation and when it is cooling down. The oven door and surrounding surfaces can become very hot.
- Risque de brûlure : Always use oven mitts when handling hot dishes, trays, or the interior of the oven.
- Nettoyage: Disconnect the oven from the power supply before cleaning. Use only recommended cleaning agents and methods.
- Ventilation: Ensure proper ventilation around the oven as specified in the installation instructions.
- Matériaux inflammables : Ne stockez pas de matériaux inflammables dans ou à proximité du four.
3. Installation
The Electrolux KODGS20TX is designed for built-in installation. Refer to the detailed installation diagram and follow all local electrical codes and regulations.
3.1. Dimensions and Cabinet Requirements
The oven dimensions are 589mm (height) x 594mm (width) x 568mm (depth). Ensure your cabinet opening meets the required specifications for a secure fit.

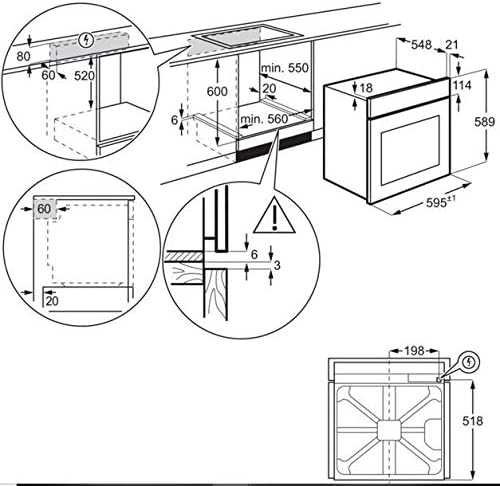

Figure 1: Detailed installation dimensions and cabinet requirements.
3.2. Connexion électrique
The oven requires an electrical connection as specified in the product's technical data. Always consult a qualified electrician for installation to ensure safety and compliance.
3.3. Guide vidéo d'installation
For a visual guide on oven installation, please refer to the following video. This video demonstrates the general process for installing an Electrolux oven column.
Video 1: Electrolux Oven Column - How to Install Guide. This video provides a step-by-step visual demonstration of the installation process for an Electrolux oven, including unpacking, positioning, and securing the appliance.
4. Mode d'emploi
Your Electrolux KODGS20TX oven offers a range of functions to help you achieve perfect cooking results. The electronic programmer with digital display allows for precise control over cooking start and end times.
4.1. Panneau de configuration terminéview
The oven features an intuitive control panel with a digital display for setting temperature, time, and selecting cooking functions.
Figure 2 : Intérieur view of the oven cavity, highlighting the fan and rack supports.
4.2. Fonctions de cuisson
The oven includes the following cooking functions:
- Cuisine traditionnelle : Idéal pour la cuisson au four et le rôtissage.
- Rapid Grill: For quick grilling and browning.
- Eco-ventilated Cooking: Energy-efficient cooking with fan assistance.
- Fonction pizza : Specialized setting for perfect pizzas.
- Cuisson ventilée : Assure une répartition uniforme de la chaleur pour une cuisson sur plusieurs niveaux.
- PlusSteam: Adds steam during cooking for enhanced results.
- Double Ventilated Grill: Combines grilling with fan for faster, more even results.
- Final Cooking: For finishing dishes.
- Lumière: Illumine l'intérieur du four.
4.3. Using the Pizza Function
The dedicated Pizza Function ensures high temperatures for quick and crispy pizza results.
Video 2: Hisense Oven Pizza Mode. This video demonstrates how to use the pizza mode in an oven, highlighting the high temperature for quick cooking and excellent results.
4.4. AirFry Function
The AirFry function allows for healthier and crispier dishes with less oil, thanks to optimized air circulation.
Video 3: Electrolux AirFry Oven. This video illustrates the AirFry function, showing how to prepare healthier and crispier food with minimal oil by selecting the dedicated program on the oven's control panel.
4.5. SurroundCook Technology
The SurroundCook technology ensures uniform heat distribution throughout the oven cavity, allowing for consistent cooking results on every level.
Video 4: Electrolux SurroundCook Series 500 - Always Uniform Cooking. This video highlights the SurroundCook feature, demonstrating how it provides even heat distribution for consistent cooking results across multiple levels in the oven.
5. Entretien et nettoyage
Regular cleaning and maintenance will prolong the life of your oven and ensure optimal performance. The KODGS20TX features an anti-fingerprint stainless steel finish and specialized cleaning functions.
5.1. Aqua Cleaning Function
The Aqua Cleaning function uses steam to loosen food residues, making cleaning easier. Simply pour water into the oven cavity and activate the function.
Video 5: Electrolux 600 Multifunction Oven - Aqua Clean. This video demonstrates the Aqua Clean function, showing how to use water and steam to easily clean the oven interior.
5.2. Pyrolytic Cleaning Function
For deeper cleaning, the pyrolytic function heats the oven to a very high temperature, turning food residues into ash that can be easily wiped away.
Video 6: Pyrolytic Cleaning for Brilliant Results. This video explains the pyrolytic self-cleaning function, illustrating how high temperatures convert food residues into ash for easy removal, keeping the oven like new.
5.3. Nettoyage général
For daily cleaning, wipe the interior and exterior surfaces with a soft cloth and mild detergent. The anti-fingerprint stainless steel finish helps keep the exterior looking pristine.
Figure 3: Close-up of the oven interior, highlighting the fan and the easy-to-clean Clear'n Clean enamel.
6. Dépannage
If you encounter any issues with your oven, please refer to the following common troubleshooting tips before contacting customer service.
| Problème | Cause possible | Solution |
|---|---|---|
| Le four ne s'allume pas | Pas d'alimentation électrique ; disjoncteur déclenché. | Vérifiez la connexion électrique et le disjoncteur. |
| Résultats de cuisson inégaux | Position de la grille incorrecte ; four non préchauffé ; porte ouverte trop fréquemment. | Use recommended rack positions; preheat oven fully; avoid opening door unnecessarily. |
| L'éclairage du four ne fonctionne pas | L'ampoule doit être remplacée. | Replace the oven light bulb (refer to the full manual for instructions). |
| Code d'erreur à l'écran | Défaut interne. | Turn off the oven at the main power supply for a few minutes, then restart. If the error persists, contact customer service. |
For more detailed troubleshooting, please consult the comprehensive manual or contact Electrolux customer support.
7. Spécifications
Here are the key specifications for your Electrolux KODGS20TX Multifunction Oven:
- Marque: Electrolux
- Modèle: KODGS20TX
- Taper: Four encastrable multifonction
- Couleur: Argent (Acier inoxydable)
- Finition: Anti-fingerprint Stainless Steel
- Méthode de chauffage : Convection and Radiation
- Type de carburant : Électrique
- Classe énergétique : A
- Dimensions (Profondeur x Largeur x Hauteur) : 56.8P x 58.9l x 56.8H cm (568 x 589 x 568 mm)
- Poids: 29.3 kg
- Caractéristiques spéciales : Halogen Light, Aqua Cleaning Function, VelvetClosing Door, Electronic Programmer with Digital Display, InfiSpace™ XL Cavity and Tray, Pizza Function, PlusSteam.
- Sens d'ouverture de la porte : Devant
8. Garantie et assistance
Your Electrolux KODGS20TX oven comes with a manufacturer's warranty:
- Private Individuals: 2 ans
- Entreprises : 1 an
For warranty claims, technical assistance, or spare parts, please contact Electrolux customer service or visit the official Electrolux website. Ensure you have your product model number (KODGS20TX) and serial number ready when contacting support.
You can find more information and support on the official Electrolux website: www.electrolux.com
