PFAFF Admire AIR 5000 Overlock Machine User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your PFAFF Admire AIR 5000 overlock machine. Please read this manual thoroughly before using the machine and keep it for future reference.

2. Consignes de sécurité

Respectez toujours les consignes de sécurité de base lors de l'utilisation d'appareils électriques afin de réduire les risques d'incendie, d'électrocution ou de blessures.

• Lisez toutes les instructions avant d’utiliser cette machine.
• Gardez les doigts éloignés de toutes les pièces mobiles. Une attention particulière est requise autour de l'aiguille de la machine à coudre.
• Always use the correct needle plate. The wrong plate can cause the needle to break.
• Ne tirez pas sur le tissu et ne le poussez pas pendant la couture. Cela pourrait dévier l'aiguille et la casser.
• Unplug the machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.
• The machine will not operate if the front cover is not properly closed, ensuring user safety.

3. Produit terminéview

The PFAFF Admire AIR 5000 is an advanced overlock machine designed for precise and versatile sewing. Key features include:

• Air Threading System: Effortlessly thread the loopers with the push of a lever.
• Enfile-aiguille intégré : Simplifies threading of both right and left needles.
• Adjustable Differential Feed: Ensures smooth seams, preventing stretching or puckering on various fabrics.
• Éclairage LED : Provides clear illumination of the sewing area.
• Paramètres réglables : Control stitch length, cutting width, and presser foot pressure for optimal results.
• Extra High Presser Foot Lift: Accommodates multiple layers of fabric or bulky materials.
• Interrupteur de sécurité: Prevents machine operation if the front cover is open.
• Options de points polyvalentes : Offers 2/3/4 thread overlock for 15 different stitches, including wide and narrow overlock, rolled edge, flatlock, and stretch overlock.
• Contrôle électronique de la vitesse : Maintains full piercing power at all speeds, up to 1300 stitches per minute.
• Integrated Waste Tray: Collects fabric scraps for a cleaner workspace.

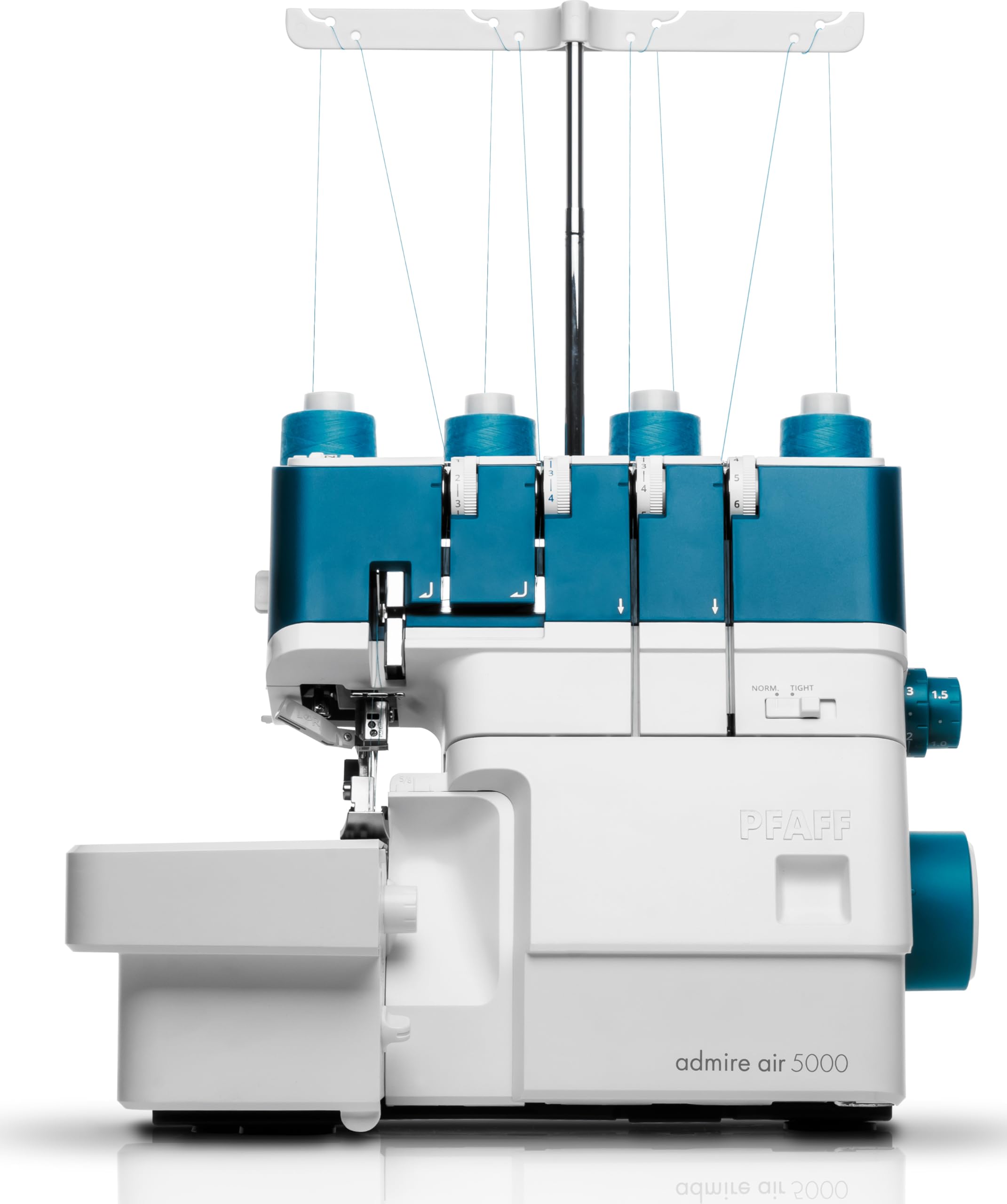

Image: PFAFF Admire AIR 5000 Overlock Machine, showcasing its compact design and threading components.

4. Installation

4.1 Déballage et installation

Carefully remove the machine and all accessories from the packaging. Place the machine on a stable, flat surface. Ensure adequate space around the machine for fabric handling and ventilation.

4.2 Connexion d'alimentation

Connect the power cord to the machine and then to a suitable electrical outlet. Ensure the power switch is in the 'OFF' position before connecting.

4.3 Thread Spool Setup

Place the thread spools onto the spool pins. Use the provided spool caps and nets if necessary to ensure smooth thread unwinding.

4.4 Attaching the Waste Tray

Locate the waste tray and attach it to the designated area on the machine, typically below the cutting knife, to collect fabric trimmings.

5. Mode d'emploi

5.1 Enfilage de la machine

The PFAFF Admire AIR 5000 features an innovative air threading system for the loopers and a built-in needle threader for the needles, making the process significantly easier.

1. Looper Threading (Air System): Open the front cover. Follow the color-coded threading paths. Insert the looper thread into the air threading port and press the air threading lever. The machine will automatically guide the thread through the loopers.
2. Enfilage de l'aiguille : Use the built-in needle threader for quick and easy threading of the right and left needles. Follow the color-coded guides for the needle threads.

5.2 Sélection et réglage des points

Your machine offers 15 different stitch types using 2, 3, or 4 threads. Adjustments for optimal stitch quality are made using the control dials.

• Type de point : Refer to the stitch chart in your full manual to select the appropriate stitch for your project.
• Longueur du point : Use the stitch length dial to adjust the length of your stitches.
• Largeur de coupe : Adjust the cutting width to trim the fabric edge precisely.
• Alimentation différentielle : Use the differential feed lever to control fabric feeding. Adjust to prevent stretching on knits or puckering on fine fabrics.
• Pression du pied-de-biche : Adjust the presser foot pressure according to the fabric thickness.

5.3 Couture

With the machine threaded and settings adjusted, you are ready to sew.

1. Relevez le pied presseur.
2. Place the fabric under the presser foot, aligning the edge with the cutting knife.
3. Abaissez le pied presseur.
4. Press the foot controller to start sewing. Guide the fabric gently.

6. Entretien

Un entretien régulier garantit la longévité et les performances optimales de votre surjeteuse.

• Nettoyage: Regularly clean lint and dust from the machine, especially around the loopers, knives, and feed dogs. Use the provided brush and remove the waste tray for easy disposal of scraps.
• Remplacement de l'aiguille : Replace needles frequently, especially when working with new projects or if they become dull or bent. Always use the correct type and size of needles for your machine and fabric.
• Lubrification: Refer to your full instruction manual for specific lubrication points and frequency.

7. Dépannage

En cas de problème, consultez cette section avant de contacter le service client.

• Points sautés : Check if the needles are inserted correctly, if they are bent or dull, or if the machine is threaded properly. Ensure you are using the correct needle type for your fabric.
• Rupture du fil : Verify correct threading, proper tension settings, and that the thread is not snagging anywhere. Check for burrs on the needle plate or loopers.
• Froncement/étirement du tissu : Adjust the differential feed setting. Increase differential feed for knits to prevent stretching, or decrease it for fine fabrics to prevent puckering. Adjust presser foot pressure.
• La machine ne démarre pas : Ensure the power cord is securely plugged in, the power switch is on, and the front cover is fully closed (safety switch engaged).

8. Spécifications

9. Garantie et assistance

For warranty information and customer support, please refer to the documentation included with your product or visit the official PFAFF webConsultez le site. Conservez votre preuve d'achat pour toute réclamation au titre de la garantie.
