KastKing Spartacus Baitcasting Fishing Reel User Manual

1. Introduction

Thank you for choosing the KastKing Spartacus Baitcasting Fishing Reel. This manual provides essential information for the proper setup, operation, and maintenance of your new fishing reel. Please read these instructions carefully before using the reel to ensure optimal performance and longevity.

2. Produit terminéview

The KastKing Spartacus Baitcasting Reel is engineered for performance and durability, featuring a robust design suitable for various fishing conditions. This model is specifically designed for left-handed retrieval.

Figure 2.1: KastKing Spartacus Baitcasting Fishing Reel (Left Handed)

2.1 Composants clés

Familiarize yourself with the main parts of your baitcasting reel:

• Poignée: Used for retrieving line. On this left-handed model, the handle is on the left side.
• Bobine: Holds the fishing line.
• Étoile de réglage de la traînée : Contrôle la tension de freinage.
• Braking System Dial: Adjusts the magnetic braking for casting control.
• Thumb Bar/Clutch Button: Permet d'engager et de désengager la bobine pour le lancer.
• Guide des lignes : Guides the line evenly onto the spool during retrieval.

Figure 2.2 : Vue éclatée View of Reel Components

2.2 Identifying a Left-Handed Reel

A left-handed baitcasting reel features the handle on the left side of the reel body. This allows anglers to cast with their right hand and immediately switch to retrieving with their left hand without changing hands.

Figure 2.3: Left-Handed Reel Identification Diagram

3. Installation

3.1 Fixation du moulinet à une canne à pêche

1. Alignez le pied du moulinet avec le porte-moulinet de votre canne à pêche.
2. Tighten the reel seat's locking nut until the reel is securely fastened. Ensure there is no wobble.

3.2 Spooling Fishing Line

1. Pass the fishing line through the line guide on the reel.
2. Tie the line to the spool using an arbor knot or a similar secure knot.
3. Close the bail (if applicable) or engage the spool.
4. Maintain light tension on the line as you reel it onto the spool, ensuring it lays evenly. Fill the spool to approximately 1/8 inch from the rim.

Figure 3.1: Reel attached to rod with line spooled

4. Mode d'emploi

4.1 Moulage

1. Appuyez sur le bouton-poussoir pour désengager la bobine.
2. Hold the line with your thumb on the spool to prevent it from unwinding prematurely.
3. Make your cast. As the lure flies, release your thumb from the spool.
4. Just before the lure hits the water, gently feather the spool with your thumb to slow it down and prevent backlash.
5. Engage the reel by turning the handle or pressing the thumb bar again (depending on the model).

4.2 Récupération

Turn the handle in a clockwise direction (for a left-handed reel) to retrieve the line. The line guide will move back and forth, ensuring even line lay on the spool.

4.3 Drag Adjustment

The drag system controls the amount of force required to pull line from the reel. Adjust the drag by turning the star-shaped knob located next to the handle. Turn clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag to approximately 25-30% of your line's breaking strength.

Figure 4.1: Multi-Disk Carbon Fiber Drag System

4.4 Système de freinage

The Spartacus reel features a magnetic braking system to control spool rotation during casting and minimize backlash. Adjust the external dial to increase or decrease the magnetic force. Higher settings provide more braking, which is useful for beginners or windy conditions. Lower settings allow for longer casts but require more thumb control.

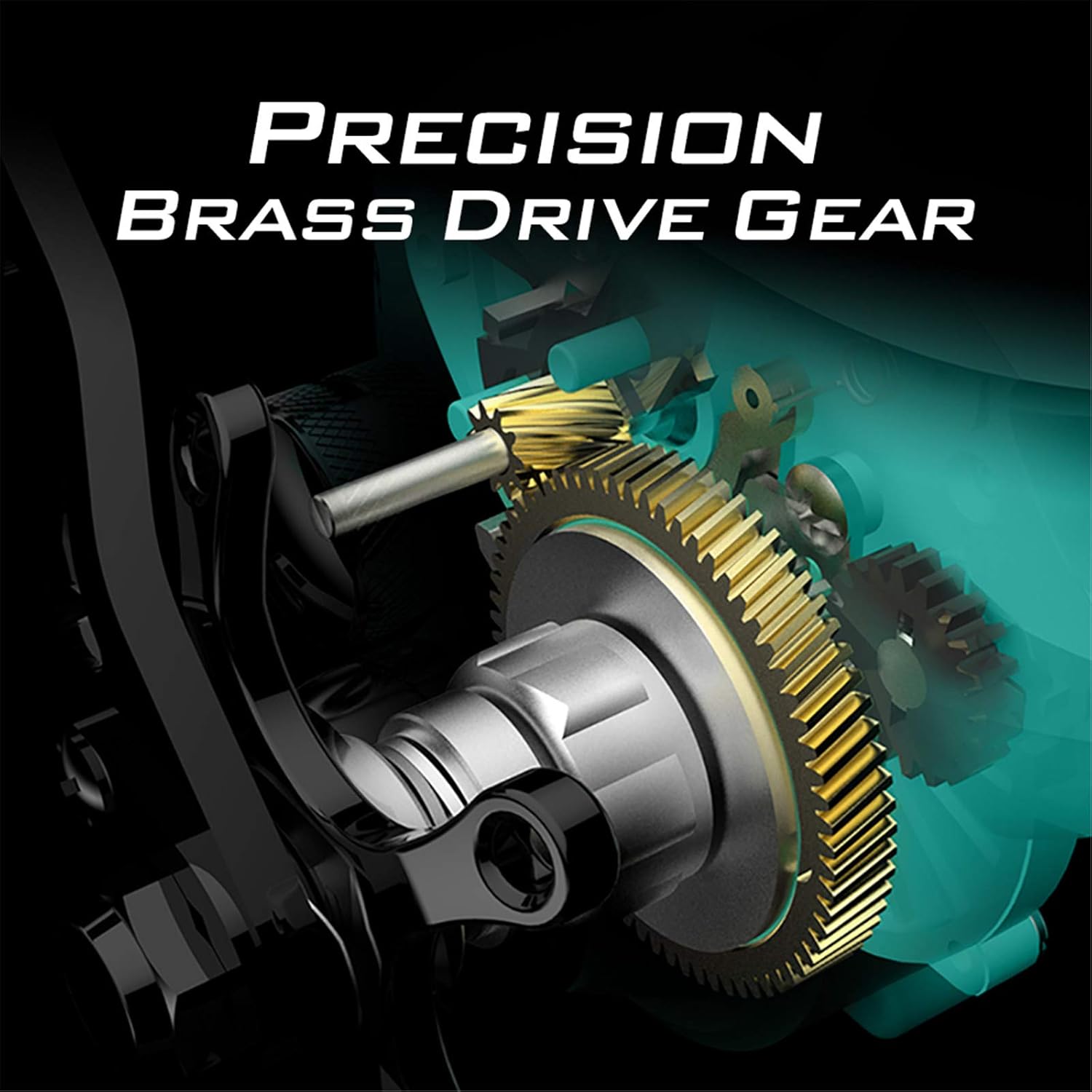

Figure 4.2: Precision Brass Drive Gear

Figure 4.3: Maxidur Shielded Ball Bearing System

5. Entretien

Regular maintenance will extend the life and performance of your KastKing Spartacus reel.

5.1 Nettoyage

1. Après chaque utilisation, surtout en eau salée, rincez le moulinet à l'eau douce. Ne plongez pas le moulinet dans l'eau.
2. Essuyez la bobine avec un chiffon doux.
3. Use a cotton swab to clean hard-to-reach areas and remove any debris.

5.2 Lubrification

1. Periodically apply a small amount of high-quality reel oil to moving parts such as the handle knobs, worm gear (line guide shaft), and spool shaft.
2. Apply a thin layer of reel grease to the main gears if you disassemble the reel for deeper cleaning. Consult a professional if unsure about disassembly.

5.3 Stockage

Rangez votre moulinet dans un endroit sec et frais, à l'abri de la lumière directe du soleil et des températures extrêmes. Pensez à utiliser une housse pour le protéger de la poussière et des rayures.

6. Dépannage

• Backlash (Bird's Nest): This occurs when the spool spins faster than the line is leaving the reel during a cast. To reduce backlash, increase the magnetic brake setting, use more thumb control, or adjust the spool tension knob (if present) to allow the lure to fall slowly when the thumb bar is pressed.
• Stiff Handle/Grinding Noise: This often indicates a need for cleaning and lubrication. Follow the maintenance steps in Section 5. If the issue persists, internal components may be damaged or worn.
• Drag Slipping or Inconsistent: Ensure the drag star is tightened appropriately. If the issue continues, the drag washers may be dirty, worn, or require lubrication with specialized drag grease.
• Line Not Laying Evenly: Check the line guide for obstructions or damage. Ensure the line is spooled correctly with appropriate tension.

7. Spécifications

8. Garantie et assistance

KastKing products are manufactured to high-quality standards. For information regarding warranty coverage, product registration, or technical support, please refer to the official KastKing webConsultez le site ou contactez directement leur service client. Conservez votre reçu d'achat comme preuve d'achat.

Pour obtenir de l'aide supplémentaire, visitez le KastKing Store on Amazon.
