1. Introduction
Thank you for choosing the Pigeon By Stovekraft Favourite 1800-Watt Induction Cooktop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

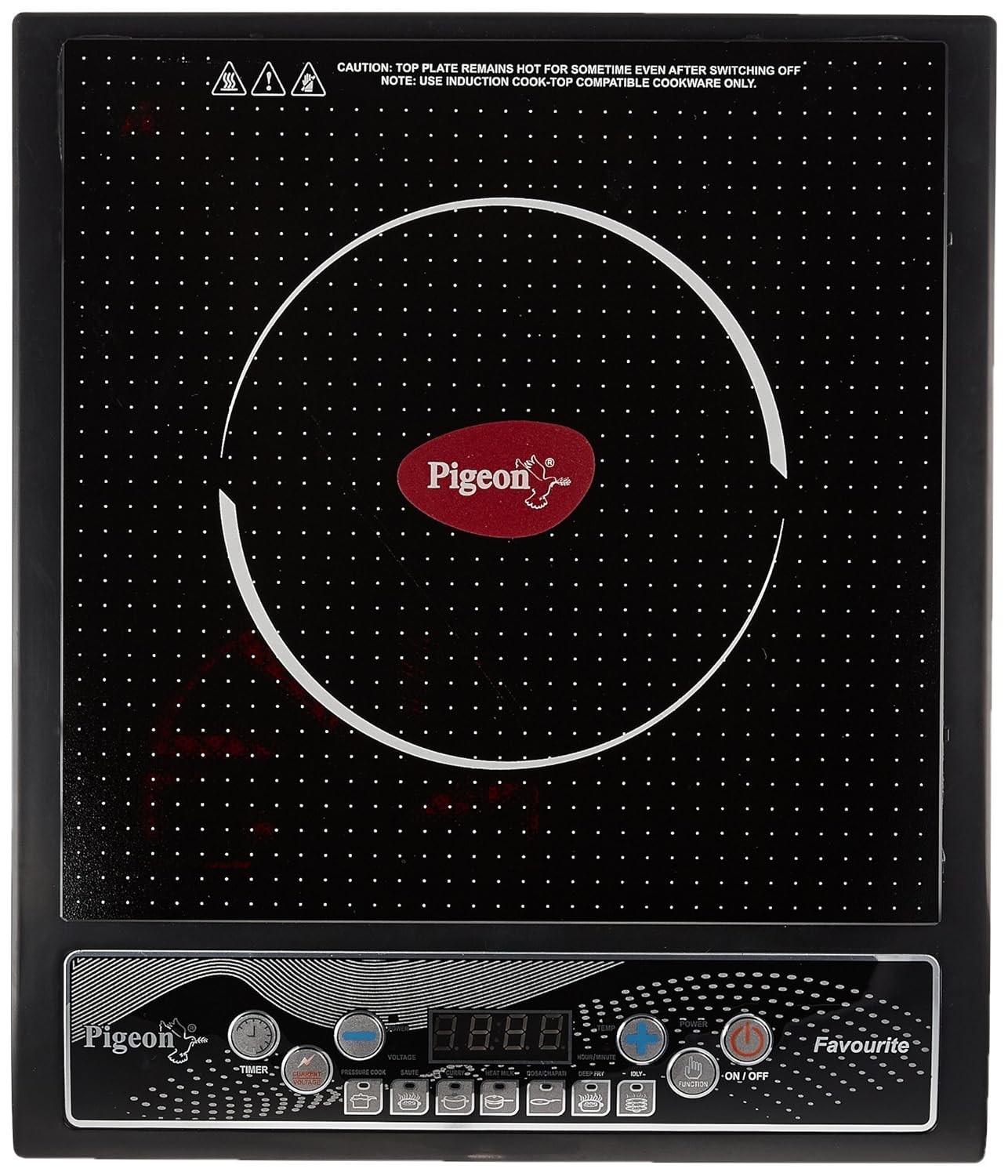

Image 1.1 : Terminéview of the Pigeon By Stovekraft Favourite 1800-Watt Induction Cooktop.
2. Consignes de sécurité importantes
Pour garantir un fonctionnement sûr et éviter tout dommage, veuillez respecter les consignes de sécurité suivantes :
- The induction cooktop must not be operated if the power cord or plug is damaged. To avoid electric shock, contact a qualified electrician for repair.
- Do not attempt to modify parts or repair the induction cooktop yourself. Always contact a qualified electrical professional for service.
- Use a dedicated power socket with the required power rating to prevent fire hazards.
- Clean the induction cooktop with a moist, dry cloth. Do not use chemical cleaners, abrasive materials, or steel wool, as these can damage the surface.
- Avoid blocking the air inlet/outlet vents with plastic bags or cloths to ensure proper ventilation.
- Do not leave an empty pot or pan on the cooktop for extended periods when in operation, as this can cause damage.
- To prevent cracks or damage to the cooktop plate, avoid using sharp tools like knives or forks directly on the surface.
- Ensure adequate ventilation for the exhaust vent to prevent overheating and damage.
Vidéo 2.1 : Un court pré-view highlighting key features and safety aspects of the Pigeon Induction Cooktop, including push-button controls, elegant design, 7 Indian preset menus, dual heat sensor, and automatic shut-off.
3. Produit terminéview
Familiarize yourself with the components of your induction cooktop:
- Surface de cuisson : The crystal glass top where cookware is placed.
- Panneau de contrôle: Features push buttons for various functions and a digital display.
- Cordon d'alimentation : Pour brancher l'appareil à une prise électrique.
- Ouvertures de ventilation : Located on the sides and bottom for heat dissipation.
Image 3.1 : Gros plan view of the control panel, showing buttons for Timer, Power/Voltage adjustment, Temperature adjustment, On/Off, Function, and preset menus (Pressure Cook, Saute, Curry, Heat Milk, Dosa/Chapati, Deep Fry, Idly).
Image 3.2 : Côté view of the induction cooktop, illustrating the ventilation grilles and the attached power cord.
4. Installation
Follow these steps to set up your induction cooktop:
- Déballage: Retirez délicatement la plaque de cuisson de son emballage. Conservez les matériaux d'emballage pour un transport ou un stockage ultérieur.
- Placement: Place the cooktop on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the appliance for proper ventilation, especially around the air inlet and outlet vents. Avoid placing it near water sources or heat-sensitive materials.
- Connexion électrique : Plug the power cord into a dedicated 240V electrical outlet. Ensure the outlet meets the required power specifications for the 1800-watt cooktop.
- Compatibilité des ustensiles de cuisine : Use only induction-compatible cookware. This typically includes pots and pans made of ferromagnetic materials (e.g., cast iron, magnetic stainless steel) with a flat bottom. If a magnet sticks to the bottom of your cookware, it is generally induction compatible.
Image 4.1: Illustration showing the approximate dimensions of the induction cooktop (13 inches / 33 cm in width), useful for placement considerations.
5. Mode d'emploi
Operating your Pigeon Induction Cooktop is straightforward:
- Marche/Arrêt : Appuyez sur le MARCHE/ARRÊT button to turn the cooktop on or off. The digital display will illuminate when powered on.
- Placer les ustensiles de cuisine : Place induction-compatible cookware containing food or liquid onto the center of the cooking surface. The cooktop will not activate without suitable cookware.
- Réglage de la puissance/température : Utilisez le + et - boutons pour régler le niveau de puissance (watts)tage) or temperature. The digital display will show the current setting. Power can typically be adjusted from 400W to 1800W.
- Using Preset Menus: The cooktop features 7 Indian preset menus for common cooking tasks: Pressure Cook, Saute, Curry, Heat Milk, Dosa/Chapati, Deep Fry, et Paresseusement. Press the corresponding button for the desired function. The cooktop will automatically set an appropriate power level and duration.
- Réglage de la minuterie : Appuyez sur le MINUTEUR button to activate the timer function. Use the + et - buttons to set the desired cooking time in minutes. The cooktop will automatically shut off once the timer expires.
- Arrêt automatique: The cooktop is equipped with an automatic shut-off feature for safety. It will turn off after a period of inactivity or if no suitable cookware is detected.
6. Entretien et nettoyage
Proper maintenance ensures the longevity and performance of your induction cooktop:
- Nettoyage de la surface : After each use, allow the cooktop to cool completely. Wipe the crystal glass surface with a soft, damp cloth. For stubborn stains, use a mild detergent specifically designed for ceramic or induction cooktops. Avoid abrasive cleaners, scouring pads, or harsh chemicals.
- Nettoyage des conduits d'aération : Periodically check the air inlet and outlet vents for dust or debris. Use a soft brush or vacuum cleaner to gently clear any blockages to ensure proper airflow.
- Nettoyage extérieur : Wipe the exterior plastic body with a soft, damp cloth. Do not immerse the cooktop in water or any other liquid.
- Stockage: Si vous rangez la plaque de cuisson pendant une période prolongée, assurez-vous qu'elle soit propre et sèche. Rangez-la dans un endroit frais et sec, de préférence dans son emballage d'origine.
7. Dépannage
Si vous rencontrez des problèmes avec votre plaque à induction, consultez les problèmes et solutions courants suivants :
| Problème | Cause possible | Solution |
|---|---|---|
| La plaque de cuisson ne s'allume pas. | No power supply; power cord not properly plugged in; faulty outlet. | Vérifiez que le cordon d'alimentation est bien branché dans une prise fonctionnelle. Testez la prise avec un autre appareil. |
| La plaque de cuisson s'allume mais ne chauffe pas. | Cookware is not induction compatible; cookware is too small or too large; no cookware on the surface. | Ensure you are using induction-compatible cookware (ferromagnetic, flat bottom). Place suitable cookware on the center of the cooking zone. |
| La plaque de cuisson émet un bourdonnement ou un vrombissement. | Normal operation sound; fan operating; cookware material. | This is often normal. The cooling fan operates during and after cooking. Some cookware materials may produce a slight hum. |
| La plaque de cuisson s'éteint inopinément. | Overheating; no cookware detected; timer expired. | Check for proper ventilation. Ensure cookware is on the surface. Reset the timer if applicable. Allow the unit to cool if it overheated. |
Note importante concernant les ustensiles de cuisine : Many operational issues stem from using unsuitable cookware. The Pigeon Induction Cooktop requires ferromagnetic cookware (cookware that a magnet will stick to) with a flat base to function correctly.
8. Spécifications
Key technical specifications for the Pigeon By Stovekraft Favourite Induction Cooktop:
- Modèle: Préféré
- Quoitage: 1800 watts
- Voltage: 240 volts
- Matériel: Plastic (body), Crystal Glass (cooktop surface)
- Type de contrôles: Bouton poussoir
- Dossier spécial : Portable
- Nombre d'éléments chauffants : 1
- Poids de l'article : 1.99 kg
- Composants inclus : Only Induction Cooktop
9. Garantie et assistance
Your Pigeon By Stovekraft Favourite Induction Cooktop comes with a warranty and support:
- Garantie: This product includes a 1-year warranty on the product from the date of purchase. Please retain your purchase receipt as proof of warranty.
- Service client : For any installation assistance, service, or repair needs, please contact Pigeon customer care. Do not attempt to service the appliance yourself.
