Einhell GE-TM 102 B&S Ride-On Lawnmower Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Einhell GE-TM 102 B&S ride-on lawnmower. Please read all instructions carefully before using the machine to ensure proper function and to prevent injury or damage.

The Einhell GE-TM 102 B&S is a self-propelled ride-on lawnmower equipped with a B&S Intek 4175 engine, offering a powerful 12.8 kW output and a wide cutting width of 102 cm. It features a 270-liter grass collection box, two blades, and a cutting height adjustable in 6 positions from 30-90 mm. The mower includes a pedal-operated continuous hydraulic drive, rear discharge, an anti-obstacle bar, and integrated lighting.

1. Mise en place et préparation initiale

1.1 Déballage et montage

Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Assembly typically involves attaching the steering wheel, seat, and grass collection box. Refer to the detailed assembly diagrams in the separate assembly guide for specific steps.

1.2 Carburant et huile

The B&S Intek 4175 engine requires unleaded gasoline. Fill the fuel tank according to the markings, avoiding overfilling. Check the engine oil level before first use and regularly thereafter. Use the recommended engine oil type as specified in the engine manual.

1.3 Connexion de la batterie

Although batteries are not included, a 12V battery is required for starting the engine and powering the lights. Connect the battery terminals correctly, ensuring a secure fit. Refer to the battery manufacturer's instructions for initial charging and maintenance.

1.4 Seat and Steering Adjustment

Adjust the operator's seat to a comfortable position that allows full control of the pedals and steering wheel. Ensure the steering wheel is securely fastened.

Image 1: Dashboard controls including ignition and light switch. This panel is crucial for starting the mower and operating its electrical functions.

2. Mode d'emploi

2.1 Démarrage du moteur

1. Assurez-vous que le frein de stationnement est serré.
2. Place the gear selector in neutral.
3. Tournez la clé de contact sur la position « DÉMARRAGE ». Relâchez la clé une fois le moteur démarré.
4. Allow the engine to warm up for a few moments before engaging the blades or driving.

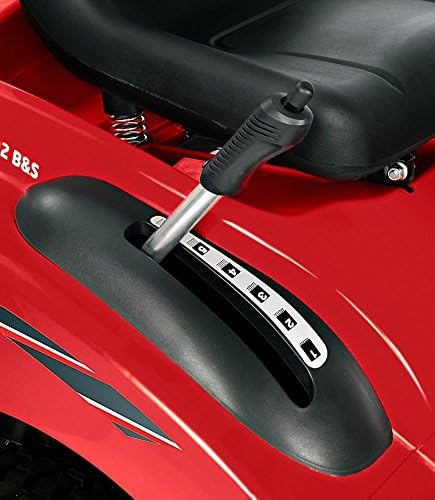

Image 2: Gear selector lever. This lever controls the forward and reverse speeds of the mower.

2.2 Conduite et tonte

• Lames engageantes : Once the engine is running, engage the blade lever carefully.
• Conduite: Release the parking brake. Use the foot pedal for continuous hydraulic drive to control forward and reverse motion.
• Réglage de la hauteur de coupe : The cutting height can be adjusted in 6 positions, from 30 mm to 90 mm, using the dedicated lever. Adjust according to grass length and desired finish.
• Collection Grass : The 270-liter grass collection box efficiently gathers clippings. Monitor the fill level and empty as needed.

Image 3: Grass collection box. This image shows the large 270-liter grass collection box, which can be easily lifted for emptying.

2.3 Précautions de sécurité pendant le fonctionnement

• Portez toujours l'équipement de sécurité approprié, notamment des lunettes de protection et des chaussures robustes.
• Gardez les enfants et les animaux domestiques éloignés de la zone d’opération.
• Never operate the mower on steep slopes or uneven terrain where stability is compromised.
• Turn off the engine and remove the key before leaving the operator's seat or performing any adjustments.
• Be aware of the anti-obstacle bar for safety when maneuvering.

3. Entretien

Regular maintenance ensures the longevity and optimal performance of your lawnmower. Always turn off the engine, remove the ignition key, and disconnect the spark plug wire before performing any maintenance.

3.1 Nettoyage

Clean the mower deck and chassis after each use to prevent grass clippings and debris from accumulating. Use a brush or compressed air. Avoid using high-pressure water directly on electrical components.

3.2 Entretien des lames

Inspect the cutting blades regularly for sharpness and damage. Dull or damaged blades should be sharpened or replaced by a qualified technician. Always ensure blades are balanced after sharpening.

3.3 Entretien du moteur

• Vidange: Changez l'huile moteur après les 5 premières heures de fonctionnement, puis toutes les 25 à 50 heures ou une fois par an, selon la première échéance.
• Filtre à air : Clean or replace the air filter regularly, especially in dusty conditions, to ensure proper engine performance.
• Bougie d'allumage: Inspectez et nettoyez la bougie d'allumage chaque année. Remplacez-la si elle est usée ou encrassée.

3.4 Entretien de la batterie

Check battery terminals for corrosion and clean as necessary. Ensure the battery is charged, especially during periods of non-use, to prolong its lifespan.

3.5 Stockage

For long-term storage, clean the mower thoroughly, drain the fuel tank or add a fuel stabilizer, and disconnect the battery. Store in a dry, protected area.

4. Dépannage

This section addresses common issues you might encounter. For problems not listed here or if solutions do not resolve the issue, contact qualified service personnel.

5. Spécifications techniques

6. Informations sur la garantie

Your Einhell GE-TM 102 B&S ride-on lawnmower is covered by a manufacturer's warranty. The specific terms and duration of the warranty may vary by region and purchase date. Please refer to the warranty card included with your product or visit the official Einhell website for detailed information regarding warranty coverage, conditions, and claims procedures.

Conservez votre preuve d'achat (reçu ou facture) car elle sera nécessaire pour toute réclamation au titre de la garantie.

7. Assistance clientèle

For technical assistance, spare parts, or service inquiries regarding your Einhell GE-TM 102 B&S lawnmower, please contact Einhell customer support. Contact details can typically be found on the Einhell websur le site ou dans la documentation fournie avec votre produit.

When contacting support, please have your model number (GE-TM 102 B&S or 3400620) and serial number readily available to expedite assistance.
