FAS IOL-716 Signal Converters Module
Specifications
- Ordering Code: 0AC041
- Part Number: FNI IOL-716-000-K023
- Type: 1AIPT100
Security
Expected use
This manual describes as decentralized input and output modules for connecting to an industrial network.
Installation and start-up
Precautions!
Installation and start-up may only be performed by trained personnel. A qualified individual is one who is familiar with the installation and operation of the product and has the necessary qualifications to perform such operations. Any damage caused by unauthorized operation or illegal and improper use is not covered by the manufacturer’s warranty. The equipment operator is responsible for ensuring that appropriate safety and accident prevention regulations are observed.
Corrosion resistance
Precautions!
FNI modules generally have good chemical and oil resistance.When used in corrosive media (e.g. high concentrations of chemicals, oils, lubricants, coolants and other material media (i.e. very low water content), these media must be checked before the corresponding application material compatibility.If a module fails or is damaged due to this corrosive medium, a defect claim cannot be made.
Dangerous voltage
Precautions!
Disconnect all power before using the device!
General security
| Debugging and inspection | Trouble | Owner/operator obligations | Expected use |
|
Before debugging, read the user manual carefully. | If the defect or equipment failure cannot be corrected, the operation of the equipment must be stopped to avoid damage that may be caused by unauthorized use. |
This equipment is an EMC Class A compliant product. This device produces RF noise. |
The warranty and limited liability statement provided by the manufacturer does not cover damage caused by: ·Unauthorized tampering ·Improper use operation ·The instructions provided in the user manual explain the use, installation and handling of discrepancies |
|
This system cannot be used in an environment where the safety of personnel depends on the functionality of the equipment. |
Only after the housing is fully installed can the intended use be assured. | The owner/operator must take appropriate precautions to use this equipment. | |
| This device can only use the power supply that matches this device, and can only connect cables approved for application. |
Component functional description
Module overview

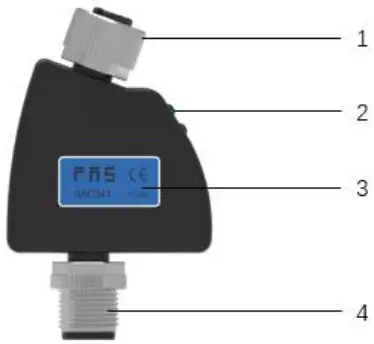

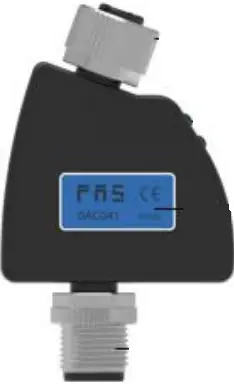

| Serial No. | 1 | 2 | 3 | 4 |
|
Name | Analogue input port | Status LED: Power, Communication |
Labels | IO-Link interface |
Interface definition

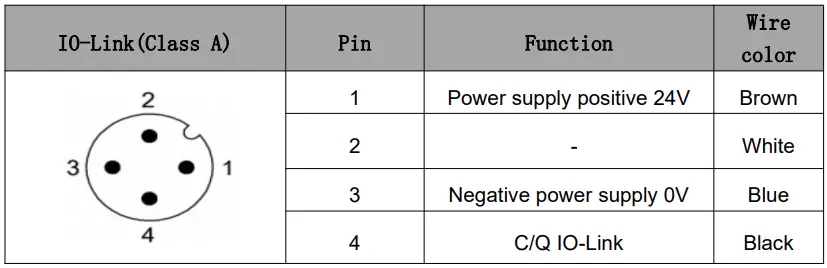

IO-Link interface (M12 A-coded)

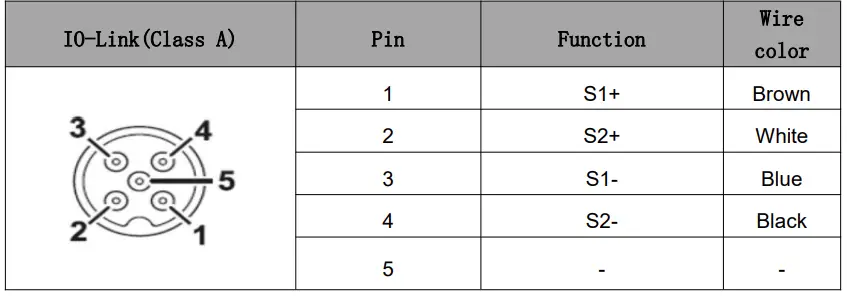

Analogue input interface definition
Status LED meter
| Status LED | State | Description |
|
Us | Green always on | Module power supply is normal |
| Closure | Module is not powered | |
| COM | Green always on | Communication abnormality |
| Green flashing | Communication is normal |
Wiring requirements

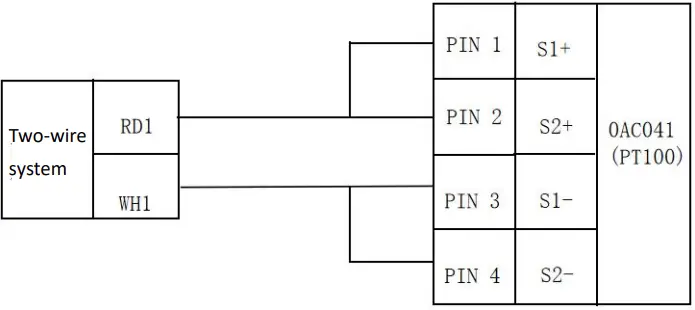

- Two-wire system

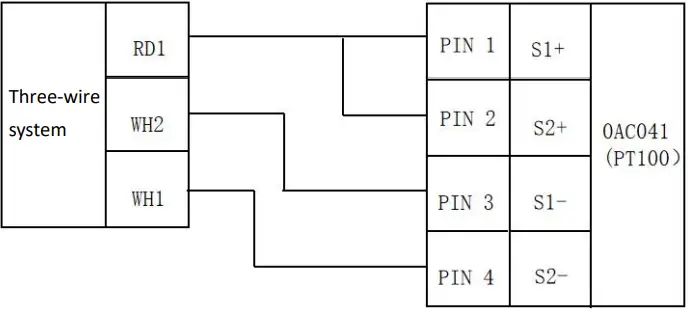

- Three-wire system

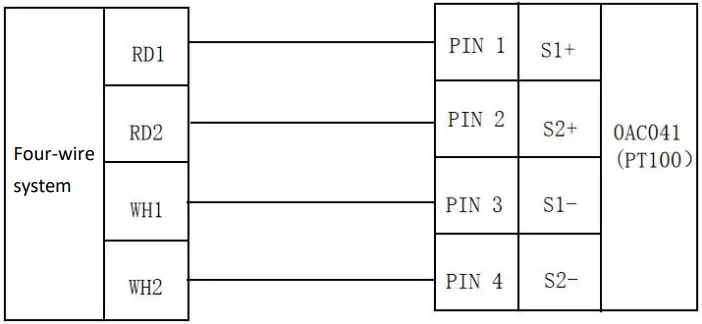

- Four wire system

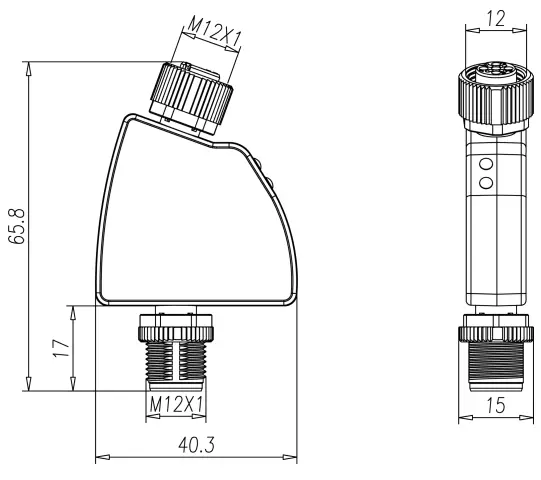

Mechanical dimensions
| Project | Specification |
| Dimensions (width x height x depth) | 40.3MMx65.8MMx15MM |
IO-Link data
Communication parameters
| Parameter | Content |
| Data transmission baud rate | COM2 (38.4kbit/s) |
| Minimum cycle time | 3ms |
| Process data cycle time | 3ms |
| Process data length | 2 bytes input |

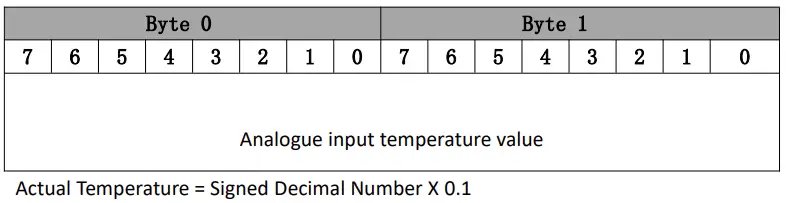

Process data
Service data
| SPDU | Object name | length (byte) | scope | Default value | ||
| Index | Subindex | |||||
| / | / | Supplier ID | 2 | / | 0x0454 | |
| / | / | Device ID | 3 | / | 0x099CE2 | |
|
Identification data | 0x10 | 0 | Supplier name | 19 |
Read only | FAS(Fujian)Co.,LTD |
| 0x11 | 0 | Supplier text | 16 | www.fas-elec.com | ||
| 0x12 | 0 | Product name | 13 | FNI IOL-716-000-K023 | ||
| 0x13 | 0 | Product ID | 5 | 0AC041 | ||
| 0x14 | 0 | Product text | 44 | IO-Link M12 1AI PT100 | ||
| 0x16 | 0 | Hardware version | 3 | 20220330 | ||
| 0x17 | 0 | Software version | 3 | 2.01 | ||
Error code
| Error code | Additional code |
| Device application error 0x80 | Index not available 0x11 |
| Subindex not available 0x12 | |
| Value out of range 0x30 |
Event
| Class/qualifier | Code (high + low) | ||||||
| Model | Type | Instances | |||||
| Appear | Mistake | AL | Device hardware | Powered by | Power supply low voltage | U2=powered by+24V | |
| 0xC0 | 0x30 | 0x03 | 0x5000 | 0x0100 | 0x0010 | 0x0002 | |
| 0xF3 | 0x5112 | ||||||
| Disappear | Mistake | AL | Device hardware | Powered by | Power supply low voltage | U2=powered by+24V | |
| 0x80 | 0x30 | 0x03 | 0x5000 | 0x0100 | 0x0010 | 0x0002 | |
| 0xB3 | 0x5112 | ||||||
| Appear | Mistake | AL | Device hardware | Powered by | Power supply for peripherals | ||
| 0xC0 | 0x30 | 0x03 | 0x5000 | 0x0100 | 0x0060 | ||
| 0xF3 | 0x5160 | ||||||
| Disappear | Mistake | AL | Device hardware | Powered by | Power supply for peripherals | ||
| 0x80 | 0x30 | 0x03 | 0x5000 | 0x0100 | 0x0060 | ||
| 0xB3 | 0x5160 | ||||||
Ordering information
| Product ordering code | Order code |
| FNI IOL-716-000-K023 | 0AC041 |
High-quality products • Sincere service
Telephone: 0591-22991876
Technical support: +86 13306936805
Official website: www.faselec.com
Business support: +86 19905006938
Address: Room 009, A1, Building 1, National University Science and Technology Park Science and Technology Innovation Center, No. 6 Qiuyang East Road, Shangjie Town, Minhou County, Fujian Province.
FAQ
Q: What should I do if the module fails due to corrosive media?
A: If the module fails or is damaged due to corrosive media, a defect claim cannot be made. It is important to check material compatibility with corrosive media before installation.
Q: Can I use the device in environments with dangerous voltages?
A: No, disconnect all power before using the device to ensure safety.
Q: What precautions should I take when debugging the system?
A: Read the user manual carefully before debugging. Do not operate the equipment in environments where personnel safety depends on its functionality.
