1. مقدمه
Thank you for choosing the ZEAPON EVO D60 Motorized Camera Slider. This manual provides detailed instructions for the proper setup, operation, and maintenance of your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your slider.
Image 1.1: The ZEAPON EVO D60 Motorized Camera Slider, showcasinطراحی جمع و جور آن.
۲. چه چیزهایی در جعبه است؟
- ZEAPON EVO D60 Motorized Camera Slider Unit
- کابل شارژ USB-C
- Compact Travel Case
- راهنمای کاربر
3. راه اندازی
3.1 Mounting the Slider
The EVO D60 can be mounted on a tripod or placed on a flat surface. Ensure the mounting surface is stable and level to prevent movement during operation.
Image 3.1: The EVO D60 slider mounted on a tripod, ready for camera attachment.
3.2 وصل کردن دوربین
Secure your camera to the slider's mounting plate. Ensure the camera is firmly attached and balanced. The slider supports both horizontal and vertical loads within specified limits.
Image 3.2: Illustration of the horizontal load capacity, not exceeding 5kg.
Image 3.3: Illustration of the vertical load capacity, not exceeding 2.5kg.
3.3 روشن کردن دستگاه
Connect the USB-C cable to the slider for power. The side-mounted battery design ensures that the camera body does not interfere with control interfaces, eliminating the need for a ball head to elevate the camera and reducing instability risks.

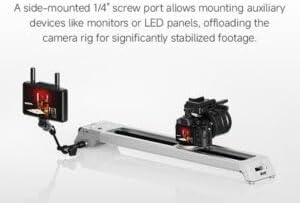

Image 3.4: Detail of the side-mounted battery compartment, designed for convenience and stability.
4. دستورالعمل های عملیاتی
4.1 Basic Movement and Speed Control
The EVO D60 features an ultra-quiet brushless motor for precise and silent operation. Adjust the speed using the dedicated control knob, ranging from 0.5mm/s to 57mm/s for smooth transitions.
Image 4.1: The control panel with speed dial and A/B point setup buttons.
4.2 Setting Waypoints (A/B Points)
You can set specific start (A) and end (B) points for automated movements. Use the dedicated buttons on the slider or the Zeapon Lab app to define these points. The slider also supports manual point selection.
4.3 Focus-Locked Orbital Shots and Panorama
Achieve mechanically stabilized orbital shots with up to 125° pan. The system keeps your subject centered, eliminating the need for post-production adjustments. The slider also supports precise panoramic movements.
Image 4.2: Close-up of the slider's mechanism for marking and returning to precise positions.
Image 4.3: The magnetic center return feature ensures consistent starting points.
4.4 کنترل برنامه
Utilize the Zeapon Lab app for advanced control, including setting waypoints, loop modes, and customizing shooting parameters. The app provides an intuitive interface for precise adjustments.
5. مشخصات
| ویژگی | مشخصات |
|---|---|
| مدل | EVO D60 |
| طول | 670 میلی متر |
| Lens Center Point Travel | 440 میلی متر |
| ظرفیت بار افقی | ≤5 کیلوگرم |
| ظرفیت بار عمودی | ≤2.5 کیلوگرم |
| حداقل سرعت | 0.5mm/s |
| حداکثر سرعت | 57mm/s |
| Maximum Panning Angle | 55 درجه |
| Maximum Panoramic Angle | 125 درجه |
| وزن خالص | 1.7 کیلوگرم |
| قدرت عملیاتی | 15 وات |
| حجم ورودیtage | USB-C: 5~12V / Battery: 7.2V~8.4V |
6. تعمیر و نگهداری
To ensure the longevity and optimal performance of your EVO D60 slider, follow these maintenance guidelines:
- تمیز کردن: Regularly wipe the slider rails and body with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive materials.
- ذخیره سازی: Store the slider in its compact travel case in a dry, cool environment when not in use.
- مراقبت از باتری: If using an external battery, ensure it is charged regularly, even during periods of non-use, to maintain battery health.
- بازرسی: به طور دورهای تمام پیچها و اتصالات را بررسی کنید تا از محکم بودن آنها اطمینان حاصل کنید.
7 عیب یابی
If you encounter issues with your EVO D60 slider, refer to the following common troubleshooting steps:
- Slider Not Moving:
- Ensure the slider is properly powered and the power button is engaged.
- Check for any obstructions on the slider rails.
- Verify that the load on the slider does not exceed the specified capacity.
- مشکلات اتصال برنامه:
- اطمینان حاصل کنید که بلوتوث در گوشی هوشمند شما فعال است.
- Restart the Zeapon Lab app and the slider.
- بهروزرسانیهای برنامه را بررسی کنید.
- صدای غیرمعمول:
- Inspect the rails for any foreign particles.
- Ensure the camera and any accessories are securely mounted and not causing imbalance.
If problems persist, please contact ZEAPON customer support for further assistance.
8. گارانتی و پشتیبانی
ZEAPON products are designed for reliability and performance. For warranty information and customer support, please refer to the official ZEAPON webبه سایت مراجعه کنید یا با توزیعکننده محلی خود تماس بگیرید. رسید خرید خود را به عنوان مدرک خرید برای موارد گارانتی نگه دارید.
برای پشتیبانی فنی یا سوالات، به [آدرس سایت] مراجعه کنید ZEAPON Store on Amazon or the official ZEAPON webسایت
