دفترچه راهنمای کیت تبدیل دوچرخه برقی LIVALL PikaBoost 2

1. مقدمه

This manual provides essential instructions for the safe and efficient use of your LIVALL PikaBoost 2 E-Bike Conversion Kit. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your device. The PikaBoost 2 is designed to transform a standard bicycle into an electric bike, offering assistance and extended range for various cycling needs.

2. اطلاعات ایمنی مهم

• Always use a 65W USB-C charger for the battery. Using an incompatible charger may damage the battery or pose a safety risk.
• The PikaBoost 2 is compatible only with bicycles featuring round seatposts with a diameter between 25-35mm (0.98-1.38 inches). Ensure your bike meets these specifications before installation.
• This product is not suitable for children's bicycles, tricycles, wheelchairs, D-shaped seat tubes, carbon fiber seat posts, or bikes with rear suspension.
• The motor is equipped with a gyroscope that automatically shuts off power if the unit tilts over 30°. An SOS alert will be triggered if the tilt exceeds 60°, enhancing safety on challenging terrains.
• Regularly inspect the V-shape tire for wear. The tire is designed for durability, lasting 3,000 to 5,000 km, but replacement may be necessary based on usage conditions.
• قبل از هر بار سواری مطمئن شوید که همه اجزا به طور ایمن بسته شده اند.
• Adhere to local traffic laws and regulations when operating an e-bike.

3. محتویات بسته

هنگام باز کردن بسته‌بندی، از موجود بودن و سالم بودن همه اقلام اطمینان حاصل کنید.

• LIVALL PikaBoost 2 Main Unit
• Rechargeable Battery (158Wh or 220Wh, depending on model)
• کنترل از راه دور بی سیم
• کابل شارژ USB-C
• براکت و سخت افزار نصب شده
• کیت ابزار
• راهنمای سریع

Image: Contents of the LIVALL PikaBoost 2 E-Bike Conversion Kit package.

4. محصول تمام شدview

The LIVALL PikaBoost 2 is a compact and versatile e-bike conversion kit designed for easy attachment to the rear wheel of compatible bicycles. It features a powerful motor, a long-lasting battery, and smart connectivity for an enhanced riding experience.

اجزای کلیدی:

• واحد اصلی: Houses the motor, battery, and control electronics. Attaches to the seatpost.
• چرخ محرک: The small wheel that makes contact with the bicycle's rear tire, providing propulsion.
• چراغ عقب: Integrated LED light for visibility and safety.
• کنترل از راه دور بی سیم: Allows for mode switching and speed adjustments during rides.
• باتری: Available in 158Wh or 220Wh capacities, providing power for the motor. Features a multi-layered Battery Management System (BMS) for safety.

Image: The LIVALL PikaBoost 2 E-Bike Conversion Kit main unit and remote control.

5. راه اندازی و نصب

۱.۱ بررسی سازگاری

Before installation, ensure your bicycle meets the following criteria:

• Bike Models: Most common hardtail bikes (mountain bikes, road bikes, hybrid bikes, folding bikes).
• اندازه چرخ: 35.6–73.7 cm (14–29 inches).
• Seat Tube Type: Round tube.
• Seat Tube Length: Over 50 mm (1.97 inches).
• Seat Tube Diameter: 25–35 mm (0.98–1.38 inches).
• Tire Width:
  • V-shaped Tire: 25–65 mm (1.0–2.6 inches)
  • Road Tire: 23–32 mm (0.9–1.3 inches)
  • Mountain Tire: 45–65 mm (1.8–2.6 inches)

Note: Not suitable for tricycles, wheelchairs, D-shaped seat tubes, carbon fiber seat posts, or rear-suspension bikes.

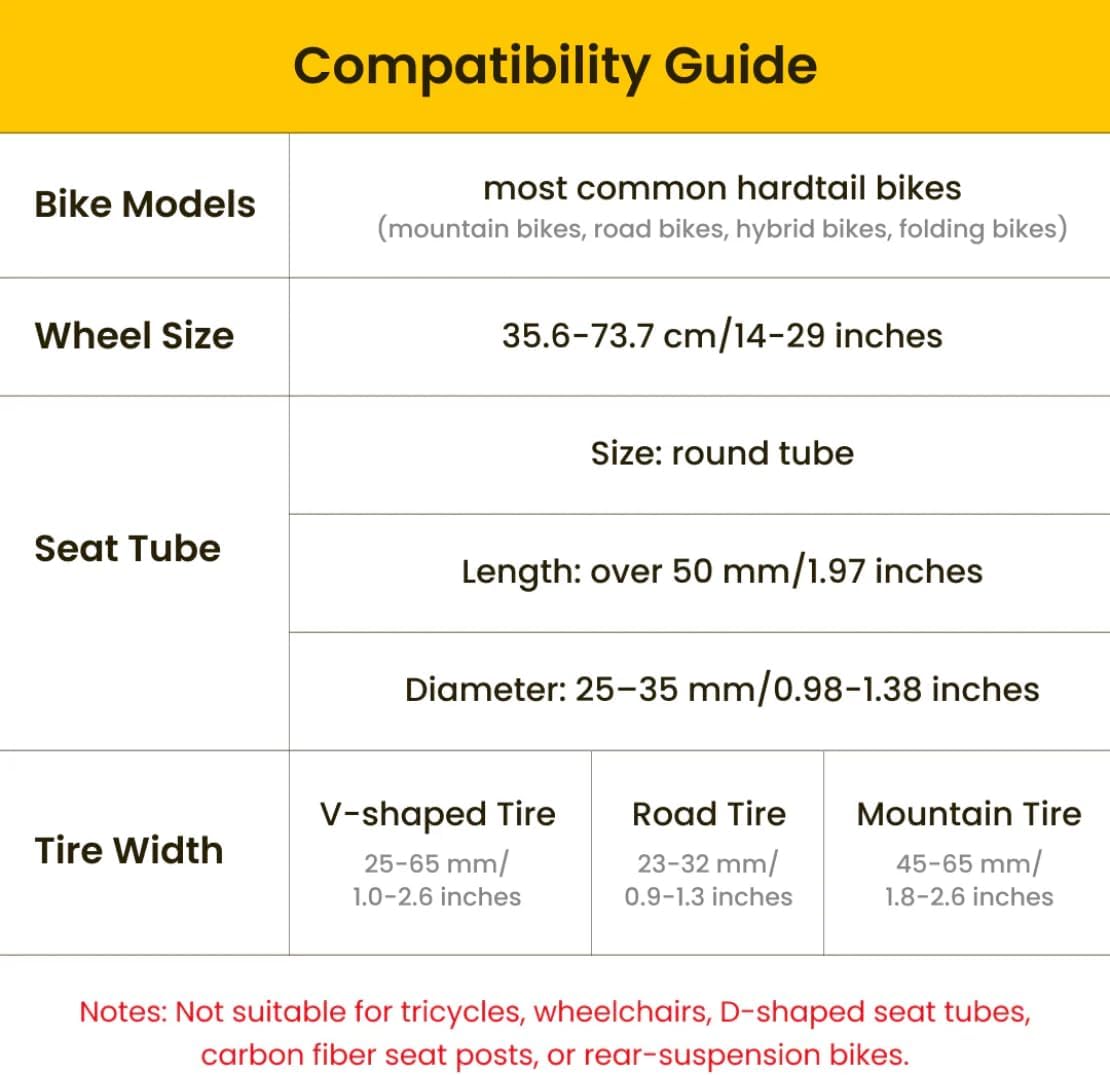

Image: Detailed compatibility guide for the PikaBoost 2.

5.2 Mounting the PikaBoost 2 Unit

1. Attach the mounting bracket to your bicycle's seatpost. Ensure it is securely tightened according to the quick guide instructions.
2. Slide the PikaBoost 2 main unit onto the mounting bracket until it clicks into place. Verify that the drive wheel makes proper contact with the rear bicycle tire.
3. Adjust the unit's position to ensure optimal contact and alignment with the tire.

Image: PikaBoost 2 unit installed on a bicycle.

Video: Demonstration of installing the PikaBoost 2 unit onto a bicycle seatpost.

۳.۳ شارژ اولیه باتری

Before first use, fully charge the PikaBoost 2 battery.

1. Connect the USB-C charging cable to the charging port on the PikaBoost 2 unit.
2. Connect the other end of the cable to a 65W USB-C power adapter (not included).
3. The charging indicator lights will illuminate. Charge until all lights are solid, indicating a full charge.

Video: Illustrates the process of charging the PikaBoost 2 battery.

5.4 App Connection and Calibration

Download the official LIVALL app from your smartphone's app store. The app allows for automatic installation, calibration, and advanced control features.

1. اطمینان حاصل کنید که بلوتوث در گوشی هوشمند شما فعال است.
2. Open the LIVALL app and follow the on-screen instructions to pair with your PikaBoost 2 unit.
3. The app will guide you through initial calibration for optimal performance.

Video: Demonstrates connecting the PikaBoost 2 to the LIVALL app and initial setup.

6. دستورالعمل های عملیاتی

6.1 روشن/خاموش

Press and hold the power button on the PikaBoost 2 unit to turn it on or off. The indicator lights will confirm the status.

۳.۱ حالت‌های سواری

The PikaBoost 2 offers four distinct riding modes, selectable via the remote control or the LIVALL app:

• وضعیت آماده به کار: Motor is inactive.
• حالت کمکی: Provides motor assistance based on your pedaling effort.
• حالت کروز: Maintains a set speed without continuous pedaling.
• Workout Mode: Offers resistance for a more intense cycling workout.

Image: PikaBoost 2 modes for diverse riding styles.

6.3 عملکردهای کنترل از راه دور

The wireless remote control provides convenient access to key functions:

• دکمه مرکزی: Pause assistance or switch between modes.
• دکمه های بالا/پایین: Adjust speed in Cruise Mode.
• دکمه های چپ/راست: Sync with turn signals (if available and paired).
• Brake Lever Sensors: Intelligent E-Brake automatically cuts motor power when braking.

ویدئو: تمام شدview of the remote control functions for the PikaBoost 2.

6.4 کنترل برنامه

The LIVALL app offers advanced control and monitoring features:

• Switch between the 4 riding modes.
• Monitor battery level and ride statistics.
• Create groups with friends for shared rides.
• Access remote troubleshooting functions.

7. تعمیر و نگهداری

• تمیز کردن: Wipe the PikaBoost 2 unit with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Do not submerge the unit in water.
• مراقبت از باتری: For optimal battery life, avoid fully discharging the battery frequently. Store the unit in a cool, dry place when not in use, and charge it periodically if stored for extended periods. The battery is designed to retain 80% capacity after 1,000 cycles.
• بازرسی تایر: Regularly check the PikaBoost 2's V-shape drive tire for wear and tear. Replace if significant wear is observed to maintain optimal traction and performance.
• به روز رسانی سیستم عامل: Check the LIVALL app periodically for firmware updates to ensure your PikaBoost 2 has the latest features and performance enhancements.

8 عیب یابی

9. مشخصات

تصویر: داخلی view of the PikaBoost 2 motor and regenerative power system.

10. گارانتی و پشتیبانی

10.1 اطلاعات گارانتی

The LIVALL PikaBoost 2 E-Bike Conversion Kit comes with a 1-Year Warranty Protection از تاریخ خرید. این گارانتی شامل نقص‌های تولیدی در شرایط استفاده عادی می‌شود. لطفاً فاکتور خرید خود را برای موارد گارانتی نگه دارید.

For detailed warranty terms and conditions, please refer to the official LIVALL webسایت یا با پشتیبانی مشتری تماس بگیرید.

10.2 پشتیبانی مشتری

If you encounter any issues or have questions regarding your PikaBoost 2, please contact LIVALL customer support through the following channels:

• دفترچه راهنمای رسمی کاربر (PDF): دانلود کتابچه راهنمای PDF
• LIVALL Official Webسایت: بازدید کنید LIVALL Store on Amazon برای اطلاعات محصول و منابع پشتیبانی.
• پشتیبانی درون برنامه‌ای: Utilize the remote troubleshooting functions available within the LIVALL app.
