JELENS JS01 Stair Stepper User Manual

مقدمه

Thank you for choosing the JELENS JS01 Stair Stepper. This compact and folding cardio exercise climber is designed for a full-body workout, simulating natural climbing movements to engage multiple muscle groups. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new fitness equipment. Please read it thoroughly before use and retain it for future reference.

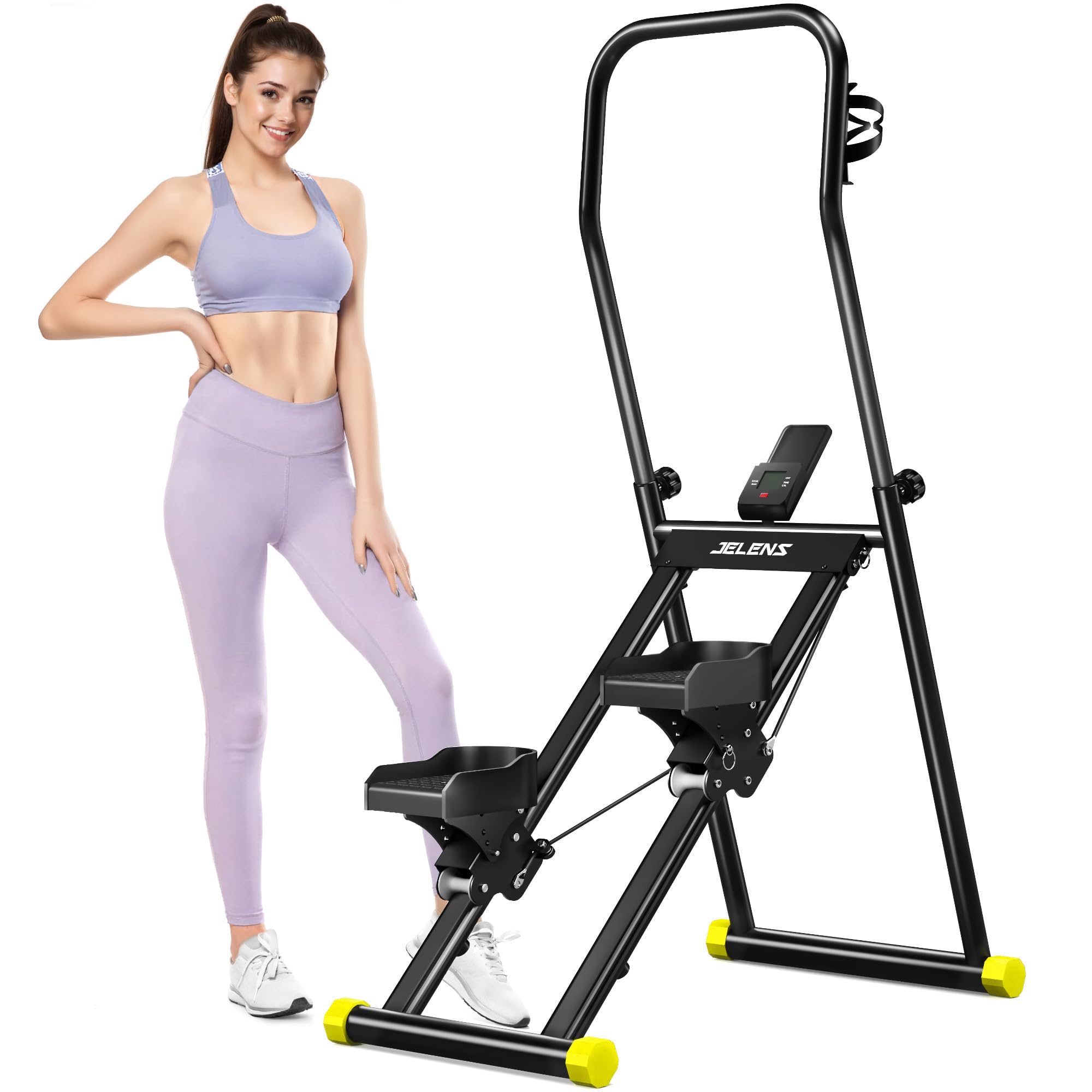

JELENS JS01 Stair Stepper in a home gym setting

Image: The JELENS JS01 Stair Stepper, a compact vertical climber designed for home use.

اطلاعات ایمنی

Before beginning any exercise program, consult with your physician. It is crucial to follow these safety guidelines to prevent injury and ensure the longevity of your equipment.

قبل از استفاده از دستگاه، تمام دستورالعمل‌های موجود در این دفترچه راهنما را مطالعه کنید.
کودکان و حیوانات خانگی را در حین استفاده از وسایل دور نگه دارید.
Place the stepper on a flat, stable surface with adequate clearance around it.
Wear appropriate exercise attire and athletic shoes. Do not use the equipment barefoot or in socks.
Inspect the equipment for loose or worn parts before each use. Do not use if any components are damaged.
از حداکثر وزن قابل تحمل ۴۴۰ پوند (۲۰۰ کیلوگرم) تجاوز نکنید.
اگر احساس ضعف، سرگیجه یا درد کردید، فوراً ورزش را متوقف کنید.
Ensure all bolts and nuts are securely tightened before and after assembly.
Use the safety handles for balance and support during your workout.

راه اندازی و مونتاژ

The JELENS JS01 Stair Stepper is designed for straightforward assembly. Follow these steps to set up your equipment.

باز کردن قطعات: تمام قطعات را با دقت از بسته‌بندی خارج کنید. آنها را روی یک سطح تمیز و صاف قرار دهید.
قاب را باز کنید: Gently unfold the main frame of the stepper. Ensure the locking mechanisms engage securely to hold the frame in its upright, operational position.
دسته ها را وصل کنید: Insert the adjustable handlebars into their designated slots on the main frame. Secure them with the provided bolts and knobs. Adjust the height to a comfortable position where your arms are slightly bent when holding them.
اتصال پدال ها: Ensure the pedals are correctly attached and move freely. The stepper features 4-level pedal angles for customization. Adjust these as desired by following the instructions for the pedal mechanism.
نصب مانیتور LCD: Mount the LCD monitor onto its bracket. Connect the sensor cable from the stepper to the monitor.
بررسی نهایی: Before first use, double-check all connections, bolts, and moving parts to ensure they are secure and functioning correctly.

User adjusting the handlebars and pedal angles on the JELENS JS01 Stair Stepper

Image: The JELENS JS01 Stair Stepper with adjustable handlebars and pedal angles, demonstrating user-friendly design.

دستورالعمل های عملیاتی

The JELENS JS01 Stair Stepper provides an effective full-body workout. Follow these instructions for optimal use.

شروع تمرین

قدم به قدم: Carefully step onto the pedals, one foot at a time, while holding onto the handlebars for balance.
حفظ وضعیت بدن: Stand upright with a slight bend in your knees. Keep your core engaged and your back straight.
Begin Stepping: Start a rhythmic stepping motion, pushing down with one foot while the other rises. The stepper's 45° tilt motion is designed for maximum muscle engagement with minimal knee pressure.
Engage Upper Body: As you step, use the handlebars to engage your upper body, simulating a climbing motion. This helps achieve a full-body workout targeting hips, waist, legs, and abdominal muscles.

Woman demonstrating a full-body workout on the JELENS JS01 Stair Stepper, highlighting ab, glute, and leg engagement.

Image: A user performing a full-body workout on the stepper, illustrating the engagement of abdominal, gluteal, and leg muscles.

استفاده از مانیتور LCD

The integrated LCD monitor tracks your workout data to help you monitor progress.

نمایش داده ها: The monitor cyclically displays various metrics including steps (Reps/Min), scan, count, time, and calories burned.
عملکرد اسکن: The 'SCAN' mode automatically cycles through all metrics, showing each for a few seconds.
پاک کردن داده ها: To reset all data, press and hold the button on the monitor for a few seconds.

Close-up of the JELENS JS01 Stair Stepper's LCD smart display showing workout data like RPM, time, and calories.

Image: The LED Smart Display showing real-time data tracking for steps, time, and calories.

Adjustments for Customization

ارتفاع دسته: Adjust the armrest height to suit your stature and preferred exercise mode. Loosen the adjustment knob, slide the handlebars to the desired height, and re-tighten securely.
زاویه پدال: The stepper offers 4-level pedal angles. Refer to the specific mechanism on your unit to adjust the pedal resistance or angle for a more personalized workout intensity.

تعمیر و نگهداری

Regular maintenance ensures the longevity and safe operation of your JELENS JS01 Stair Stepper.

تمیز کردن: تجهیزات را با تبلیغات پاک کنیدamp بعد از هر بار استفاده، برای پاک کردن عرق و گرد و غبار، از پارچه استفاده کنید. از پاک‌کننده‌ها یا حلال‌های ساینده خودداری کنید.
بررسی اتصالات: Periodically inspect all bolts, nuts, and moving parts for tightness. Re-tighten any loose components.
روغن کاری: If any moving parts begin to squeak or feel stiff, apply a small amount of silicone-based lubricant to the pivot points.
ذخیره سازی: When not in use, the stepper can be folded for compact storage. Ensure it is folded correctly and stored in a dry, safe place away from direct sunlight and extreme temperatures.

JELENS JS01 Stair Stepper folded and stored vertically in a small space, demonstrating its compact design.

Image: The JELENS JS01 Stair Stepper folded for easy storage, highlighting its space-saving design.

عیب یابی

If you encounter issues with your JELENS JS01 Stair Stepper, refer to the following common problems and solutions.

مشکل	علت احتمالی	راه حل
LCD Monitor not displaying data	Battery drained or sensor cable disconnected.	Replace the battery in the monitor. Check that the sensor cable is securely connected to both the monitor and the stepper frame.
صدای جیرجیر یا سایش در حین استفاده	پیچ و مهره‌های شل یا عدم روانکاری قطعات متحرک.	Check and tighten all bolts and nuts. Apply silicone-based lubricant to pivot points and joints.
Pedals feel uneven or unstable	Improper assembly or worn components.	Review assembly instructions for pedal attachment. Ensure the stepper is on a level surface. If components are worn, contact customer service.
Stepper feels wobbly	Loose frame connections or uneven floor.	Ensure all frame bolts are securely tightened. Move the stepper to a flat, stable surface.

مشخصات

Key specifications for the JELENS JS01 Stair Stepper:

برند: JELENS
شماره مدل: JS01
مواد: فولاد آلیاژی
رنگ: مشکی
حداکثر ظرفیت وزنی: 330 پوند (150 کیلوگرم)
ابعاد محصول (L x W x H): ۲۰ × ۵ × ۲ سانتی‌متر (تقریباً ۷.۸۷ × ۱.۹۷ × ۰.۷۹ اینچ)
اجزای شامل: راهنمای کاربر (این سند)

Woman using the JELENS JS01 Stair Stepper, with dimensions and weight capacity overlaid.

Image: The JELENS JS01 Stair Stepper with its dimensions and maximum weight capacity of 330 lbs (150 kg) indicated.

گارانتی و پشتیبانی مشتری

JELENS is committed to customer satisfaction. Your JS01 Stair Stepper comes with a 1 سال گارانتی.

For any questions, concerns, or assistance with your product, please contact JELENS customer service. Our team is dedicated to resolving any issues within 24 hours.

Please refer to your purchase documentation for specific contact details or visit the official JELENS webسایت برای اطلاعات پشتیبانی.
