EcoExplorer 15x15 Heat Press Machine User Manual

مقدمه

Thank you for choosing the EcoExplorer 15x15 Heat Press Machine. This professional digital sublimation heat press is designed for transferring designs onto various materials such as T-shirts, clothes, canvas bags, mouse pads, puzzles, and ceramic tiles. Featuring advanced U-shaped tube heating technology for rapid and even heat distribution, a large 15x15 inch heating plate, and precise digital controls, this machine ensures high-quality and vibrant transfers. Please read this manual thoroughly before operation to ensure safe and efficient use of your heat press.

دستورالعمل های ایمنی

• Always connect the heat press to a grounded power outlet.
• با دست خیس یا در حالت خیس با دستگاه کار نکنیدamp محیط ها
• Keep hands and body parts away from the heating plate during operation, as it reaches very high temperatures. Use heat-resistant gloves if necessary.
• Ensure adequate ventilation in your workspace to dissipate any fumes from materials or inks.
• هنگام عدم استفاده یا قبل از تمیز کردن و نگهداری، دستگاه را از پریز برق جدا کنید.
• دستگاه را در حالی که روشن است یا در حال کار است، بدون مراقبت رها نکنید.
• Keep children and pets away from the heat press.
• Do not attempt to modify or repair the machine yourself. Contact qualified service personnel for assistance.
• دستگاه پرس حرارتی را روی یک سطح پایدار و مقاوم در برابر حرارت قرار دهید.

محصول تمام شده استview

اجزا و ویژگی ها

The EcoExplorer 15x15 Heat Press Machine, shown with example items like T-shirts and a canvas bag, demonstrating its versatility for various sublimation and heat transfer projects.

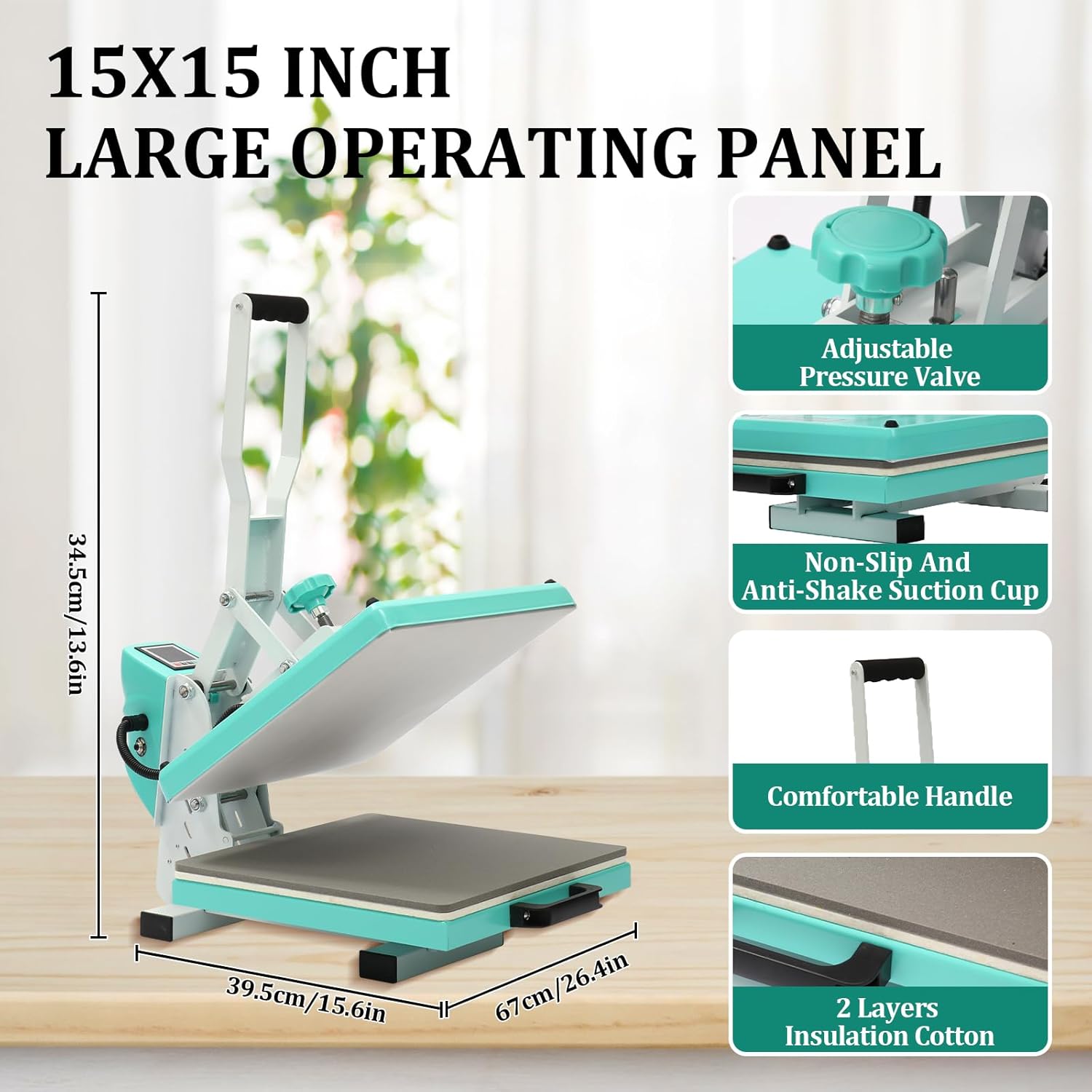

به تفصیل view of the heat press highlighting its dimensions (39.5cm/15.6in width, 67cm/26.4in length, 34.5cm/13.6in height) and key features including the adjustable pressure valve, non-slip and anti-shake suction cups, comfortable handle, and two layers of insulation cotton.

A close-up of the digital control panel, showing buttons for Time, Minus, Plus, and Temp, along with icons indicating Time Control, Temperature Control, Bell Alarm, and Auto Shutdown functions for precise operation.

Illustration of the heat press's dual-layer pad with Teflon coating, designed to prevent burns, scorching, and ensure easy cleanup, highlighting the internal heating elements.

ویژگی های کلیدی:

• گرمایش سریع و یکنواخت: Advanced U-shaped tube heating technology for rapid heating and uniform heat distribution.
• صفحه گرمایش بزرگ: Sturdy 15x15 inch heating plate made from durable thick steel, compatible with various heat transfer vinyl (HTV) and sublimation projects.
• محدوده وسیع دما: از دمای ۶۸ درجه فارنهایت تا ۲۰۳ درجه فارنهایت (۲۰ درجه سانتیگراد تا ۹۵ درجه سانتیگراد) کار می‌کند.
• Safety & Reliability: Dual-layer high-temperature resistant pad with Teflon coating, automatic beep, and power-off function.
• عملیات آسان: Handy pressure adjustment knob and large digital display for precise temperature and time settings.
• Integrated Counter: Helps track yields during batch production.
• Upgraded Metal Shell: More durable and drop-resistant than composite materials.

راه اندازی

1. باز کردن بسته بندی: Carefully remove the heat press from its packaging. Inspect for any damage during transit.
2. قرار دادن: Place the machine on a sturdy, flat, and heat-resistant surface. Ensure there is enough space around the machine for safe operation and ventilation.
3. اتصال برق: Connect the power cord to the heat press and then plug it into a grounded electrical outlet. Ensure the power supply matches the machine's requirements (120V~60Hz).
4. بازرسی اولیه: Before first use, ensure the heating plate is clean and free of debris. Check that the pressure adjustment knob turns smoothly.

عملیات

Follow these steps for successful heat transfers:

Visual guide to the simple operation steps: 1. Set the Appropriate Pressure, 2. Set Temperature and Time, 3. Start the Transfer, 4. Done.

1. روشن کردن: کلید اصلی برق را که معمولاً در کنار یا پشت دستگاه قرار دارد، روشن کنید.
2. تنظیم دما: Press the "TEMP" button on the control panel. Use the "Plus" and "Minus" buttons to set your desired temperature. Refer to your transfer material's instructions for recommended settings. The machine will begin heating up.
3. تنظیم زمان: Press the "TIME" button. Use the "Plus" and "Minus" buttons to set the desired transfer time in seconds.
4. تنظیم فشار: Use the pressure adjustment knob (typically located on top of the heating plate) to set the appropriate pressure. Turn clockwise for more pressure, counter-clockwise for less. Test on a scrap material if unsure.
5. آماده سازی مورد: Place your garment or item on the silicone pad on the lower platen. Position your transfer material (e.g., HTV, sublimation paper) onto the item. You may use heat-resistant tape to secure it.
6. Begin Transfer: Once the machine reaches the set temperature (indicated by the display), carefully lower the heating plate handle until it locks into place. The timer will automatically start counting down.
7. Complete Transfer: When the timer reaches zero, an audible beep will sound. Lift the handle to open the heat press. Carefully remove your item, being mindful of the heat.
8. خاموش: After use, turn off the main power switch and unplug the machine.

تعمیر و نگهداری

• تمیز کردن صفحه گرمایش: Allow the heating plate to cool completely. Use a soft, damp cloth to wipe down the Teflon-coated surface. For stubborn residue, a non-abrasive cleaner specifically designed for heat press platens can be used. Do not use harsh chemicals or abrasive pads.
• تمیز کردن پد سیلیکونی: The silicone pad can be wiped clean with a damp cloth. If it becomes damaged or worn, it should be replaced to ensure even pressure.
• نظافت عمومی: قسمت بیرونی دستگاه را با یک پارچه خشک یا کمی مرطوب پاک کنید.amp پارچه برای از بین بردن گرد و غبار و زباله.
• ذخیره سازی: وقتی از دستگاه پرس حرارتی استفاده نمی‌کنید، آن را در محیط خشک و بدون گرد و غبار نگهداری کنید.

عیب یابی

مشخصات

• ابعاد محصول: 27.17 x 18.5 x 16.54 اینچ (69 x 47 x 42 سانتی‌متر)
• وزن مورد: 50.4 پوند (22.86 کیلوگرم)
• اندازه صفحه گرمایش: 15 x 15 اینچ (38 x 38 سانتی متر)
• جلدtage فرکانس: 120 ولت تا 60 هرتز
• قدرت: 1200 وات
• محدوده دما: 32 درجه فارنهایت تا 450 درجه فارنهایت (0 درجه سانتی گراد تا 232 درجه سانتی گراد)
• کنترل تایمر: 0-999 ثانیه
• مواد: Metal Q235B
• رنگ: آبی
• شماره مدل: RFg6Tg_3m6zjOd1J1FJAQgTC030

گارانتی و پشتیبانی

For any questions, technical assistance, or warranty claims, please contact EcoExplorer customer support. Refer to your purchase documentation for specific warranty terms and contact information.

We are committed to providing excellent service and support for your EcoExplorer product.
