EcoExplorer Commercial Ice Maker Machine User Manual

مقدمه

Thank you for choosing the EcoExplorer Commercial Ice Maker Machine. This high-capacity, air-cooled unit is designed for demanding commercial environments such as restaurants, bars, cafes, and businesses, providing a continuous supply of clear ice cubes. With a production capacity of 550 lbs per 24 hours and a spacious 441 lbs storage bin, it ensures you always have ice readily available. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your ice machine.

Image: The EcoExplorer Commercial Ice Maker Machine shown with its various accessories, including the control panel, water filter, pipes, and ice scoop.

دستورالعمل های ایمنی

Please read all safety instructions carefully before operating the ice maker. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ایمنی برق: مطمئن شوید که دستگاه به پریز برق دارای اتصال زمین با ولتاژ صحیح وصل شده استtage (220V) as specified. Do not use extension cords or adapters.
• قرار دادن: Install the ice maker on a level, stable surface in a well-ventilated area, away from direct sunlight or heat sources. Maintain adequate clearance around the unit for proper airflow.
• اتصال آب: Connect the unit to a potable water supply using the provided water filter and pipes. Ensure all connections are secure to prevent leaks.
• زهکشی: Ensure the drain pipe is properly installed and allows for continuous drainage to prevent water accumulation.
• رسیدگی: The unit is heavy. Use appropriate lifting techniques or assistance when moving.
• راه اندازی اولیه: It is crucial to keep the ice machine upright for at least 24 hours before initial use to allow the refrigerant to settle.
• تمیز کردن: همیشه قبل از تمیز کردن یا انجام هرگونه تعمیر و نگهداری، دستگاه را از برق بکشید.
• کودکان و حیوانات خانگی: در حین کار و نگهداری، کودکان و حیوانات خانگی را از دستگاه دور نگه دارید.

محتویات بسته

هنگام باز کردن بسته‌بندی، مطمئن شوید که همه اجزا موجود و بدون آسیب هستند:

• Commercial Ice Maker Unit (Top Section)
• Ice Storage Bin (Bottom Section)
• فیلتر آب
• لوله ورودی آب
• لوله تخلیه
• یخ شکن
• پایه‌های قابل تنظیم

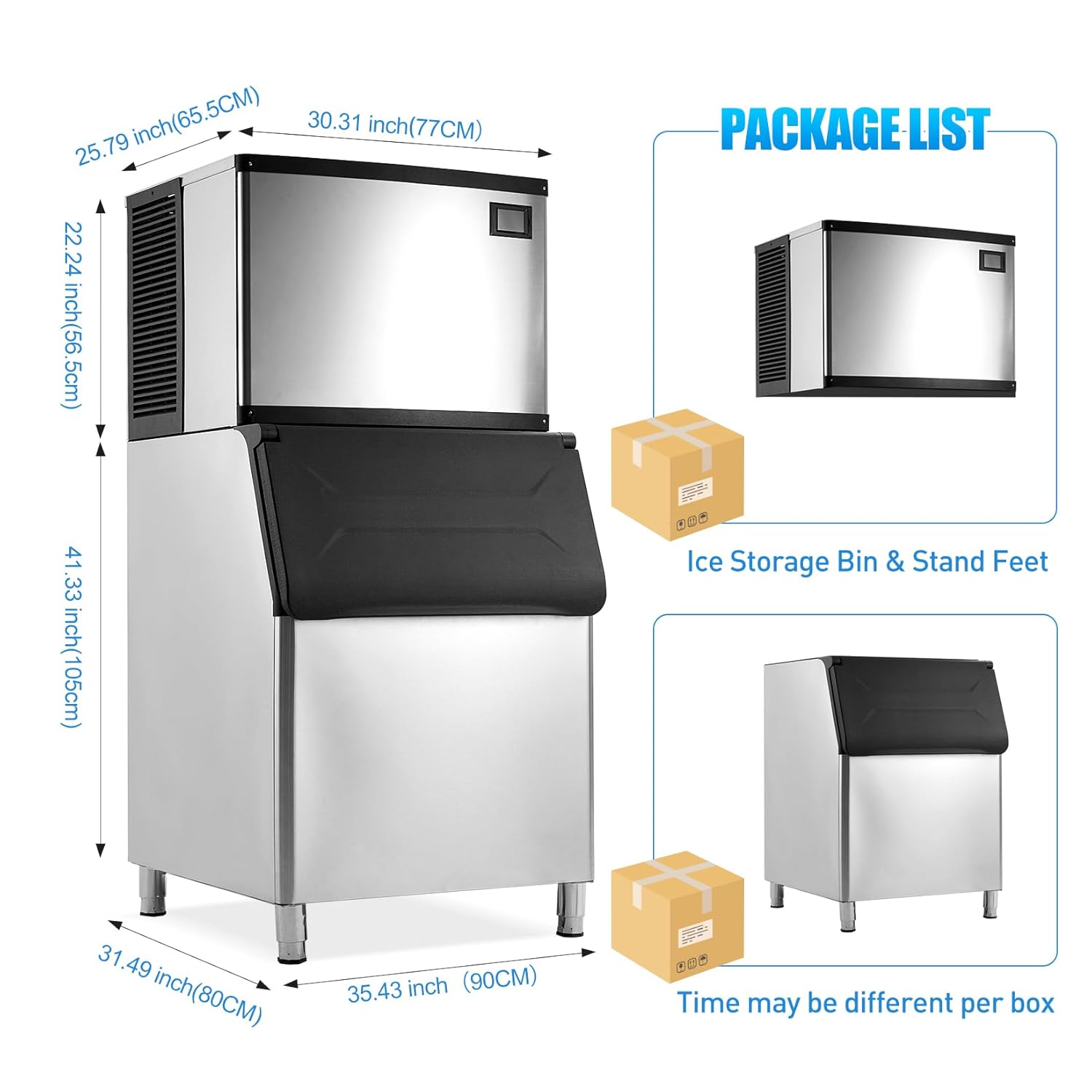

Image: Diagram showing the dimensions of the ice maker and a visual representation of the package contents, including the ice storage bin and stand feet.

راه اندازی

برای نصب صحیح یخساز خود، این مراحل را دنبال کنید:

1. باز کردن بسته بندی: تمام مواد بسته‌بندی را با دقت بردارید. دستگاه را از نظر هرگونه آسیب ناشی از حمل و نقل بررسی کنید.
2. موقعیت یابی: Place the ice maker on a firm, level surface capable of supporting its weight when full of ice. Ensure there is at least 6 inches of clearance on all sides for proper ventilation.
3. تراز کردن: Adjust the adjustable stand feet at the bottom of the unit to ensure it is perfectly level. This is crucial for proper water flow and ice production.
4. ته نشینی مبرد: After moving or unpacking, allow the unit to stand upright for a minimum of 24 hours before plugging it in. This allows the refrigerant to stabilize.
5. اتصال آبرسانی: Connect the water inlet pipe to a cold potable water supply. Install the provided water filter in line with the water supply. Ensure all connections are tight to prevent leaks.
6. اتصال تخلیه: Connect the drain pipe to a suitable floor drain or a larger drainage system. Ensure the drain pipe has a continuous downward slope to allow water to flow freely.
7. اتصال برق: Once all connections are secure and the unit has settled for 24 hours, plug the ice maker into a dedicated, grounded 220V electrical outlet.

دستورالعمل های عملیاتی

Your EcoExplorer ice maker is designed for efficient and user-friendly operation.

کنترل پنل تمام شدview

The smart touch-sensitive control panel allows for easy management of the ice making process.

Image: Close-up of the advanced LCD control panel, detailing icons for process mode, auto clean, thickness adjustment, reservation function, temperature display, power, and fault indicators.

• روشن/خاموش برق: دکمه پاور را فشار دهید تا دستگاه روشن یا خاموش شود.
• Process Mode: Indicates the current operational status (e.g., ice making, defrosting).
• نمایش دما: Shows the internal temperature.
• عملکرد رزرو: Set a timer for the machine to start making ice at a specific time.
• نماد خطا: Illuminates if an error or malfunction is detected.
• Ice Full Icon: نشان می‌دهد که مخزن ذخیره یخ پر شده است.

Ice Production and Thickness Adjustment

The machine produces 234 ice cubes per cycle in approximately 8-15 minutes, with a total capacity of 550 lbs per 24 hours.

Image: Visual guide demonstrating adjustable ice cube thickness for various needs: thin (5-8 mins) for smoothies/seafood, medium (8-11 mins) for beverages/cocktails, and thick (11-15 mins) for beer buckets/whiskeys.

• Adjusting Thickness: Use the dedicated buttons on the control panel to increase or decrease the ice cube thickness. Thinner ice cubes are produced faster, while thicker cubes take longer.
• Monitoring Production: The display will show the current status of ice production.

عملکرد خود تمیز کنندگی

The ice maker features an automated self-cleaning system for convenience and hygiene.

• شروع تمیز کردن: Press the 'Auto Clean' button on the control panel to start the self-cleaning cycle.
• فرکانس: It is recommended to run the self-cleaning cycle regularly, especially in high-usage environments, to maintain hygiene and efficiency.

تعمیر و نگهداری

Regular maintenance ensures the longevity and efficient operation of your ice maker.

• تمیز کردن بیرونی: Wipe the exterior stainless steel surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners.
• تمیز کردن داخلی: In addition to the self-cleaning function, periodically clean the interior of the ice bin and ice-making components manually with a food-grade sanitizer.
• تعویض فیلتر آب: The included water filter helps ensure clean ice. Replace the filter cartridge regularly according to the manufacturer's recommendations or if you notice a decrease in water quality or ice production.
• تمیز کردن کندانسور: The air-cooled condenser fins can accumulate dust and debris, reducing efficiency. Periodically clean the condenser fins with a soft brush or vacuum cleaner. Ensure the unit is unplugged before cleaning.
• بررسی خط تخلیه: Ensure the drain line is free of kinks and blockages to allow proper water drainage.

عیب یابی

برای مشکلات رایج و راه‌حل‌های آنها به جدول زیر مراجعه کنید.

مشخصات

Key technical specifications for the EcoExplorer Commercial Ice Maker Machine:

گارانتی و پشتیبانی

EcoExplorer stands behind the quality of its products. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your purchase or visit the official EcoExplorer webسایت

If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you require technical assistance, please contact EcoExplorer customer support. Have your model number and purchase date ready when contacting support.

• پشتیبانی مشتری: Refer to your product packaging or the EcoExplorer official website for contact information (phone, email, or online support portal).
• برمی گرداند: این محصول واجد شرایط بازگشت آسان 30 روزه از طریق Amazon.com است.
