SISESOL 2-Drawer File کابینت با قفل

1. مقدمه

Thank you for choosing the SISESOL 2-Drawer File کابینت. این دفترچه راهنما اطلاعات ضروری برای مونتاژ، بهره‌برداری و نگهداری ایمن از دستگاه جدید شما را ارائه می‌دهد. file cabinet. Please read these instructions thoroughly before beginning assembly or use, and retain this manual for future reference.

این فلز file cabinet is designed for organizing letter-size documents and folders, featuring two spacious drawers, a secure locking mechanism, and a durable construction suitable for home or office environments.

2. اطلاعات ایمنی

• محدودیت وزن: The top surface of the cabinet can support up to 120 pounds. Do not exceed this weight limit.
• ثبات: This cabinet features an anti-tip interlock system, allowing only one drawer to be opened at a time to prevent tipping. Always ensure the cabinet is on a stable, level surface.
• رسیدگی: Handle with care when moving the cabinet, especially when fully loaded, to prevent injuries.
• کودکان و حیوانات خانگی: Keep children and pets away from the cabinet during assembly. Do not allow children to climb on or play with the cabinet.
• مونتاژ: تمام دستورالعمل‌های مونتاژ را با دقت دنبال کنید. قبل از استفاده، مطمئن شوید که تمام پیچ‌ها و بست‌ها محکم بسته شده‌اند.

3. محتویات بسته

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact SISESOL customer support.

• پنل‌های کابینت (بالا، پایین، کناره‌ها، پشت)
• اجزای کشو (جلو، عقب، کناره‌ها، پایین)
• Drawer Slide Rails
• میله‌های آویز قابل تنظیم
• Lock Mechanism with 2 Keys
• 4 Stand Feet
• سخت افزار مونتاژ (پیچ، مهره و غیره)
• راهنمای دستورالعمل

4. راه اندازی و مونتاژ

Assembly of the SISESOL 2-Drawer File Cabinet is required. It is recommended to have a second person assist with assembly for ease and safety. The estimated assembly time is approximately 30 minutes.

4.1 ابزار مورد نیاز

• پیچ گوشتی سر فیلیپس (شامل نمی شود)

4.2 مراحل مونتاژ

1. باز کردن قطعات: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided parts list in the separate assembly instructions.
2. قاب کابینت را مونتاژ کنید: Attach the side panels to the back panel, followed by the top and bottom panels, using the provided screws. Ensure all connections are secure.
3. Install Drawer Slide Rails: Attach the drawer slide rails to the inside of the cabinet frame and to the drawer sides as per the detailed assembly diagram. Ensure they are correctly oriented for smooth operation.
4. کشوها را جمع کنید: Construct each drawer by attaching the front, back, and side panels to the drawer bottom. Insert the assembled drawers onto the installed slide rails.
5. مکانیزم قفل را نصب کنید: Secure the lock mechanism to the designated area on the top drawer. Test the lock with the provided keys.
6. Attach Stand Feet: Securely attach the four stand feet to the bottom of the cabinet.
7. بررسی نهایی: Verify that all screws are tightened and the cabinet is stable. Test both drawers for smooth opening and closing.

For a visual guide, please refer to the installation video available on the product details page where this item was purchased.

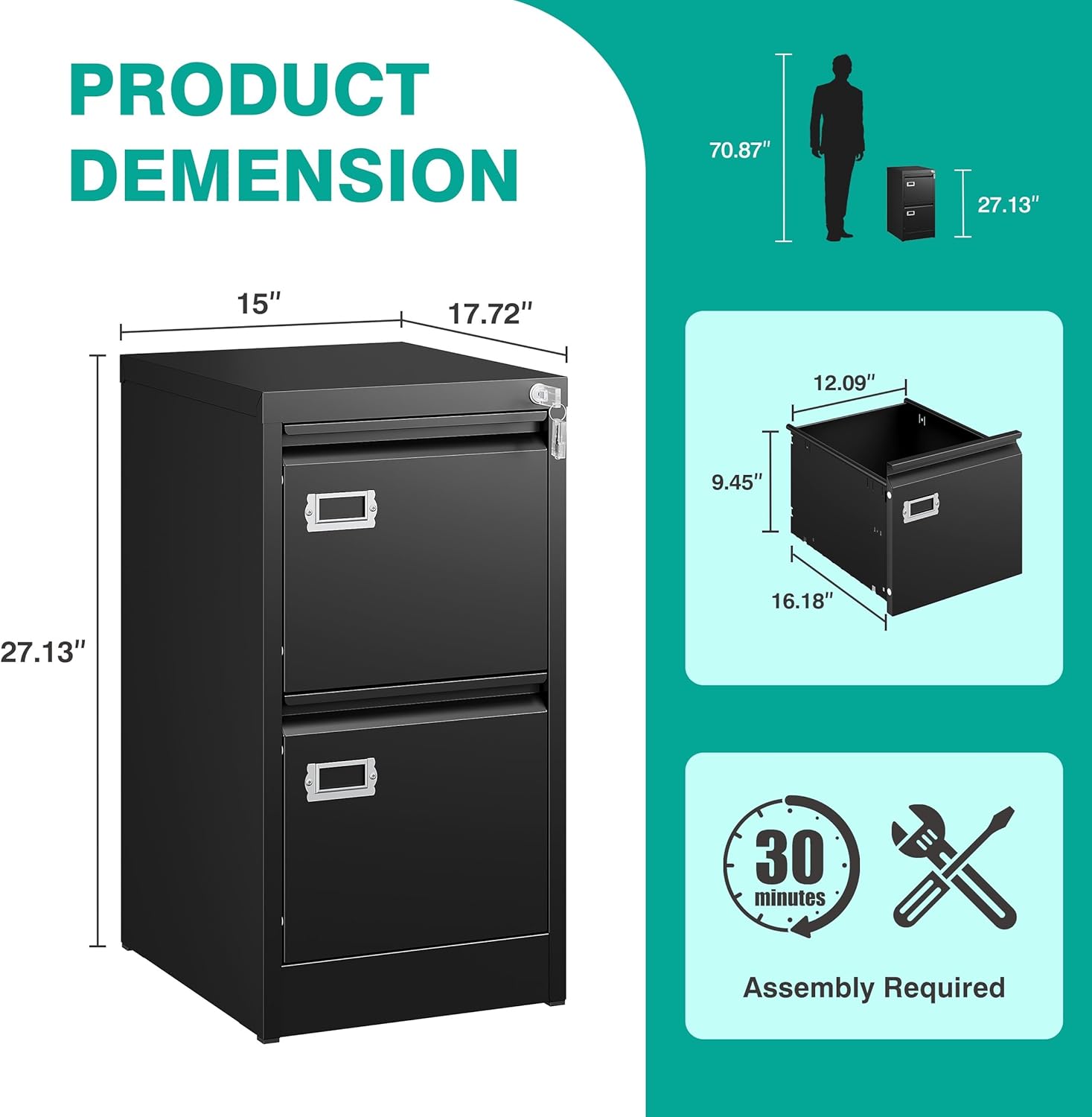

Image: Product dimensions and assembly time indication.

Image: Anti-tip interlock system demonstration.

5. دستورالعمل های عملیاتی

5.1 Opening and Closing Drawers

The drawers are equipped with smooth slide rails for quiet and easy operation. Pull the drawer handle to open and push to close. Ensure no obstructions are present in the drawer path.

5.2 Using the Lock

The top drawer features a lock mechanism. Insert one of the provided keys into the lock and turn to secure or unlock the drawer. The lock is designed to secure both drawers simultaneously. Always remove the key after locking to prevent loss.

۵.۳ میله آویز قابل تنظیم

Each drawer includes an adjustable hanging bar to accommodate various file sizes, including Letter, A4, F4, B5, and Legal. Adjust the bar by sliding it along the designated slots within the drawer to fit your specific file پوشه ها

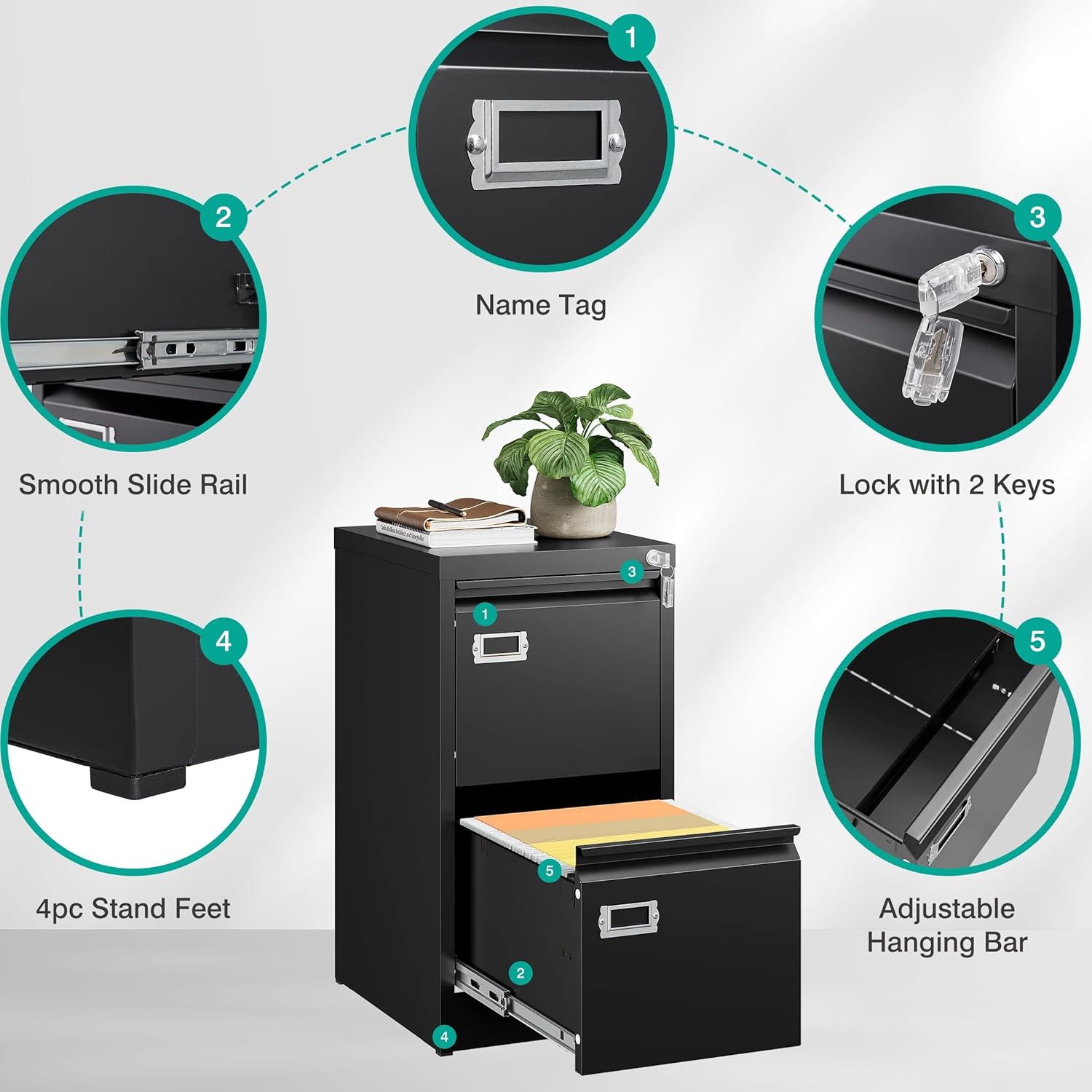

Image: Key features including lock, slide rails, and adjustable hanging bar.

Image: Adjustable hanging bar and compatible file اندازه ها

6. تعمیر و نگهداری

• تمیز کردن: سطوح کابینت را با یک پارچه نرم و لطیف پاک کنید.amp پارچه. از پاک‌کننده‌های ساینده یا مواد شیمیایی قوی که می‌توانند به روکش پودری آسیب بزنند، خودداری کنید.
• بازرسی: به صورت دوره‌ای تمام پیچ‌ها و بست‌ها را بررسی کنید تا از سفت بودن آنها اطمینان حاصل شود. در صورت لزوم، دوباره آنها را سفت کنید.
• روغن کاری: If drawer slides become stiff over time, a small amount of silicone-based lubricant can be applied to the rails.
• پیشگیری از خوردگی: The cabinet is coated with an electrostatic phosphorus-free epoxy spray coating for rust and corrosion resistance. Avoid prolonged exposure to moisture.

7 عیب یابی

If you encounter issues with your SISESOL file کابینت، به مشکلات و راه‌حل‌های رایج زیر مراجعه کنید:

8. مشخصات

9. اطلاعات گارانتی

Specific warranty details are not provided within this instruction manual. For information regarding the product warranty, please refer to the product listing on the retailer's website or contact SISESOL customer support directly.

10. پشتیبانی مشتری

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact SISESOL customer support through the retailer's platform where the product was purchased. Please have your product model and purchase date available when contacting support.

۱۱. ویدیوهای محصولات

No official product videos with 'Seller' as 'creator_type' were found in the provided product data to embed in this manual.
