FANPEEC Fanless Mini PC N100 User Manual

1. مقدمه

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your FANPEEC Fanless Mini PC N100. This compact industrial-grade computer is designed for various applications, including home entertainment, office tasks, firewall solutions, and industrial automation, offering robust performance with its Intel N100 processor and fanless design.

2. محتویات بسته

مطمئن شوید که تمام موارد ذکر شده در زیر در بسته شما موجود است:

• 1 x FANPEEC Mini PC
• 2 عدد آنتن وای فای
• 1 x VESA Bracket (for mounting)
• 1 عدد آداپتور برق
• 1 x کابل برق
• 1 x کابل SATA
• 1 عدد کابل HDMI
• ۱ عدد دفترچه راهنمای کاربر (این سند)

Figure 2.1: Included accessories with the FANPEEC Mini PC N100.

3. محصول تمام شدview

3.1 ویژگی های کلیدی

• پردازنده: 12th Gen Intel Alder Lake N100 (4 Cores, 4 Threads, up to 3.4GHz, 6W TDP)
• گرافیک: Intel UHD Graphics, supporting 4K@60Hz triple display output
• حافظه: 8GB DDR4 RAM (expandable up to 32GB via 260-pin SODIMM slot)
• ذخیره سازی: 128GB MSATA SSD (pre-installed), with M.2 NVME SSD slot (up to 2TB) and SATA3.0 interface for 2.5-inch HDD/SSD (up to 2TB)
• سیستم عامل: Pre-installed Windows 11 Pro, supports Windows 10, Linux, pfSense, OPNsense
• قابلیت اتصال: Dual Gigabit Ethernet, WiFi5, Bluetooth 4.2
• پورت ها: 2x HD 2.0, 1x DP 1.2, 2x USB 3.0, 2x USB 2.0, 2x RS232 COM, 2x LAN, Audio (SPK/MIC), DC In
• ویژگی های خاص: Fanless design, TPM 2.0, Auto Power On, Wake On LAN, PXE, Watchdog Timer

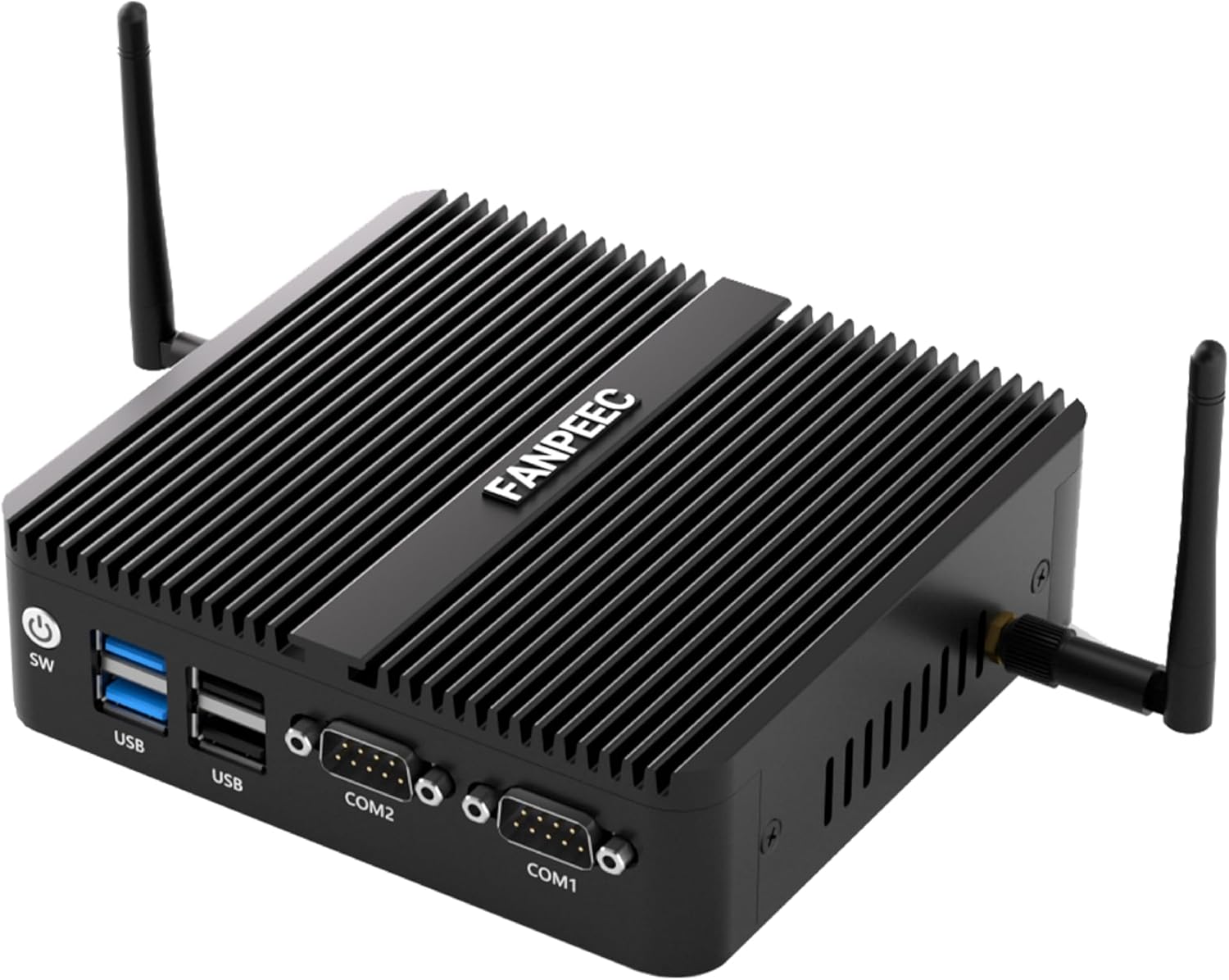

Figure 3.1: The FANPEEC Fanless Mini PC N100.

شکل ۳.۶: جزئیات پردازنده اینتل N100.

3.2 سخت افزار تمام شده استview (بندرها)

The FANPEEC Mini PC N100 features a comprehensive set of ports for diverse connectivity:

• پنل جلو: Power Button (SW), 2x USB 2.0 ports, 2x USB 3.0 ports, 2x RS232 COM ports (COM1, COM2)
• پنل پشتی: DC In, 2x HD 2.0 ports, 1x DP 1.2 port, 2x Gigabit LAN ports, Audio (SPK/MIC)
• بی سیم: 2x Antenna connectors for WiFi5 and Bluetooth 4.2

شکل ۲: طرح‌بندی درگاه‌های جلو و عقب.

4. راه اندازی اولیه

1. اتصال آنتن ها: Screw the two WiFi antennas onto the connectors on the rear panel of the mini PC.
2. اتصال نمایشگر: Connect your monitor(s) to the HD (HDMI) or DP (DisplayPort) ports using the provided HDMI cable or a compatible DP cable. The device supports up to three displays simultaneously.
3. اتصال لوازم جانبی: صفحه کلید، ماوس و سایر دستگاه‌های USB خود را به پورت‌های USB 2.0 یا USB 3.0 موجود وصل کنید.
4. اتصال به شبکه (اختیاری): For a wired network connection, connect an Ethernet cable from your router or modem to one of the LAN ports.
5. اتصال برق: Connect the power adapter to the DC In port on the mini PC, then plug the power cord into an electrical outlet.
6. روشن کردن: Press the power button (SW) on the front panel to turn on the mini PC.

4.1 گزینه های نصب

The FANPEEC Mini PC N100 can be placed on a desktop or mounted behind a monitor using the included VESA bracket to save space.

• قرار دادن دسکتاپ: Simply place the mini PC on a flat, stable surface.
• VESA Mount: Attach the VESA bracket to the back of your VESA-compatible monitor, then secure the mini PC to the bracket. This allows for a clean, integrated setup.

Figure 4.1: Various placement options including VESA mount.

5. دستورالعمل های عملیاتی

5.1 سیستم عامل

The mini PC comes with Windows 11 Pro pre-installed. It also supports other operating systems such as Windows 10, various Linux distributions, pfSense, and OPNsense. To install a different operating system, you may need to adjust BIOS settings for boot order.

۵.۲ گسترش فضای ذخیره‌سازی

The device offers flexible storage expansion options:

• M.2 NVME SSD Slot: Supports M.2 2280 NVME SSDs up to 2TB.
• MSATA Slot: Supports MSATA SSDs up to 1TB (one 128GB MSATA SSD is pre-installed).
• SATA3.0 Interface: For installing a 2.5-inch HDD/SSD (up to 2TB). Note: HDD thickness should not exceed 7mm.

To access the internal storage slots for upgrades, carefully open the chassis. Refer to Figure 5.1 for the internal layout.

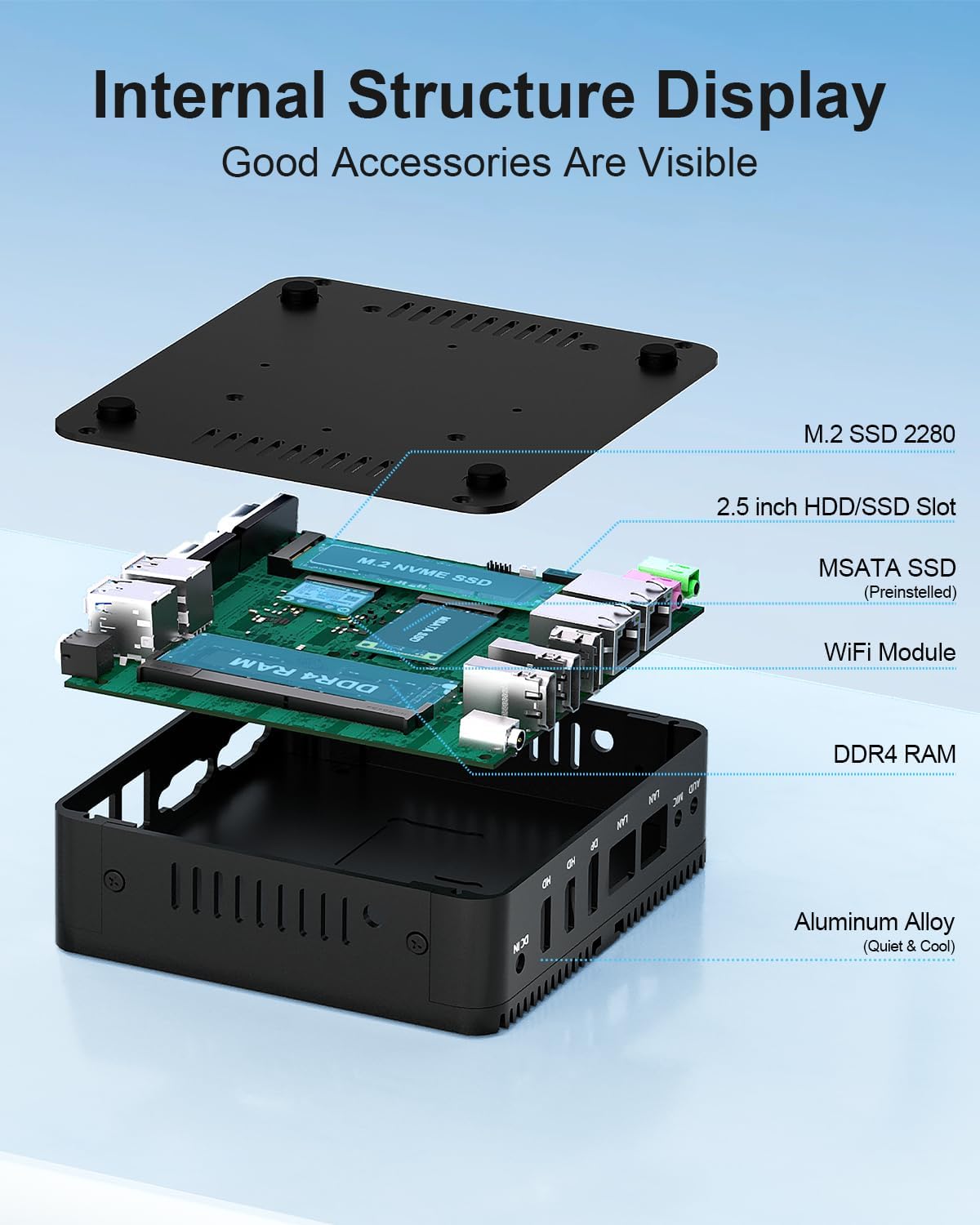

Figure 5.1: Internal Structure and Storage Slots.

5.3 پیکربندی نمایشگر

The mini PC supports connecting up to three displays simultaneously for enhanced productivity or multimedia experiences. Use the two HD 2.0 ports and one DP 1.2 port. Ensure your monitors support 4K resolution for optimal visual quality.

Figure 5.2: Triple Display Setup.

5.4 اتصال بی سیم

The device includes integrated WiFi5 and Bluetooth 4.2 for wireless connections. Ensure the antennas are properly installed for optimal signal strength. Dual Gigabit Ethernet ports are available for stable wired network connections.

5.5 Advanced System Settings

The FANPEEC Mini PC N100 includes several advanced features accessible via the BIOS/UEFI settings:

• TPM 2.0: Trusted Platform Module for enhanced security features, including secure boot and data encryption.
• روشن شدن خودکار: کامپیوتر را طوری پیکربندی می‌کند که پس از قطع برق، به‌طور خودکار روشن شودtage.
• بیدار شدن از خواب در شبکه محلی (WOL): Allows the PC to be powered on remotely over a network connection.
• بوت PXE: Preboot Execution Environment for booting the PC from a network server.
• تایمر نگهبان: A hardware timer that can reset the system if it becomes unresponsive, useful for industrial applications.

Access these settings by pressing the DEL or F2 key during startup to enter the BIOS/UEFI menu.

6. نگهداری و مراقبت

To ensure the longevity and optimal performance of your fanless mini PC, follow these maintenance guidelines:

• تمیز نگه دارید: Regularly clean the exterior of the device with a soft, dry cloth. Avoid using liquid cleaners directly on the PC.
• تهویه: Although fanless, ensure the heat sink fins are not obstructed to allow for proper heat dissipation.
• محیط زیست: Operate the PC in a well-ventilated area, away from direct sunlight, excessive heat, humidity, and dust.
• منبع تغذیه: فقط از آداپتور برق اصلی ارائه شده همراه دستگاه استفاده کنید.
• به روز رسانی نرم افزار: برای اطمینان از پایداری و امنیت، سیستم عامل و درایورهای خود را به‌روز نگه دارید.

7 عیب یابی

This section addresses common issues you might encounter with your FANPEEC Mini PC N100.

7.1 بدون برق

• بررسی اتصال برق: Ensure the power adapter is securely connected to the PC and the electrical outlet.
• خروجی تست: با وصل کردن دستگاه دیگری به پریز برق، از سالم بودن آن اطمینان حاصل کنید.
• دکمه پاور: Confirm the power button is pressed firmly.

۷.۲ خروجی نمایشگر وجود ندارد

• اتصال کابل: Ensure the HDMI or DP cable is securely connected to both the PC and the monitor.
• ورودی مانیتور: Verify the monitor is set to the correct input source (e.g., HDMI1, DisplayPort).
• مانیتور/کابل تست: Try connecting the monitor with a different cable or to another device to rule out monitor or cable issues.

7.3 بدون اتصال به اینترنت

• اتصال سیمی: Check the Ethernet cable connection to both the PC and the router/modem. Verify router/modem status.
• اتصال بی سیم: Ensure WiFi antennas are attached. Check if WiFi is enabled in the operating system and if you are connected to the correct network with the correct password.
• مشکلات راننده: Ensure network drivers are properly installed and updated in the operating system.

۶.۴ کند شدن یا عدم پاسخگویی سیستم

• Resource Usage: Check Task Manager (Windows) or system monitor (Linux) for applications consuming excessive CPU, memory, or disk resources.
• گرمای بیش از حد: Ensure the PC is in a well-ventilated area and the heat sink fins are not blocked. While fanless, prolonged high load in a hot environment can affect performance.
• فضای ذخیره سازی: مطمئن شوید که فضای خالی کافی در درایو اصلی شما وجود دارد.
• اسکن بدافزار: اسکن کامل سیستم را برای یافتن ویروس یا بدافزار اجرا کنید.

8. مشخصات فنی

9. ایمنی و هشدارها

لطفاً نکات ایمنی زیر را رعایت کنید:

• منبع تغذیه را به درستی وصل کنید.
• دور از دamp and high-temperature environments.
• Keep away from sources of fire and water.
• Parents should strictly control children's device time and content access.

Figure 9.1: Manufacturer Information and Warnings.

10. اطلاعات گارانتی

For warranty details, please refer to the specific warranty card included with your product or your purchase documentation. FANPEEC products typically come with a manufacturer's warranty covering defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

11. پشتیبانی مشتری

If you encounter any issues or have questions not covered in this manual, please contact FANPEEC customer support:

• پشتیبانی ایمیل: fanpeec_service@126.com
• پشتیبانی آمازون: Log in to your Amazon account, find your order, and click "Get Help" for direct assistance from the seller.
