STEELITE 16-Inch 13.5 Amp Corded Electric Tiller User Manual

1. مقدمه

This manual provides essential information for the safe and efficient operation, maintenance, and care of your STEELITE 16-Inch Corded Electric Tiller. Designed for soil preparation and landscaping, this 13.5 Amp electric cultivator offers a 16-inch working width and a cutting depth of up to 8.7 inches. Its robust design features 6 sturdy steel tines, achieving speeds of up to 380 RPM for thorough soil cultivation. Please read this manual thoroughly before initial use and retain it for future reference.

Image 1.1: The STEELITE Electric Tiller in operation, demonstrating its powerful soil cultivation.

2. اطلاعات ایمنی

برای اطمینان از عملکرد ایمن و جلوگیری از آسیب یا جراحت، اقدامات احتیاطی زیر را رعایت کنید:

• تجهیزات حفاظت فردی: Always wear appropriate safety gear, including gloves and eye protection, during operation.
• قطعات متحرک: Keep hands, feet, and other body parts away from moving parts, especially the tines, during operation.
• شرایط محیطی: Do not operate the tiller in wet or damp شرایط برای جلوگیری از خطرات الکتریکی
• ایمنی نگهداری: Always unplug the tiller from the power source before making any adjustments, cleaning, or performing maintenance.
• دوره خنک شدن: Allow the tiller to cool completely before storing it after use.
• Accidental Starts: The tiller features a dual-start button system designed to prevent accidental starts. Ensure both controls are engaged simultaneously to start the unit.

3. راه اندازی و مونتاژ

Follow these steps to assemble your STEELITE Electric Tiller:

1. مونتاژ دسته:
   • Insert the lower handle section into the motor housing and secure it with the provided handle knobs and carriage bolts.
   • Attach the center handle to the lower handles, ensuring all connections are firm.
2. مدیریت کابل: Secure the power cable to the handle using the provided cable clips to prevent it from interfering with operation or getting damaged.
3. نصب چرخ:
   • Slide the wheels onto the axle, placing a washer between the wheel and the frame.
   • Insert the cotter pin through the axle hole and bend a prong to secure the wheel.
   • Press the hub caps firmly into the wheels.
4. Wheel Adjustment for Tilling Depth: The 6-inch wheels have two height positions. For deeper tilling (up to 8.7 inches), pull the release pin and swing the wheel bracket up to raise the wheels, allowing the tines to dig deeper into the soil. For shallower cultivation or transport, lower the wheels.

Image 3.1: The tiller's foldable handle design, illustrating how it can be collapsed for convenient storage and transport.

4. دستورالعمل های عملیاتی

Before operating, ensure all safety precautions are understood and followed. The tiller is designed for soil preparation in gardens, flowerbeds, vegetable plots, and courtyards.

1. راه اندازی تیلر:
   • Connect the tiller to a suitable power outlet using an appropriate outdoor extension cord.
   • Engage the dual-start button system by pressing the safety button and then squeezing the trigger simultaneously. Release the safety button once the tiller starts.
2. Tilling Technique:
   • دسته ها را با هر دو دست محکم بگیرید.
   • Allow the tines to penetrate the soil gradually. Do not force the tiller.
   • Move the tiller slowly and steadily across the area to be cultivated. Overlapping passes will ensure thorough tilling.
   • For tough or compacted soil, multiple passes may be required. Adjust the wheel height to achieve the desired tilling depth.
3. Stopping the Tiller: Release the trigger to stop the tines. Always unplug the tiller from the power source when not in use or before making any adjustments.

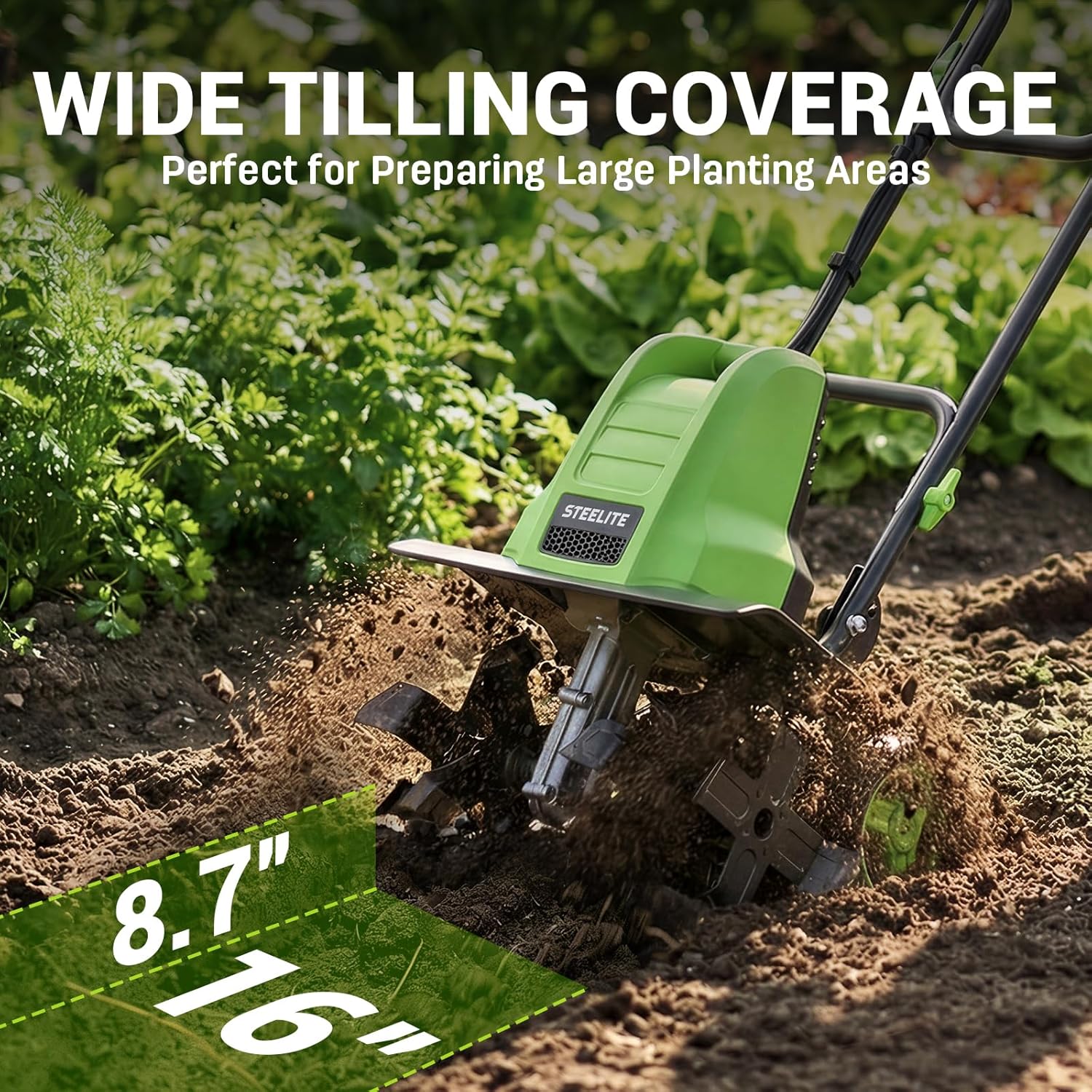

Image 4.1: Illustration of the tiller's wide tilling coverage, highlighting its 16-inch working width and 8.7-inch cutting depth.

5. تعمیر و نگهداری

Regular maintenance ensures the longevity and optimal performance of your tiller.

• تمیز کردن: After each use, unplug the tiller and clean the tines and housing to remove soil, debris, and plant matter. Use a stiff brush or cloth. Do not use water directly on the motor housing.
• بازرسی دندانه: Periodically inspect the 6 sturdy steel tines for wear, damage, or bending. Replace damaged tines immediately to maintain efficiency and safety.
• بازرسی کابل: Check the power cord and extension cord for any cuts, fraying, or damage before each use. Replace damaged cords immediately.
• ذخیره سازی: The foldable handle design allows for easy and compact storage. Clean the tiller thoroughly, fold the handle, and store it in a dry, secure location away from children and pets.

6 عیب یابی

If you encounter issues with your tiller, refer to the following common problems and solutions:

7. مشخصات

8. گارانتی و پشتیبانی

For warranty information, technical support, or to purchase replacement parts, please contact STEELITE customer service. Refer to your product packaging or the official STEELITE webسایت for the most current contact details.
