JASTIND A9290 Automotive Digital Circuit Tester User Manual

1. مقدمه

This manual provides comprehensive instructions for the safe and effective use of your JASTIND A9290 Automotive Digital Circuit Tester. This device is designed for checking electrical circuits in various vehicles, including cars, RVs, trucks, and motorcycles, within a 3-48V DC range. It features a digital LCD display for accurate voltage readings and bidirectional testing capabilities.

2. اطلاعات ایمنی

• Always wear appropriate personal protective equipment, such as safety glasses, when working with electrical systems.
• Ensure the vehicle's ignition is off before connecting or disconnecting the circuit tester, unless specific testing procedures require power.
• از تماس با قطعات متحرک موتور یا سطوح داغ خودداری کنید.
• Do not use the tester if it appears damaged or if the insulation on the wire is compromised.
• This tool is for DC voltage testing only. Do not use on AC circuits.
• دور از دسترس کودکان نگهداری شود.

3. محتویات بسته

• 1 x JASTIND 3-48V Auto Digital Circuit Tester

4. محصول تمام شدview

The JASTIND A9290 Automotive Digital Circuit Tester is a robust tool featuring a clear LCD display and a durable design for automotive electrical diagnostics.

Figure 4.1: JASTIND A9290 Automotive Digital Circuit Tester with packaging and accessories.

اجزای کلیدی:

• پروب فولادی ضد زنگ: Designed for durability and precise contact with electrical points.
• صفحه نمایش LCD دیجیتال: Provides clear, accurate voltage readings with a backlight for visibility in various lighting conditions.
• Extended PU Spring Wire: A 140-inch long, flexible, heat-insulated, and oil-resistant wire for extended reach.
• کلیپ تمساح بزرگ: Ensures a secure connection to battery terminals or ground points.

شکل 4.2: با جزئیات view of the tester's components, highlighting the probe, spring wire, and alligator clip.

5. راه اندازی

Before operation, ensure the alligator clip is securely connected to a suitable power source or ground point, depending on the test required.

1. Identify the circuit or component you intend to test.
2. For testing positive voltage, attach the large alligator clip to a known good ground point (e.g., vehicle chassis, negative battery terminal).
3. For testing ground/negative circuits, attach the large alligator clip to a known good positive power source (e.g., positive battery terminal).

6. دستورالعمل های عملیاتی

6.1 جلدtage Testing Range

The JASTIND A9290 tester operates within a 3-48V DC range. Voltages below 3V will display as 'BLANK', and voltages above 48V will display as 'OL' (Overload).

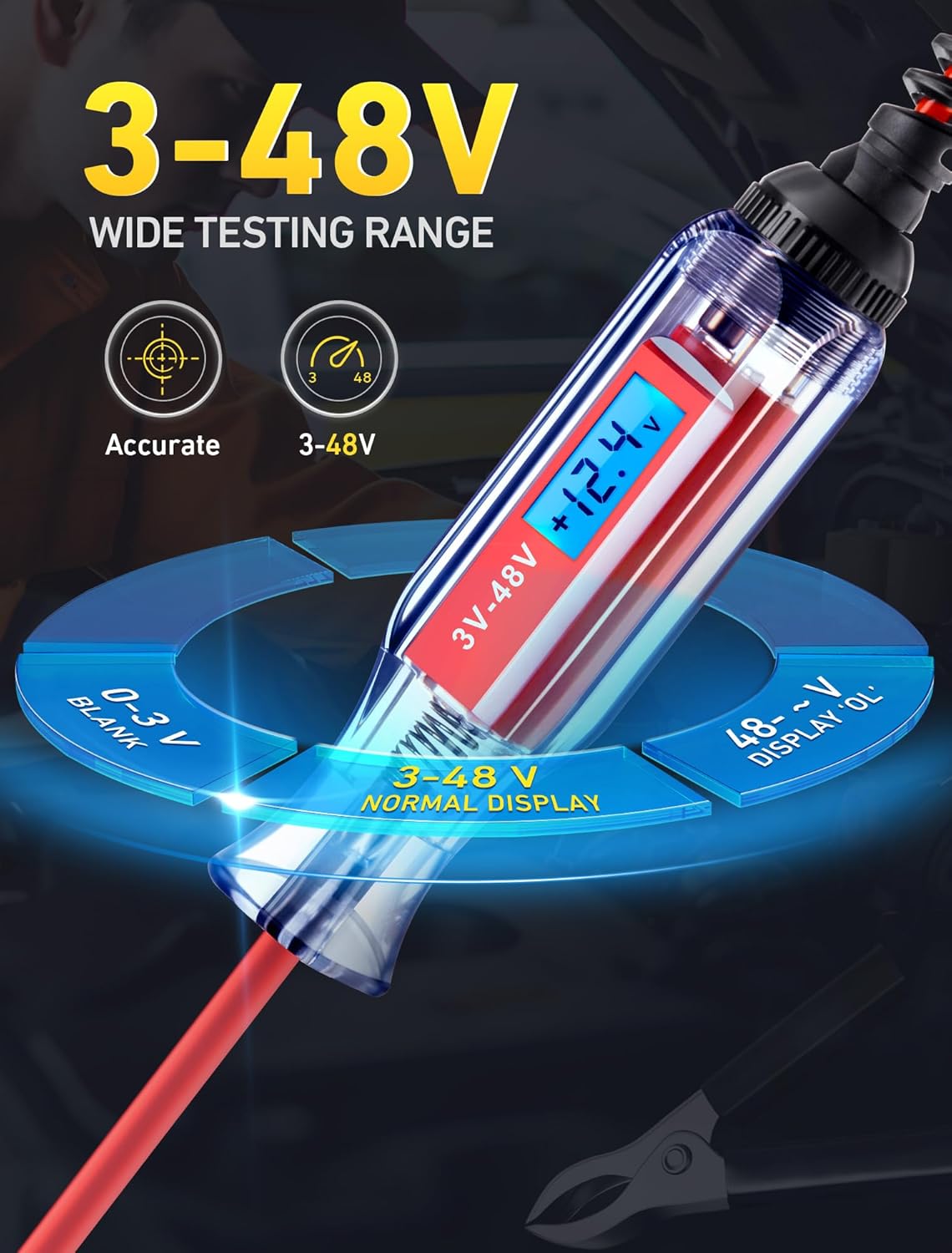

Figure 6.1: Illustration of the tester's operational voltagمحدوده e

۶.۱ ولتاژ دو طرفهtage Test Indication

This tester features bidirectional testing, indicating polarity with a '+' or '-' symbol on the LCD display. This allows for versatile testing by connecting the alligator clamp to either ground or a positive source.

• Positive Polarity: When the alligator clamp is attached to ground, and the probe touches a positive voltage source, the display will show a '+' symbol along with the voltage خواندن
• Negative Polarity: When the alligator clamp is attached to a positive power source, and the probe touches a ground point, the display will show a '-' symbol along with the voltage خواندن

شکل 6.2: مثالamples of positive and negative polarity indications.

۳.۱ نمایشگر LCD دیجیتال

The backlit LCD screen provides clear and visible digital readouts for both day and night use. It displays the voltage reading with high accuracy (±0.2V) and indicates the detected polarity.

Figure 6.3: The LCD display showing basic information including polarity and voltage.

۶.۲ روش کلی آزمایش

1. Connect the alligator clip to the appropriate reference point (ground for positive voltage tests, positive for ground tests).
2. Carefully touch the stainless steel probe to the circuit point or component you wish to test.
3. Observe the LCD display for the voltage reading and polarity indication.
4. Interpret the reading to diagnose the circuit's status.

Figure 6.4: The digital circuit tester in use, checking a vehicle's fuse box.

7. تعمیر و نگهداری

• تمیز کردن: Wipe the tester with a clean, dry cloth after each use. Do not use abrasive cleaners or solvents.
• ذخیره سازی: Store the tester in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the probe tip is protected to prevent damage.
• مراقبت از سیم: The PU spring wire is designed for durability, but avoid excessive stretching or sharp bends to prolong its lifespan.

8 عیب یابی

• بدون نمایش: Check if the alligator clip has a secure connection to a power source or ground. Ensure the voltage being tested is within the 3-48V DC range.
• Inaccurate Reading: Verify that the probe is making good contact with the test point and that the alligator clip has a solid connection. Ensure the battery in the tester (if applicable) is not low.
• 'BLANK' Display: نشان می دهد جلدtagزیر ۱۰.۰ ولت DC.
• نمایشگر 'OL': نشان می دهد جلدtage above 48V DC.

9. مشخصات

10. گارانتی و پشتیبانی

JASTIND provides a تضمین کیفیت 1 ساله for this product. For any questions or support needs, please contact our customer service team. We offer 7*24 hours email service برای کمک به شما

برای کمک بیشتر، لطفاً به JASTIND Store on Amazon.
