دفترچه راهنمای دستگاه تصفیه هوای شارک مدل HP150EU

مقدمه

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Shark NeverChange Air Purifier HP150EU. Please read it thoroughly before using the appliance and retain it for future reference.

The Shark NeverChange Air Purifier is designed to provide powerful cleaning and odor control, automatically monitoring air quality and adjusting its performance to improve your indoor environment. Its advanced 4-layer filtration system is engineered to capture and retain 99.97% of allergens and irritants, while Anti-Odor Technology helps neutralize odors for a fresher-smelling home.

محصول تمام شده استview

شکل 1: جلو view of the Shark NeverChange Air Purifier HP150EU, showcasinطراحی جمع و جور و صفحه نمایش دیجیتال آن.

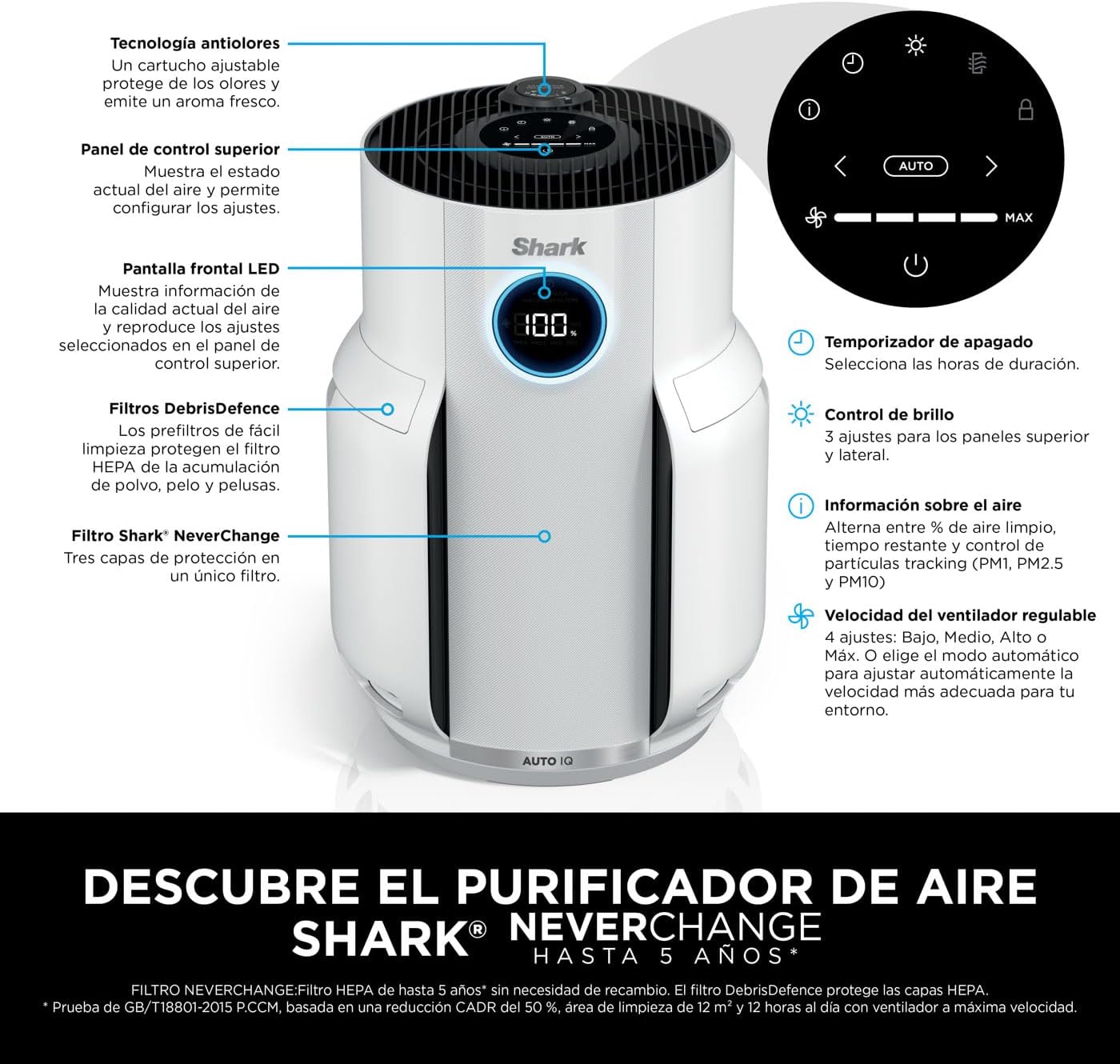

شکل 2: Top control panel and front LED display of the air purifier. The control panel includes buttons for power, fan speed, auto mode, timer, and brightness control. The LED display shows air quality percentage.

ویژگی های کلیدی:

• فیلتر بادوام: No need to replace your filter for up to 5 years (tested according to GB/T18801-2015 P.CCM, based on 50% CADR purchase, 12m2 cleaning surface and 12 hours daily use at maximum fan speed).
• 4-Layer Filter: Catches allergens and irritants, such as dust, pollen, pet dander and allergens. The Anti-Odor Technology spreads a fresh scent and neutralizes odors for a nice fresh-smelling home.
• Auto IQ Monitoring: Auto IQ monitors air quality and automatically responds to environmental changes by adjusting cleaning power throughout the day. See that the air quality improves on the LED display.
• پوشش: 60 m (with 1 air exchange per hour) / 12 m (4.8 air changes per hour). Quiet operation and dimmable lights for use at night.
• اجزای شامل: 1x NeverChange up to 5 years long Air Purifier HP150 (EU plug), 1x NeverChange HEPA Filter, 1x Anti-Odor Technology Cartridge. Dimensions: H38.5cm x W23.7cm x D26.6cm. Weight: 3.3 kg. Color: White.

راه اندازی

1. باز کردن بسته بندی: Carefully remove the air purifier and all accessories from the packaging. Retain packaging for future storage or transport.
2. قرار دادن: Place the air purifier on a firm, level surface. Ensure there is at least 15 cm (6 inches) of clear space around all sides for optimal airflow. Avoid placing it near heat sources, direct sunlight, or in areas with high humidity.
3. Filter Installation (Initial Setup):

   The air purifier comes with a pre-installed NeverChange HEPA Filter and an Anti-Odor Technology Cartridge. Before first use, ensure these are correctly seated and any protective packaging is removed.



   شکل 3: Diagram illustrating the four layers of the Shark NeverChange filtration system: DebrisDefence, Pet Particle Barrier, Activated Carbon, and NanoSeal HEPA.

   To access the filter compartment, gently open the side panel. Verify the filter and odor cartridge are securely in place. Close the panel firmly.

4. اتصال برق: Plug the power cable into a standard electrical outlet. The unit will enter standby mode.

دستورالعمل های عملیاتی

توابع کنترل پنل:

• دکمه پاور (⏻): برای روشن یا خاموش کردن دستگاه فشار دهید.
• سرعت فن (💨): Adjusts fan speed (Low, Medium, High, Max).
• حالت خودکار (AUTO): Activates Auto IQ, allowing the purifier to automatically adjust fan speed based on detected air quality.
• تایمر (⏱): Sets an operating timer for a specified duration.
• کنترل روشنایی (🔆): Adjusts the brightness of the LED display and indicator lights.
• Information Display (ℹ): Cycles through air quality information such as percentage clean air, remaining filter life, and particle tracking (PM1, PM2.5, PM10).

استفاده روزانه:

1. روشن کردن: Press the Power button. The unit will start in the last used mode or default to Auto mode.
2. نظارت بر کیفیت هوا: The front LED display will show the current air quality percentagه. درصد بالاترtage indicates cleaner air.


   شکل 4: Close-up of the air purifier's LED display showing real-time air quality. The display changes color (red, orange, blue) to indicate different air quality levels, with 100% representing optimal air.

3. انتخاب حالت:
   • حالت هوش خودکار: Recommended for continuous use. The purifier intelligently adjusts fan speed based on detected pollutants.
   • سرعت فن دستی: Use the Fan Speed button to select your desired fan intensity. Higher speeds provide faster purification but may generate more noise.
4. حالت شب: For quiet operation and dimmable lights, adjust the brightness setting or select a lower fan speed.


   شکل 5: The Shark NeverChange Air Purifier operating quietly in a bedroom at night, demonstrating its suitability for undisturbed sleep.

5. Anti-Odor Technology: The integrated Anti-Odor Technology Cartridge continuously works to neutralize odors.


   شکل 6: نمای نزدیک view of the Anti-Odor Technology dial on the top of the air purifier, indicating its function in neutralizing odors and releasing a fresh scent.

تعمیر و نگهداری

نگهداری منظم، عملکرد بهینه را تضمین می‌کند و عمر دستگاه تصفیه هوا را افزایش می‌دهد.

Cleaning the DebrisDefence Filter:

The DebrisDefence pre-filter is designed to capture larger particles and should be cleaned periodically to maintain HEPA filter efficiency.

1. خاموش: Always unplug the air purifier before performing any maintenance.
2. فیلتر دسترسی: Open the side panel of the air purifier.
3. Remove DebrisDefence: Gently pull out the DebrisDefence filter.


   شکل 7: Step-by-step illustration of removing and cleaning the DebrisDefence filter. The filter can be easily vacuumed or wiped clean.
4. تمیز کردن: Use a vacuum cleaner with a brush attachment or a soft cloth to remove accumulated dust and debris from the DebrisDefence filter. Do NOT wash the HEPA filter with water.
5. نصب مجدد: Insert the clean DebrisDefence filter back into its slot and close the side panel securely.

تعویض فیلتر HEPA:

The Shark NeverChange HEPA filter is designed to last up to 5 years under normal operating conditions. The unit's display will indicate when filter replacement is needed. Refer to the information display for remaining filter life.

When replacement is necessary, use only genuine Shark NeverChange replacement filters (Model: HP150EU-FILTER, or as specified by Shark).

1. خاموش و قطع برق: Ensure the unit is off and unplugged.
2. فیلتر دسترسی: پانل کناری را باز کنید.
3. حذف فیلتر قدیمی: Carefully pull out the old HEPA filter. Dispose of it according to local regulations.
4. فیلتر جدید را نصب کنید: Insert the new Shark NeverChange HEPA filter, ensuring it is correctly oriented and seated.
5. بازنشانی عمر فیلتر: After installing a new filter, plug in the unit and follow the instructions in the user manual (or on the display) to reset the filter life indicator.

تمیز کردن بیرونی:

قسمت بیرونی دستگاه تصفیه هوا را با یک نرم کننده پاک کنیدamp cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the air vents.

عیب یابی

اگر پس از امتحان کردن این راه‌حل‌ها مشکل همچنان ادامه داشت، لطفاً با پشتیبانی مشتری Shark تماس بگیرید.

مشخصات

گارانتی و پشتیبانی

برای اطلاعات گارانتی، لطفاً به کارت گارانتی ارائه شده همراه محصول خود مراجعه کنید یا از وب‌سایت رسمی Shark دیدن کنید. webرسید خرید خود را به عنوان مدرک خرید نگه دارید.

For technical support, replacement parts, or service inquiries, please contact Shark customer service through their official channels. Contact details can typically be found on the product packaging or the manufacturer's webسایت

منابع آنلاین: For additional information, FAQs, and video tutorials, visit the official Shark support page for your model.
