مقدمه
Welcome to your new PURPLE LEAF 10' x 14' Outdoor Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

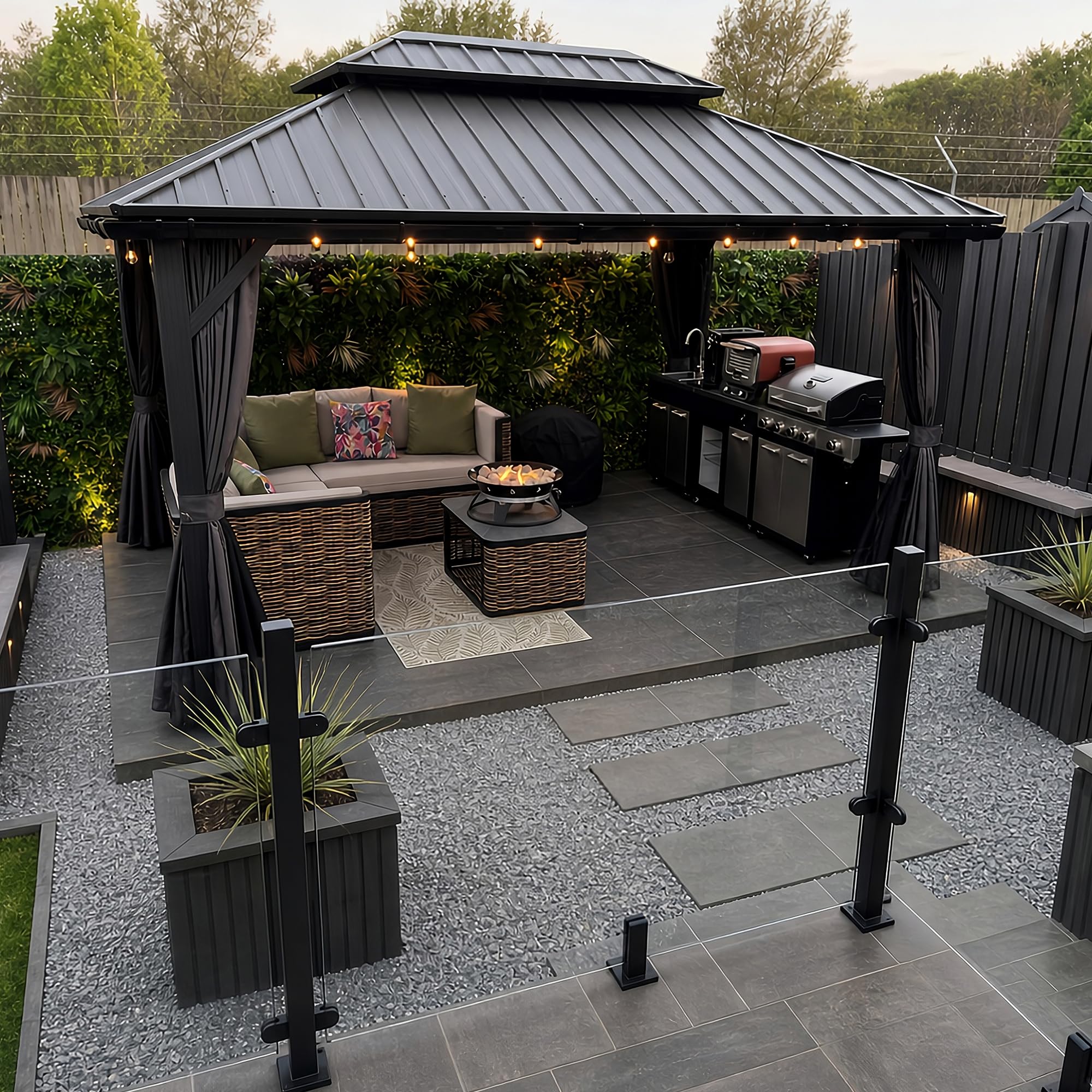

Image: The PURPLE LEAF 10' x 14' Outdoor Gazebo, showcasing its dual-layer roof and curtains, set up in a patio environment.
اطلاعات ایمنی
- مونتاژ: Requires at least two adults. Wear appropriate safety gear (gloves, eye protection). Ensure all parts are present before starting.
- مکان: Choose a level surface for installation. Avoid installing near power lines or other hazards.
- شرایط آب و هوایی: This gazebo is designed for outdoor use. In extreme weather conditions (heavy snow, strong winds), it is recommended to remove curtains and netting and take necessary precautions to secure the structure.
- لنگر انداختن: Securely anchor the gazebo to the ground using appropriate hardware to prevent tipping or movement.
- ایمنی آتش نشانی: Keep all heat sources, including grills and fire pits, at a safe distance from the gazebo fabric and structure.
- تعمیر و نگهداری: Regularly inspect the structure for loose parts, damage, or wear. Address any issues promptly.
محتویات بسته
Before assembly, verify that all components listed below are present. If any parts are missing or damaged, contact customer support.
- Galvanized Steel Double Roof Panels
- Powder-Coated Aluminum Frame Components
- Removable Textilene Netting
- Yarn-Dyed Polyester Curtains
- سخت افزار مونتاژ (پیچ، مهره و غیره)
- قلابهای سقفی
- راهنمای دستورالعمل (این سند)
راه اندازی و مونتاژ
Assembly of the PURPLE LEAF Gazebo requires careful attention to detail and the assistance of at least two adults. Refer to the detailed assembly guide included in your package for step-by-step instructions and diagrams.
مراحل کلی:
- آماده سازی سایت: Select a flat, stable area for installation. Clear any debris or obstacles.
- مونتاژ قاب: Begin by assembling the aluminum frame according to the provided diagrams. Ensure all connections are secure.
- نصب سقف: Carefully attach the galvanized steel double roof panels. Pay attention to proper alignment for optimal water drainage and airflow.
- اتصال توری و پرده: Install the textilene netting and polyester curtains onto the designated tracks.
- لنگر انداختن: Securely anchor the gazebo to the ground using the provided anchoring stands and appropriate fasteners for your surface type.
Image: Detailed diagram illustrating the various components and dimensions of the gazebo, including the double roof, mesh screen, galvanized steel, slope drainage system, double tracks, hooks, aluminum frame, thicker posts, and anchoring stands.
ویدئو: تمام شدview of the PURPLE LEAF Patio Hardtop Gazebo, demonstrating its features and showing it installed in a backyard setting. This video highlights the galvanized steel double roof, removable netting, curtains, and aluminum frame.
عملیات آلاچیق شما
پرده و توری:
The gazebo features removable textilene netting and polyester curtains for versatile use. The netting provides insect protection while maintaining airflow. The curtains offer privacy and additional sun blockage. Both can be opened, semi-closed, or fully closed as desired.
- باز کردن/بستن: Use the integrated zippers on the netting for easy entry and exit. The curtains can be tied back to the posts when not in use.
- جریان هوا: The dual-layer roof design promotes airflow, reducing heat buildup inside the gazebo.
Image: Visual representation of key gazebo features such as the water gutter, triangle support, anchoring stand, ceiling hooks for lights, yarn-dyed curtains, and textilene netting.
تصویر: نمای نزدیک view of the 110 GSM Textilene Netting, highlighting its upgraded fabric and properties like insect protection, heat resistance, UV protection, and water resistance.
تعمیر و نگهداری
Regular maintenance will extend the lifespan and appearance of your gazebo.
- قاب تمیز کننده: Clean the aluminum frame with a mild soap solution and water. Rinse thoroughly and dry. Avoid abrasive cleaners.
- تمیز کردن سقف: Periodically clean the galvanized steel roof to remove leaves, debris, and dirt. Ensure gutters (if applicable) are clear for proper drainage.
- پارچه تمیز کننده: The polyester curtains and textilene netting can be spot cleaned with mild soap and water. For deeper cleaning, they may be removed and hand washed. Allow to air dry completely before reattaching.
- بررسی سخت افزار: Annually, inspect all bolts and screws to ensure they are tight and secure. Replace any rusted or damaged hardware.
- ذخیره سازی زمستانی: In areas with heavy snow or extreme cold, it is recommended to remove the netting and curtains and store them indoors. While the hardtop roof is durable, excessive snow accumulation should be cleared to prevent structural stress.
Image: A comparison highlighting the durability of PURPLE LEAF's stainless steel screws against ordinary iron screws, which are prone to rusting after one year of use.
عیب یابی
مسائل و راه حل های رایج:
| مشکل | علت احتمالی | راه حل |
|---|---|---|
| آلاچیق ناپایدار یا لرزان به نظر میرسد. | Improper anchoring; loose bolts; uneven ground. | Ensure the gazebo is securely anchored to a level surface. Tighten all bolts and connections. |
| جمع شدن آب روی پشت بام. | Debris blocking drainage; incorrect roof panel installation. | Clear any debris from the roof and drainage channels. Verify roof panels are installed correctly to allow water runoff. |
| پردهها/توریها به نرمی سر نمیخورند. | Tracks are dirty or obstructed. | Clean the curtain and netting tracks to remove dirt or foreign objects. |
مشخصات
- برند: برگ بنفش
- مدل: 10' x 14' Outdoor Gazebo
- مواد: Aluminum, Galvanized Steel, Textilene
- جنس قاب: آلومینیوم با روکش پودری
- Roof Material: Galvanized Steel Double Roof
- ابعاد محصول (L x W x H): ۵.۹ اینچ در ۱۱.۸ اینچ در ۱۴.۶ اینچ
- وزن مورد: 240.3 پوند
- سطح مقاومت در برابر آب: ضد آب
- محافظت در برابر اشعه ماوراء بنفش: مقاوم در برابر اشعه ماوراء بنفش
- مونتاژ مورد نیاز: بله
- رنگ: خاکستری
گارانتی و پشتیبانی
اطلاعات گارانتی:
- پنل بالایی: 5 سال
- پرده و توری: 2 سال
- قاب: 1 سال
پشتیبانی مشتری:
For any questions, missing parts, or warranty claims, please contact PURPLE LEAF customer service. Refer to your purchase documentation for specific contact details or visit the official PURPLE LEAF webسایت
Please have your model number (10' x 14' Outdoor Gazebo) and purchase date available when contacting support.
Image: An image detailing the warranty information for the PURPLE LEAF Gazebo, including coverage for the top panel, curtains, netting, and frame, along with a mention of 24/7 customer support.
