JASTIND A9177 Air Blow Gun User Manual

1. مقدمه

Thank you for choosing the JASTIND A9177 Air Blow Gun. This manual provides essential information for the safe and effective use of your new pneumatic tool. The JASTIND A9177 is designed for high-volume dust and debris cleaning in various industrial and household applications, featuring an adjustable air blower nozzle and an extendable design for reaching difficult areas.

محتویات بسته:

• 1 x JASTIND A9177 Air Blow Gun
• 1 x Extendable Nozzle (17-27 inches)
• 1 x 4.9-inch Steel Air Flow Nozzle with Rubber Guard
• 1 x Adjustable Brass Air Flow Nozzle
• 1 x 1/4" NPT Standard US Quick Male Fitting
• Extra Sealing O-rings

Figure 1: JASTIND A9177 Air Blow Gun with included accessories.

2. اطلاعات ایمنی

Always observe the following safety precautions when using the JASTIND A9177 Air Blow Gun:

• محافظت از چشم: Always wear ANSI-approved safety goggles or a face shield when operating the air blow gun to protect against flying debris.
• حفاظت شنوایی: Use hearing protection in noisy environments to prevent hearing damage.
• محدودیت های فشار: Do not exceed the maximum operating pressure of 150 PSI. The recommended daily use pressure is below 110 PSI.
• کمپرسور هوا: This air blow gun requires an external air compressor. Ensure your air compressor is properly maintained and operated according to its own safety guidelines.
• Directing Airflow: Never point the air blow gun at yourself or others. Avoid directing airflow towards sensitive body parts.
• تهویه: Use in a well-ventilated area to avoid inhaling dust and debris.
• اتصالات امن: Ensure all connections (nozzles, quick plug, air hose) are securely fastened before use to prevent accidental disconnections and air leaks.
• کودکان و تماشاگران: در حین کار، کودکان و اطرافیان را از محل کار دور نگه دارید.

3. راه اندازی

Follow these steps to set up your JASTIND A9177 Air Blow Gun:

1. Attach Quick Plug: The air blow gun comes with a 1/4" NPT Standard US quick male fitting. Screw this fitting securely into the air inlet port at the base of the blow gun handle. Ensure any included sealing O-rings are properly seated to prevent air leaks.
2. اتصال به کمپرسور هوا: Connect the quick male fitting to a compatible female quick coupling on your air compressor's hose. Ensure the connection is firm and secure. Note: An air compressor and female quick coupling are not included and must be acquired separately.
3. نازل را انتخاب و وصل کنید:
   • نازل برنجی قابل تنظیم: For general use and adjustable airflow. Screw it directly onto the front of the air blow gun.
   • 4.9-inch Steel Nozzle with Rubber Guard: For concentrated airflow and protection against scratching surfaces. Screw it onto the front of the air blow gun.
   • Extendable Nozzle (17-27 inches): For reaching deep or narrow spaces. Screw the base of the extendable nozzle onto the air blow gun. To adjust its length, loosen the screw on the nozzle, extend or retract the inner rod to the desired length (between 17 and 27 inches), and then tighten the screw to secure it.

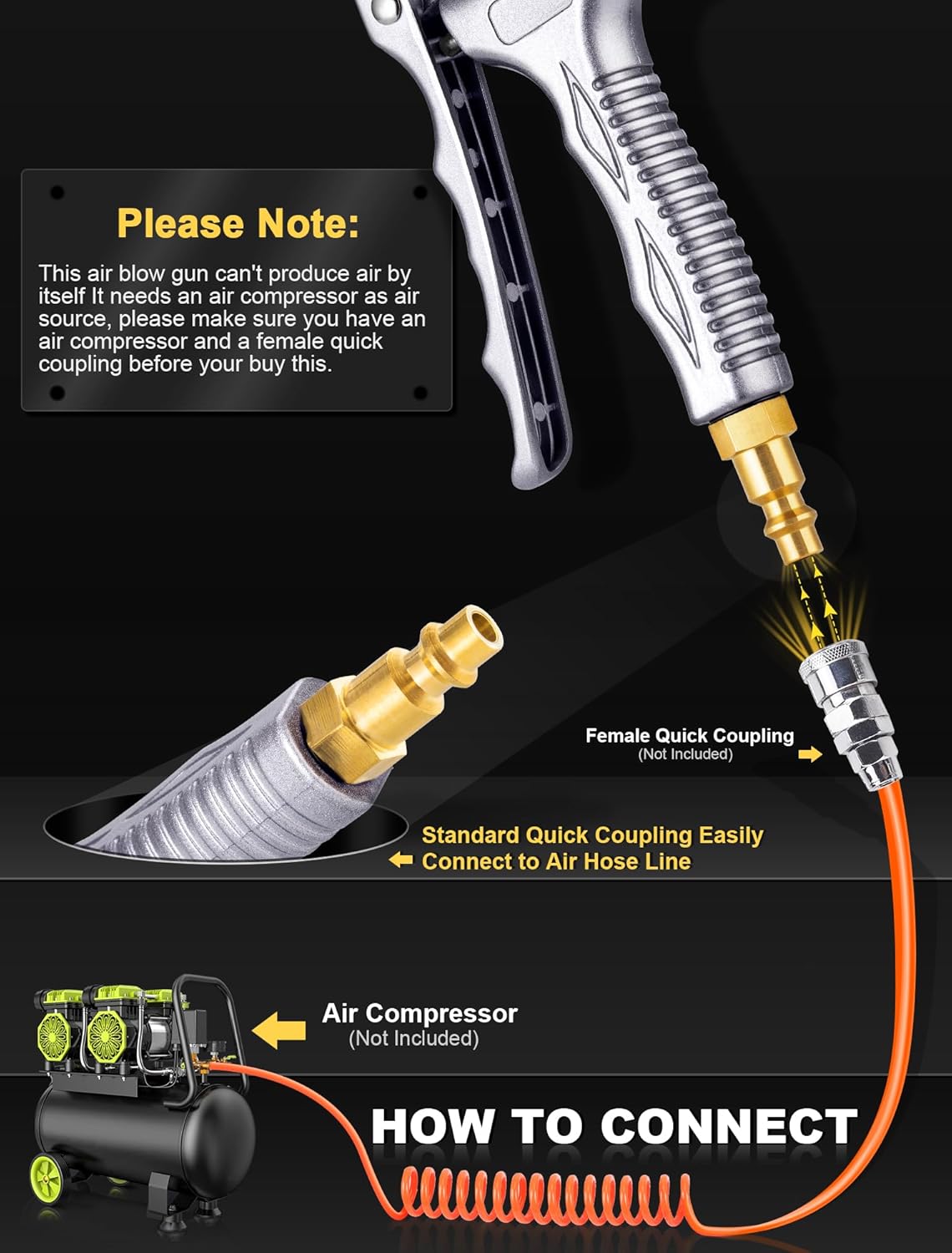

Figure 2: Connection to an air compressor (compressor not included).

Figure 3: Adjustable brass nozzle and steel nozzle with rubber guard.

4. عملیات

Once the air blow gun is properly set up and connected to an air compressor, you can begin operation:

1. Power On Compressor: Turn on your air compressor and allow it to build up to the desired pressure (recommended below 110 PSI, maximum 150 PSI).
2. Adjust Airflow (if applicable): If using the adjustable brass nozzle, rotate the nozzle tip to control the volume of air output.
3. Extend Nozzle (if applicable): If using the extendable nozzle, adjust its length as described in the Setup section to reach the target area.
4. فعال کردن جریان هوا: Press the trigger on the handle to release compressed air. The amount of pressure applied to the trigger can also modulate airflow.
5. Direct Airflow: Carefully direct the nozzle towards the area to be cleaned, ensuring no debris is blown towards people or sensitive equipment.
6. ماشه رهاسازی: Release the trigger to stop the airflow.

برنامه های کاربردی:

The JASTIND A9177 Air Blow Gun is suitable for a wide range of cleaning tasks, including:

• Blowing away dust, water, sawdust, and powder from work surfaces.
• Cleaning car interiors and engine compartments.
• Clearing debris from narrow or hard-to-reach spaces.
• General industrial and household blow-off operations.

Figure 4: Various applications for the air blow gun.

5. تعمیر و نگهداری

Proper maintenance ensures the longevity and optimal performance of your air blow gun:

• تمیز کردن: After each use, wipe down the air blow gun with a clean, dry cloth to remove any dust or debris.
• بررسی اتصالات: Regularly inspect all threaded connections for tightness. Loose connections can lead to air leaks and reduced performance.
• حلقه های O: Periodically check the O-rings for wear or damage. Replace them with the provided spare O-rings if necessary to maintain a proper seal and prevent air leaks.
• ذخیره سازی: Store the air blow gun in a clean, dry place when not in use. The integrated hanging hook allows for convenient storage.

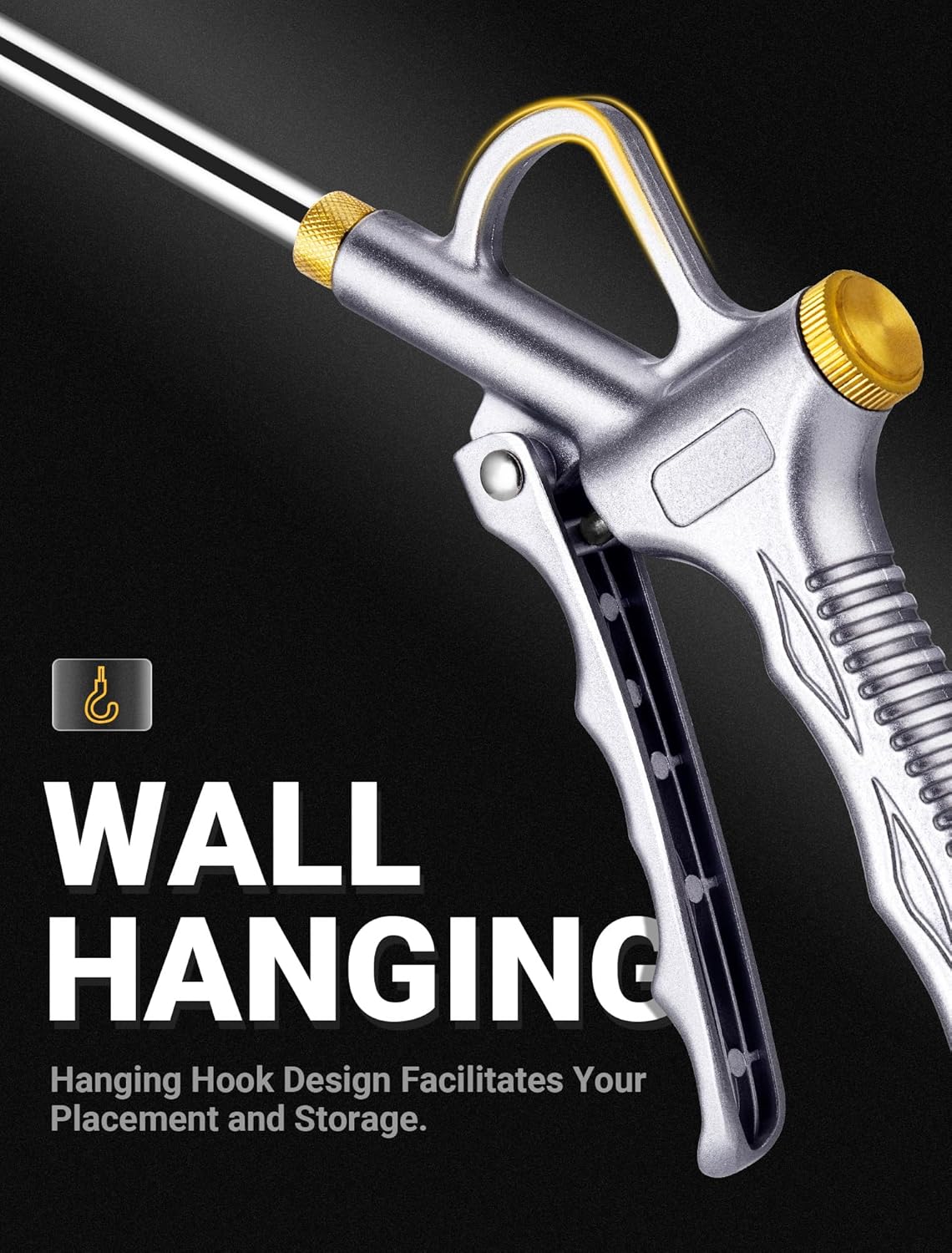

Figure 5: Integrated hanging hook for storage.

6 عیب یابی

If you encounter issues with your JASTIND A9177 Air Blow Gun, refer to the following common problems and solutions:

7. مشخصات

8. ضمانت و پشتیبانی

JASTIND is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or support needs regarding your A9177 Air Blow Gun, please contact our customer service team. We offer 24/7 email support to assist you.

برای جزئیات خاص گارانتی، لطفاً به مستندات خرید خود مراجعه کنید.
