YWBL-WH Wireless Racing Timer Instruction Manual

1. مقدمه

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your YWBL-WH Wireless Racing Timer. This electronic speed timer is designed for precise timing in various activities such as sprint races, electric bicycle events, motorcycle competitions, and skating tracks. Please read this manual thoroughly before using the device to ensure proper function and safety.

2. اطلاعات ایمنی

هشدار:

• It is strictly forbidden to observe directly in front of the laser emission hole with your eyes during operation. Laser radiation can cause eye damage.
• دستگاه را از آب و دمای شدید دور نگه دارید.
• سعی نکنید خودتان دستگاه را جدا یا تعمیر کنید. در صورت نیاز به خدمات با پشتیبانی تماس بگیرید.

3. محتویات بسته

لطفاً بررسی کنید که تمام موارد ذکر شده در زیر در بسته شما موجود باشد:

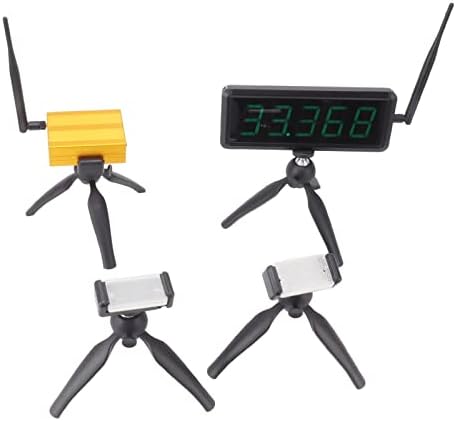

Image: All components of the YWBL-WH Wireless Racing Timer laid out, including the timer, rebound device, reflectors, stands, cables, and storage case.

• 1 x Wireless Racing Timer
• 1 x Rebound Device
• 2 عدد بازتابنده
• 4 x Ground Stands
• 3 عدد براکت
• ۲ عدد کابل شارژ
• 2 x Power Adapters (color may vary)
• 1 عدد جعبه ذخیره سازی
• ۱ عدد دفترچه راهنمای کاربر (این سند)

4. محصول تمام شدview و ویژگی ها

The YWBL-WH Wireless Racing Timer is designed for accurate and reliable performance timing. Key features include:

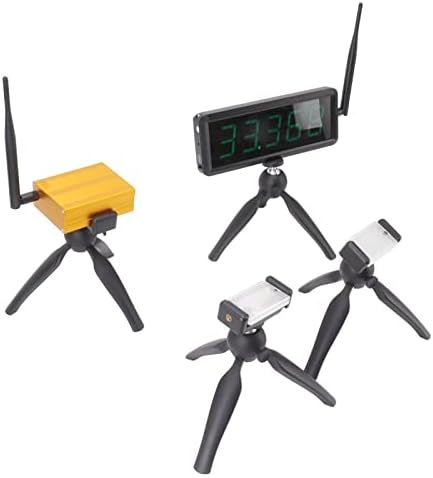

Image: The YWBL-WH Wireless Racing Timer system set up with the timer, rebound device, and reflectors on tripods, ready for use.

• Effective Laser Distance: The system features an effective laser distance exceeding 8 meters, making it suitable for timing scenarios where the start and finish points are the same.
• سهولت استفاده: Designed for convenience, the timer charges for 5 hours to provide approximately 8 hours of continuous use. The power button is located on the side of the timer, eliminating the need for a constant mobile power connection during operation.
• طیف گسترده ای از برنامه های کاربردی: This digital wireless timer is versatile, ideal for various speed-based activities including sprint races, electric bicycle and motorcycle events, skating, and general track and field timing.
• Accurate Timing: Equipped with a 5-digit display, the timer provides precise timing results. It does not require manual resetting for each interval, and boasts a time error of less than 0.001 seconds per hour.
• Complete and Durable Accessories: The package includes the timer, rebound device, and reflectors, along with sturdy stands for easy installation. The components are designed to be waterproof and shockproof, ensuring a long operational lifespan.

۱. دستورالعمل‌های راه‌اندازی

Follow these steps to set up your YWBL-WH Wireless Racing Timer:

1. دستگاه های شارژ: Before first use, fully charge the Wireless Racing Timer and the Rebound Device using the provided charging cables and power adapters. The charging input voltage is DC 5V. A full charge takes approximately 5 hours.
2. Assemble Stands: Attach the timer, rebound device, and reflectors to their respective brackets and then to the ground stands. Ensure they are securely fastened.
3. Position the Timer and Rebound Device: Place the Wireless Racing Timer at the desired start/finish line. Position the Rebound Device directly opposite the timer, ensuring the laser beam from the timer hits the reflector on the rebound device. The effective laser distance is over 8 meters.


Image: The timer and rebound device are shown mounted on their respective tripods, ready for deployment.

4. Align Reflectors: Ensure the reflectors are clean and positioned to accurately reflect the laser beam. Proper alignment is crucial for accurate timing.
5. روشن کردن: Locate the power switch on the side of the Wireless Racing Timer and the Rebound Device. Switch both devices to the 'ON' position.

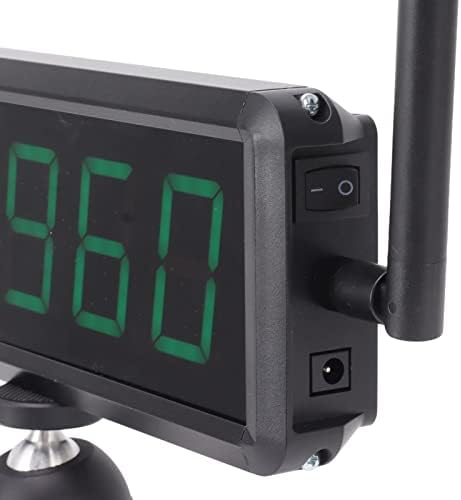

تصویر: نمای نزدیک view of the side of the timer, showing the power switch and the charging port.

6. دستورالعمل های عملیاتی

Once set up, operating the YWBL-WH Wireless Racing Timer is straightforward:

1. زمان‌بندی خودکار: The system automatically starts timing when the laser beam is broken (e.g., by a person or object passing through it) and stops when the beam is re-established or broken again at the finish line (depending on configuration).
2. خواندن صفحه نمایش: The 5-digit display on the Wireless Racing Timer will show the elapsed time in seconds, typically to three decimal places (e.g., 3.180 seconds).

Image: The timer's digital display showing a time of 3.180 seconds.
3. No Manual Reset: The timer is designed for continuous operation without requiring manual resets between timing intervals, streamlining the process for multiple participants or laps.


Image: The YWBL-WH Wireless Racing Timer in an indoor track setting, with an athlete running past the timing gate.

4. خاموش: After use, switch both the Wireless Racing Timer and the Rebound Device to the 'OFF' position to conserve battery life.

7. تعمیر و نگهداری

Proper maintenance ensures the longevity and accuracy of your timing system:

• تمیز کردن: Use a soft, dry cloth to clean the timer, rebound device, and reflectors. Do not use abrasive cleaners or solvents. Ensure the laser emission and reception areas are free from dust and debris.
• مراقبت از باتری: Recharge the devices regularly, especially if they will be stored for an extended period. Avoid completely draining the batteries frequently.
• ذخیره سازی: Store all components in the provided storage box in a cool, dry place when not in use. This protects them from physical damage and environmental factors.


Image: The black and silver storage case for the YWBL-WH Wireless Racing Timer, designed for secure transport and storage.

• ضد آب و ضد ضربه: While the devices are designed to be waterproof and shockproof, avoid unnecessary exposure to harsh conditions to maximize their lifespan.

8 عیب یابی

If you encounter issues with your Wireless Racing Timer, refer to the following common problems and solutions:

• روشن نشدن دستگاه:
  • از شارژ کامل دستگاه اطمینان حاصل کنید.
  • مطمئن شوید که کلید برق در موقعیت «روشن» (ON) قرار دارد.
• Inaccurate or No Timing:
  • Check the alignment of the timer and rebound device. The laser beam must directly hit the reflector.
  • Ensure there are no obstructions in the laser path.
  • Clean the laser emission and reception areas, as well as the reflectors, from any dirt or smudges.
  • Verify both the timer and rebound device are powered on.
• عمر باتری کوتاه:
  • Ensure the devices are fully charged before use.
  • Battery performance can degrade over time. If battery life significantly decreases, contact support.
• مشکلات نمایش:
  • If the display is dim or flickering, ensure the battery is charged.
  • If segments of the display are not working, contact support.

9. مشخصات

10. گارانتی و پشتیبانی

اطلاعات گارانتی: Warranty details for this product are not explicitly specified in the provided product information. Please retain your proof of purchase and contact the seller or manufacturer directly for specific warranty terms and conditions.

پشتیبانی مشتری: For further assistance, technical support, or inquiries regarding your YWBL-WH Wireless Racing Timer, please visit the official YWBL-WH store or contact their customer service department.

Visit the YWBL-WH Store
