1. محصول تمام شدview
The ALEASHA Widespread Bathroom Faucet is designed for modern bathrooms, featuring a durable brushed nickel finish and a 3-hole deck mount installation. This faucet combines elegant design with practical functionality, ensuring a reliable and aesthetically pleasing addition to your sink.

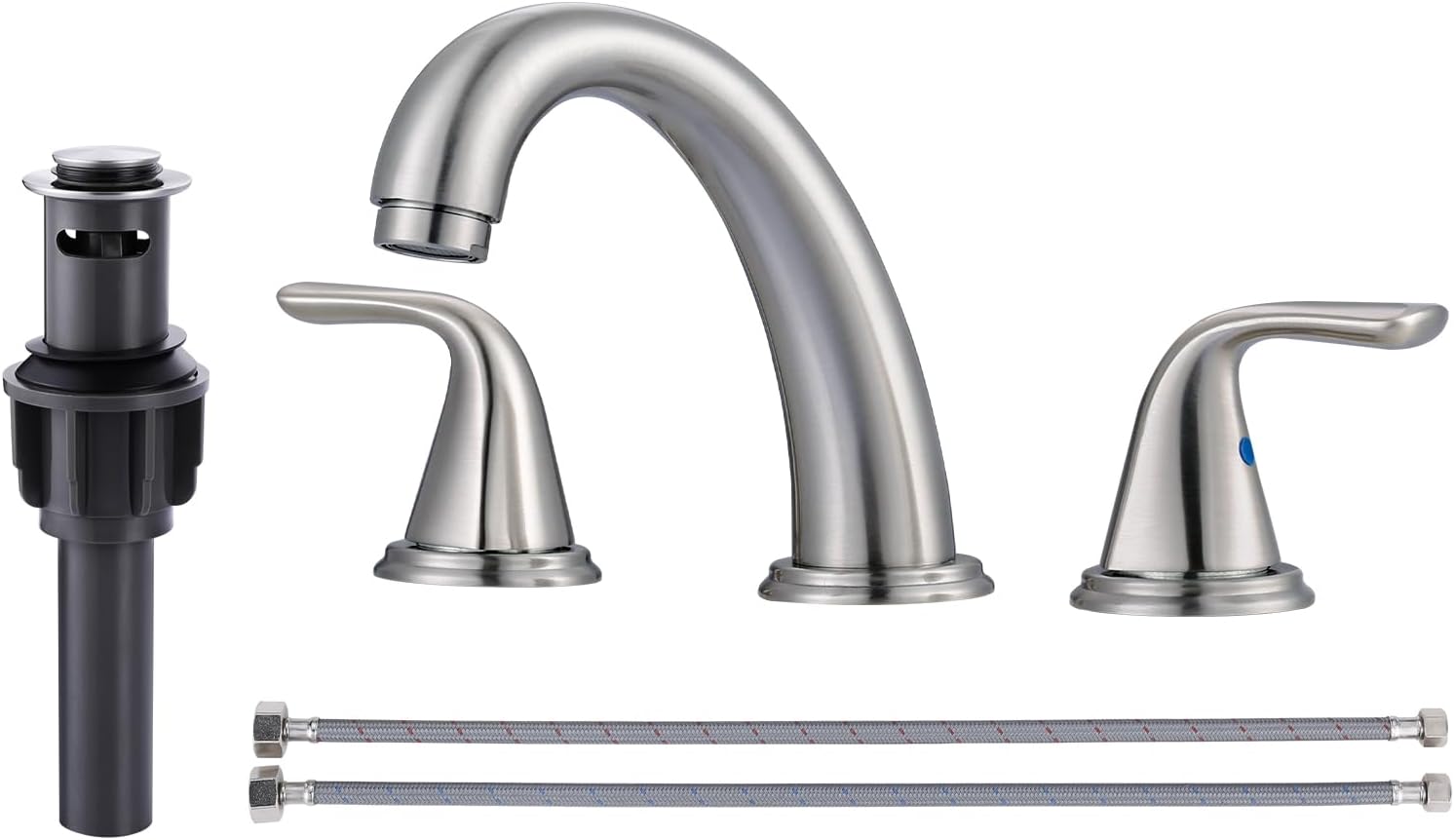

Figure 1.1: ALEASHA Widespread Bathroom Faucet Components

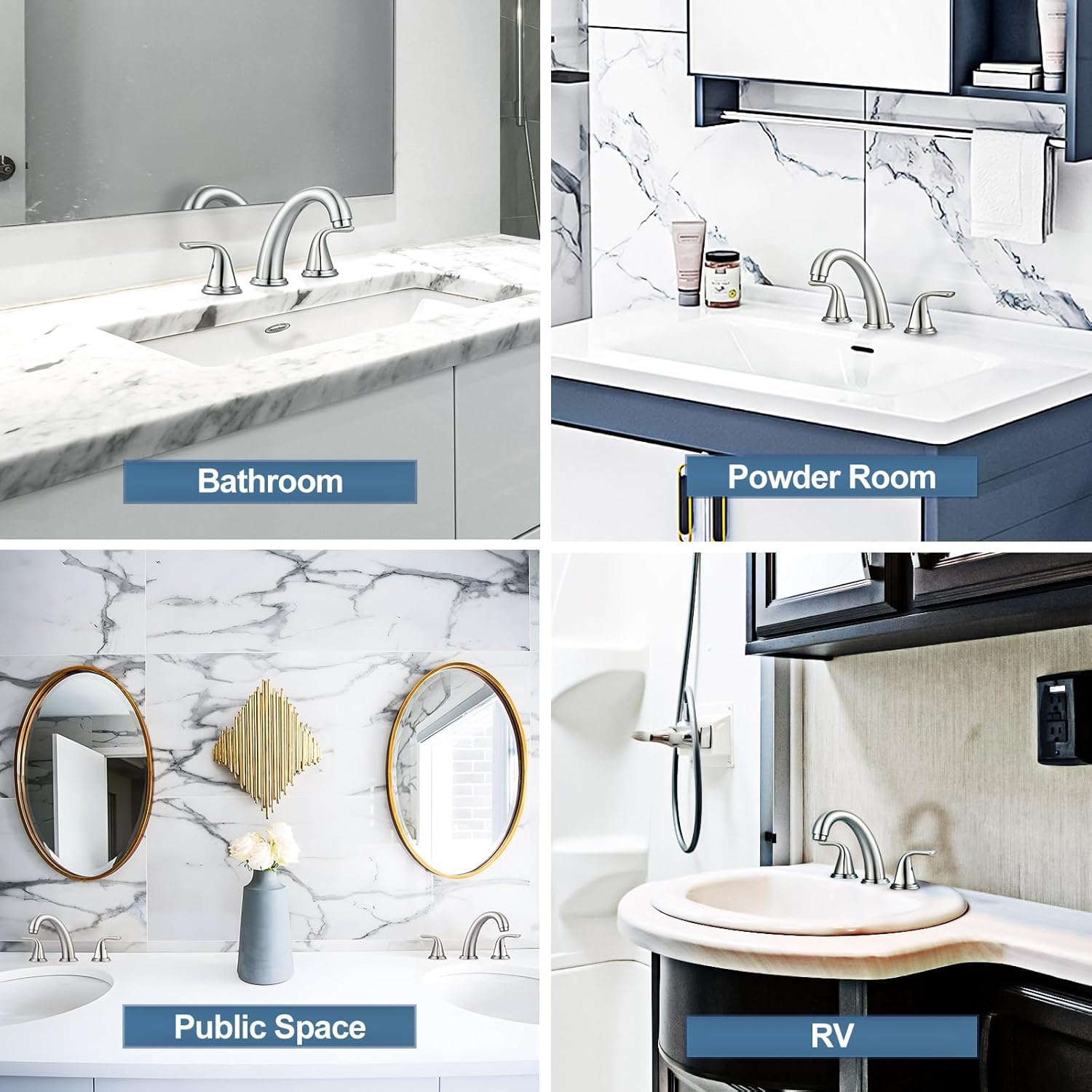

Figure 1.2: Faucet Installed on a Bathroom Countertop
2. ویژگی های کلیدی
- Elegant Brushed Nickel Finish: Provides excellent resistance against scratches and rust for daily use.
- ساخت و ساز بادوام: Made from high-quality stainless steel and zinc, ensuring durability and corrosion resistance. Features an internal ceramic valve for leak-free performance.
- Widespread Design: Compatible with most 3-hole deck installations.
- کنترل دقیق دما: Red and blue indicators on handles distinguish hot and cold water controls.
- Superior Aerator: Includes an imported 1.2 GPM aerator for dense, soft water flow without splashing, saving up to 35% water. A 2.2 GPM aerator is also provided for replacement.
- Integrated Pop-Up Drain: Comes with a pop-up drain assembly with overflow, designed for quick and efficient drainage.
Figure 2.1: Faucet Components and Features
Figure 2.2: Ceramic Valve Performance
Figure 2.3: Premium Finish and Aerator Benefits
3. ابعاد محصول
Understanding the dimensions of your faucet is crucial for proper installation and fit within your bathroom space.
Figure 3.1: Product Dimension Diagram
| اندازه گیری | ارزش |
|---|---|
| ابعاد محصول (L x W x H) | 10 x 2 x 10 اینچ |
| دهانه رسیدن | 6 اینچ |
| اندازه شلنگ | 1.26-1.5 اینچ (32-38 میلی متر) |
| Max Deck Thickness | 2 اینچ (30 میلی متر) |
| طول شیلنگ | 24 اینچ (609 میلی متر) |
۲. چه چیزهایی در جعبه است؟
The ALEASHA Widespread Bathroom Faucet package includes all necessary components for a complete installation:
شکل 4.1: محتویات بسته
- Bathroom Faucet Assembly
- Supply Hoses (24-inch length, cUPC certified)
- آچار
- راهنمای نصب
- Aerator (1.2 GPM pre-installed, 2.2 GPM replacement included)
- نوار تفلون
- تخلیه پاپ آپ با سرریز
- یک جفت دستکش
Figure 4.2: cUPC Certified Water Supply Hose
5. راه اندازی و نصب
The ALEASHA Widespread Bathroom Faucet is designed for straightforward installation. Please follow the detailed instructions provided in the included Installation Guide for best results. Ensure all parts listed in Section 4 are present before beginning.
مراحل کلی نصب:
- شیر اصلی آب حمام خود را ببندید.
- Remove your old faucet and clean the sink surface thoroughly.
- Install the faucet body and handles into the designated holes on your sink deck.
- Connect the hot and cold water supply lines to the faucet and your water supply valves. Ensure all connections are secure and use Teflon tape as needed.
- Install the pop-up drain assembly into the sink drain hole.
- با باز کردن آرام شیر آب و بررسی تمام اتصالات، نشتی را بررسی کنید.
A well-explained guide is included in the box to assist with each step of the installation process.
6. عملیات
Operating your ALEASHA Widespread Bathroom Faucet is simple and intuitive. The two handles provide independent control over hot and cold water flow.
Figure 6.1: Hot and Cold Water Control
- کنترل جریان آب: Rotate the handles 90 degrees to open or close the water flow.
- تنظیم دما: The left handle controls hot water (indicated by a red dot), and the right handle controls cold water (indicated by a blue dot). Adjust the desired temperature by mixing hot and cold water.
- هواکش: The faucet is equipped with a water-saving aerator that provides a smooth, splash-free stream.
7. تعمیر و نگهداری
Proper maintenance will ensure the longevity and continued aesthetic appeal of your ALEASHA Widespread Bathroom Faucet.
دستورالعمل تمیز کردن:
- To clean the brushed nickel finish, use a soft, damp پارچه و صابون ملایم. از پاککنندههای ساینده، مواد شیمیایی قوی یا اسکاچ خودداری کنید، زیرا این مواد میتوانند به روکش آسیب بزنند.
- Regularly wipe down the faucet to prevent water spots and mineral buildup. The brushed nickel finish is designed to resist fingerprints and corrosion.
- For the aerator, if water flow becomes restricted, unscrew the aerator from the spout and clean any debris or mineral deposits. Rinse thoroughly and reattach.
Figure 7.1: Benefits of the Brushed Nickel Finish
8 عیب یابی
If you encounter any issues with your ALEASHA Widespread Bathroom Faucet, refer to the common troubleshooting tips below:
| مشکل | علت احتمالی | راه حل |
|---|---|---|
| جریان کم آب | هواکش مسدود شده یا شیر تغذیه تا حدی بسته است. | Clean the aerator (refer to Maintenance section) or ensure supply valves are fully open. |
| نشت از دهانه | Debris in ceramic valve or worn O-rings. | Flush the lines, or if persistent, contact customer service for assistance with valve replacement. The ceramic valve is designed for leak-free operation. |
| نشتی در پایه شیر آب | Loose mounting nuts or improper sealing. | Tighten mounting nuts under the sink. Ensure proper sealing during installation. |
| دستهها سفت یا چرخاندنشان دشوار است | Mineral buildup or internal issue with valve cartridge. | Ensure regular cleaning. If problem persists, the ceramic valve may need inspection. |
If troubleshooting steps do not resolve the issue, please contact ALEASHA customer service for further assistance.
9. مشخصات
| صفت | جزئیات |
|---|---|
| نام تجاری | ALEASHA |
| نام مدل | 2323100 |
| رنگ | Brushed Nickle |
| مواد | برنج، روی |
| نوع پایان | برس خورده |
| نوع نصب | عرشه کوه |
| تعداد دستگیره | 2 |
| تعداد سوراخ | 3 |
| حداکثر نرخ جریان | ۰.۷ گالن در دقیقه (GPM) |
| طراحی دهانه | گردن غاز |
| وزن مورد | 3.23 پوند (1.47 کیلوگرم) |
| تاریخ برای اولین بار در دسترس است | 23 سپتامبر 2022 |
10. گارانتی و پشتیبانی
ALEASHA is committed to providing high-quality products and excellent customer service.
- گارانتی: این محصول دارای 5 سال گارانتی می باشد.
- برمی گرداند: We offer 30 days free return for refund or replacement.
- خدمات مشتری: For any questions, concerns, or assistance, please feel free to contact us at any time.
