Premium Charcoal Grill User Manual

1. مقدمه

Thank you for choosing the ZOKOP 18-Inch Premium Charcoal Grill. This grill is designed for convenient and enjoyable outdoor cooking experiences. Its spherical design and compact footprint make it easy to transport and use in various settings, from patios to picnics. Constructed from high-quality galvanized steel, it offers durability, high-temperature resistance, and rust prevention.

ویژگی های کلیدی:

• ساخت فولاد گالوانیزه بادوام.
• 18-inch diameter cooking area.
• Efficient ash collection system for easy cleaning.
• Adjustable air vents for precise heat control.
• Porcelain-enameled bowl and lid for heat retention.

2. هشدارهای مهم ایمنی

Please read and understand all safety warnings before operating this grill. Failure to follow these instructions can result in fire, injury, or property damage.

• Do not move the barbecue grill while it is being heated or in use. Allow the grill to cool completely before attempting to move it.
• این محصول است not intended for use by children alone. Be extremely cautious when using this product near children. Keep children and pets away from the grill during operation and while it is cooling.
• Use the grill outdoors only, in a well-ventilated area. Never use indoors or in enclosed spaces.
• Place the grill on a stable, level, non-combustible surface. Keep clear of combustible materials such as wood decks, dry leaves, or vinyl siding.
• Always have a fire extinguisher or water source readily available when grilling.
• Do not use gasoline, kerosene, or alcohol for lighting charcoal. Use only charcoal starter fluid or approved fire starters.
• هنگام کار با اجزای داغ از دستکش محافظ استفاده کنید.

3. محتویات بسته

Before assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or use the grill. Contact customer support for assistance.

• 1 x 18-Inch Charcoal Grill (components)
• ۱ عدد دفترچه راهنمای کاربر (این سند)

4. مونتاژ و راه اندازی

Assembly is required for this charcoal grill. Please follow the steps below carefully. It is recommended to have a second person assist with assembly.

۴.۱ باز کردن بسته‌بندی و شناسایی قطعات

Carefully remove all components from the packaging. Note that two of the four legs are typically placed under the cardboard at the bottom of the box for secure shipping.

شکل 4.1: Grill dimensions and important note about leg storage within packaging. The grill stands approximately 28 inches tall with a 17.5-inch diameter bowl.

شکل 4.2: تمام شدview of key grill components: Handles, Ash Catcher, Adjustable Ventilation, Removable Grates, Wheels, and Carbide Holes for ash. Familiarize yourself with these parts before assembly.

۲.۲ مراحل مونتاژ (راهنمای کلی)

1. وصل کردن پاها: Securely attach the three main legs to the grill bowl using the provided hardware. Ensure they are firmly tightened.
2. نصب چرخ ها: Attach the two wheels to the designated leg. Ensure they spin freely.
3. Assemble Bottom Rack: Connect the wire bottom rack to the legs, providing stability and a storage area.
4. Install Ash Catcher: Position the ash catcher plate beneath the grill bowl. This collects ash for easy disposal.
5. Place Grates: Insert the charcoal grate into the bottom of the bowl, followed by the cooking grate.
6. دسته درب را وصل کنید: Secure the handle to the grill lid.

شکل 4.3: Key features for assembly and operation: (1) Plated Steel Cooking Grate, (2) Charcoal Grate Withstanding High Temperature, (3) Air Vent for Heat Control, and (4) Porcelain-enameled Bowl & Lid for Heat Retention.

5. دستورالعمل های عملیاتی

5.1 Preparing for Grilling

1. انتخاب مکان: Select a safe, level, outdoor location away from flammable materials.
2. اضافه کردن زغال چوب: Place charcoal briquettes or lump charcoal onto the charcoal grate. Arrange them in a pyramid shape for easier lighting.
3. زغال روشن: Use an approved charcoal starter fluid or chimney starter. Allow charcoal to ash over (turn gray) before spreading evenly.

۴.۲ فرآیند کباب کردن

1. غذای محل: Once charcoal is ready, place the cooking grate over the charcoal and arrange your food.
2. کنترل حرارت: Use the adjustable air vents on the lid and bowl to control the temperature. Opening the vents increases airflow and heat; closing them reduces airflow and heat.
3. استفاده از درب: The lid helps retain heat and smoke for even cooking. The inside lid hanger hook allows you to hang the lid on the side of the bowl while checking food.

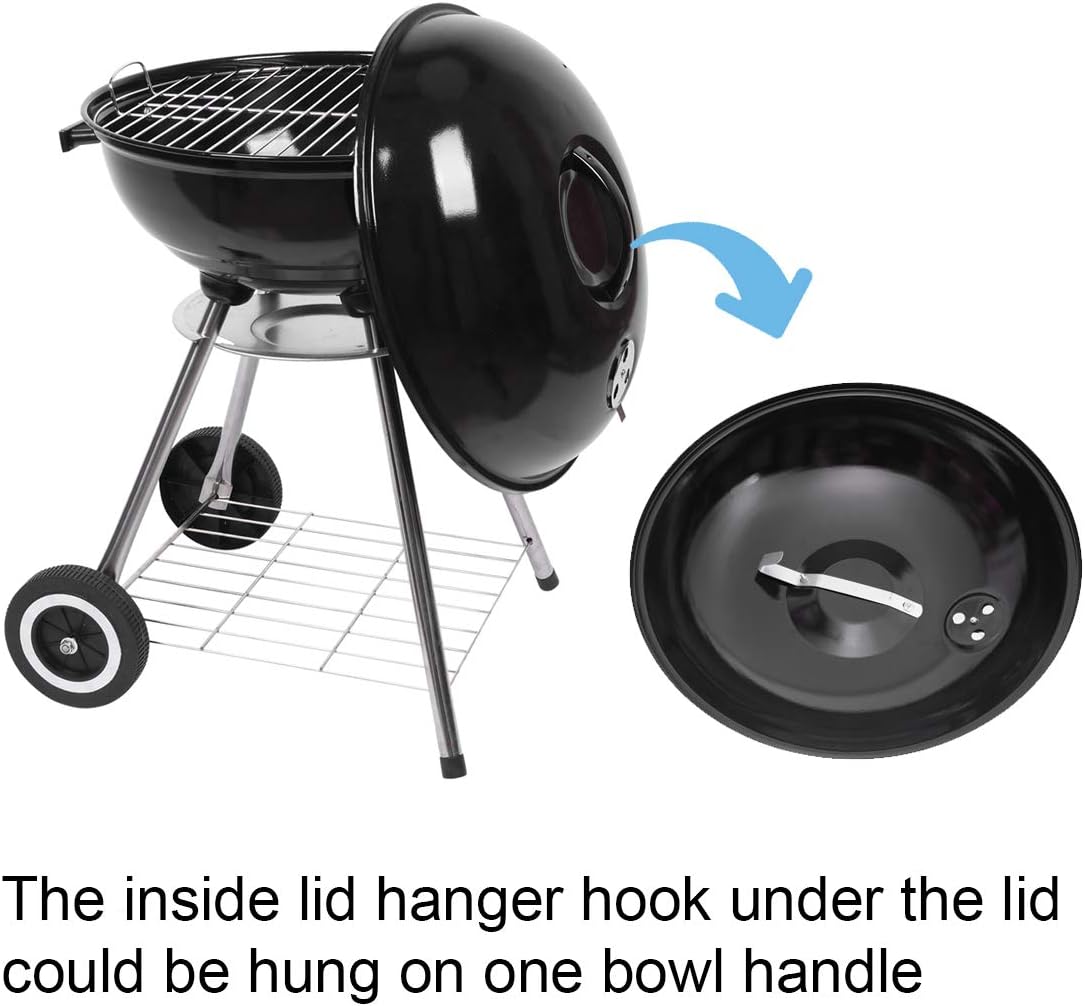

شکل 5.1: The inside lid hanger hook under the lid can be conveniently hung on one of the bowl handles, keeping the lid off the ground.

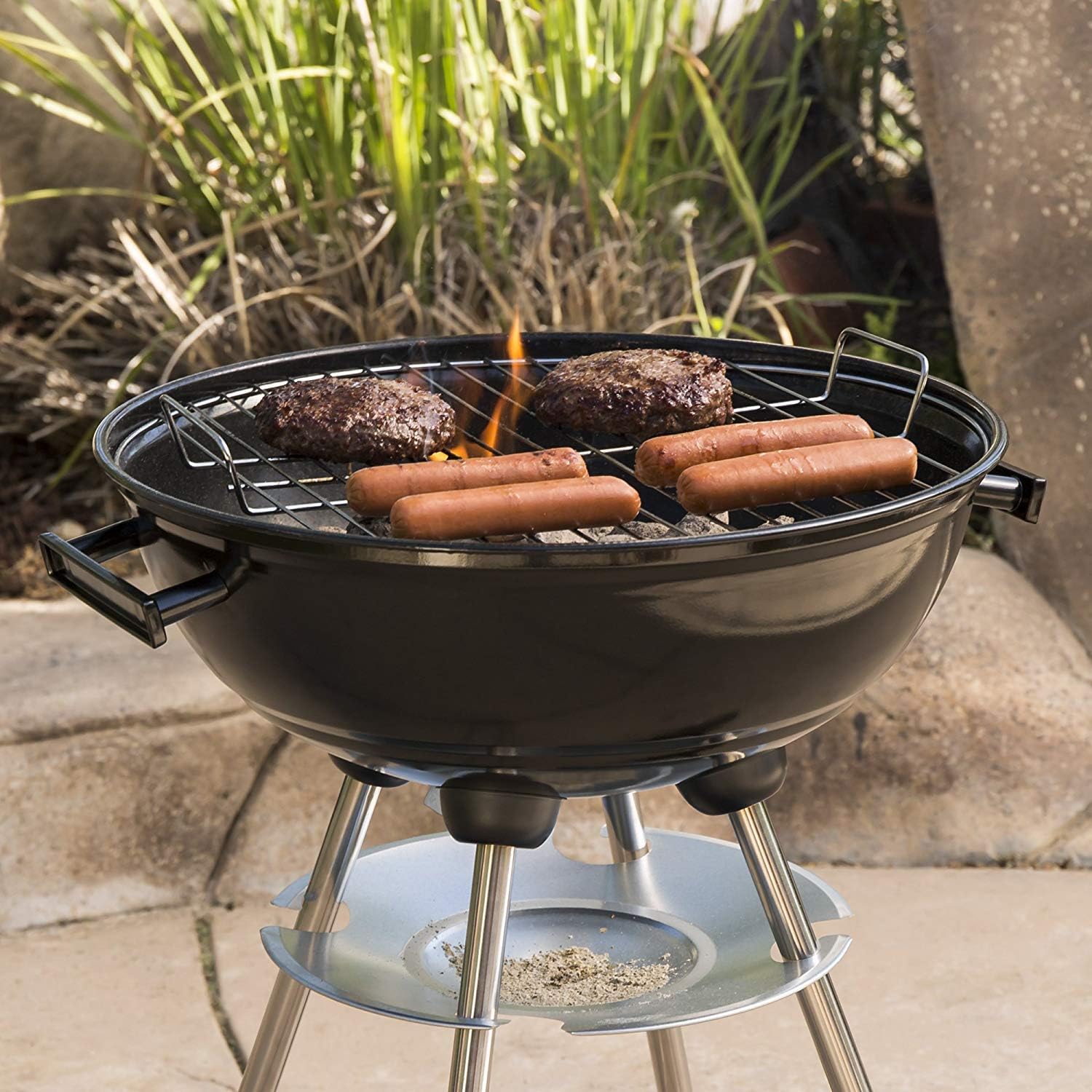

شکل 5.2: The ZOKOP charcoal grill in action, demonstrating its use for cooking various foods like burgers and hot dogs.

شکل 5.3: The ZOKOP charcoal grill is perfect for outdoor gatherings, providing a focal point for cooking and socializing.

6. نگهداری و مراقبت

6.1 دفع خاکستر

After the grill has completely cooled, turn the ash leak at the base of the bowl to sweep cooled ashes into the ash collection tray. Remove the ash collection tray and dispose of ashes safely.

6.2 تمیز کردن

• رنده پخت و پز: Once cooled, scrape off any food residue with a grill brush. For stubborn residue, wash with warm, soapy water and rinse thoroughly.
• Grill Bowl and Lid: سطوح داخلی و خارجی را با تبلیغات پاک کنیدamp cloth. For tougher stains, use a mild detergent. Avoid abrasive cleaners that could damage the enamel finish.
• Ash Catcher: Empty and wipe clean after each use.

6.3 ذخیره سازی

Store the grill in a dry, covered area when not in use to protect it from the elements and prolong its lifespan. If storing outdoors, consider using a grill cover.

7 عیب یابی

این بخش به مشکلات رایجی که ممکن است با کباب‌پز زغالی خود با آنها مواجه شوید، می‌پردازد.

• مشکل روشن کردن زغال:
  راه حل: Ensure charcoal is dry. Use sufficient starter fluid or a chimney starter. Ensure bottom air vents are fully open to provide adequate oxygen.
• Grill Not Getting Hot Enough:
  راه حل: Check if air vents (top and bottom) are sufficiently open. Ensure enough charcoal is used. The charcoal may not be fully ashed over.
• Food Burning Too Quickly:
  راه حل: Close the air vents slightly to reduce airflow and lower the temperature. Adjust the amount of charcoal. Consider indirect grilling for larger items.
• دود زیاد:
  راه حل: This is normal when starting. Ensure proper airflow. If smoke is thick and white, it might be from food drippings; if it's thin and blue, it's good smoke.
• Ash Accumulation Preventing Airflow:
  راه حل: Regularly empty the ash catcher and clear the carbide holes at the bottom of the bowl to maintain proper airflow.

8. مشخصات محصول

9. گارانتی و پشتیبانی

For warranty information, technical support, or to order replacement parts, please refer to the contact information provided on the product packaging or visit the official ZOKOP webلطفاً هنگام تماس با پشتیبانی، شماره مدل (713838001858) و تاریخ خرید خود را آماده داشته باشید.
