JASTEK Portable Breathalyzer Tester User Manual

محصول تمام شده استview

The JASTEK Portable Breathalyzer Tester is a compact and reliable device designed to measure your Blood Alcohol Concentration (BAC). It is equipped with advanced features to provide accurate and convenient alcohol testing for personal use. This manual provides detailed instructions for proper setup, operation, and maintenance of your device.

جلو view of the JASTEK Portable Breathalyzer Tester, displaying a 0.020 BAC reading on its green LCD screen. Ten white, individually wrapped mouthpieces are arranged to the left of the device.

اجزا و محتویات بسته

Familiarize yourself with the main components of your breathalyzer and ensure all items are present in the package.

اجزای دستگاه:

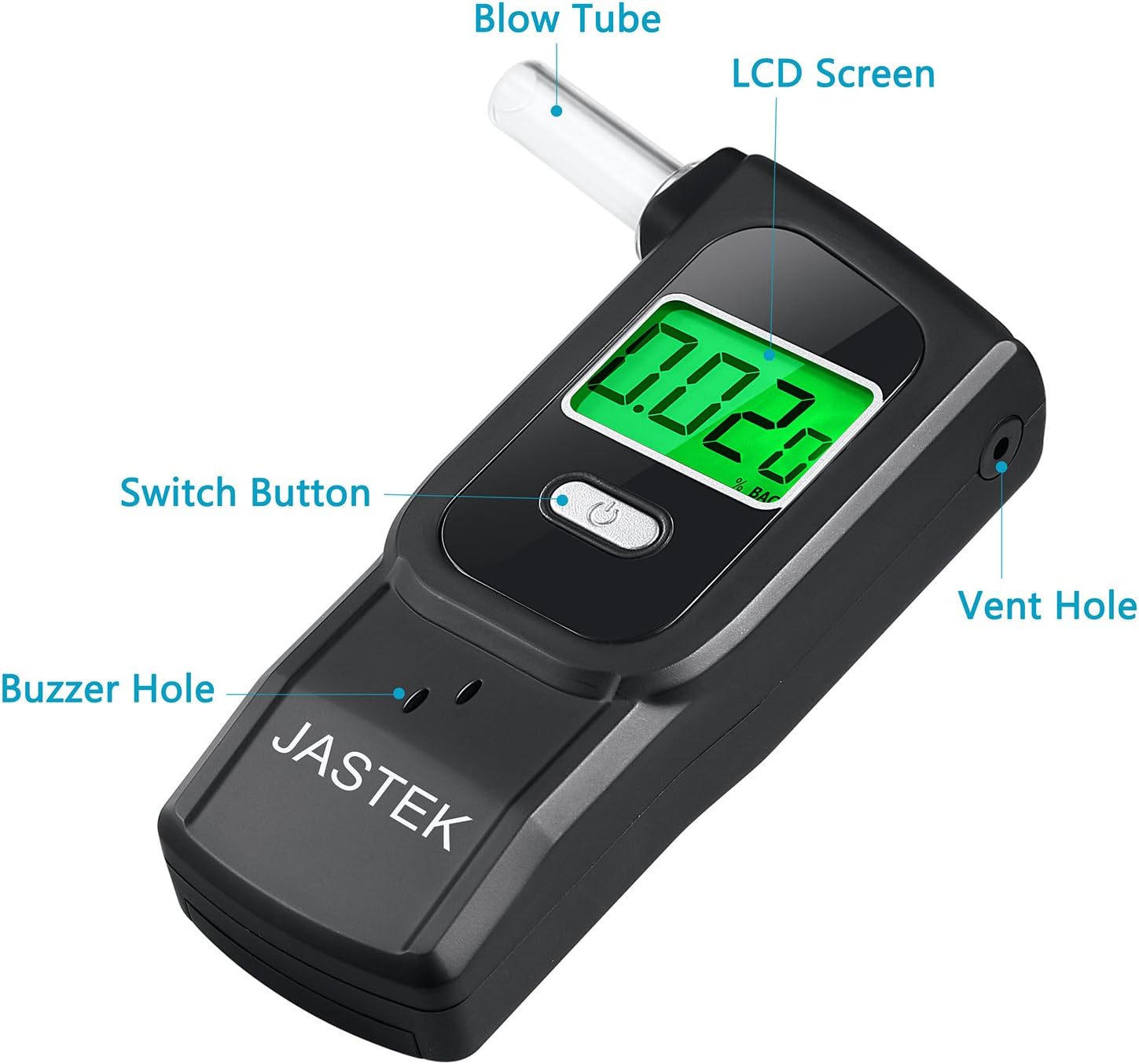

A detailed diagram highlighting the main components of the JASTEK Breathalyzer. Key parts include the Blow Tube for breath sample collection, the LCD Screen for displaying results, the Switch Button for operation, the Vent Hole, and the Buzzer Hole for audio alerts.

• Blow Tube: Where the breath sample ارائه شده است.
• صفحه نمایش LCD: Displays readings and operational status.
• دکمه سوئیچ: Used to power on/off and navigate settings.
• دریچهی تخلیهی هوا: برای گردش هوا.
• Buzzer Hole: هشدارهای صوتی منتشر می‌کند.

محتویات بسته:

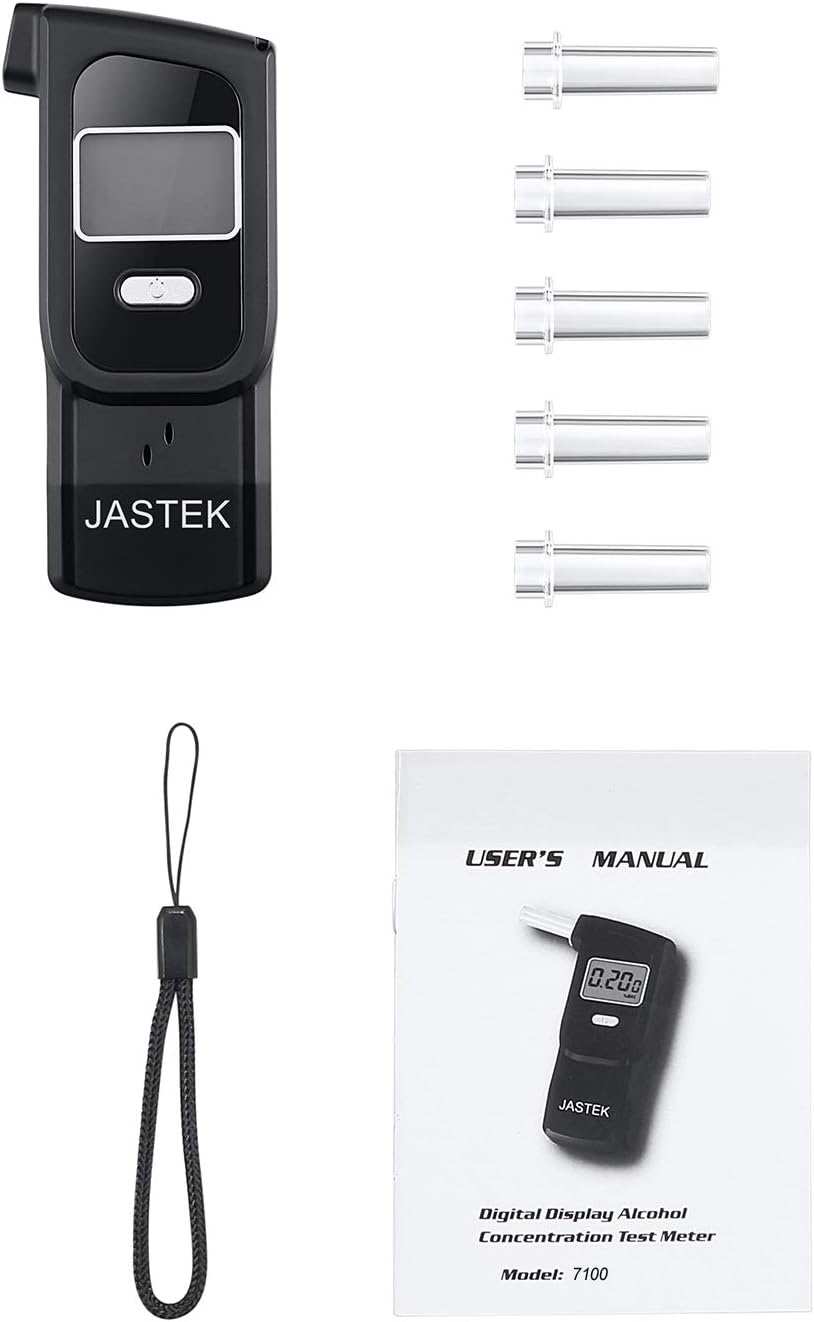

An image showing the complete contents included with the JASTEK Portable Breathalyzer Tester. This includes the main breathalyzer unit, a set of mouthpieces, a convenient carrying string, and the user's manual (Model: 7100).

• 1 x JASTEK Portable Breathalyzer Tester
• 10 x Mouthpieces
• 1 x دفترچه راهنمای کاربر
• 1 x Carrying String

راه اندازی

Before first use, please follow these steps to set up your device:

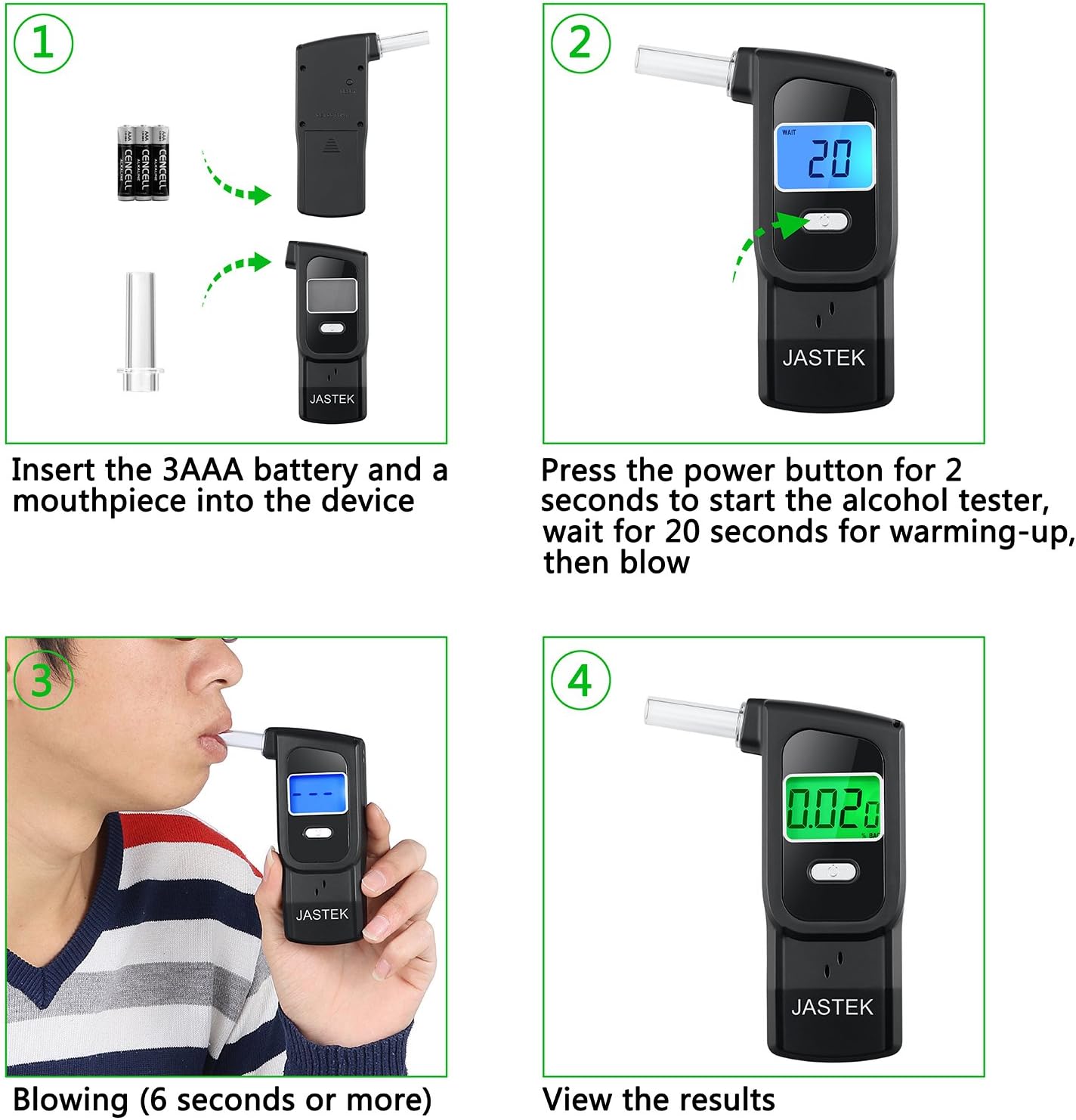

This image illustrates the four key steps for operating the JASTEK Breathalyzer. Step 1 shows inserting 3 AAA batteries and a mouthpiece. Step 2 depicts pressing the power button and waiting for the 20-second warm-up. Step 3 shows a person blowing into the device for 6 seconds or more. Step 4 displays the final BAC result on the LCD screen.

1. نصب باتری: Open the battery compartment on the back of the device. Insert 3 AAA alkaline batteries (not included), ensuring correct polarity. Close the battery compartment.
2. اتصال دهنی: Select one of the provided mouthpieces and firmly insert it into the blow tube opening at the top of the device.

دستورالعمل های عملیاتی

Follow these steps for accurate BAC testing:

1. روشن کردن: Press and hold the power button for 2 seconds to turn on the device. The LCD screen will illuminate.
2. گرم کردن: The device will display a warm-up countdown (typically 20 seconds). Wait for the countdown to complete. During this time, the sensor is preparing for an accurate reading.
3. شروع تست: Once the warm-up is complete, the screen will indicate it's ready for a breath sample. Blow steadily and continuously into the mouthpiece for 5-6 seconds. Ensure a consistent breath flow.
4. View نتایج: After blowing, the device will process the sample for approximately 3 seconds. Your BAC result will then be displayed on the LCD screen for 15 seconds.
5. خاموش شدن خودکار: The device will automatically power off after 5 seconds of inactivity to conserve battery life.

Important Testing Notes:

• For the most accurate results, wait at least 20 minutes after consuming alcohol before performing a test. This allows alcohol to be absorbed into the bloodstream.
• Wait at least 3 minutes between consecutive tests to ensure sensor accuracy and prevent residual alcohol from affecting readings.
• Avoid testing in strong winds, smoke, or highly polluted environments, as these can affect accuracy.

ویژگی های کلیدی

• واحدهای اندازه گیری چندگانه: The device supports 6 common BAC units, allowing users to select their preferred display: %BAC-US, g/l-EU, mg/L-JP, mg/100ml-CN, ‰BAC-RU, ‰prom-PL.
• Customizable Caution & Alarm Values: Users can set personalized caution and alarming thresholds. If the test result exceeds 0.05% BAC / 0.5 ‰ BAC, the red light will flash, and a continuous beep will sound to alert the user.
• عملکرد حافظه: The breathalyzer can store up to 32 of your most recent testing records, allowing for easy review and tracking of your BAC history.
• طراحی صرفه جویی در مصرف انرژی: Features automatic power-off after 5 seconds of inactivity and a low voltage indication to alert you when batteries need replacement.

تعمیر و نگهداری

Proper care and maintenance will ensure the longevity and accuracy of your JASTEK Breathalyzer.

• تمیز کردن دستگاه: قسمت بیرونی دستگاه را با نرم، دamp پارچه از پاک کننده های ساینده استفاده نکنید و دستگاه را در آب غوطه ور نکنید.
• مراقبت از دهانی: The included mouthpieces are washable and reusable. After use, rinse them with warm water and mild soap, then allow them to air dry completely before storing or reusing.
• ذخیره سازی: Store the breathalyzer in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it out of reach of children.
• تعویض باتری: در صورت کم بودن ولتاژ، باتری‌ها را فوراً تعویض کنیدtage indicator appears on the screen to ensure consistent performance.

عیب یابی

If you encounter issues with your JASTEK Breathalyzer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact JASTEK customer support for further assistance.

مشخصات

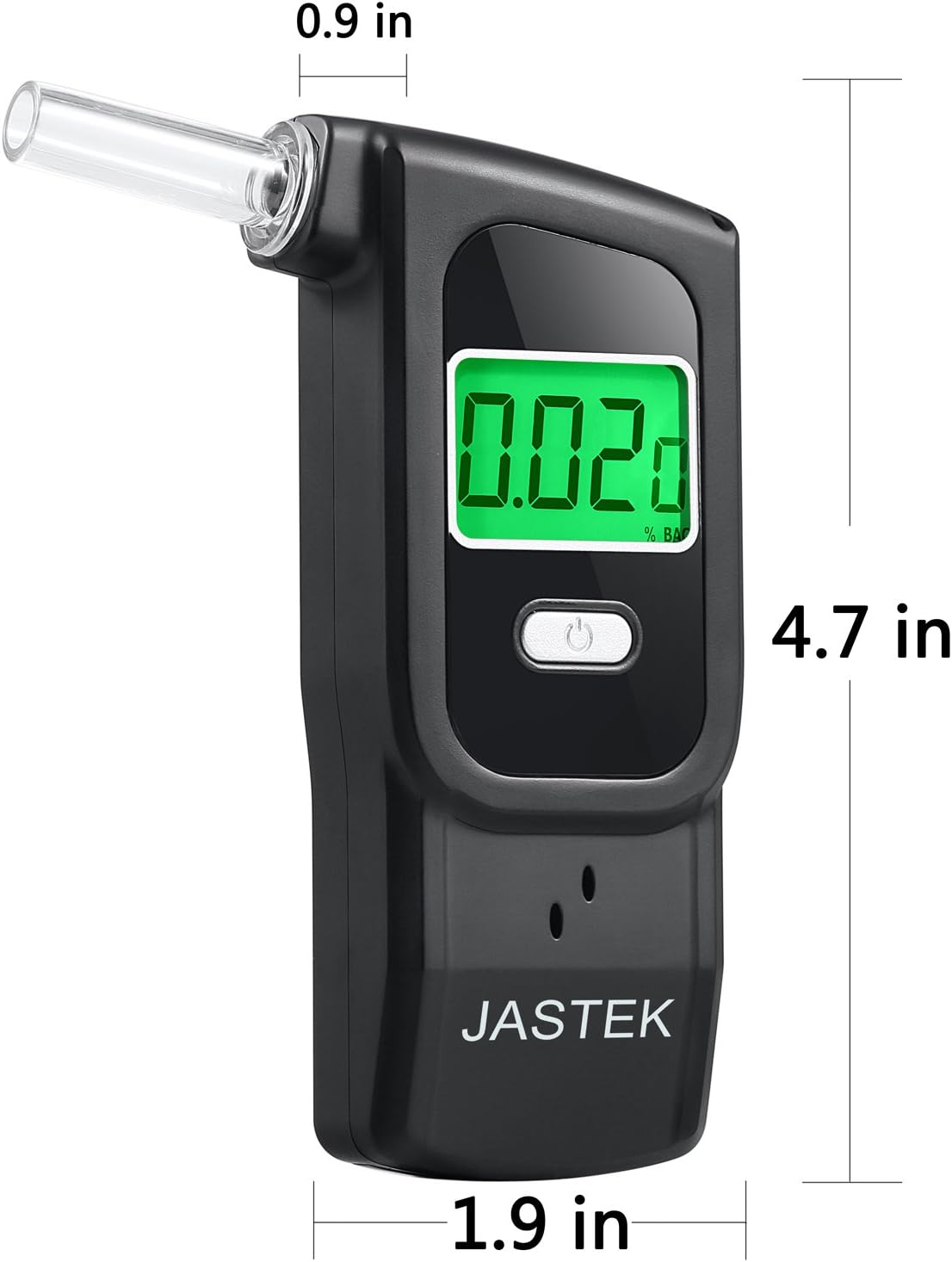

This image provides the physical dimensions of the JASTEK Portable Breathalyzer Tester, indicating its compact size for portability. The device measures approximately 1.9 inches in width, 4.7 inches in height, and 0.9 inches in thickness.

• ابعاد محصول: 1.9 x 4.7 x 0.9 اینچ
• وزن مورد: 4.97 اونس
• منبع تغذیه: ۲ عدد باتری آلکالاین سایز AAA (شامل نمی‌شود)
• محدوده اندازه گیری: 0.000-0.190% BAC / 0.000-0.950 mg/L
• حافظه ذخیره سازی: Up to 32 recent test records
• سازنده: جاستک

گارانتی و پشتیبانی

JASTEK is committed to providing high-quality products and customer satisfaction. If you are not satisfied with your purchase or encounter any quality problems, please do not hesitate to contact our customer service team for assistance.

Please refer to the contact information provided in your product packaging or visit the official JASTEK webسایت برای جزئیات پشتیبانی
