1. مقدمه
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of the Hager HIC425G 4-Pole 250A Motorized Switch with Relay. Please read this manual thoroughly before attempting any installation or operation to ensure proper use and to prevent potential hazards. Keep this manual in a safe place for future reference.
2. اطلاعات ایمنی
هشدار: خطر برق گرفتگی. نصب و نگهداری فقط باید توسط پرسنل واجد شرایط انجام شود.
- قبل از نصب، سرویس یا برداشتن دستگاه، همیشه برق را قطع کنید.
- اطمینان حاصل کنید که تمام کدهای الکتریکی محلی و ملی در حین نصب رعایت میشوند.
- اگر سوئیچ آسیب دیده به نظر میرسد، آن را به کار نیندازید.
- هنگام کار با سیستمهای الکتریکی، از تجهیزات حفاظت فردی (PPE) مناسب استفاده کنید.
- دستگاه باید به درستی زمین شود.
۳. شرح محصول و ویژگیها
The Hager HIC425G is a robust 4-pole motorized switch designed for automatic switching applications up to 250 Amperes. It integrates a relay for enhanced control capabilities, making it suitable for various industrial and commercial electrical systems. Its durable plastic construction and IP65 rating ensure protection against dust and water ingress, allowing for reliable operation in challenging environments.

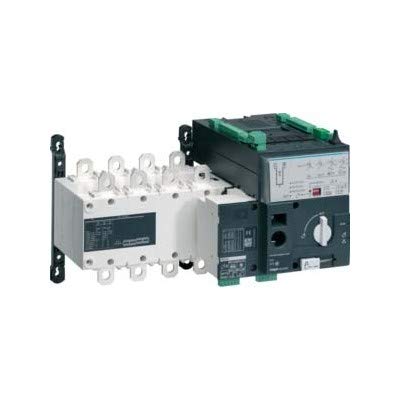

شکل 1: Hager HIC425G 4-Pole 250A Motorized Switch with Relay. This image shows the compact design and robust casing of the motorized switch, highlighting its primary components and connection points.
ویژگی های کلیدی:
- 4-Pole Configuration: Suitable for three-phase systems with neutral.
- جریان نامی 250 آمپر: Handles high current loads.
- عملیات موتوری: Enables automatic and remote switching.
- رله یکپارچه: Provides additional control and protection functionalities.
- حفاظت IP65: Dust-tight and protected against water jets.
- ON-OFF Operating Mode: Simple and clear switching states.
- Clamp نوع رابط: Secure and reliable electrical connections.
- جنس پلاستیک بادوام: Ensures longevity and resistance to environmental factors.
4. راه اندازی و نصب
Installation of the Hager HIC425G motorized switch must be carried out by a certified electrician in accordance with all applicable electrical standards and regulations.
مراحل نصب:
- قطع برق: Ensure that the main power supply to the installation area is completely disconnected and locked out before beginning any work.
- نصب: Securely mount the HIC425G switch in a suitable enclosure or panel, ensuring adequate ventilation and clearance for wiring.
- سیم کشی: Connect the main power lines to the input terminals and the load lines to the output terminals using appropriate gauge wiring for 250A. Ensure all clamp connections are tight and secure. Connect the control wiring for the motorized function and relay as per the wiring diagram provided with the product (not included in this general manual).
- زمین کردن: Connect the device to a proper earth ground.
- تایید: Double-check all connections for correctness and tightness. Ensure no loose wires or foreign objects are present.
- بازیابی نیرو: پس از اتمام نصب و تأیید، برق را به سیستم وصل کنید.
5. دستورالعمل های عملیاتی
The Hager HIC425G motorized switch operates in an ON-OFF mode, typically controlled by an external control system or manual override.
عملیات پایه:
- وضعیت روشن: When the control signal activates the motorized mechanism to the ON position, power is supplied through the switch to the connected load.
- وضعیت خاموش: When the control signal activates the motorized mechanism to the OFF position, power to the connected load is interrupted.
- عملکرد رله: The integrated relay can be configured for various control or signaling purposes, such as remote status indication or interlocking with other devices. Refer to the specific wiring diagram for relay configuration.
Always ensure that the control system is functioning correctly and that the switch responds as expected to ON and OFF commands.
6. تعمیر و نگهداری
Regular maintenance helps ensure the longevity and reliable operation of the Hager HIC425G motorized switch. All maintenance procedures should be performed by qualified personnel with the power disconnected.
برنامه تعمیر و نگهداری:
- Periodic Visual Inspection (Monthly/Quarterly): Check for any signs of physical damage, overheating (discoloration), loose connections, or excessive dust accumulation.
- Terminal Tightness Check (Annually): With power disconnected, verify the tightness of all electrical connections to prevent arcing and overheating.
- Cleaning (As needed): Gently clean the exterior of the switch with a dry, lint-free cloth. Do not use solvents or abrasive cleaners. Ensure no dust or debris obstructs moving parts or ventilation.
- Functional Test (Annually): Perform an operational test to ensure the motorized mechanism switches smoothly between ON and OFF states and that the relay functions correctly.
7 عیب یابی
If you encounter issues with your Hager HIC425G motorized switch, refer to the following troubleshooting guide. For problems not listed here, contact a qualified electrician or Hager technical support.
| مشکل | علت احتمالی | راه حل |
|---|---|---|
| Switch does not operate (no ON/OFF action) | No power supply to the control circuit; Faulty control signal; Motorized mechanism fault. | Check control circuit power and fuses; Verify control signal integrity; Inspect motorized mechanism for obstructions (with power off). |
| Switch operates but no power to load | Main power supply issue; Loose load connections; Internal contact fault. | Check main power supply; Verify load wiring connections; Contact qualified personnel for internal inspection. |
| بوی گرم شدن بیش از حد یا سوزش | Loose connections; Overload; Internal fault. | فوراً برق را قطع کنید. Check all connections for tightness; Verify load current does not exceed 250A; Contact qualified personnel. |
| Relay not functioning | Incorrect wiring; Faulty relay; No power to relay circuit. | Check relay wiring against diagram; Verify power to relay circuit; Replace switch if relay is faulty. |
8. مشخصات
The following table details the technical specifications for the Hager HIC425G 4-Pole 250A Motorized Switch with Relay.
| مشخصات | جزئیات |
|---|---|
| مدل | HIC425G |
| نام تجاری | هاگر |
| نوع محصول | Motorized Switch with Relay |
| لهستانی ها | 4 قطبی |
| رتبه بندی فعلی | 250 الف |
| حالت عملیاتی | روشن خاموش |
| نوع رابط | Clamp |
| مواد | پلاستیک |
| امتیاز بین المللی حفاظت | IP65 |
| ابعاد محصول (L x W x H) | 7.7 × 5.3 × 11.1 سانتی متر |
| وزن | 1 کیلوگرم |
9. گارانتی و پشتیبانی
For warranty information and technical support regarding your Hager HIC425G motorized switch, please refer to the documentation provided at the time of purchase or visit the official Hager website. Hager provides support for its products through authorized distributors and service centers.
سازنده: هاگر
For further assistance, please contact your local Hager representative or customer service.
