CHANZON 3mm RGB Multicolor Fast Blinking LED Diode Lights Instruction Manual

1. مقدمه و بیش ازview

This manual provides instructions for the CHANZON 3mm RGB Multicolor Fast Blinking LED Diode Lights. These LEDs feature a multi-color fast change (Red, Green, Blue) with a luminous intensity of 3000-5000mcd and a 30-degree viewing angle. They are designed for various electronic projects and applications requiring dynamic lighting effects.

The package includes 100 pieces of 3mm round top, clear transparent LEDs, suitable for through-hole mounting.

2. ویژگی های محصول

• Multi-Color Fast Change: Automatically cycles through Red, Green, and Blue colors.
• روشنایی بالا: Luminous intensity of 3000-5000mcd.
• عریض Viewزاویه ورودی: 30 degrees for broad light distribution.
• اندازه استاندارد: 3mm diameter, round top, clear transparent lens.
• مصرف برق کم: Operates at 3V - 3.2V DC with a current of 20 mA.
• استفاده چند منظوره: Ideal for DIY PCB board circuits, Arduino, Raspberry Pi, hobby projects, science experiments, and general electronics.

۲. چه چیزهایی در جعبه است؟

• 100 x CHANZON 3mm RGB Multicolor Fast Blinking LED Diodes

4. مشخصات

Figure 1: Detailed dimensions of the 3mm LED diode.

۱. دستورالعمل‌های راه‌اندازی

Proper setup is crucial for the correct operation and longevity of your LEDs. Follow these steps:

1. تشخیص قطبیت: Each LED has two leads. The longer lead is the Anode (+) and the shorter lead is the Cathode (-). Ensure correct polarity when connecting to a power source.
2. Current Limiting Resistor: LEDs require a current limiting resistor in series to prevent damage from excessive current. For a 5V supply, a 220Ω to 270Ω resistor is typically recommended. For a 3V-3.2V supply, a resistor may not be strictly necessary if the supply is precisely regulated, but it is always good practice to include one to protect the LED.
3. اتصال: Connect the Anode (+) of the LED to the positive terminal of your power supply (via a current limiting resistor). Connect the Cathode (-) to the negative (ground) terminal of your power supply.
4. تست کردن: Before final integration, test the LED with the appropriate voltage and resistor to ensure it functions correctly.

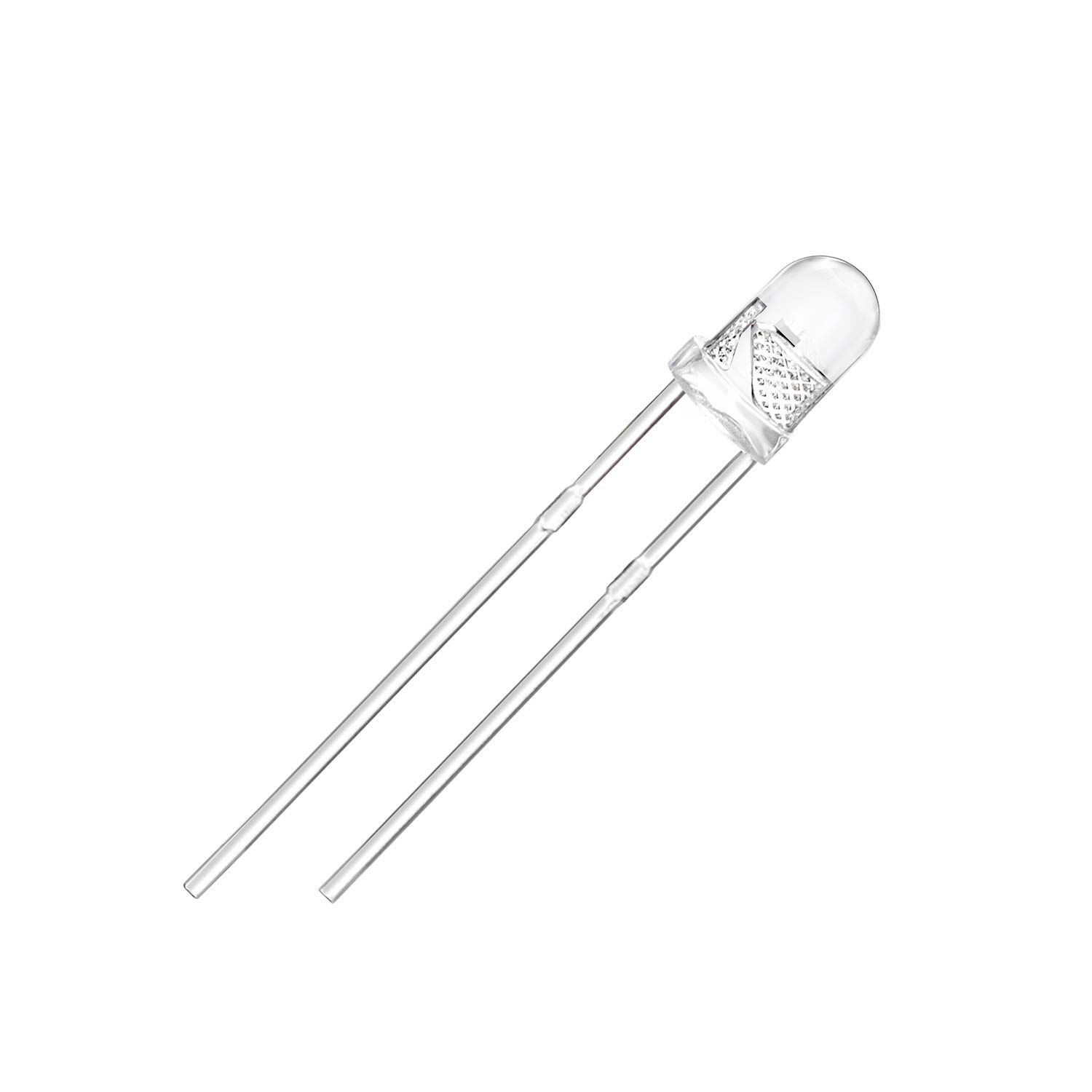

Figure 2: CHANZON 3mm RGB Fast Blinking LED Diode.

6. دستورالعمل های عملیاتی

Once properly connected to a power source within the specified voltage range (3V-3.2V DC) and with a suitable current limiting resistor, the LED will automatically begin its fast blinking, multi-color changing sequence. No external control signals are required for the color change or blinking effect.

The LED will cycle through various combinations of Red, Green, and Blue, creating a dynamic light display. The speed of the color change is inherent to the LED's internal circuitry and cannot be adjusted externally.

Color Examples

7. تعمیر و نگهداری

These LEDs are designed for long-term, maintenance-free operation under normal conditions. To ensure optimal performance and lifespan:

• تمیز نگه دارید: Ensure the LED lens is free from dust and debris to maintain maximum light output. Use a soft, dry cloth for cleaning if necessary.
• از Overvol اجتناب کنیدtage/Overcurrent: همیشه از جلد مشخص شده استفاده کنیدtage and a current limiting resistor. Exceeding these limits will significantly shorten the LED's lifespan or cause immediate failure.
• با احتیاط رفتار کنید: Avoid bending the leads excessively or applying strong mechanical force to the LED body, as this can damage internal components.
• ذخیره سازی: Store unused LEDs in a dry, cool environment, away from direct sunlight and static electricity.

8 عیب یابی

9. گارانتی و پشتیبانی

CHANZON products are manufactured to high-quality standards. For any issues or support, please refer to your purchase platform or contact CHANZON customer service directly. Please retain your proof of purchase for warranty claims.

For more information and additional products, visit the official CHANZON store: CHANZON Store on Amazon.
