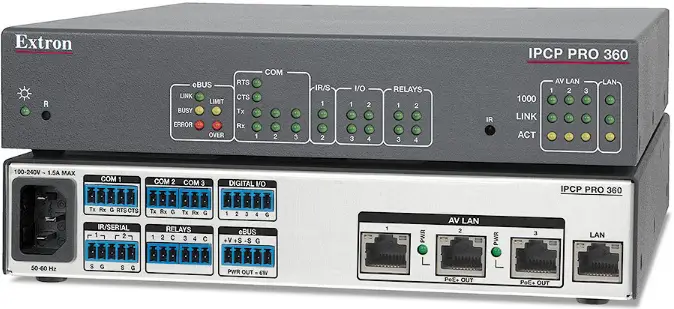

Extron IPCP Pro 360 Pro Control Systems
Specifications
- Product: Extron Pro Series Control Products
- Network Ports: Port 53, 67, 68, 80, 123, 161, 443, 4502, 4503, 4522, 22022
- Protocols: UDP, TCP
- Inbound/Outbound: Both
Product Information:
The Extron Pro Series Control Products require specific network ports and protocols for communication between the control software and hardware. The product includes various hardware components such as IP Link Pro Control Processors, MediaLink Plus Controllers, TouchLink Pro Controllers, and Touchpanels, among others. Additionally, the product utilizes software packages like Global Configurator Plus, ControlScript Deployment Utility, Global Configurator Professional Software, Room Agent, Global Scripter, and Toolbelt Software.
Network Port Information:
The product uses a range of network ports for different services such as DNS, DHCP, HTTP, NTP, SNMP, SSH, SFTP, and more. These ports facilitate communication and functionality within the system. It is crucial to consult with a network administrator to ensure proper connectivity and configuration of the required network ports.
Product Usage Instructions
Hardware Setup:
- Connect the hardware components according to the provided installation guidelines.
- Ensure that the network ports specified in the manual are accessible and properly configured.
Software Installation:
- Install the necessary software packages on the designated devices.
- Configure the software settings to enable communication over the specified network ports and protocols.
Control Systems — Network Ports, Protocols, and Licenses
This guide contains information about network port requirements and third-party software packages used for Extron Pro Series control products. The following diagram and the tables show the network ports and protocols that are required for communication between the Extron control software and hardware. Consult your network administrator to confirm the connectivity for the network ports mentioned in this guide.
Network Port Information
The following tables provide network port information for network planning and troubleshooting.
- “Inbound/Outbound” refers to the flow of traffic to and from the device.
- “Inbound” indicates that traffic is received on the specified port on the device.
- “Outbound” indicates that the traffic is sent out from the specified port.
- “Both” indicates that traffic is received by and also sent out from the specified port.
Hardware and Virtual Hardware
- IP Link Pro Control Processors TouchLink Pro Controllers and Touchpanels
IP Link Pro xi Control Processors TLI Pro Interfaces - Control System Expansion Interfaces Virtual Control Appliance (VCA) with
- Virtual Control MediaLink Plus Controllers Processors (VCP)
- HC Collaboration Systems
- Network Button Panels
- Workspace Automation Controllers (WC)
| Port | Protocol | Inbound/Outbound | Service | Description |
| 53 | UDP | Both | DNS | DNS service |
| 67 | UDP | Both | DHCP | DHCP server |
| 68 | UDP | Both | DHCP | DHCP client |
| 80 | TCP | Both | HTTP | Port redirects to HTTPS |
| 123 | UDP | Both | NTP | NTP service |
| 161 | UDP | Both | SNMP | SNMP service |
| 443 | TCP | Both | HTTPS | Default web page, GlobalViewer, Extron Control for Web |
| 4502 | UDP | Inbound | Discovery | Broadcast network discovery |
| 4503 | TCP | Both | SSH | Internal system messaging |
| 4522 | TCP | Both | SFTP | Internal system file transfer |
| 22022 | TCP | Both | SFTP | Secure file transfer |
Zoom Rooms Touchpanels (ZRTP)
| Port | Protocol | Inbound/Outbound | Service | Description |
| 123 | UDP | Both | NTP | NTP service |
| 4502 | UDP | Both | Discovery | Broadcast network discovery |
| 4503 | TCP | Both | SSH | Internal system messaging |
| 4522 | TCP | Both | SFTP | Internal system file transfer |
Software
- Global Configurator Plus and
- Global Configurator Professional Software
- ControlScript Deployment Utility
- Room Agent
Global Scripter
| Port | Protocol | Inbound/Outbound | Service | Description |
| 4503 | TCP | Both | SSH | Internal system messaging |
| 4504 | UDP | Inbound | Trace | Extron trace messages |
| 4522 | TCP | Both | SFTP | Internal system file transfer |
Toolbelt Software
| Port | Protocol | Inbound/Outbound | Service | Description |
| 4502 | UDP | Outbound | Discovery | Broadcast network discovery |
| 4503 | TCP | Both | SSH | Internal system messaging |
| 4504 | UDP | Inbound | Trace | Extron trace messages |
| 4522 | TCP | Both | SFTP | Internal system file transfer |
Extron Control for iOS
| Port | Protocol | Inbound/Outbound | Service | Description |
| 443 | TCP | Inbound | HTTPS | Internal system file transfer |
| 4503 | TCP | Both | SSH | Internal system messaging |
| 4522 | TCP | Inbound | SFTP | Internal system file transfer |
Extron Control for Web 2.0 with HTML5, Extron Control for Zoom Rooms
| Port | Protocol | Inbound/Outbound | Service | Description |
| 443 | TCP | Both | HTTPS | Internal system file transfer Internal system messaging |
Extron Control for Android
| Port | Protocol | Inbound/Outbound | Service | Description |
| 443 | TCP | Inbound | HTTPS | Internal system file transfer |
| 4503 | TCP | Both | SSH | Internal system messaging |
Extron Control for Microsoft® Teams® Room software
| Port | Protocol | Inbound/Outbound | Service | Description |
| 443 | TCP | Outbound | HTTPS | Internal system file transfer |
| 4503 | TCP | Both | SSH | Internal system messaging |
| 5000 | UDP | Inbound | Discovery | Initial communication |
| 5001-5008* | TCP | Both | SSH | Control communication |

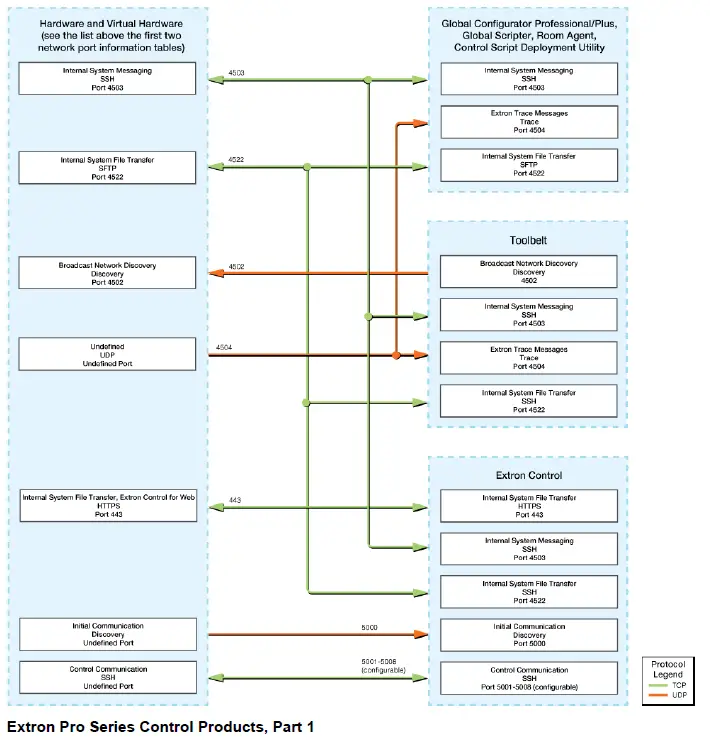

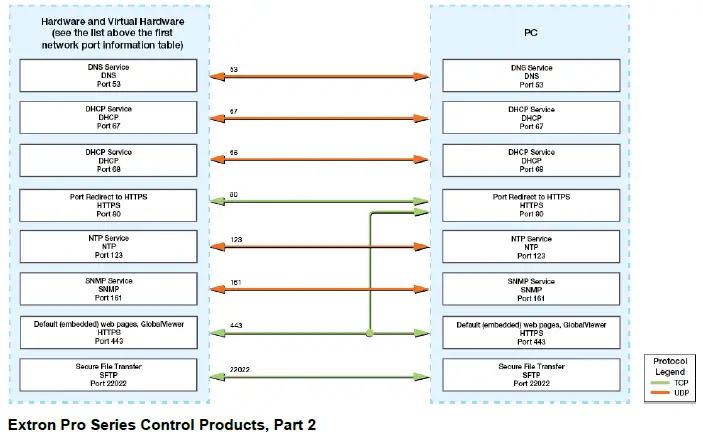

Network Traffic Overview
The following diagrams show the interaction of network functions, protocols, and ports.
License Information
The following table lists the licensed third-party software packages used by all Pro Series control products.
NOTE: Licensed third-party software packages used by these control products are subject to change without notice.
| Licensed Third-Party Software | |||||
| Package | License
GNU GPL v2 | Package | License
MIT | Package | License |
| aufs2-util | json4lua | nginx | BSD-2c | ||
| alsa-lib | LGPL v2.1+ | keyutils | GPL v2+ LGPL v2.1+ | ngx_echo | BSD-2c |
| alsa-utils | GNU GPL v2 | ldconfig | GPL v2+ | ntp | MIT |
| audit | GPL v2 (programs), LGPL v2.1 (libraries) | libassuan | GNU LGPL v2.1 | openssh | BSD |
| avahi | GNU LGPL v2.1 | libcgicc 3.2.3 | GNU LGPL v2.1 | openssl | OpenSSL |
| bstrlib | BSD | libcurl | ICS | paho-mqtt-c | EPL-2.0 or BSD-3c |
| busybox | GNU GPL v2 | libdaemon | GNU GPL v2.1 | pcre | BSD |
| bzip2 | BSD | libdnet | BSD | pexpect | MIT |
| cjson | MIT | libelf | LGPL v2.1+ | pixman | MIT |
| can-utils | unknown | libevent | BSD-3c OpenBSD | popt | MIT |
| cracklib | LGP Lv2.1+ | libfcgi | fcgi | psmisc | GNU GPL v2 |
| compat-wireless | GNU GPL v2 | libffi | MIT | pyexchange | Apache |
| Curl | ICS | libglib2 | LGPL v2.1+ | pylibssh2 | LGP v2.1 |
| devmem2 | GNU GPL v2 | libgpg-error | GNU LGPL v2.1 | python-evdev | python-evdev |
| dosfstools | GNU GPL v2 | libnl | GNU LGPL v2.1 | python-lxml | BSD |
| ecryptfs-utils | GNU GPL v2 | libnspr | MPLv2.0 | python3 | PSF |
| eudev | GPLv2+ LGPL v2.1+ | libnss | GNU GPL v2 | pytz | pytz |
| expat | MIT | libpcap | BSD | qt | GNU LGPL v2.1 |
| fbset | GNU GPL v2 | libpng | libpng license | rapidjson | MIT |
| fcgi | fcgi | librsync | LGPL v2.1+ | shadow | BSD-3c |
| fgciwrap | MIT | libsocketcan | GNU LGPL v2.1 | socat | GNU GPL v2 |
| Flex | FLEX | libsoup | LGPLv2.1+ | spawn-fcgi | BSD |
| freetype | FreeType license | libssh2 | BSD | sqlite | public domain |
| fontconfig | fontconfig | libsub | GNU LGPL v2.1 | syslog-ng | LGPL-2.1 (syslog- ng core), GPL-2.0 (modules) |
| gnupg-1.4.7 | GNU GPL v2 | libxml2 | MIT | tcpdump | BSD |
| Licensed Third-Party Software | ||||||
| Package | License | Package | License
MIT | Package | License | |
| gpgme | GNU LGPL v2.1 | libxslt | tzdata | public domain | ||
| gstreamer | GNU GPL v2 | lighttpd | BSD | uboot | GNU GPL v2 | |
| htop | GPL v2 | Linux | GNU GPL v2 | udev | GNU GPL v2 | |
| i2c-tools | GNU GPL v2 | Linux-PAM | BSD | util-linux | GPL v2, BSD-4c, libblkid and libmount LGPL v2.1, libuuid BSD-3c | |
| ifplugd | GNU GPL v2 | lua | MIT | wireless_tools | GNU GPL v2 | |
| jo | MIT (json.[ch]), GPL v2 (rest) | minicom | GNU GPL v2 | wpa_ supplicant | GPL v2/BSD-3c | |
| iperf | iperf | mtd | GNU GPL v2 | xinetd | custom | |
| iproute2 | GPL v2 | ncurses | MIT | zlib | zlib | |
| iptables | GPL v2 | netsnmp | BSD | |||
| jpeg | libjpeg | neon | LGPL v2.1+ GPL v2+ | |||
NOTE: Go to www.extron.com for the complete user guide, installation instructions, and specifications.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
© 2016-2024 – Extron All rights reserved. www.extron.com
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
