Sarrera
This manual provides detailed instructions for the safe and effective use of your Gavigain Smoke Injector. This portable device is designed to infuse a natural smoky flavor into various foods and beverages using cold smoke technology. Please read this manual thoroughly before first use and retain it for future reference.
Image: The Gavigain Smoke Injector in use, with its hose directing smoke into a cloche covering a dish of meat and vegetables.
Segurtasun Informazioa
- Always operate the smoke injector in a well-ventilated area.
- Keep the device away from flammable materials, liquids, and gases.
- Do not touch the metal mesh or the area around the wood chip chamber immediately after use, as it may be hot.
- Ensure the device is turned off and cooled before cleaning or storing.
- Mantendu haurren eta maskoten eskura.
- Use only natural wood chips, tea, or spices as smoking material. Do not use plastics or other synthetic materials.
Produktuaren osagaiak
Your Gavigain Smoke Injector package includes the following items:
- Smoke Injector Unit
- Hodi malgua
- Garbiketa eskuila
- Bihurkina (bateriaren konpartimenturako)
- Extra Filter Screens
Image: All components of the Gavigain Smoke Injector, including the main unit, hose, cleaning tools, and filter screens.
Konfigurazioa
- Instalatu bateriak: Open the battery compartment located at the bottom of the unit using the provided screwdriver. Insert two AA batteries, ensuring correct polarity. Close the compartment securely.
- Egur txirbilak gehitu: Place a small amount of wood chips, tea, or spices into the metal mesh chamber at the top of the smoke injector. Do not overfill.
- Lotu mahuka: Securely connect one end of the flexible hose to the smoke outlet on the side of the main unit and the other end to the desired smoking container or cloche.
Image: Close-up of the smoke injector showing the top chamber for wood chips and the non-slip button for power/wind adjustment.
Funtzionamendu-argibideak
- Piztu: Use the non-slip button/switch on the base of the unit to turn on the device. There are typically two power options or wind gears to adjust the fan speed.
- Light Wood Chips: Using a lighter or match, carefully ignite the wood chips in the chamber until they begin to smolder and produce smoke.
- Apply Smoke: Direct the smoke from the hose into your food container, cocktail glass, or other desired item. The device produces cold smoke, which infuses flavor without cooking or altering the texture of your ingredients.
- Adjust Smoke Intensity: Use the adjustable wind gear switch to control the amount of smoke produced. A higher setting (Gale) will produce more smoke, while a lower setting (Weak wind) will produce less.
- Itzali: Once the desired smoke flavor is achieved, turn off the device using the power switch. Allow the unit to cool down before handling.

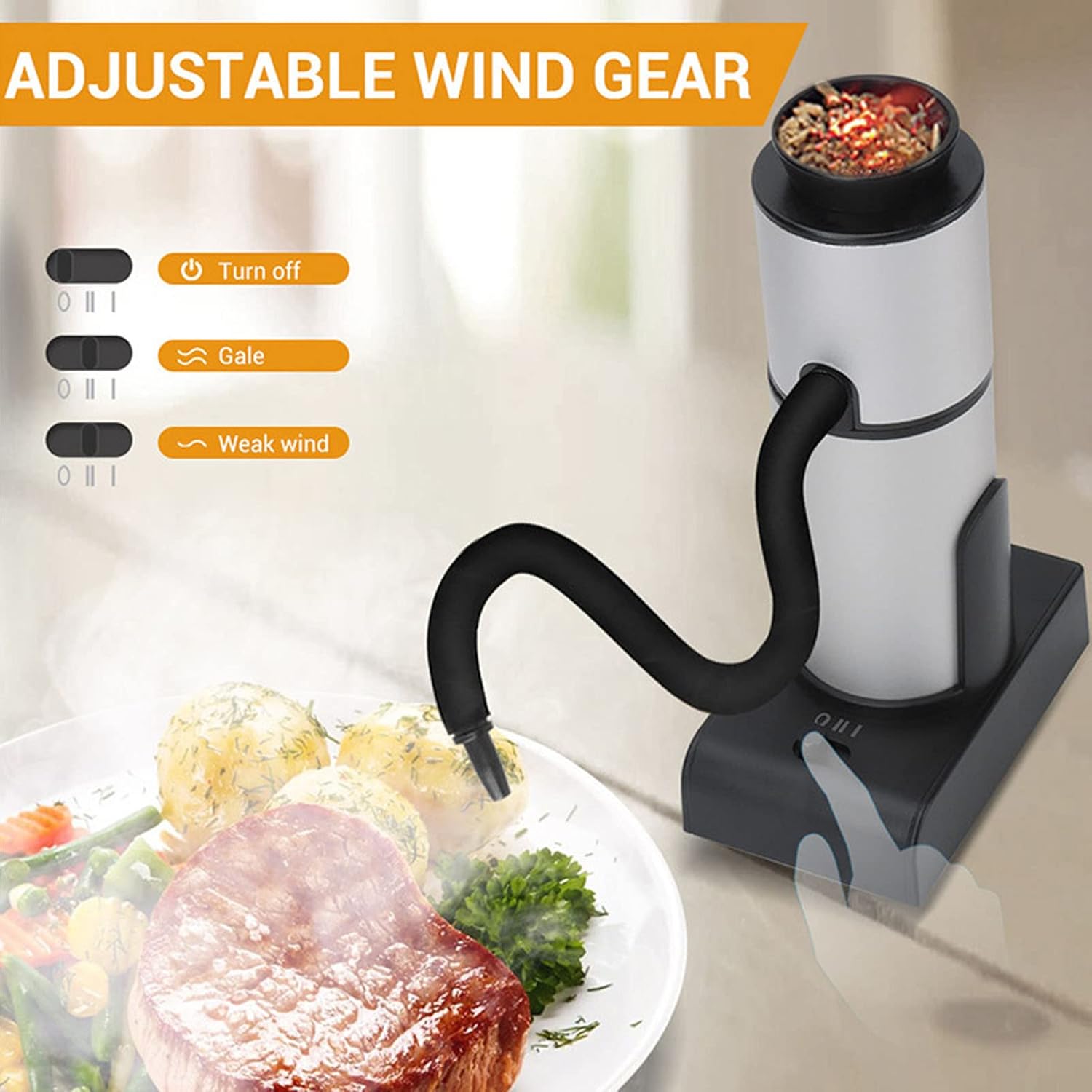

Image: A visual guide showing the 'Turn off', 'Gale', and 'Weak wind' settings for the adjustable wind gear.

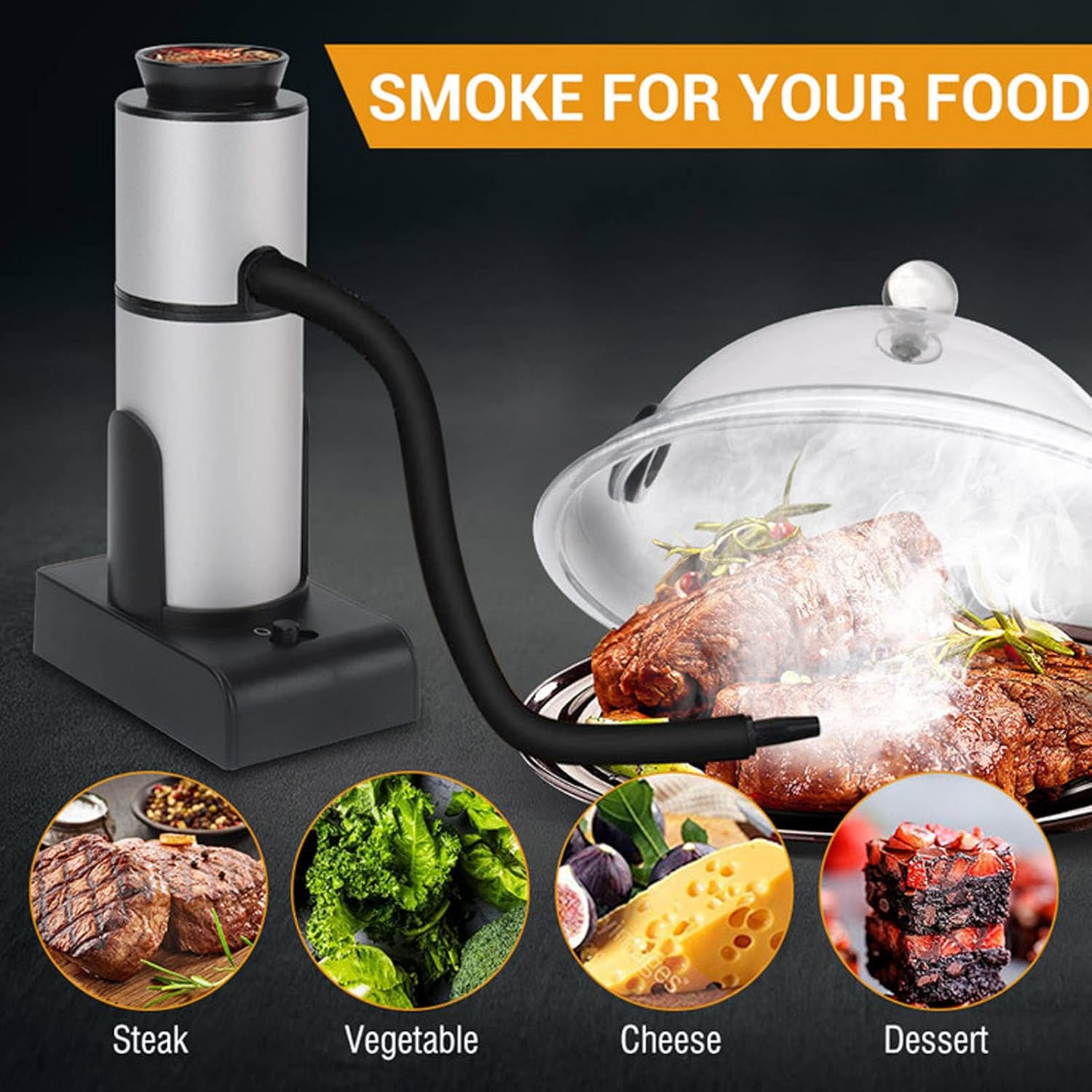

Image: The smoke injector being used to add smoke to different food items, including steak, vegetables, cheese, and dessert.
Image: The smoke injector being used to add smoke to different beverages, including vodka, rum, cocktails, and whiskey.
Mantentzea
- Garbitu ganbera: After each use, ensure the wood chip chamber is completely cooled. Remove any ash or residue using the provided cleaning brush.
- Clean Filter Screens: Periodically check and clean the metal filter screens to prevent blockages. Replace them with new screens if they become damaged or excessively clogged.
- Manguera garbia: The flexible hose can be cleaned with warm, soapy water. Ensure it is thoroughly dry before reattaching.
- Garbitu kanpoaldea: Wipe the exterior of the smoke injector with a damp oihal. Ez sartu unitatea uretan.
- Biltegiratzea: Store the smoke injector in a clean, dry place when not in use.
Image: An infographic highlighting key features such as authentic smokey taste, fast flavor, easy to use, cool smoke, no outlet required, and portable size.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| No smoke produced | Wood chips not lit or insufficient; fan not operating; clogged filter. | Ensure wood chips are smoldering; check batteries; clean or replace filter. |
| Kearen irteera ahula. | Low fan speed setting; insufficient wood chips; partially clogged filter. | Increase fan speed; add more wood chips; clean filter. |
| Gailua ez da pizten | Bateriak hilda edo gaizki instalatuta. | Ordeztu bateriak berriekin; ziurtatu polaritate zuzena dutela. |
Zehaztapenak
- Modelo zenbakia: Gavigainn5gyvgpwoe
- Fabrikatzailea: Gavigain
- Energia iturria: AA bateriak (ez daude barne)
- Eragiketa: Cold Smoke Technology
- Materialak: (Information not provided, typically food-grade plastic/metal)
Bermearen informazioa
Specific warranty details for your Gavigain Smoke Injector are typically provided at the point of purchase or included with your product packaging. Please refer to these documents for information regarding warranty coverage, duration, and claims procedures. For further assistance, contact the seller or manufacturer directly.
Laguntza
If you encounter any issues or have questions not covered in this manual, please contact the retailer where you purchased the product or reach out to Gavigain customer support. Contact information can often be found on the product packaging or the manufacturer's official webgunea.
