PingaOculto Invisible Spy Earpiece User Manual

1. Sarrera

The PingaOculto Nano V6 Invisible Spy Earpiece is a state-of-the-art communication device designed for discreet and secure audio transmission. Its ultra-compact size allows it to be completely hidden within the ear canal, making it ideal for situations requiring covert communication, such as examinations, presentations, or specialized security operations.

This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your Nano V6 earpiece system to ensure optimal performance and longevity.

1 Irudia: Gainetikview of Nano V6 system features, including its compact size and wireless capabilities.

Figure 2: The Nano V6 earpiece, showcasing its extremely small and discreet design.

2. Paketearen edukia

Mesedez, egiaztatu ondorengo osagai guztiak zure paketean sartuta daudela:

• 1 x Nano V6 Invisible Spy Earpiece
• 1 x GSM Inductor Necklace (with integrated SIM card slot)
• 1 x kabledun mikrofonoa
• 1 x Extractor Bar
• 1 x Extractor Magnet
• 1 x USB kargatzeko kablea
• 1 x European Charger
• 1 x Erabiltzailearen eskuliburua

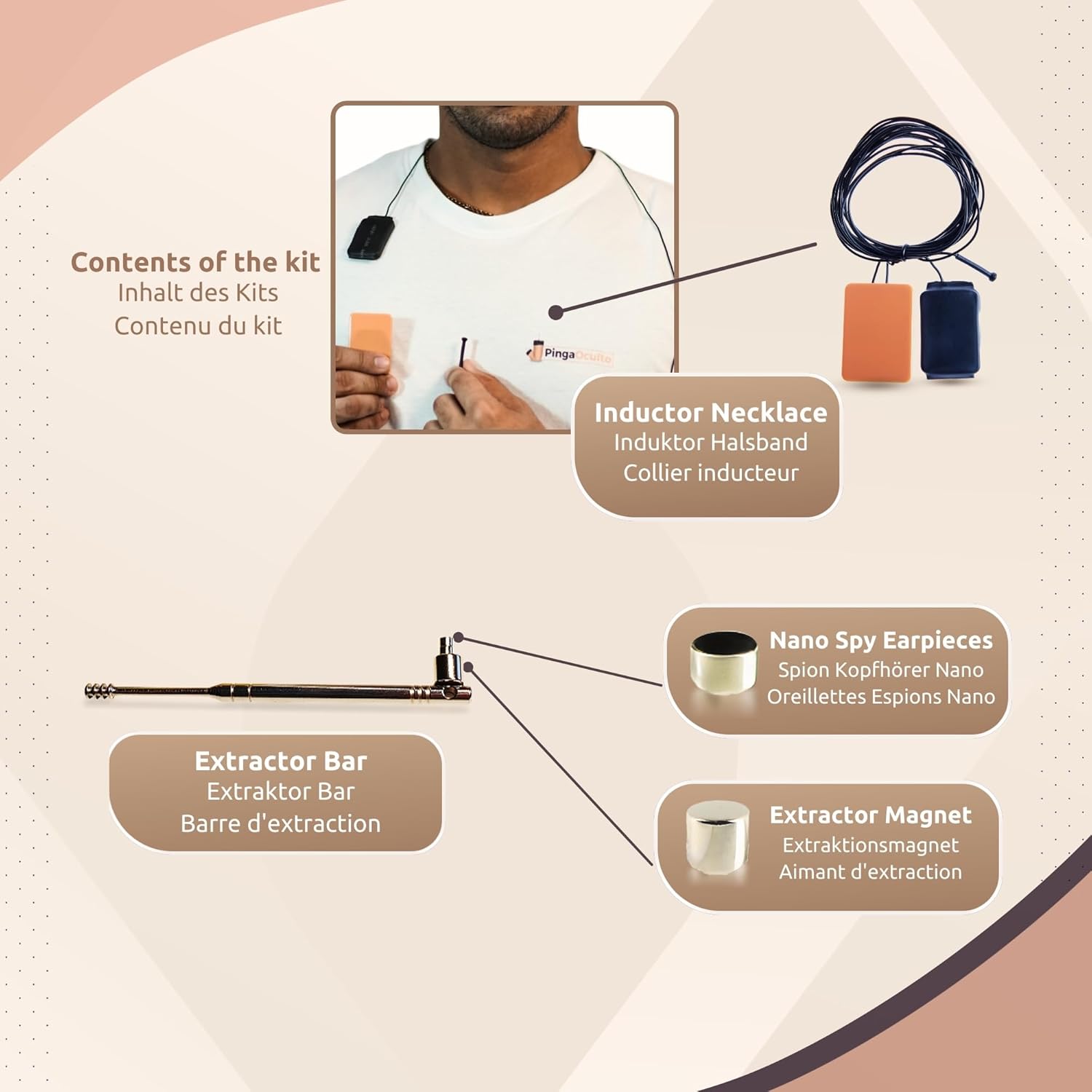

Figure 3: All components included in the Nano V6 kit.

3. Produktuaren ezaugarriak

• Invisible Earpiece: The smallest wireless hidden magnetic earpiece on the market, measuring only 3mm in diameter. It is designed to be completely concealed within the ear.
• GSM Inductor Necklace: Features a built-in SIM card slot, eliminating the need for a mobile phone. Compatible with GSM bands 850, 900, 1800, and 1900 for telephone calls.
• Kabledun mikrofonoa: A discreet wired microphone that can be hidden in a sleeve or around the neck, enabling clear communication even when whispering.
• Bateriaren iraupen luzea: The inductor necklace provides approximately 3 hours of battery life, depending on volume levels. The earpiece itself does not require recharging.
• Aplikazio polifazetikoak: Ideal for examinations, presentations, and covert communication scenarios where discretion is paramount.

Figure 4: Proper placement of the Nano V6 earpiece within the ear canal for complete concealment.

5. irudia: Adibamples of discreet applications for the Nano V6 system.

4. Konfigurazio gida

1. Charge the Inductor Necklace: Before first use, fully charge the GSM Inductor Necklace using the provided USB charging cable and European charger. The charging indicator will show when it's fully charged.
2. Sartu SIM txartela: Open the SIM card slot on the Inductor Necklace and carefully insert a standard Nano SIM card. Ensure it is correctly oriented as per the diagram on the device.
3. Wear the Necklace: Place the Inductor Necklace around your neck, ensuring it is concealed under your clothing. The necklace acts as the primary communication hub.
4. Mikrofonoa kokatu: Connect the wired microphone to the designated port on the necklace. Route the microphone wire discreetly, for example, down your sleeve or under your collar, so the microphone is close to your mouth for clear audio input.
5. Insert the Earpiece: Carefully place the Nano V6 earpiece deep into your ear canal. It should be completely invisible from the outside. You may need to gently shake your head or use a non-metallic tool to help it settle.
6. Piztu: Turn on the Inductor Necklace using its power button. It will automatically connect to the GSM network.

Figure 6: Diagram illustrating the discreet placement of the earpiece, necklace, and microphone.

5. Funtzionamendu-argibideak

Once the system is set up and powered on, you can begin using it for communication:

• Deiak egitea: To initiate a call, you will need to dial the number using a connected mobile phone (if applicable, though the necklace supports direct SIM calls) or use the necklace's dialing function if available. For direct SIM calls, the necklace acts as a standalone phone.
• Deiak jasotzea: When a call comes in, the necklace will typically auto-answer or have a button to answer. Audio will be transmitted directly to the earpiece.
• Bolumena doitzea: Use the volume controls on the Inductor Necklace to adjust the audio level in the earpiece.
• Mikrofonoa erabiltzea: Speak softly or whisper into the wired microphone. Ensure the microphone is positioned correctly to pick up your voice clearly.
• Deiak amaitzea: Press the designated button on the necklace to end a call.

6. Mantentzea eta Zainketa

Mantentze egokiak zure gailuaren iraupena eta errendimendu optimoa bermatzen ditu:

• Cleaning the Earpiece: After each use, carefully remove the earpiece using the extractor bar or magnet. Clean any earwax or debris from the earpiece using a soft, dry cloth. Do not use liquids or harsh chemicals.
• Kargatzen: Recharge the Inductor Necklace regularly, especially after prolonged use, to maintain battery health. Avoid overcharging.
• Biltegiratzea: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.
• Uraren erresistentzia: The product is listed as 'Waterproof'. However, avoid submerging the device in water. 'Waterproof' typically refers to resistance against splashes or light rain, not full immersion.

7. Arazoak

If you encounter any issues with your PingaOculto Nano V6, please refer to the following common problems and their solutions:

8. Zehaztapen Teknikoak

9. Bermea eta Laguntza

Fabrikatzailearen bermea: The PingaOculto Nano V6 Invisible Spy Earpiece comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

Bezeroarentzako laguntza: For any questions, technical assistance, or warranty claims, please contact PingaOculto customer support through the retailer's platform or the official PingaOculto website. Please have your product model number (UMD-ST-NANO-6) and proof of purchase ready when contacting support.

Ordezko piezen erabilgarritasunari eta software eguneratze bermatuei buruzko informazioa ez dago eskuragarri une honetan.
