1. Introducción
The AXIS Q6325-LE is a high-performance network camera designed for professional surveillance and monitoring applications. It features a 2 MP resolution with a light-sensitive ½-inch sensor and 31x optical zoom, ensuring clear images across various lighting conditions. Built on the ARTPEC-9 processor, this camera supports advanced analytics, including AXIS Object Analytics for detecting and classifying humans, vehicles, and vehicle types.
The device is built for outdoor use, boasting IP66, IK10, and NEMA 4x ratings for impact and weather resistance. It is also NEMA TS2 rated, allowing operation in temperatures up to 74°C. For efficient data management, Axis Zipstream technology supports AV1, H.264, and H.265 codecs, significantly reducing bandwidth and storage requirements. Enhanced security is provided by Axis Edge Vault, which protects the device and sensitive information from unauthorized access.
2. Información de seguridad
- Instalación profesional: La instalación debe ser realizada por personal calificado de acuerdo con todos los códigos y regulaciones locales.
- Fuente de energía: Use only Power over Ethernet (PoE) sources that comply with IEEE 802.3bt/Class 6 or IEEE 802.3at/Class 4 standards. Ensure the power source is stable and within the specified voltage rango.
- Condiciones ambientales: While the camera is designed for outdoor use and is weather-resistant, avoid exposing it to extreme conditions beyond its specified operating temperature and humidity ranges.
- Montaje: Securely mount the camera using appropriate accessories to prevent accidental falls. Ensure the mounting surface can support the camera's weight.
- Cableado: Protect all network cables from physical damage and environmental exposure. Use weatherproof connectors where necessary.
3. Contenido del paquete
Verify that all components are present in the package before proceeding with installation. The standard package for the AXIS Q6325-LE typically includes:
- AXIS Q6325-LE Network Camera
- Weatherproof RJ-45 network connector
- Escudo de clima
- Plantilla de montaje
- Paint paper
- Note: Mounting accessories are not always included and may need to be purchased separately.

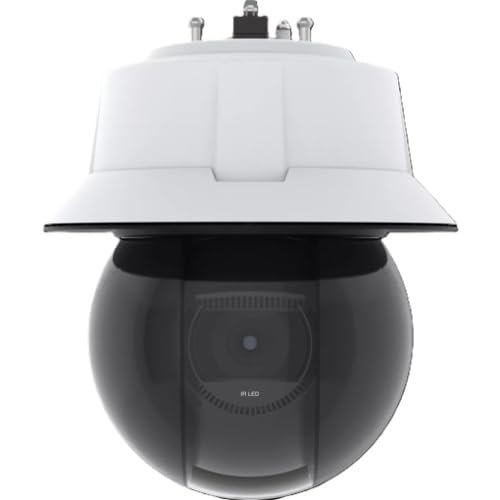

Figura 3.1: Frente view of the AXIS Q6325-LE network camera, showing its dome design and main lens.
4. Configuración e instalación
4.1 Montaje de la cámara
The AXIS Q6325-LE supports various professional mounting options, including ceiling, pole, corner, and parapet mounts. Specific mounting accessories are required for each type of installation and are typically sold separately. Refer to the mounting template for drilling holes and ensure the mounting surface is robust enough to support the camera.

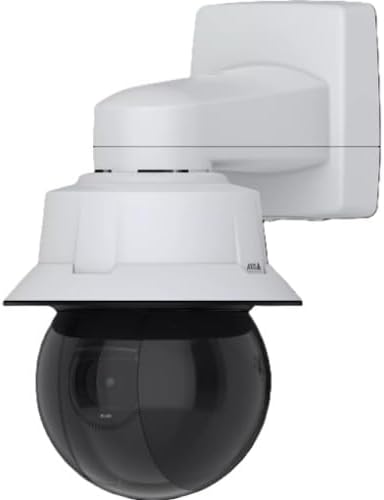

Figure 4.1: The AXIS Q6325-LE camera shown with an optional wall mounting bracket, illustrating a typical installation configuration.
4.2 Conexión de red y alimentación
Connect the camera to your network using a standard RJ-45 Ethernet cable. The camera is powered via Power over Ethernet (PoE), compliant with IEEE 802.3bt/Class 6 or IEEE 802.3at/Class 4 standards. Ensure your network switch or PoE injector provides adequate power.
- Connect one end of the Ethernet cable to the camera's RJ-45 port.
- Connect the other end to a PoE-enabled network switch or injector.
- Once connected, the camera will power on and attempt to obtain an IP address via DHCP.
4.3 Configuración inicial
Para acceder a la cámara web interface for initial configuration:
- Use an AXIS IP Utility or network scanner to discover the camera's IP address on your network.
- Abrir una web navegador e ingrese la dirección IP de la cámara.
- Follow the on-screen prompts to set a strong password for the root user and complete the initial setup wizard.
- Configure network settings, video streams, and user access as required.
5. Operación de la cámara
5.1 Video Management System (VMS) Integration
The AXIS Q6325-LE is compatible with various NVRs and VMS software/applications via ONVIF and IP streaming protocols. Integrate the camera into your existing surveillance system for live viewing, grabación y reproducción.
5.2 Características y funcionalidades clave
- Zoom óptico 31x: Utilize the powerful optical zoom to focus on specific areas of interest without compromising image quality.
- Advanced AI Analytics: Leverage AXIS Object Analytics to automatically detect and classify objects such as humans, vehicles, and specific vehicle types, enhancing situational awareness and reducing false alarms.
- Visibilidad superior: The camera's light-sensitive sensor and advanced image processing ensure clear video in challenging lighting conditions, including low light.
- Compresión de vídeo eficiente: With support for AV1, H.264, and H.265 codecs, Axis Zipstream technology optimizes video streams to minimize bandwidth and storage consumption while maintaining video quality.
- Ciberseguridad: Axis Edge Vault provides a secure platform for the camera, protecting its firmware and sensitive data from cyber threats.
6. Mantenimiento
- Limpieza: Limpie periódicamente la cúpula y la carcasa de la cámara con un paño suave.amp cloth to remove dust, dirt, or water spots that may affect image quality. Do not use harsh chemicals or abrasive materials.
- Actualizaciones de firmware: Regularly check the AXIS webSitio para actualizaciones de firmware. Mantener el firmware de la cámara actualizado garantiza un rendimiento óptimo, seguridad y acceso a nuevas funciones.
- Inspección de cables: Inspect all cables and connections for signs of wear, damage, or corrosion, especially in outdoor environments. Replace damaged cables immediately.
- Controles ambientales: Ensure that the camera's operating environment remains within specified temperature and humidity ranges. Clear any obstructions that might block the camera's view o ventilación.
7. Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| La cámara no enciende | No PoE power; faulty Ethernet cable; PoE injector/switch issue. | Verify PoE source is active and providing power. Check cable connections. Test with a known good PoE port/injector. |
| No hay transmisión de video | Network connectivity issue; incorrect IP address; firewall blocking; VMS configuration error. | Check network cable. Confirm camera's IP address. Ensure firewall allows traffic. Verify VMS settings for the camera. |
| Mala calidad de imagen | Dirty lens/dome; improper focus/zoom; low light conditions; network bandwidth issues. | Clean the camera dome. Adjust focus and zoom settings via the web interface. Ensure sufficient lighting. Check network bandwidth. |
| No se puede acceder web interfaz | Incorrect IP address; network issue; browser compatibility; forgotten password. | Confirm IP address. Check network connection. Try a different browser. If password is lost, perform a factory reset (refer to manufacturer's guide for procedure). |
8. Especificaciones
| Marca | EJE |
| Nombre del modelo | AXIS Q63 Series Q6325-LE |
| Número de modelo | 03313-001 |
| Usos recomendados | Professional surveillance and monitoring applications where broad coverage, zoom, and smart analytics are important |
| Tecnología de conectividad | Wired Ethernet (RJ-45) network connection (IP camera) |
| Característica especial | Clear images with ½” sensor and 31x zoom, Superior visibility in all lighting conditions, Advanced AI analytics, Reduced storage costs with AV1 codec, Built-in cybersecurity with Axis Edge Vault |
| Uso en interiores y exteriores | Exterior |
| Dispositivos compatibles | NVRs, VMS software/apps via ONVIF / IP streaming |
| Tipo de controlador | IP network control via VMS/apps/web interfaces (no dedicated hardware remote) |
| Tipo de montaje | Supports professional mounts (ceiling, pole, corner, parapet, etc.) with optional accessories |
| Protocolo de conectividad | IPv4/v6, HTTP/HTTPS, RTSP/RTP/SRTP, ONVIF (S/G/M/T), FTP/SFTP, DHCPv4/v6, DNS/DDNS, SNMP, MQTT, SSH, LLDP, CDP, and more standardized network protocols |
| Fuente de poder | PoE (IEEE 802.3bt/Class 6 & IEEE 802.3at/Class 4) |
| Resolución de captura de video | 1920 × 1080 (2MP) |
| Dimensiones del artículo | 11.42 x 11.02 x 13.39 pulgadas |
| Formato de captura de video | AV1, H.264, H.265, Motion JPEG |
| Fabricante | Comunicaciones del eje |
9. Garantía y soporte
For detailed warranty information, please refer to the official AXIS Communications website or the warranty card included with your product. AXIS provides comprehensive support for its products.
- Apoyo técnico: Visit the AXIS Communications support portal for FAQs, troubleshooting guides, and contact information for technical assistance.
- Documentación: Additional documentation, including detailed installation guides and software manuals, can be found on the official AXIS websitio.
- Online Store: For product accessories and other AXIS products, visit the AXIS Store on Amazon.
