GarveeTech 770 LBS Capacity Hydraulic Lift Table Cart

1. Introducción

Thank you for choosing the GarveeTech 770 LBS Capacity Hydraulic Lift Table Cart. This manual provides essential information for the safe assembly, operation, and maintenance of your new lift table. Please read this manual thoroughly before use to ensure proper function and to prevent injury or damage.

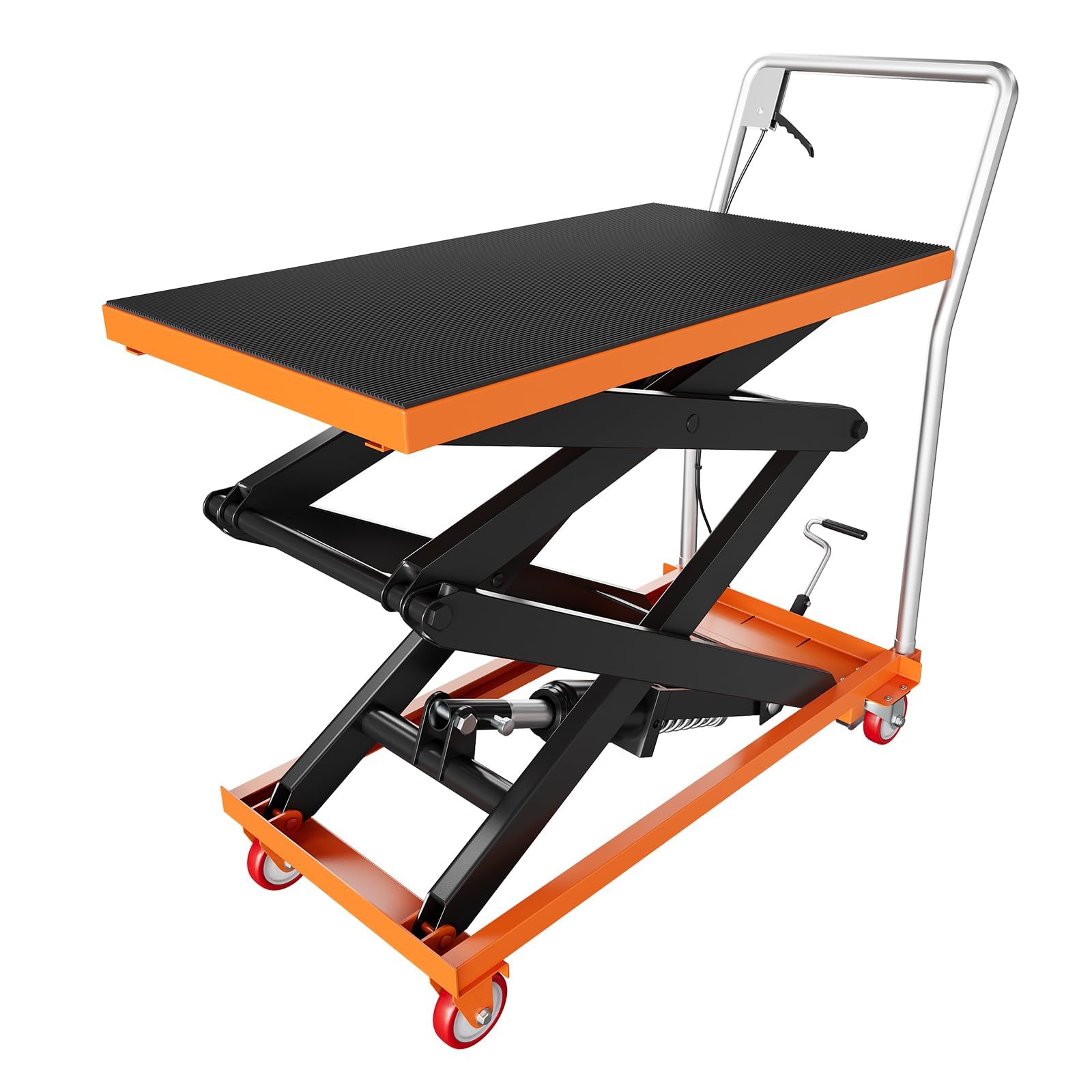

Image 1.1: The GarveeTech Hydraulic Lift Table Cart, showcasing its robust design and 770 LBS load capacity.

2. Instrucciones de seguridad

ADVERTENCIA: No seguir estas instrucciones de seguridad puede provocar lesiones graves o la muerte.

• Always operate the lift table on a flat, stable, and level surface.
• No exceda la capacidad de carga máxima de 770 LBS (350 kg).
• Ensure the load is centered and stable on the platform before lifting or moving.
• Engage the wheel brakes when loading, unloading, or performing maintenance.
• Keep hands and feet clear of moving parts, especially the scissor mechanism, during operation.
• Do not use the lift table to transport people.
• Inspect the lift table for damage or wear before each use. Do not operate if damaged.
• Wear appropriate personal protective equipment (PPE) such as safety shoes and gloves.
• Do not modify the lift table in any way. Use only original replacement parts.
• Be aware of pinch points and crush hazards.

3. Producto terminadoview y componentes

The GarveeTech Hydraulic Lift Table Cart is designed for efficient material handling and transportation. Key features include a durable steel construction, a non-slip platform, and swivel casters with brakes.

Imagen 3.1: Producto terminadoview highlighting the 770 LBS load capacity, rust-resistant finish, enhanced cylinder to prevent oil leakage, and superior steel strength.

Imagen 3.2: Primer plano views of the thickened and stable scissor mechanism, the enhanced hydraulic cylinder designed for stronger bearing capacity and oil leakage prevention, and the non-slip pad on the platform.

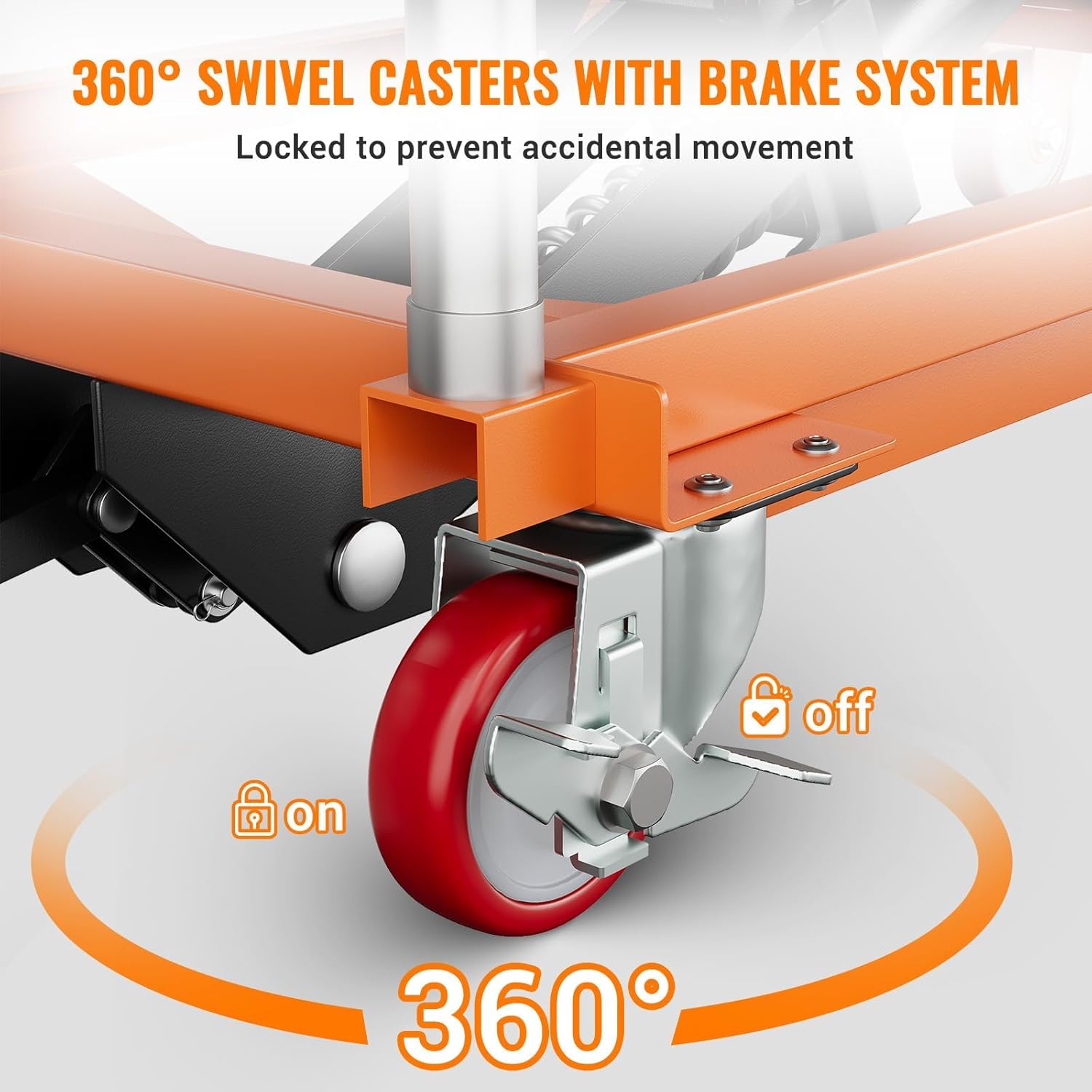

Image 3.3: Illustration of the 360-degree swivel casters and the brake system, showing how to engage and disengage the wheel locks to prevent accidental movement.

4. Contenido del paquete

Verifique que todos los componentes estén presentes y sin daños al desembalarlo.

• 1 x Hydraulic Lift Table Cart (main assembly)
• 1 conjunto de mango.
• 1 x Foot pedal assembly
• Herrajes de montaje (tornillos)

5. Especificaciones

Image 5.1: Dimensional diagram of the lift table cart, showing minimum height, maximum height, platform length, and width.

6. Instrucciones de montaje

The lift table cart requires minimal assembly. Follow these steps to prepare your unit for use.

Image 6.1: Visual guide for assembly and basic operation.

1. Step 1: Install the Handle. Attach the handle assembly to the designated slots on the cart frame using the provided screws. Ensure it is securely fastened.
2. Step 2: Install the Foot Pedal. Connect the foot pedal assembly to the hydraulic pump mechanism using the provided screws. Verify that the pedal moves freely and engages the pump.
3. Step 3: Check Casters. Ensure all four swivel casters are properly attached and functional. Test the locking brakes on the two casters.

7. Instrucciones de funcionamiento

7.1 Lifting the Platform

1. Position the lift table cart on a stable, level surface.
2. Engage the locking brakes on the casters to prevent movement.
3. Place the item to be lifted centrally on the non-slip platform, ensuring it does not exceed the 770 LBS capacity.
4. Step on the foot pedal repeatedly to raise the platform to the desired height. The hydraulic system will lift the platform smoothly.
5. The lift table is equipped with limit switches to prevent over-lifting beyond the maximum height of 59 inches.

7.2 Lowering the Platform

1. Asegúrese de que el área debajo de la plataforma esté libre de obstrucciones y personal.
2. Gently press the hand lever on the handle assembly to release the hydraulic pressure.
3. The platform will slowly descend. Control the descent speed by adjusting the pressure on the hand lever.

7.3 Moving the Lift Table

1. Ensure the platform is in its lowest position for maximum stability during transport.
2. Disengage the locking brakes on the casters.
3. Use the handle to push or pull the cart to the desired location. The swivel casters allow for easy maneuverability.
4. Always move the cart slowly and carefully, especially with a loaded platform.
5. Engage the locking brakes once the cart is in its new position.

8. Mantenimiento

Regular maintenance ensures the longevity and safe operation of your lift table cart.

• Inspección diaria: Before each use, check for any visible damage, loose fasteners, or leaks in the hydraulic system. Ensure the wheels and brakes are functioning correctly.
• Limpieza: Keep the platform and scissor mechanism clean and free of debris. Wipe down surfaces with a damp paño.
• Lubricación: Periodically lubricate all pivot points and moving parts of the scissor mechanism with a suitable grease to ensure smooth operation and prevent wear.
• Fluido hidráulico: Check the hydraulic fluid level periodically. If low, refill with appropriate hydraulic oil. Consult a qualified technician if you suspect a leak.
• Almacenamiento: Store the lift table in a dry, clean environment, preferably with the platform in the lowest position.

9. Solución de problemas

10. Garantía y atención al cliente

GarveeTech products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official GarveeTech website. If you encounter any issues or require technical assistance, please contact GarveeTech customer support through the details provided on our websitio web o su documentación de compra.
