Manual de instrucciones del marco de cama doble Jocoevol C-1619-4

1. Introducción

Gracias por la compraasing the Jocoevol Twin Bed Frame C-1619-4. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

Información de seguridad

• Tenga cuidado con los bordes afilados durante el montaje y el uso.
• Asegúrese de que todos los sujetadores estén bien apretados antes de usar. Revíselos periódicamente y ajústelos según sea necesario.
• No exceda la capacidad máxima de peso de 800 libras.
• Mantenga las piezas pequeñas fuera del alcance de los niños durante el montaje.
• Este marco de cama está diseñado únicamente para uso en interiores.

2. Contenido del paquete

Antes de comenzar el montaje, verifique que todos los componentes enumerados a continuación estén presentes y sin daños. Si alguna pieza falta o está dañada, póngase en contacto con atención al cliente.

• Upholstered Headboard with LED Lighting and Charging Station
• Barandillas laterales del marco de la cama
• Listones de madera y patas de apoyo
• Two (2) Storage Drawers with Dust-Proof Pads
• Hardware Pack (screws, bolts, washers, hex key)
• Manual de instalación

Figure 2.1: Product dimensions and key components overview.

3. Instrucciones de montaje

Assembly of the Jocoevol Twin Bed Frame is designed to be user-friendly. All parts are clearly labeled, and pre-drilled holes ensure proper alignment. Please refer to the detailed Installation Manual included in your package for step-by-step instructions. It is recommended to have two people for assembly.

Características principales del conjunto:

• Diseño de velcro: Slats attach with Velcro for secure and easy installation.
• Diseño silencioso: Reinforced solid wood frame and thick legs contribute to a noise-free structure.
• Construcción robusta: Engineered wood and metal components ensure durability.

Figure 3.1: Details of the bed frame's construction for stability and noise reduction.

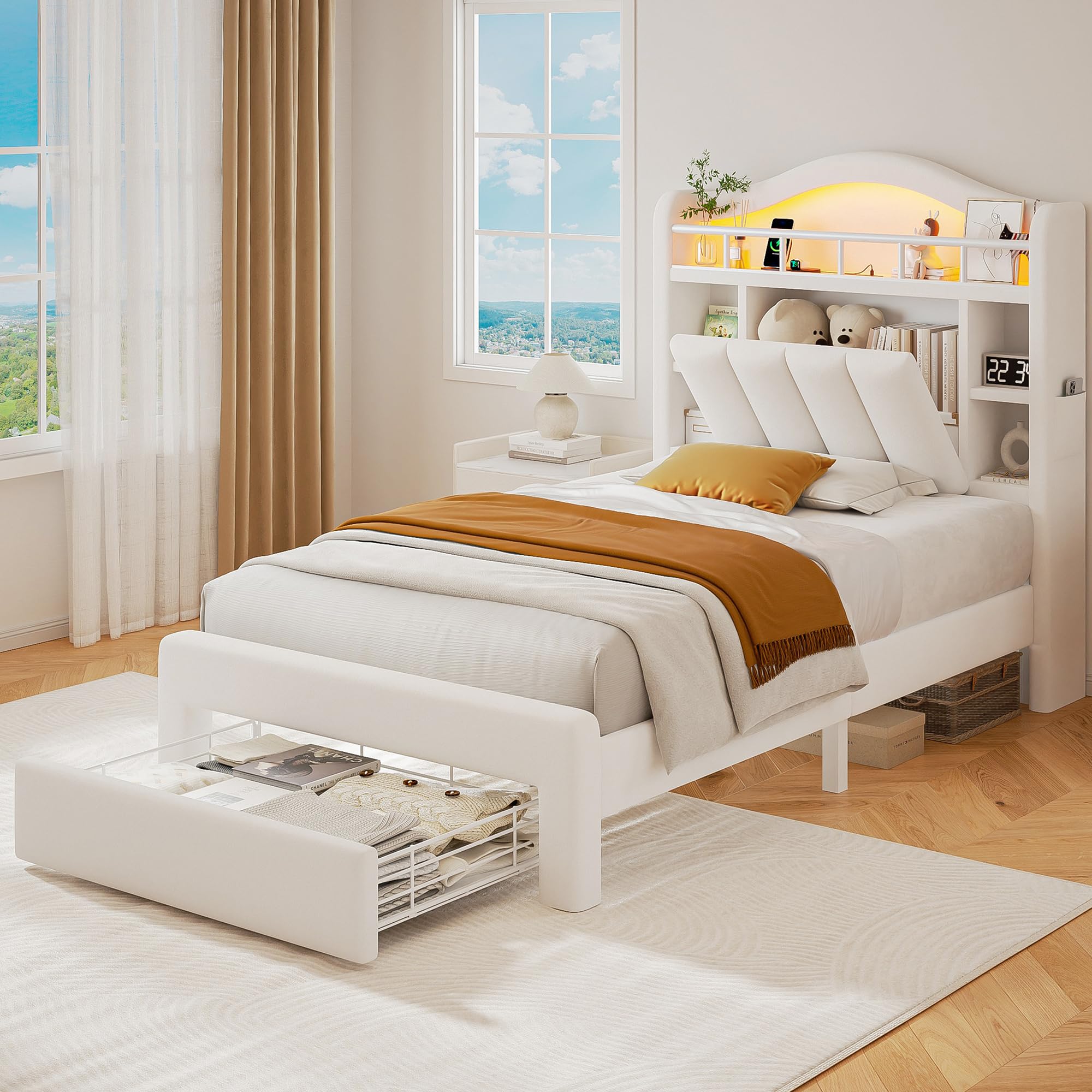

Figure 3.2: Assembled bed frame with drawers, demonstrating storage capacity.

4. Instrucciones de funcionamiento

4.1 Multi-functional Storage Headboard

The headboard features an open shelving display, a top platform, and a hidden flip-top compartment for various storage needs.

• Estanterías abiertas: Use for displaying decorative items, books, or frequently accessed personal items.
• Plataforma superior: Provides convenient space for phones, glasses, or small electronics.
• Compartimento abatible oculto: Lift the padded section of the headboard to access discreet storage for private items.
• Bolsillo lateral para el teléfono: Located on the side of the headboard for easy access to your phone.

Figure 4.1: Features of the multi-functional storage headboard.

4.2 Integrated Charging Station & Smart RGB Lighting

The headboard includes a built-in charging station and adjustable RGB LED lights.

• Puertos de carga: Utilize the 2 AC power outlets, 2 USB-A ports, and 1 USB-C port to charge your electronic devices. Ensure the bed frame is connected to a power source.
• Luces LED RGB: Control the LED lights via the provided remote control or a compatible mobile application. Explore 16 million colors, 20+ lighting effects, and dynamic modes to customize your room's ambiance.

Figure 4.2: Integrated charging station for electronic devices.

Figure 4.3: RGB LED lighting with remote and app control.

4.3 Large Capacity Drawers

The bed frame includes two spacious, smooth-gliding drawers located at the foot of the bed for additional storage.

• Uso: Pull the drawers out smoothly to store off-season clothing, spare bedding, or other household items.
• Protección contra el polvo: The drawers feature a bottom lining to prevent dust accumulation on stored items.

Figure 4.4: Large capacity storage drawers with smooth wheels and dust protection.

5. Mantenimiento

5.1 Limpieza

• Superficies tapizadas: For general cleaning, gently vacuum the velvet upholstery using a soft brush attachment. For spills, blot immediately with a clean, dry cloth. For stubborn stains, consult a professional upholstery cleaner.
• Superficies de madera/metal: Limpie con un paño suave y seco.amp paño. Evite productos químicos agresivos o limpiadores abrasivos.
• Dust-Proof Pads: The drawer linings can be wiped clean with a damp paño.

5.2 Cuidados generales

• Revise periódicamente todos los pernos y tornillos para asegurarse de que estén bien apretados. Vuelva a apretarlos según sea necesario para mantener la estabilidad y evitar ruidos.
• Avoid exposing the bed frame to direct sunlight or extreme temperature changes, which can affect the material.
• Do not drag the bed frame when moving it; lift it to prevent damage to the frame and flooring.

6. Solución de problemas

7. Especificaciones

8. Garantía y soporte

For warranty information, technical support, or to report missing/damaged parts, please refer to the contact details provided in your original purchase documentation or contact Jocoevol customer service directly. Please have your model number (C-1619-4) and purchase date available when contacting support.
