Introducción
Thank you for choosing the TIMEMORE C5 Hand Coffee Grinder. This manual provides essential information for the safe and effective use of your new coffee grinder. The C5 model features a durable all-metal construction, a 42mm S2C-042-III conical burr for consistent grinding, and precise 0.031mm adjustment capabilities, making it suitable for various brewing methods.

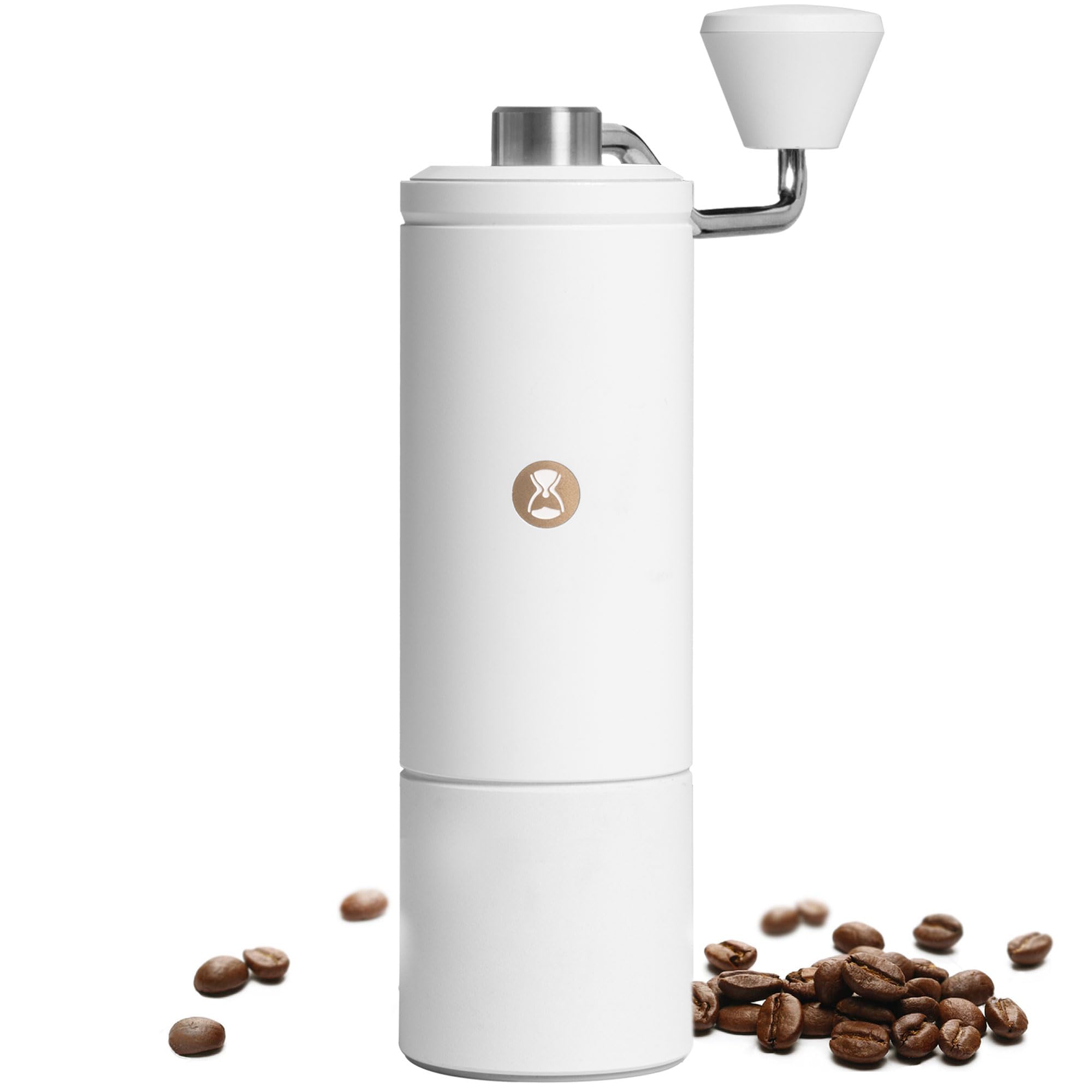

Image: The TIMEMORE C5 Hand Coffee Grinder, showcasing su elegante diseño.
Información de seguridad
- Read all instructions before using the grinder.
- Mantenga el molinillo fuera del alcance de los niños.
- Do not immerse the grinder in water or any other liquid.
- Use only whole roasted coffee beans. Do not grind other substances.
- Avoid touching the burrs when the grinder is assembled or in operation.
- Ensure the handle is securely attached before grinding.
Contenido del paquete
Por favor, compruebe que todos los artículos estén presentes en el paquete:
- TIMEMORE C5 Hand Coffee Grinder Body
- Grinder Handle
- Cepillo de limpieza
- Manual de instrucciones
Configuración
Before first use, ensure all parts are clean and dry. The grinder comes pre-assembled, but you will need to attach the handle.
- Desempaque todos los componentes de la caja.
- Insert the handle onto the hexagonal shaft at the top of the grinder.
- Secure the handle by gently pushing it down until it clicks into place.
Imagen: interna view of the grinder, highlighting the burr and bearing system.
Instrucciones de funcionamiento
Siga estos pasos para moler sus granos de café:
- Ajustar el tamaño de la molienda: Refer to the "Grind Adjustment" section to select your desired grind size.
- Añadir granos de café: Remove the lid and pour your desired amount of whole roasted coffee beans into the hopper. The C5 has a capacity of up to 30g.
- Coloque la manija: Place the handle back onto the shaft and ensure it is secure.
- Moler: Hold the grinder firmly with one hand and turn the handle clockwise with the other. Continue grinding until all beans have passed through the burrs and into the catch cup.
- Recoger terrenos: Unscrew the catch cup from the bottom of the grinder to access your freshly ground coffee.

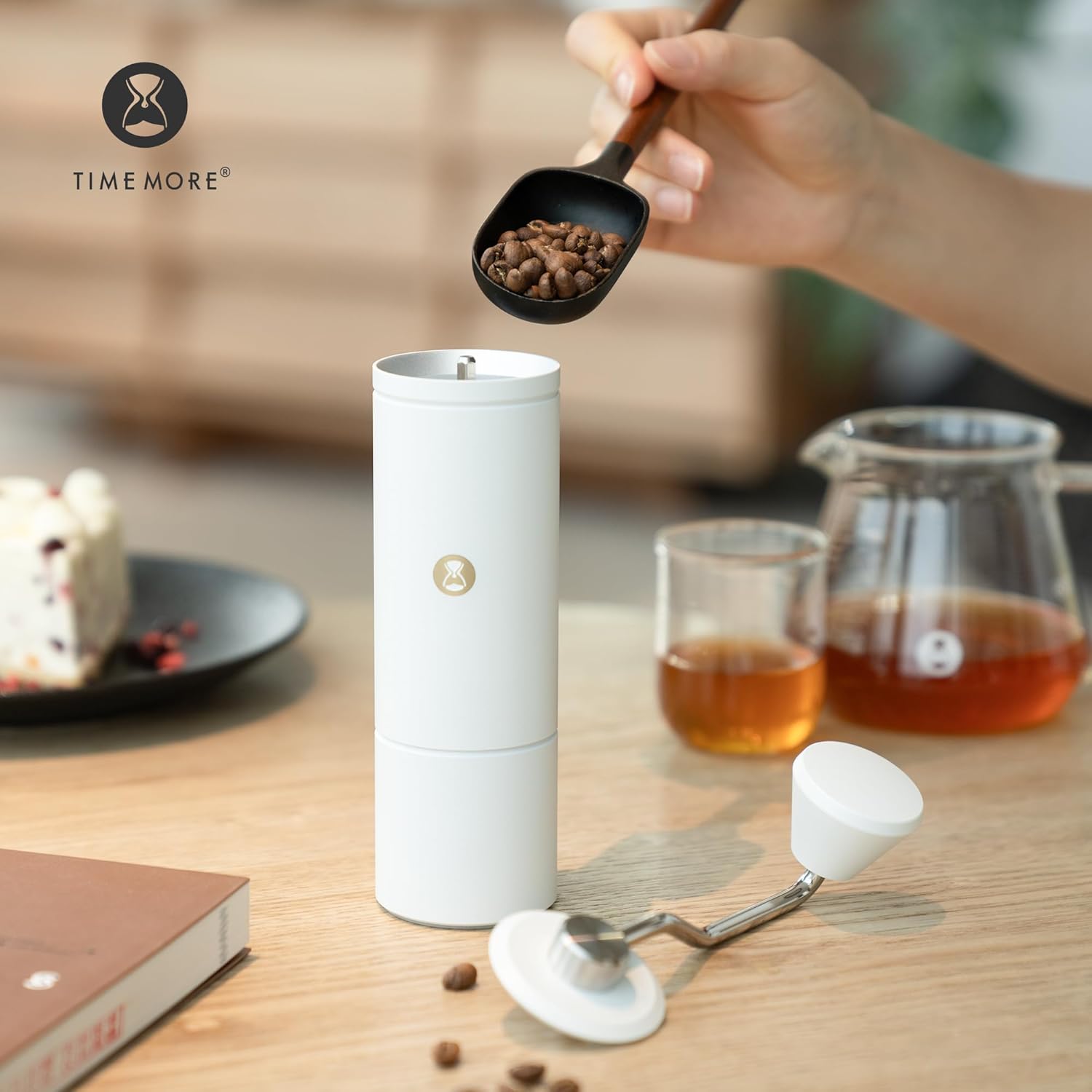

Image: Adding coffee beans to the grinder.
Image: The grinder in operation, ready for brewing.
Video: Grinder Usage and Coffee Preparation
Video: This video demonstrates the process of using the TIMEMORE C5 grinder, from adding beans to grinding and preparing a pour-over coffee.
Ajuste de molienda
The TIMEMORE C5 offers precise grind adjustment with 0.031mm clicks. To adjust the grind size:
- Remove the catch cup from the bottom of the grinder.
- Locate the adjustment dial at the bottom of the main body, around the central shaft.
- Turn the dial clockwise for a finer grind and counter-clockwise for a coarser grind. Each click represents a precise adjustment.
- Refer to the markings (e.g., "FINE", "COARSE", "POUR OVER 10-14") for general guidance.
Video: Grind Adjustment and Cleaning
Video: This video illustrates how to adjust the grind size and perform basic cleaning of the TIMEMORE C5 grinder.
Mantenimiento y limpieza
La limpieza regular garantiza un rendimiento óptimo y la longevidad de su molinillo.
- Desmontaje: Unscrew the catch cup. Remove the handle. The internal burr assembly can be carefully disassembled for thorough cleaning.
- Limpieza de rebabas: Use the provided cleaning brush to remove any residual coffee grounds from the burrs and internal components. A soft cloth can be used for external surfaces.
- No lavar: Do not wash the burrs or main body with water. Water can cause rust and damage the mechanism.
- Reensamblaje: Reassemble all parts in reverse order, ensuring the adjustment dial is correctly positioned.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| Grinding is difficult or slow. | Burrs are clogged with old coffee oils/grounds. Grind setting is too fine. | Clean the burrs thoroughly. Adjust to a coarser grind setting. |
| Tamaño de molienda inconsistente. | Burrs are loose or damaged. Grinder not held steadily. | Ensure burrs are securely tightened. Hold the grinder firmly during operation. If burrs are damaged, contact support. |
| El mango se desprende durante el molido. | Mango no asegurado correctamente. | Ensure the handle is fully pushed onto the hexagonal shaft until it clicks. |
Presupuesto
- Marca: TIEMPO MÁS
- Modelo: C5
- Tipo de rebaba: Conical (S2C-042-III)
- Tamaño de rebaba: 42 mm
- Ajuste de molienda: 0.031mm per click
- Material: Aleación de aluminio
- Capacidad: Up to 30g coffee beans
- País natal: Porcelana
Garantía y soporte
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official TIMEMORE webSitio. Conserve su comprobante de compra para reclamaciones de garantía.
