Sharmeal GL902-15000A Jump Starter User Manual

1. Introducción

The Sharmeal GL902-15000A is a versatile and portable jump starter designed to provide emergency starting power for vehicles and serve as a power bank for electronic devices. This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before first use and retain it for future reference.

2. Información importante de seguridad

Observe siempre las siguientes precauciones de seguridad para evitar lesiones o daños al dispositivo y al vehículo:

• Lea atentamente todas las instrucciones antes de utilizar el arrancador.
• Wear appropriate eye protection (safety glasses) when working with vehicle batteries.
• No cortocircuite el puente clamps. Avoid touching the red and black clamps juntos
• Mantenga el dispositivo fuera del alcance de los niños y las mascotas.
• Do not expose the jump starter to rain, water, or extreme temperatures.
• Ensure proper polarity when connecting the jumper cables to the vehicle battery (red to positive, black to negative). Incorrect connection can cause damage.
• No intente arrancar con cables una batería congelada o dañada.
• Si el arrancador se calienta excesivamente durante su uso, desconéctelo inmediatamente y déjelo enfriar.
• Utilice únicamente los cables puente inteligentes proporcionados con el dispositivo.

Image: Safety Protections Overview
This image illustrates the multiple safety protections integrated into the Sharmeal GL902-15000A Jump Starter, including reverse reconnection, over-discharge, over-current, short circuit, reverse charge, over-temperature, low voltage, reverse polarity, over-charge, and low-temperature protection. These features ensure safe operation during vehicle jump-starting and device charging.

3. Contenido del paquete

Por favor revise el paquete para ver los siguientes artículos:

• Sharmeal GL902-15000A Jump Starter Unit
• Cables de puente inteligentes con Clamps
• Cable de carga USB-C
• Manual de usuario
• Estuche de almacenamiento

4. Producto terminadoview

The Sharmeal GL902-15000A features a compact design with multiple functionalities. Familiarize yourself with its components:

• Pantalla inteligente: Shows battery level, inflation mode, and real-time tire pressure (if applicable to specific model variants).
• Linterna led: Provides illumination with multiple modes (illumination, SOS, strobe).
• Salida USB dual (5 V/2 A): Para cargar teléfonos inteligentes, tabletas, computadoras portátiles y otros dispositivos alimentados por USB.
• Puerto de arranque: Punto de conexión para los cables puente inteligentes.
• Puerto de entrada USB-C: Para recargar la unidad de arranque.

Image: Portable Power Bank Output
This image highlights the Sharmeal GL902-15000A's capability to function as a portable power bank, demonstrating its dual USB output ports. It shows various devices like headphones, cameras, smartwatches, laptops, cell phones, and tablets being charged, emphasizing its versatility beyond just jump-starting vehicles.

Image: Intelligent Screen Display
This image focuses on the intelligent screen display of the Sharmeal GL902-15000A. The display shows critical information such as battery level, and potentially inflation mode and real-time tire pressure (PSI, KPA, Kg/cm²), providing users with clear, at-a-glance operational status.

5. Configuración y carga

5.1 Carga inicial del arrancador

Before using the Sharmeal GL902-15000A for the first time, ensure it is fully charged. This maximizes its performance and extends battery life.

1. Connect the provided USB-C charging cable to the input port on the jump starter.
2. Conecte el otro extremo del cable USB-C a un adaptador de pared USB adecuado (no incluido) o a un puerto USB con alimentación.
3. The intelligent screen display will indicate the charging status. Charge until the display shows 100% or a full battery icon.
4. Charging typically takes several hours.

5.2 Preparing Jumper Cables

Inspect the smart jumper cables for any signs of damage, such as frayed wires or cracked insulation, before each use. Ensure the clamps estén limpios y libres de corrosión.

6. Instrucciones de funcionamiento

6.1 Arrancar un vehículo con ayuda de un puente

Siga estos pasos cuidadosamente para arrancar su vehículo de manera segura:

1. Asegúrese de que el arrancador esté suficientemente cargado (se recomienda al menos el 50%).
2. Turn off the vehicle's ignition and all accessories (lights, radio, AC).
3. Conectar el rojo (+) clamp de los cables puente inteligentes a la positivo (+) terminal de la batería del vehículo.
4. Conectar el negro (-) clamp de los cables puente inteligentes a la negativo (-) terminal de la batería del vehículo.
5. Insert the plug of the smart jumper cables firmly into the jump starter's jump start port. The indicator on the smart cable should show a solid green light, indicating a correct connection.
6. Arranque el motor del vehículo. Si no arranca inmediatamente, espere 30 segundos y vuelva a intentarlo. No lo arranque durante más de 3 segundos por intento.
7. Once the vehicle starts, immediately disconnect the smart jumper cable plug from the jump starter unit.
8. Luego, desconecte el cable negro (-).amp de la batería del vehículo, seguido del testigo rojo (+)amp.

6.2 Uso como banco de energía portátil

The Sharmeal GL902-15000A can charge various electronic devices via its dual USB output ports.

1. Connect your device's USB charging cable to one of the USB output ports (5V/2A) on the jump starter.
2. El arrancador comenzará a cargar automáticamente su dispositivo.
3. Supervise el estado de carga de su dispositivo.

6.3 Uso de la linterna LED

The integrated LED flashlight offers multiple lighting modes for convenience and emergencies.

1. Iluminación: Long press the power button to turn on the flashlight for continuous illumination.
2. Modo SOS: With the flashlight on, short press the power button to switch to SOS signaling mode.
3. Modo estroboscópico: With the flashlight in SOS mode, short press the power button again to activate the strobe light mode.
4. Apagar: Long press the power button to turn off the flashlight from any mode.

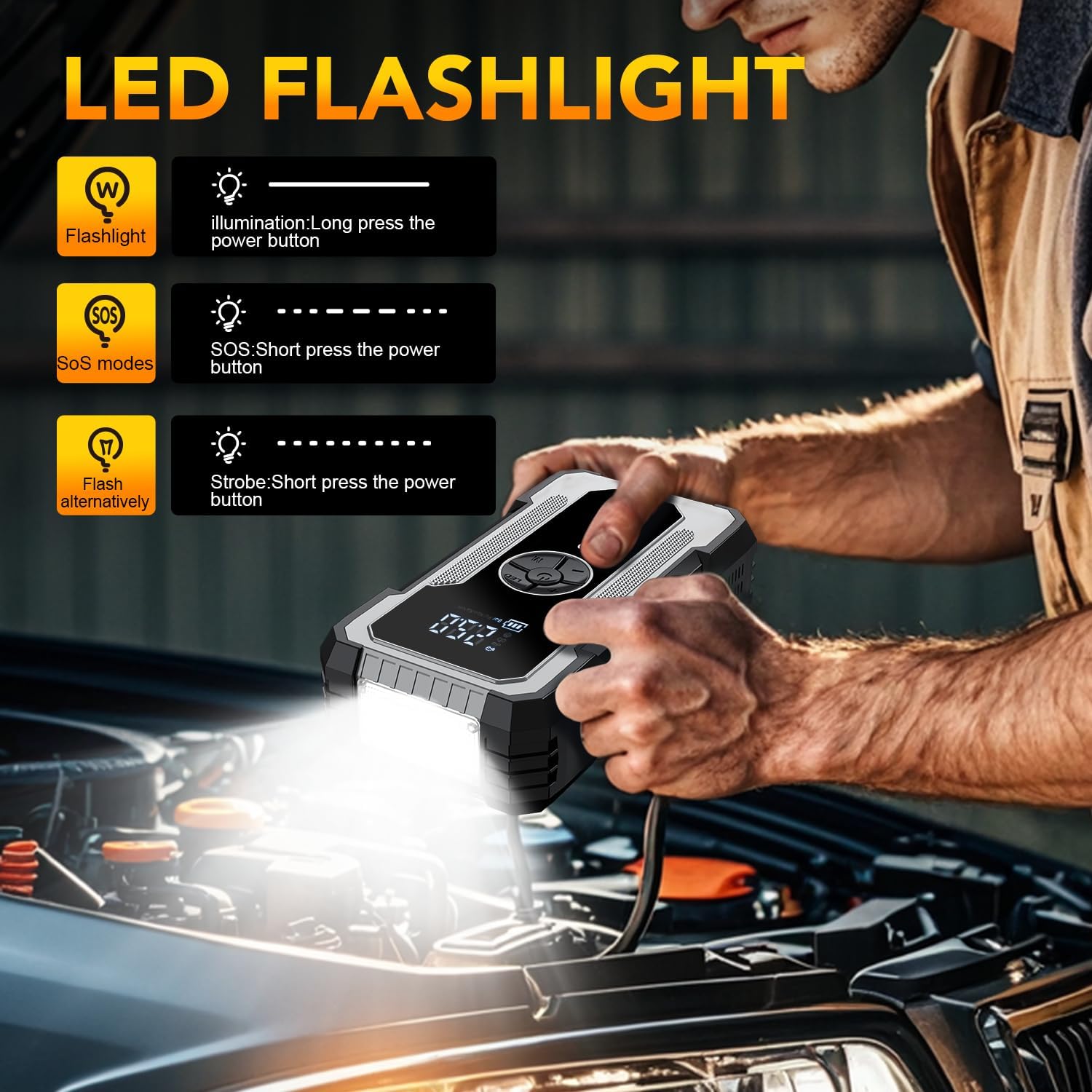

Image: LED Flashlight Functionality
This image demonstrates the LED flashlight feature of the Sharmeal GL902-15000A Jump Starter. It shows the flashlight illuminating an engine bay and details the three modes: standard illumination (long press), SOS mode (short press), and strobe mode (short press again), highlighting its utility in low-light conditions or emergencies.

7. Mantenimiento y almacenamiento

7.1 Limpieza

Wipe the exterior of the jump starter with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are free of dust and debris.

7.2 Almacenamiento

Store the Sharmeal GL902-15000A in a cool, dry place, away from direct sunlight, moisture, and flammable materials. The ideal storage temperature is between 0°C and 40°C (32°F and 104°F).

7.3 Recarga

To maintain optimal battery health, recharge the jump starter every 3-6 months, even if it has not been used. This prevents deep discharge and prolongs the lifespan of the internal battery.

8. Solución de problemas

If you encounter issues with your Sharmeal GL902-15000A, refer to the following common problems and solutions:

Si el problema persiste después de intentar estas soluciones, comuníquese con el servicio de atención al cliente.

9. Especificaciones

10. Garantía y atención al cliente

10.1 Información de garantía

For detailed warranty information regarding your Sharmeal GL902-15000A Jump Starter, please refer to the product packaging or visit the official Sharmeal webSitio. Los términos y condiciones de la garantía pueden variar según la región y el minorista.

10.2 Atención al cliente

If you have any questions, require technical assistance, or need to report an issue with your product, please contact Sharmeal customer service. Contact details can typically be found on the product packaging, the official Sharmeal websitio, o a través de su plataforma de compra.
