ROVSUN Commercial Ice Maker 400LBS/24H with 300LBS Storage Instruction Manual

Introducción

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your ROVSUN Commercial Ice Maker. Please read this manual thoroughly before using the appliance and retain it for future reference.

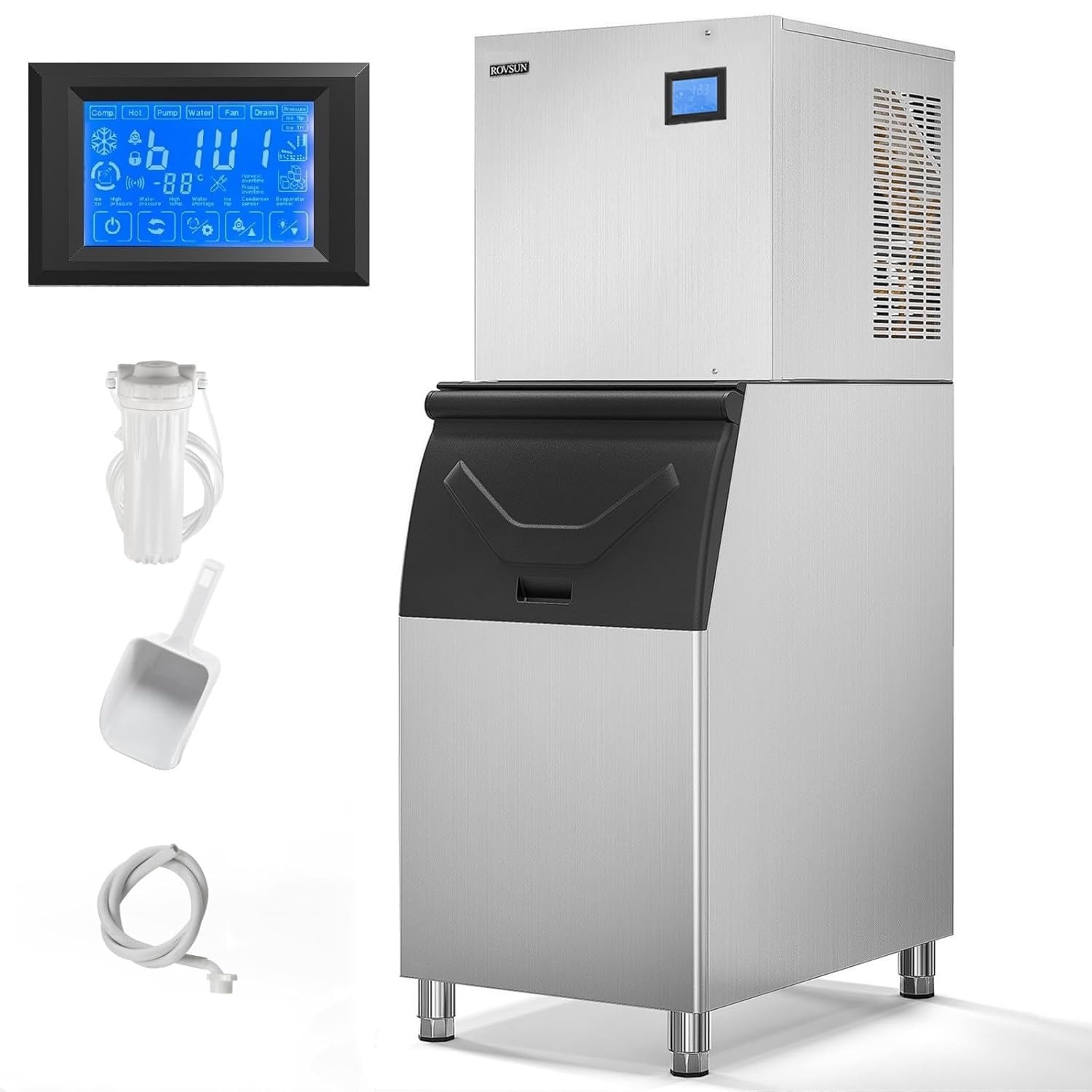

Image: The ROVSUN Commercial Ice Maker, a freestanding unit with a stainless steel finish and an integrated ice storage bin.

Información de seguridad

To prevent injury to users or damage to the appliance, ensure all safety precautions are strictly followed. This appliance is designed for commercial use and should be operated by trained personnel or under supervision.

• Conecte siempre la máquina de hielo a una toma de corriente con conexión a tierra.
• No opere el aparato con un cable de alimentación o enchufe dañado.
• Keep the area around the ice maker clear of flammable materials.
• Asegure una ventilación adecuada alrededor de la unidad para evitar el sobrecalentamiento.
• Do not allow children to operate or play near the ice maker.
• Desconecte la alimentación antes de realizar cualquier mantenimiento o limpieza.

Producto terminadoview

Características principales

• Fabricación rápida de hielo: Produces up to 400 lbs of ice per day, with 156 crystal clear ice cubes per cycle within 8-15 minutes.
• Gran capacidad de almacenamiento: Features a 300 lbs stainless steel ice storage bin.
• Construcción duradera: Built with heavy-duty stainless steel and a food-grade PP injection liner with a 6-sided cyclopentane foam layer for insulation, keeping ice from melting for up to 7 hours.
• Smart LCD Panel: Easy-touch digital panel displays the ice-making process, allows adjustment of ice-making time and cube thickness, and includes a built-in diagnostic system.
• Espesor del hielo ajustable: The thickness of ice cubes can be adjusted to suit various beverage needs (Thin, Medium, Thick).
• Autolimpieza automática: One-button auto-cleaning function for pipes and trays, ensuring clean ice and reducing manual workload.

Componentes

The ROVSUN Commercial Ice Maker consists of the main ice-making unit and an integrated storage bin. Key components include:

• Ice Maker Head (Compressor unit)
• Depósito de hielo
• Panel de control LCD inteligente
• Mangueras de entrada y drenaje de agua
• Filtro de agua
• Cuchara de hielo

Image: Diagram showing the thickened 6-sided foam layer construction of the ice storage bin, highlighting heavy-duty stainless steel, thick cyclopentane foam layer, and food-grade PP injection liner. Note: The ice storage bin does not have a freezing function.

Image: Infographic detailing the efficient ice-making process, including 8-15 minutes per cycle, 156 pieces of ice per cycle, 400 lbs ice production in 24 hours, and a 300 lbs storage bin.

Configuración

Desembalaje y Colocación

• Carefully unpack all components. The unit comes in two boxes.
• Place the ice maker on a stable, level surface. Ensure adequate clearance for ventilation around the unit.
• The freestanding split design with 4 stable feet allows flexible placement.

Conexiones de agua y desagüe

The ice machine requires a water line connection and a floor drain. Use the provided water filter, inlet hose, and draining hoses for installation.

1. Connect the water inlet hose to a potable water supply. Install the water filter in line with the water supply.
2. Connect the drain hoses from the ice maker and the ice bin to a suitable floor drain. Ensure proper slope for drainage.
3. Verifique que todas las conexiones estén seguras y sin fugas.

Image: Diagram illustrating the easy connection process, showing the power on/off, water inlet, compressor water outlet, ice bin water outlet, water filter, and floor drain connections.

Conexión eléctrica

Connect the ice maker to a dedicated 110V grounded electrical outlet. Refer to the specifications for exact power requirements.

Instrucciones de funcionamiento

Panel de control LCD inteligente

The ice maker features an intuitive LCD digital panel for easy operation and monitoring.

Image: Close-up of the advanced LCD panel, showing various icons for functions like Turn On/Standby, Mode Switching, Cleaning/Setting, Appointment/Increasing, and Reducing. The main display shows time and temperature.

Imagen: Detallada view of the innovative LCD touch screen, explaining status prompts (Compressor Running, Heat Valve Detection, Water Pumping, Fan Starting, Water Draining, Water Pressure, Ice Flip, Ice TH, Deicing, Time/Code, Ice Full, Error Prompt) and touch screen function keys.

Puesta en marcha inicial

1. Después de conectar el agua y la energía, presione el botón "Turn On/Standby" button on the LCD panel to start the ice maker.
2. The unit will begin its initial cycle, which may include a self-check and water filling.

Adjusting Ice Cube Thickness

You can adjust the thickness of the ice cubes to your preference using the LCD panel settings.

• Navegar hasta el "Configuración" option on the LCD panel.
• Select the desired ice thickness: Thin, Medium, or Thick. Thicker ice melts slower.

Image: Visual representation of ice thickness options (Thin, Medium, Thick) and how they appear, along with the ice tray per cycle and 24-hour ice output capacity.

Scheduling Ice Production

The appointment function allows you to schedule when the ice maker produces ice.

• Utilice el "Appointment" function on the LCD panel to set a desired start time for ice production.
• This feature is useful for ensuring a full bin of ice when needed, such as in the morning.

Mantenimiento

Autolimpieza automática

Regular cleaning is crucial for maintaining hygiene and extending the lifespan of your ice maker. The unit features an automatic self-cleaning function.

1. Ensure the ice bin is empty before starting the cleaning cycle.
2. Mantenga pulsado el "Auto-Cleaning" button on the LCD panel.
3. The machine will initiate a 10-minute cleaning cycle for pipes and trays.
4. It is recommended to perform this cleaning regularly.

Image: Illustration of the automatic self-cleaning process, showing a one-button start, cycle process, and 10-minute duration to ensure clean ice cubes and long working life.

Reemplazo de filtro

The included water filter should be replaced periodically to ensure optimal ice quality and prevent mineral buildup. Refer to the filter manufacturer's instructions for replacement frequency.

Limpieza exterior

Wipe the exterior stainless steel surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners that could scratch the finish.

Solución de problemas

Esta sección ofrece soluciones a problemas comunes que podrías encontrar. Si tienes problemas que no aparecen aquí, contacta con atención al cliente.

Presupuesto

Detailed technical specifications for the ROVSUN Commercial Ice Maker.

Image: Infographic summarizing key specifications and listing package contents, including the ice maker, water filter, inlet hose, draining hoses, and ice scoop.

Garantía y soporte

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official ROVSUN webSitio. Conserve su recibo de compra como comprobante de compra.
