Bellemave Queen Size Wooden Bunk Bed Instruction Manual

1. Introducción

Thank you for choosing the Bellemave Queen Size Wooden Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. This queen-over-queen bunk bed features built-in shelves, a storage box, an LED light, and a USB charging station, designed to maximize space and convenience in your bedroom.

2. Información de seguridad

ADVERTENCIA: No seguir estas instrucciones de seguridad podría provocar lesiones graves.

• Exercise caution when using the ladder to access the upper bed.
• Do not exceed the maximum weight capacity of 650 lbs per bed.
• Asegúrese de que todas las conexiones estén bien sujetas durante el montaje y verifique periódicamente que estén bien ajustadas.
• Only use mattresses that comply with the recommended dimensions for queen-size beds.
• La litera superior no es adecuada para niños menores de seis años.
• Always use the guardrails on the upper bunk.
• No fije ni cuelgue elementos en ninguna parte de la litera que no estén diseñados para usarse con la cama, por ejemplo:ample, pero no limitado a, ganchos, cinturones o cuerdas.

3. Contenido del paquete

Your Bellemave Queen Size Wooden Bunk Bed is shipped in two separate packages. Please ensure you have received both packages and all components are present before beginning assembly. Refer to the detailed assembly instructions included with your product for a complete list of parts and hardware.

Los componentes típicos incluyen:

• Wooden bed frame components (headboards, footboards, side rails, slats)
• Escalera
• Barandillas
• Built-in shelves and storage box components
• LED light unit
• USB charging station module
• Metal clothes hooks
• Herrajes de montaje (tornillos, pernos, tuercas, etc.)
• Assembly tools (usually an Allen wrench)

4. Configuración y montaje

Assembly of the Bellemave Queen Size Wooden Bunk Bed requires two adults and approximately 2-3 hours. Detailed step-by-step assembly instructions with diagrams are provided in the packaging. Please follow these instructions carefully to ensure proper and safe construction.

Puntos clave de montaje:

• Coloque todas las piezas y el hardware antes de comenzar.
• Do not fully tighten all bolts until the entire bed frame is assembled.
• Ensure the ladder is securely attached.
• Verify that all guardrails are correctly installed on the upper bunk.
• Connect the LED light and USB charging station according to the electrical connection instructions provided.

Figure 4.1: Bellemave Queen Size Wooden Bunk Bed with integrated features.

Figure 4.2: The Bellemave bunk bed in a bedroom setting, highlighting its storage and desk features.

5. Instrucciones de funcionamiento

Luz LED de 5.1 pulgadas

The integrated LED light is located under the storage box on the upper bed, providing illumination for the lower bed area. To operate the LED light, locate the switch (typically a small button or toggle) near the light fixture. Press the switch to turn the light on or off.

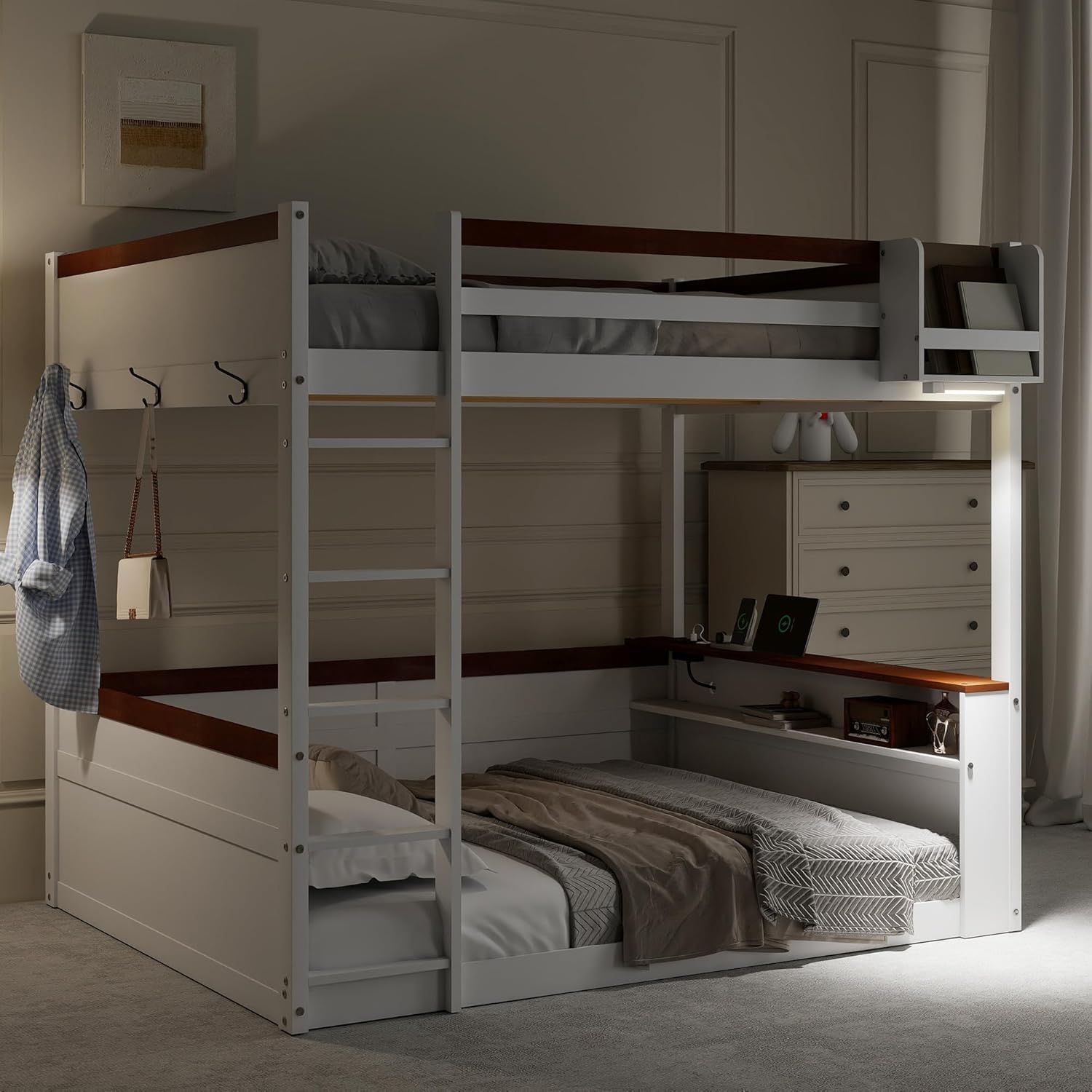

Figure 5.1: The bunk bed illuminated by its integrated LED light, showcasing the lower bed's desk area.

Estación de carga USB 5.2

The USB charging station is conveniently located on the lower bed's storage shelf. It allows you to charge electronic devices such as smartphones and tablets. Simply plug your device's USB charging cable into the available USB port. Ensure the bunk bed is connected to a power source for the charging station to function.

Figura 5.2: detallada view of the sturdy metal clothes hooks, LED light, and USB charging station.

6. Mantenimiento

El mantenimiento regular ayudará a prolongar la vida y la apariencia de su litera.

• Limpieza: Limpie las superficies de madera con un paño suave.amp paño. Evite productos químicos agresivos o limpiadores abrasivos que puedan dañar el acabado.
• Comprobación del hardware: Revise periódicamente todos los pernos, tornillos y conexiones para asegurarse de que estén bien apretados. Vuelva a apretarlos según sea necesario para mantener la estabilidad y la seguridad.
• Cuidado de la madera: Proteja la madera de la luz solar directa y de los cambios extremos de temperatura para evitar que se deforme o agriete.
• Componentes eléctricos: Ensure the LED light and USB charging station cables are not pinched or damaged. If any electrical component malfunctions, discontinue use and contact support.

7. Solución de problemas

If you encounter any issues with your Bellemave bunk bed, refer to the following common problems and solutions:

• La cama se siente inestable: Check all assembly hardware. Ensure every bolt and screw is securely tightened.
• La luz LED no funciona: Verify that the bed's power connection is secure and the wall outlet is functional. Check the light switch for proper operation.
• USB charging station not working: Ensure the bed is plugged into a live power outlet. Try a different USB cable or device to rule out cable/device issues.
• Partes faltantes: If you find any parts missing during assembly, please contact customer support immediately with your purchase details.

8. Especificaciones

Figure 8.1: Dimensions of the Bellemave Queen Size Wooden Bunk Bed.

9. Garantía y soporte

For any questions, concerns, or assistance with assembly or product use, please contact Bellemave customer support. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

Correo electrónico de atención al cliente: US-VC@bellemavehome.com
