LEADZM Professional Premium Aluminum Pool Cover Reel System

1. Introducción

Thank you for choosing the LEADZM Professional Premium Aluminum Pool Cover Reel System. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new pool cover reel. Please read these instructions carefully before installation and retain them for future reference.

2. Producto terminadoview

The LEADZM Pool Cover Reel System is designed to simplify the process of covering and uncovering your swimming pool. Constructed from high-quality aluminum and stainless steel, it offers durability and ease of use for solar pool covers ranging from 1.5 to 4.8 meters in width.

2.1 Características principales

• Instalación rápida y sencilla: Assembles in minutes without special tools, compatible with most common solar covers.
• Ultra-Robust Construction: Made from premium aluminum-stainless steel alloy, capable of supporting thick solar covers.
• Simple and Efficient Rolling: Features a patented mechanism and ergonomic crank for effortless cover management.
• Customizable Adjustment: 7 adjustable segments allow precise adaptation to pool widths from 1.5 to 4.8 meters.
• Practical and Complete: Includes all necessary accessories such as straps, fastening clips, and an installation guide.

Diagrama de 2.2 componentes

Familiarize yourself with the various parts of your pool cover reel system before assembly.

Imagen 1: Explotó view of the pool cover reel components. This diagram illustrates the main parts including the buckle and strap, end frame, base plate, frame support, 7-section tube, crank frame, and base clamp.

• Buckle and Strap: Used to attach the solar cover to the reel tube.
• End Frame: Supports the reel tube at one end.
• Placa base: Provides a stable foundation for the end frame.
• Frame Support: Connects the end frame to the base plate.
• 7 Section Tube: The main adjustable tube onto which the cover is rolled.
• Crank Frame: Contains the handle for rolling the cover.
• Cl baseamp: Secures the reel system to the pool edge or deck.

3. Configuración y montaje

Follow these steps to assemble and install your LEADZM Pool Cover Reel System.

3.1 Connecting the Base and Handle

1. Identify the Crank Frame, Frame Support, Plastic Plate, Screws, and Clamp Base.
2. Attach the Frame Support to the Clamp Base using the provided screws and plastic plate. Ensure a secure fit.
3. Insert the Crank Frame into the assembled Frame Support and Clamp Base.

Imagen 2: Detallado view of connecting the crank frame, frame support, plastic plate, screws, and clamp base. Arrows indicate assembly direction.

3.2 Assembling the Reel Tube

1. Connect the 7 individual tube segments to form the main reel tube. Ensure they are securely interlocked.
2. Adjust the length of the tube to match your pool's width (between 1.5 and 4.8 meters).
3. Attach the assembled Crank Frame and the End Frame to each end of the reel tube.

3.3 Securing the Reel System

1. Position the reel system at one end of your pool.
2. Use the Base Clamps to secure the reel system to the edge of your pool or a stable deck surface. The clamp base can accommodate surfaces between 3.5-5.8 cm in thickness.

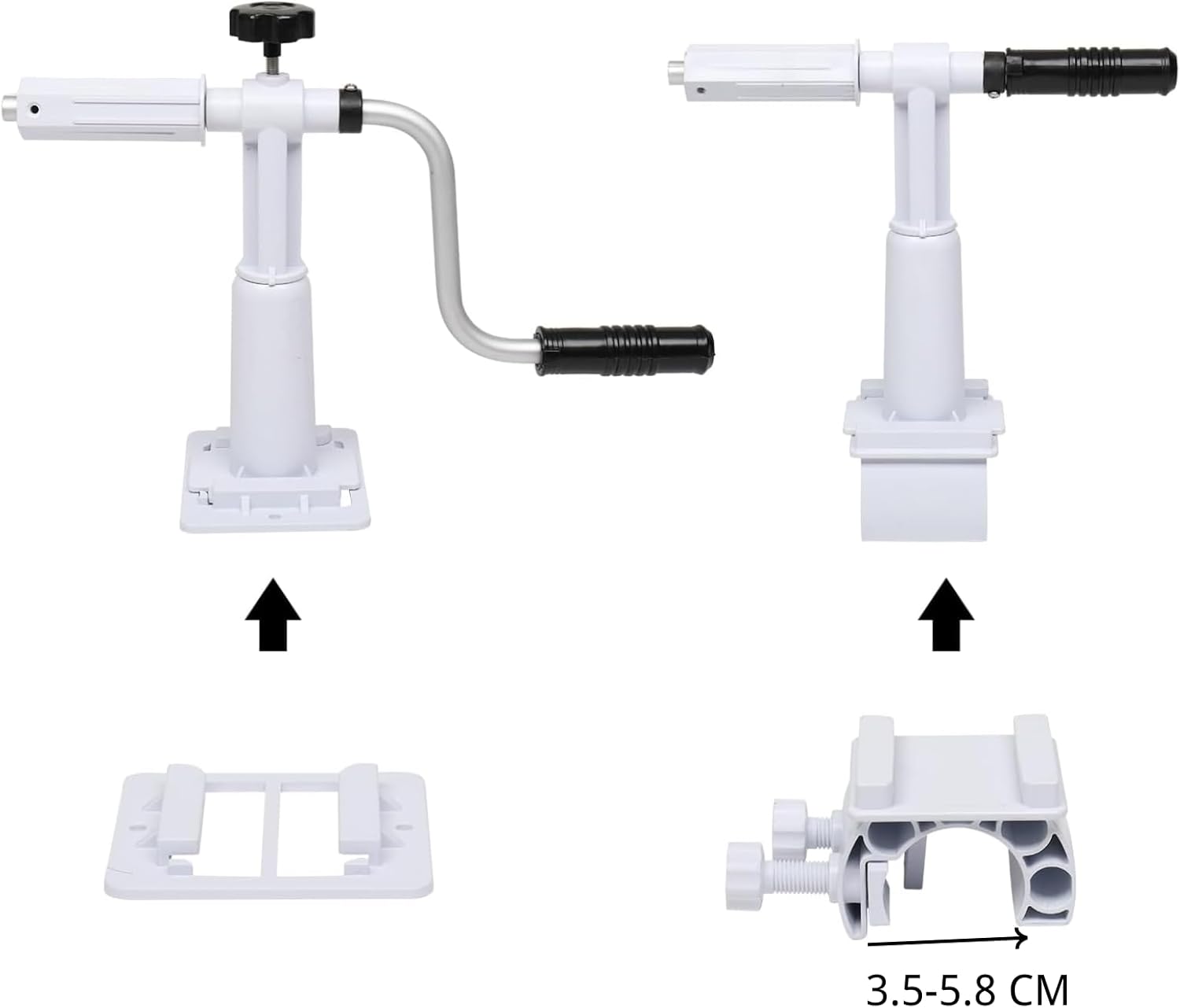

Imagen 3: Primer plano del clamp base, indicating its adjustable range of 3.5-5.8 cm for securing to various pool edges or deck thicknesses.

3.4 Attaching the Solar Cover

1. Lay your solar cover flat on the pool surface.
2. Attach the provided straps and buckles to the edge of your solar cover.
3. Connect the straps to the reel tube, ensuring even spacing for balanced rolling.

4. Instrucciones de funcionamiento

Using your LEADZM Pool Cover Reel System is straightforward.

4.1 Rolling Up the Pool Cover

1. Ensure all straps are securely fastened to both the cover and the reel tube.
2. Turn the ergonomic crank handle clockwise to begin rolling the solar cover onto the tube.
3. Continue turning until the entire cover is neatly rolled onto the reel.
4. Once rolled, the cover will be stored securely at the end of the pool, as shown in Image 4.

Imagen 4: The LEADZM pool cover reel system positioned at the end of a pool, with the solar cover fully rolled up and stored.

4.2 Unrolling the Pool Cover

1. Turn the ergonomic crank handle counter-clockwise to unroll the solar cover.
2. Guide the cover gently across the pool surface as it unrolls.
3. Continue unrolling until the cover completely covers the pool surface, as depicted in Image 5.

Imagen 5: The LEADZM pool cover reel system with the solar cover fully extended, covering the entire pool surface.

5. Mantenimiento

Proper maintenance will extend the life of your pool cover reel system.

• Limpieza: Periodically wipe down the aluminum and stainless steel components with a damp Paño para eliminar la suciedad y los residuos. Evite los limpiadores abrasivos.
• Inspección: Regularly inspect all connections, screws, and straps for wear or damage. Tighten any loose fasteners.
• Almacenamiento: During off-season or prolonged periods of non-use, it is recommended to detach the reel system from the pool and store it in a dry, protected area to prevent exposure to harsh weather conditions.
• Reemplazo de correa: If straps show signs of significant wear or fraying, replace them promptly to ensure secure attachment of the cover.

6. Solución de problemas

If you encounter issues with your pool cover reel, refer to the following common solutions:

• Reel is difficult to turn:
  • Check if the cover is snagged or unevenly rolled.
  • Ensure the reel tube is properly aligned and not binding.
  • Verify that the base clamps are not overtightened, causing friction.
• Cover not rolling evenly:
  • Adjust the spacing of the straps to distribute tension evenly across the cover.
  • Ensure the cover is centered on the reel tube before rolling.
• Reel system feels unstable:
  • Confirm that the base clamps are securely tightened to the pool edge or deck.
  • Ensure the surface where the reel is mounted is flat and stable.

7. Especificaciones

8. Garantía y soporte

LEADZM is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For technical support, replacement parts, or further assistance, please contact LEADZM customer service through the retailer where you purchased the product or visit the official LEADZM websitio.
