Manual de instrucciones de la silla de coche Infanti Nonna 360°

1. Introducción

This manual provides essential instructions for the safe and correct installation, use, and maintenance of your Infanti Nonna 360° Car Seat. Designed for children from birth up to approximately 10 years old (40 to 150 cm in height), this car seat combines advanced safety features with practical design, including a 360° rotation system for ease of use. Please read this manual thoroughly before using the car seat and keep it for future reference.

2. Información de seguridad

The Infanti Nonna 360° Car Seat is approved under the European i-Size standard, ensuring high safety performance. Adherence to these guidelines is crucial for your child's protection.

• i-Size Approval: This car seat meets the rigorous European i-Size safety standard, which considers the child's height for appropriate car seat selection and includes stringent impact testing.
• Rear-Facing Use: For optimal safety, keep your child in the rear-facing position for as long as possible, up to 105 cm (approximately 4 years old).
• Arnés de 5 puntos: Always secure your child using the integrated 5-point harness system with padded protectors. Ensure the harness is snug and correctly adjusted.
• Protección contra impactos laterales: The car seat features enhanced side impact protection to absorb forces in the event of a side collision.
• Compatibilidad del vehículo: Always verify the car seat's compatibility with your vehicle's ISOFIX system before installation.

Image: Detail of the i-Size approval tag, indicating compliance with European safety standards.

3. Características del producto

The Infanti Nonna 360° Car Seat offers a range of features designed for safety, comfort, and convenience:

• Uso extendido: Apto para todostages, from birth (40 cm) up to approximately 10 years (150 cm).
• Sistema de rotación de 360°: Features an L-shaped base with Easy Rotation, allowing the seat to fully rotate even when installed, simplifying placing and removing your child.
• Reclinación ajustable: Offers 4 adjustable recline positions for optimal comfort during travel.
• Comodidad acolchada: Super padded with memory foam in the head region and a removable newborn reducer for enhanced comfort.
• Instalación ISOFIX: Easy and secure ISOFIX installation system to minimize incorrect installation risks.
• Funda extraíble y lavable: The car seat cover is soft, removable, and machine washable for practical cleaning.

Image: The Infanti Nonna 360° Car Seat in Night Black, showcasing su diseño y características.

Image: Visual guide demonstrating the car seat's suitability for various child height groups, from newborn to approximately 10 years old.

Image: The 360° rotation system in action, highlighting the convenience for parents to place and remove their child.

Image: Diagram illustrating the recommended rear-facing position for children up to 105 cm, promoting enhanced safety.

Image: Detail of the car seat's side protection system, designed to mitigate forces from side impacts.

Image: Diagram illustrating the car seat's four recline positions, offering flexibility for child comfort.

Image: The car seat equipped with its comfortable, memory foam newborn reducer, suitable for infants from birth.

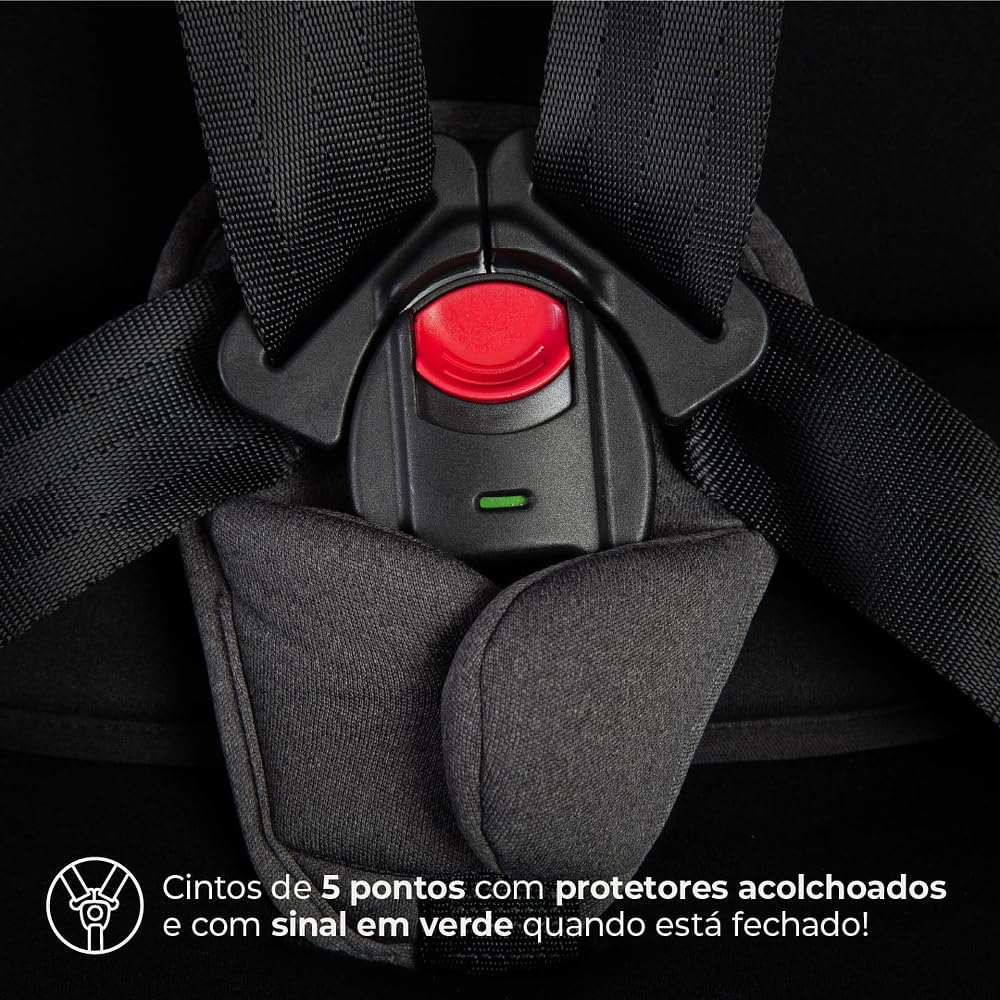

Image: Detail of the 5-point harness buckle, featuring a green indicator to confirm secure fastening.

4. Configuración e instalación

Proper installation is critical for your child's safety. Follow these steps carefully:

1. Compatibilidad del vehículo: Ensure your vehicle is equipped with ISOFIX anchor points. Refer to your vehicle's owner manual.
2. ISOFIX Connection: Extend the ISOFIX connectors from the car seat base. Align them with your vehicle's ISOFIX anchor points and push firmly until you hear a click and the indicators turn green.
3. Top Tether (if applicable): For forward-facing installation, connect the top tether strap to the designated anchor point in your vehicle and tighten it securely.
4. Rotation for Installation: Utilize the 360° rotation feature to position the car seat for easier access during installation.
5. Rear-Facing (40-105 cm): For children between 40 cm and 105 cm, install the car seat in the rear-facing position.
6. Forward-Facing (76-150 cm): For children between 76 cm and 150 cm, the car seat can be installed in the forward-facing position.
7. Comprobar seguridad: After installation, firmly pull on the car seat to ensure it is securely attached and does not move excessively.

Image: The ISOFIX system, illustrating how the connectors extend from the car seat base for secure attachment.

5. Instrucciones de funcionamiento

Using your Infanti Nonna 360° Car Seat effectively involves understanding its adjustable features:

• Placing/Removing Child: Rotate the car seat towards the car door using the Easy Rotation system. Place your child in the seat, then rotate it back to the desired travel position (rear-facing or forward-facing).
• Ajuste del arnés: Press the harness release button (if applicable) and pull the shoulder straps to loosen. Place your child in the seat, bring the harness straps over their shoulders, and connect the two buckle tongues into the central buckle until you hear a click and see the green indicator. Pull the adjustment strap to tighten the harness snugly against your child's body.
• Posiciones reclinadas: Use the recline lever (typically located at the front or side of the base) to select one of the 4 available recline positions. Adjust as needed for your child's comfort and age.
• Altura del reposacabezas y del arnés: The headrest and harness height can be adjusted simultaneously to ensure the shoulder straps are at or just below your child's shoulders for rear-facing, and at or just above for forward-facing.
• Newborn Reducer: Use the padded reducer for newborns and smaller infants (up to 60 cm) to provide additional support and comfort. Remove it as your child grows.

6. Mantenimiento

Regular maintenance ensures the longevity and hygiene of your car seat:

• Limpieza de la cubierta: The car seat cover is removable and machine washable. Follow the care label instructions for washing temperature and drying.
• Limpieza de la carcasa: Limpie las partes plásticas y metálicas de la carcasa del asiento del automóvil con adamp paño y jabón suave. No utilice limpiadores abrasivos ni disolventes.
• Cuidado del arnés: Inspect the harness straps regularly for wear and tear. Clean them with a damp cloth; do not machine wash or bleach harness straps as this can weaken them.
• Almacenamiento: Cuando no esté en uso, guarde el asiento del automóvil en un lugar fresco y seco, alejado de la luz solar directa.

Image: Detail highlighting the removable and machine-washable fabric cover for easy cleaning.

7. Especificaciones

Image: Detailed diagram outlining the physical dimensions and weight of the car seat.

8. Solución de problemas

If you encounter issues with your Infanti Nonna 360° Car Seat, consider the following common solutions:

• El asiento del automóvil no es seguro: Ensure the ISOFIX connectors are fully engaged and the indicators are green. Push the car seat firmly into the vehicle seat back.
• Arnés demasiado suelto/apretado: Re-adjust the harness straps. Ensure they are at the correct height for your child's shoulders and snug enough that you cannot pinch any excess webbing en el hombro.
• Rotation Mechanism Stuck: Check for any obstructions around the base or under the seat. Ensure the car seat is not overloaded or improperly installed.
• Malestar infantil: Verify the recline position is appropriate for your child's age and the car seat's orientation. Ensure the newborn reducer is used correctly for infants.

If problems persist, consult the full product manual or contact Infanti customer support.

9. Garantía y soporte

For information regarding the product warranty, please refer to the documentation provided at the time of purchase or visit the official Infanti website. For technical support, spare parts, or any other inquiries, please contact Infanti customer service through their official channels.

Fabricante: Dorel Juvenil
