1. Información importante de seguridad
Please read all instructions carefully before using the appliance and retain them for future reference. Improper operation may cause damage to the cooktop, personal injury, or property damage. Always follow basic safety precautions, including:
- Seguridad eléctrica: Ensure the cooktop is connected to a 220-240V, 60Hz power supply by a qualified electrician. Do not use extension cords or adapters.
- Seguridad infantil: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The child lock feature should be activated when not in use to prevent accidental operation.
- Superficies calientes: The cooktop surface and surrounding areas will become hot during use. Do not touch hot surfaces. Use oven mitts or pot holders. Residual heat indicators will warn of hot surfaces after use.
- Protección contra sobrecalentamiento: The cooktop is equipped with overheat protection, automatically shutting off if the temperature exceeds 600°C (1112°F).
- Protección contra desbordamiento: Automatic shut-off occurs in case of liquid overflow onto the control panel.
- Utensilios de cocina adecuados: Use only cookware suitable for radiant ceramic cooktops. Ensure pots and pans have flat bottoms and are sized appropriately for the cooking zones.
- Ventilación: Asegúrese de que haya una ventilación adecuada alrededor de la placa de cocción durante su funcionamiento.
- Limpieza: Desconecte siempre la alimentación eléctrica antes de limpiarla. Deje que la placa de cocción se enfríe completamente antes de limpiarla.
This electric radiant cooktop offers comprehensive safety features to ensure safe cooking, ideal for pregnant women and the elderly, as it produces no high-frequency radiation.
Imagen: This diagram highlights the five smart cooking modes and safety protections, including automatic overflow shut-off, residual heat warning, child lock, and overheat protection.
2. Producto terminadoview

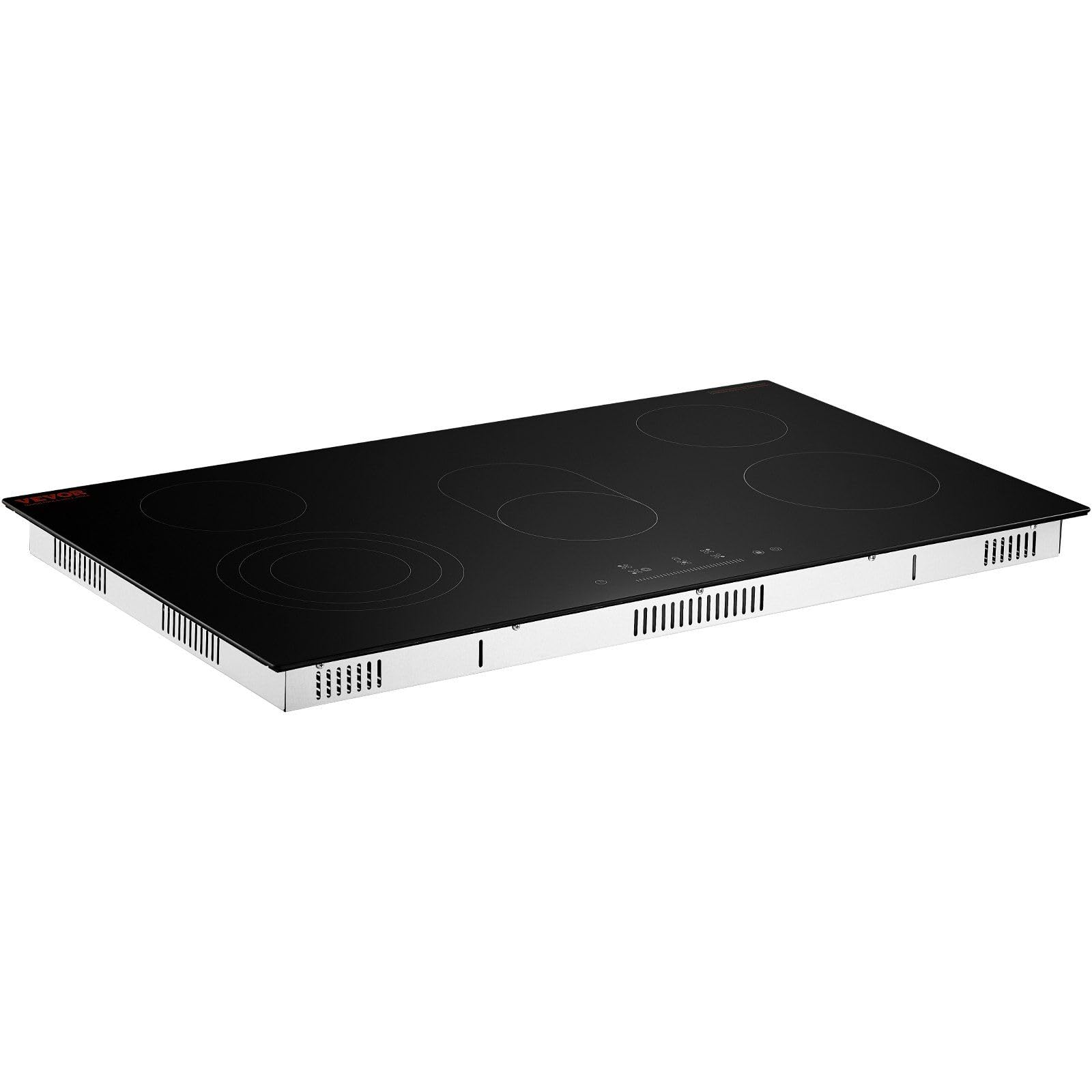

The CooFel CooFel-DAI-3 is a built-in electric radiant ceramic cooktop featuring five independent burners and a sensitive touch control panel. Designed for efficiency and safety, it offers 9 power levels for precise heat control across various cooking tasks.
Imagen: This image illustrates the layout of the five independent burners and their respective power ratings, totaling 8600W for efficient cooking.
Características principales:
- 8600W de alta potencia: Provides rapid and even heating across 9 power levels, suitable for simmering, frying, boiling, steaming, and grilling.
- Panel de control táctil sensible: Allows easy adjustment of heat with a simple slide. Each burner has independent temperature control.
- 5 Burners for Multi-Pot Cooking: Enables simultaneous cooking with reduced heat loss and enhanced heating efficiency.
- Compatibilidad versátil con utensilios de cocina: Compatible with various high-temperature cookware, including copper pots, cast iron skillets, stainless steel pots, glass pots, casseroles, aluminum pots, barbecue plates, and ceramic pots.
Imagen: This image displays a range of cookware types, such as iron pots, stainless steel pots, casseroles, and ceramic pots, all compatible with the cooktop.
3. Instalación y configuración
The CooFel CooFel-DAI-3 cooktop features a built-in design to optimize kitchen space. Proper installation is crucial for safe and efficient operation. It is recommended that installation be performed by a qualified professional.
Requisitos de instalación:
- Fuente de alimentación: The cooktop requires a 220-240V, 60Hz electrical supply.
- Dimensiones del recorte: The workbench cutout dimensions for installation are 870 mm x 490 mm (34.3 inches x 19.3 inches).
- Autorización: Ensure adequate clearance around the cooktop for ventilation and heat dissipation. Refer to local building codes for specific requirements.
- Superficie nivelada: Install the cooktop on a flat, level surface to ensure stability and proper operation.
Imagen: This diagram provides detailed dimensions for the cooktop and the required cutout for built-in installation, emphasizing space-saving design.
Pasos de instalación (resumen):
- Prepare el recorte de la encimera de acuerdo con las dimensiones especificadas.
- Ensure the electrical supply is disconnected at the circuit breaker.
- Carefully lower the cooktop into the cutout, ensuring it sits flush and level.
- Connect the electrical wiring according to the wiring diagram provided in the full installation guide (not included in this manual, refer to packaging).
- Secure the cooktop using the provided mounting clips or brackets.
- Restore power and test the cooktop's functionality.
4. Instrucciones de funcionamiento
The CooFel CooFel-DAI-3 cooktop features intuitive touch controls for easy operation.
Imagen: This image details the sensor touch control panel, showing the power switch, safety lock, 99-minute timer, and 1-9 power levels with sliding adjustment for each of the five independent burner heating zones.
Operación básica:
- Encendido/apagado: Toca el Interruptor de encendido symbol to turn the cooktop on or off.
- Seleccionar un quemador: After powering on, select the desired cooking zone by touching its corresponding control area.
- Ajuste del nivel de potencia: Utilice el sliding adjustment on the touch panel to set the power level from 1 to 9. Slide your finger along the scale or tap directly on the desired level.
- Función de temporizador: Toca el Minutero symbol to activate the timer. Use the '+' and '-' controls to set the desired cooking time (up to 99 minutes). The selected burner will automatically turn off when the timer expires.
- Función de pausa: The cooktop includes a pause button for temporary interruption of cooking. Touch the Pausa symbol to pause all active cooking zones. Touch it again to resume.
- Bloqueo para niños: To prevent accidental operation, especially by children, activate the Bloqueo para niños by touching and holding the lock symbol for a few seconds. The cooktop controls will be disabled. Repeat the action to unlock.
- Indicador de calor residual: Después de apagar una zona de cocción, aparecerá una "H" en la pantalla si la superficie aún está caliente. No toque la superficie hasta que la "H" desaparezca.
5. Mantenimiento y limpieza
Regular cleaning and maintenance will ensure the longevity and optimal performance of your CooFel electric cooktop.
Cleaning the Ceramic Surface:
- Asegúrese siempre de que la cocina esté apagada y completamente fría antes de limpiarla.
- Para derrames leves y limpieza diaria, limpie la superficie con un paño suave.ampened with warm water and a mild dish soap.
- Para manchas difíciles o restos de comida quemada, use un limpiador para vitrocerámicas y una esponja no abrasiva. Siga las instrucciones del fabricante del limpiador.
- Avoid using abrasive sponges, scouring pads, or harsh chemical cleaners, as these can scratch or damage the ceramic surface.
- Wipe the cooktop dry with a clean cloth to prevent water spots.
Panel de control:
- Limpie el panel de control táctil con un paño suave.amp paño. Asegúrese de que esté seco antes de utilizar la cocina.
- Avoid excessive moisture on the control panel to prevent accidental activation or damage.
Cuidado general:
- Do not drop heavy objects on the cooktop surface, as this can cause cracks or damage.
- Evite arrastrar ollas y sartenes sobre la superficie para evitar rayones.
6. Solución de problemas
Si tiene problemas con su cocina, consulte los siguientes problemas y soluciones comunes antes de ponerse en contacto con el servicio de atención al cliente.
| Problema | Posible causa | Solución |
|---|---|---|
| La estufa no se enciende. | No power supply; Child lock activated; Control panel wet. | Check circuit breaker; Deactivate child lock; Dry control panel thoroughly. |
| El quemador no calienta. | Incorrect power level selected; Cookware not suitable; Overheat protection activated. | Adjust power level; Use compatible cookware; Allow cooktop to cool. |
| Se muestra código de error. | Fallo interno; problema del sensor. | Turn off power at the circuit breaker for 5 minutes, then restart. If error persists, contact support. |
| La estufa se apaga inesperadamente. | Overflow detected; Overheat protection; Timer expired. | Clean and dry control panel; Allow cooktop to cool; Check timer settings. |
| Los controles no responden. | Child lock activated; Control panel wet or dirty. | Deactivate child lock; Clean and dry control panel. |
If the problem persists after attempting these solutions, please contact CooFel customer support.
7. Especificaciones
| Característica | Especificación |
|---|---|
| Marca | CooFel |
| Número de modelo | CooFel-DAI-3 |
| Tipo | Built-in Electric Radiant Ceramic Cooktop |
| Numero de quemadores | 5 |
| Potencia de salida total | 8600 W |
| Niveles de potencia | 9 |
| Volumentage / Frecuencia | 220-240 V, 60 Hz |
| Tipo de control | Sensitive Slide Touch Control |
| Minutero | Hasta 99 minutos |
| Dimensiones de corte (W x D) | 870 mm x 490 mm (34.3 pulgadas x 19.3 pulgadas) |
| Características de seguridad | Overflow automatic shut-off, Overheat protection (600°C/1112°F limit), Residual heat warning, Child lock, No high-frequency radiation. |
| Componentes incluidos | As shown (refer to product packaging for full list) |
8. Garantía y soporte
Información de garantía:
This CooFel cooktop comes with a Garantía de 60 días from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, misuse, accident, neglect, or unauthorized modifications.
Conserve su comprobante de compra para reclamos de garantía.
Atención al cliente:
For technical assistance, warranty claims, or any questions regarding your CooFel CooFel-DAI-3 electric cooktop, please contact CooFel customer support through the retailer where the product was purchased or refer to the contact information provided in the product packaging.
When contacting support, please have your model number (CooFel-DAI-3) and purchase date readily available.
