Introducción
The Holmes 4-inch On-The-Go Personal Fan with Clip is designed to provide portable and customizable airflow. This compact fan features a rechargeable battery, multiple speed settings, and a versatile clip-on design, making it suitable for various personal spaces. This manual provides instructions for safe and efficient use of your fan.

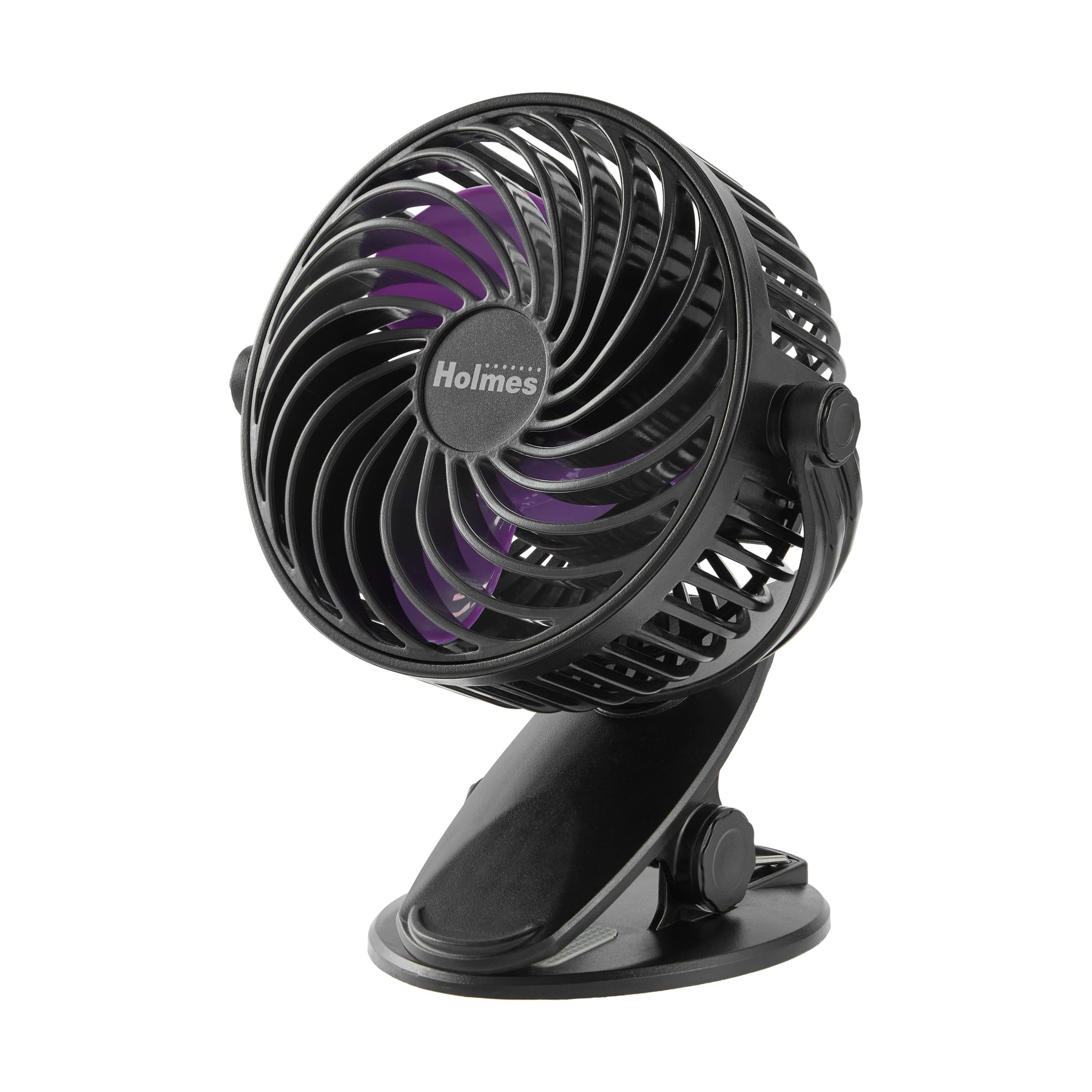

Figure 1: Holmes 4-inch On-The-Go Personal Fan with Clip.
Características del producto
- 3 configuraciones de velocidad: Elija entre bajo, medio o alto para un flujo de aire personalizado.
- Batería recargable: Provides up to 5 hours of operation on the lowest speed setting.
- Colocación versátil: Can rest on a tabletop or securely clip onto surfaces like desks, bedframes, or shelves.
- Cabezal ajustable de 360°: Direct airflow vertically and horizontally for optimal cooling.
- Compacto y ligero: Easy to carry and store for on-the-go use.
- Carga USB-C: Includes a USB-C charging cable for convenient recharging.
- Diseño elegante: Features a black finish with purple blades.
Configuración
The Holmes 4-inch On-The-Go Personal Fan requires no assembly and is ready for immediate use. Ensure the fan is fully charged before its first use for optimal battery performance.
Instrucciones de funcionamiento
Control de potencia y velocidad
- Encendido/apagado: Locate the power button on the back of the fan. Press once to turn the fan on. Press and hold to turn it off.
- Ajustar velocidad: After turning the fan on, press the speed button (often integrated with the power button or a separate button nearby) repeatedly to cycle through the 3 speed settings: Low, Medium, and High.
Ajuste de la dirección del flujo de aire
The fan head can be manually adjusted 360 degrees. Gently pivot the fan head to direct the airflow to your desired position, both horizontally and vertically.
Video 1: Official product video demonstrating the Holmes 4-inch On-The-Go Personal Fan with Clip, highlighting its features and 360-degree rotation.
Cargando
The fan is equipped with a rechargeable battery. Use the included USB-C charging cable to connect the fan to a compatible USB power source (e.g., a computer, wall adapter, or power bank). The charging port is located on the back of the fan. A full charge provides approximately 5 hours of runtime on the lowest speed setting. The fan can operate while charging.
Mantenimiento
To ensure optimal performance and longevity of your fan, follow these simple maintenance guidelines:
- Limpieza: Disconnect the fan from its power source before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Do not immerse the fan in water or any other liquid.
- Limpieza de cuchillas: For deeper cleaning, carefully use a soft brush or compressed air to remove dust and debris from the fan blades and grille.
- Almacenamiento: Cuando no esté en uso, guarde el ventilador en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
Solución de problemas
Si encuentra algún problema con su ventilador, consulte los siguientes pasos de solución de problemas comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| El ventilador no enciende | La batería está agotada | Cargue el ventilador mediante el cable USB-C. |
| Flujo de aire débil | Low speed setting or obstructed blades | Increase the speed setting. Clean any dust or debris from the fan blades and grille. |
| El ventilador hace un ruido inusual | Obstrucción o piezas sueltas | Turn off and unplug the fan. Check for any obstructions in the blades or loose components. |
Presupuesto
| Característica | Detalle |
|---|---|
| Marca | HOLMES |
| Número de modelo | 32510031 |
| Color | Negro/morado |
| Fuente de poder | Funciona con pilas |
| Número de velocidades | 3 |
| Método de control | Control de botones |
| Dimensiones del producto (Pr. x An. x Al.) | 5.15" x 3.93" x 6.37" |
| Peso del artículo | 0.7 libras |
| Material | Plástico |

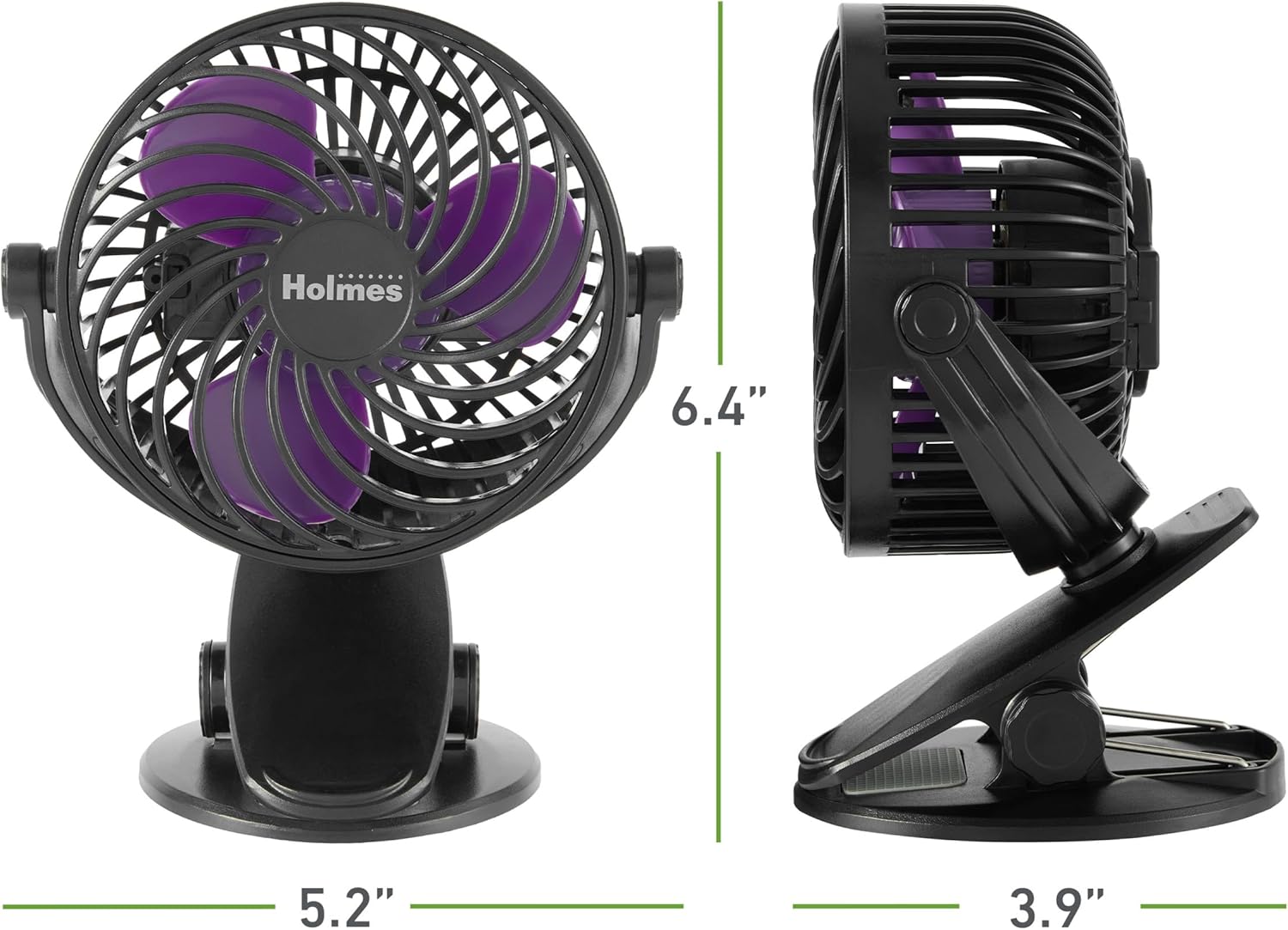

Figure 2: Product dimensions of the Holmes 4-inch On-The-Go Personal Fan.
Garantía y soporte
This Holmes Personal Fan is backed by a Garantía limitada de 1 años. For warranty claims or technical support, please refer to the contact information provided with your product packaging or visit the official Holmes websitio.
