MELLCOM 40'x12'x7.5' Portable Greenhouse Instruction Manual

1. Introducción

This manual provides detailed instructions for the assembly, operation, and maintenance of your MELLCOM 40'x12'x7.5' Portable Greenhouse. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This greenhouse is designed to provide a protected environment for plant growth, featuring a durable PE cover, roll-up zippered doors, and multiple screen windows for ventilation.

2. Información de seguridad

• Monte siempre el invernadero sobre una superficie nivelada y estable.
• Ensure all connections are secure and tightened according to instructions.
• Condiciones del viento: Secure your greenhouse with extra ropes and ground anchors when wind speeds exceed 24 miles/hour. Install the greenhouse away from direct wind exposure.
• Snow Conditions: Keep the greenhouse clear of snow. Snow coverage should not exceed 2 inches to prevent structural damage.
• Do not use the greenhouse during severe weather conditions such as heavy storms, strong winds, or blizzards.
• Mantenga a los niños y las mascotas alejados del área de reunión.
• Utilice equipo de seguridad adecuado, como guantes, durante el montaje.

3. Configuración y montaje

Assembly typically requires two or more adults. Follow the steps below for proper installation.

3.1. Desembalaje e identificación de componentes

Carefully unpack all components and verify against the parts list (not provided in this manual, refer to your product packaging). Ensure all frame pieces, connectors, the PE cover, doors, windows, and anchoring hardware are present.

3.2. Montaje del marco

Begin by assembling the base frame on your chosen level site. Connect the galvanized steel rods using the provided optimized screws and solid connectors. Ensure all connections are firm to establish a stable foundation.

Figura 3.2.1: Frame components showing optimized screws, heavy-duty galvanized steel rods, strong connectors, and reinforcement poles.

Construct the arched frame sections, paying close attention to the orientation of each piece. The frame includes diagonal rods at the four corners and additional cross bars for reinforcement. These elements are crucial for the greenhouse's structural integrity and wind resistance.

Figura 3.2.2: Interior frame structure highlighting cross bars and short bars for reinforcement.

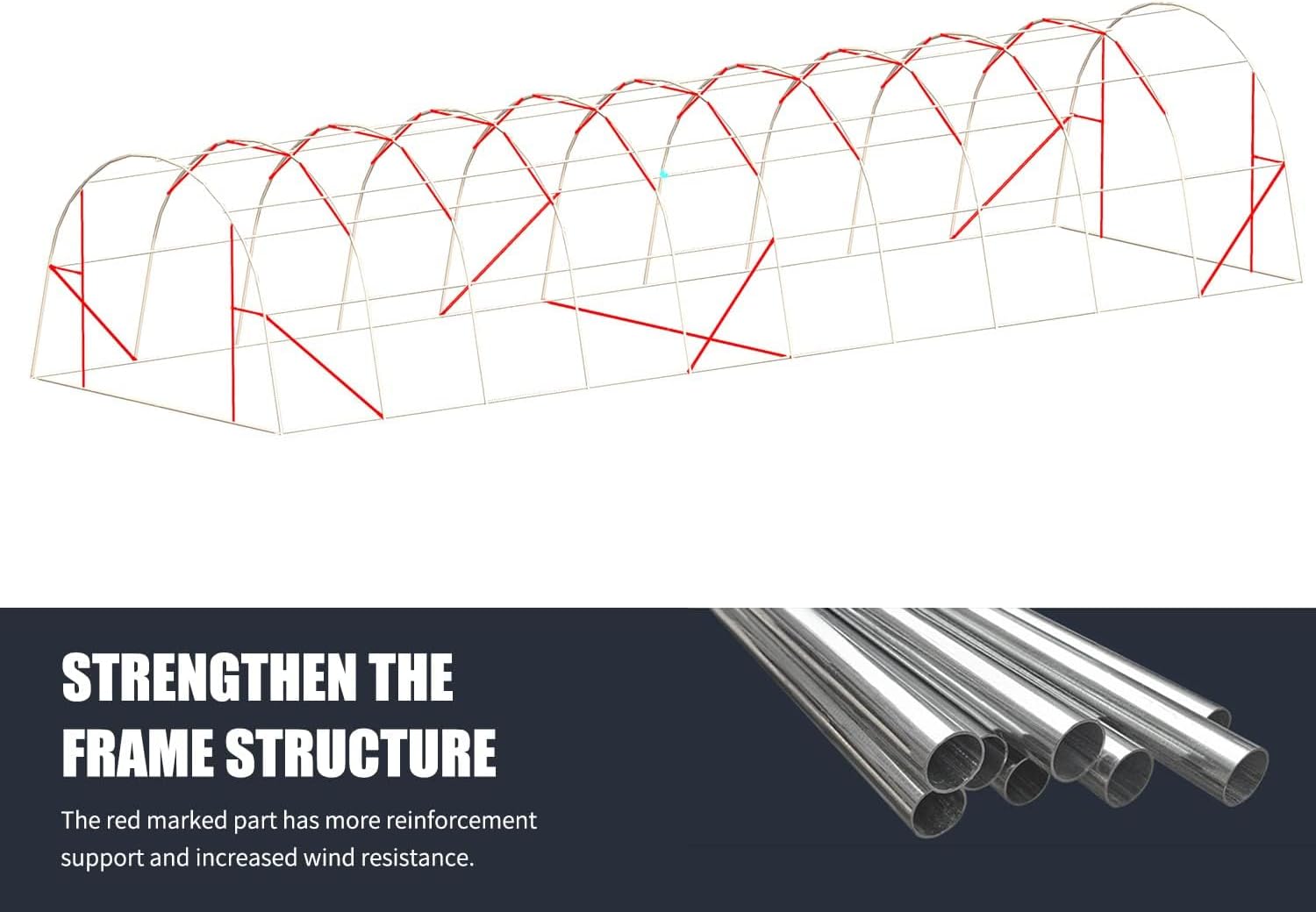

Figura 3.2.3: Frame structure diagram showing reinforced areas for enhanced stability and wind resistance.

3.3. Instalación de la cubierta

Once the frame is fully assembled and stable, carefully drape the PE material plastic cover over the structure. Ensure the cover is centered and evenly distributed. The cover is designed to be tough, durable, and 100% waterproof, transmitting 85% of sunlight while blocking harmful UV rays.

Figura 3.3.1: Key features for cover installation and securing.

Secure the cover to the frame using the provided buckles and fixed drawstrings with ground nails. The overlong PE cover should be used for soil coverage to enhance sealing and wind resistance. Ensure the zippered doors are properly aligned and functional.

3.4. Anclaje

The ground frame adopts U-shaped piles to effectively grasp the ground and reduce wind resistance. Utilize all provided anchoring hardware to firmly secure the greenhouse to the ground. Proper anchoring is critical for stability, especially in windy conditions.

Figura 3.4.1: Assembled greenhouse with doors closed.

Figura 3.4.2: Assembled greenhouse with a door open.

4. Instrucciones de funcionamiento

4.1. Puertas

The greenhouse features two roll-up zippered doors. To open, unzip the door completely and roll it upwards, securing it with the ties provided. To close, unroll the door and zip it securely. This allows for easy access and controlled ventilation.

4.2. Ventanas

There are 20 screen windows with Velcro closures. These windows are designed for exhaust and cross-ventilation. Open them to allow airflow and regulate temperature and humidity inside the greenhouse. Close them to retain warmth and prevent insect entry.

5. Mantenimiento

• Limpieza de la cubierta: Limpie periódicamente la cubierta de polietileno con agua y jabón suave para eliminar la suciedad y los residuos, garantizando así la máxima transmisión de luz. Evite los limpiadores abrasivos.
• Inspección del marco: Regularly inspect the metal frame for any signs of rust, damage, or loose connections. Tighten screws and reinforce as needed.
• Comprobación de anclaje: Verify that all ground anchors and ropes are securely in place, especially after strong winds or heavy rain.
• Cuidado de la cremallera: Keep zippers clean and lubricated if necessary to ensure smooth operation.
• Preparación para el invierno: In areas with heavy snowfall, consider removing the cover or regularly clearing snow to prevent collapse.

6. Solución de problemas

6.1. Greenhouse Instability in Wind

If the greenhouse shows signs of instability in windy conditions:

• Asegúrese de que todas las conexiones del marco estén completamente apretadas.
• Verify that all U-shaped piles and ground nails are firmly embedded in the soil.
• Add additional external ropes and heavy-duty ground anchors for extra security.
• Consider relocating the greenhouse to a more sheltered area if possible.

6.2. Cover Tearing or Damage

If the PE cover tears:

• Small tears can often be repaired with specialized greenhouse repair tape.
• For larger damage, consider replacing the cover to maintain optimal protection and insulation.
• Ensure the cover is not excessively stretched during installation, which can lead to premature tearing.

7. Especificaciones

Figura 7.1: Greenhouse dimensions.

8. Garantía y soporte

For warranty information or technical support, please refer to the documentation included with your purchase or contact MELLCOM customer service directly. Keep your purchase receipt for warranty claims.
