Manual del usuario de la lavadora Schaub Lorenz SV1008D1IN

1. Introducción

This manual provides essential information for the safe and efficient operation of your Schaub Lorenz SV1008D1IN 8 kg 1000 RPM Inverter Washing Machine. Please read these instructions carefully before installation, use, or maintenance. Keep this manual for future reference.

Your washing machine features an inverter motor, electronic control, a clear display, and a large door for convenient loading. It offers a variety of programs and safety features designed to provide optimal washing results.

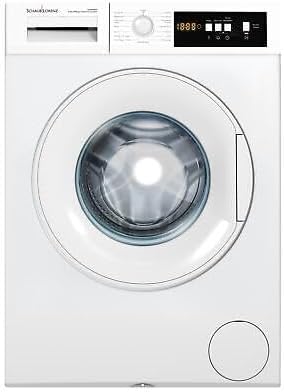

Figura 1: Frente view of the Schaub Lorenz SV1008D1IN washing machine, showing the control panel, detergent drawer, large front-loading door, and the drum inside.

2. Información de seguridad

Siga siempre las siguientes pautas de seguridad para evitar lesiones o daños al aparato:

• Asegúrese de que el aparato esté correctamente conectado a tierra y a una fuente de alimentación adecuada.
• No permita que los niños jueguen con la lavadora ni la operen.
• Never force the door open during operation. The door lock safety mechanism prevents this.
• In case of a water leak, immediately turn off the water supply and disconnect the power. The anti-overflow safety system helps prevent major leaks.
• Do not wash items that have been cleaned, washed, soaked, or dabbed with combustible or explosive substances.
• Regularly check the water inlet and drain hoses for damage.

3. Instalación y configuración

3.1 Desembalaje

Carefully remove all packaging materials. Ensure all transit bolts are removed from the rear of the machine before use. Refer to the separate installation guide for detailed instructions on transit bolt removal.

3.2 Posicionamiento

The Schaub Lorenz SV1008D1IN is a freestanding appliance. Place it on a firm, level surface. Adjust the leveling feet to ensure the machine is stable and does not wobble during operation. Proper leveling is crucial for reducing noise and vibration.

3.3 Conexiones de agua y electricidad

Conecte la manguera de entrada de agua a un grifo de agua fría. Asegúrese de que la manguera de desagüe esté correctamente instalada en un tubo vertical o fregadero, evitando que se doble. Conecte el cable de alimentación a una toma de corriente con conexión a tierra. No utilice alargadores.

4. Instrucciones de funcionamiento

4.1 Panel de control terminadoview

The washing machine features an electronic control system with a digital display and touch controls. A rotary knob is used for program selection, while touch buttons allow for additional options and settings.

4.2 Carga de la ropa

Open the large front door and load laundry into the drum. Do not exceed the maximum load capacity of 8 kg. Overloading can affect washing performance and cause excessive wear.

4.3 Agregar detergente

Pull out the detergent drawer located at the top left of the control panel. Add appropriate amounts of detergent and fabric softener to the designated compartments. Refer to your detergent packaging for dosage recommendations.

4.4 Selección del programa

Turn the program selection knob to choose one of the 15 available washing programs:

• Algodón ecológico 40-60
• Algodón con Prelavado
• Algodón 20°C
• De colores
• Lana
• Enjuagar
• Anti-Allergic
• Centrifugar / Drenar
• Delicates/Hand Wash
• Sintéticos
• Mezclado
• Edredones
• Dark Clothes/Jeans
• Rapid 60' 60°C
• Rápido 15 min

4.5 Inicio de un ciclo

After selecting a program, you can adjust options such as temperature and spin speed using the touch controls. The display will show the program phase indicator and the time remaining until the cycle finishes. Press the Start/Pause button to begin the wash cycle. The delayed start function allows you to set a later start time.

5. Mantenimiento

El mantenimiento regular garantiza un rendimiento óptimo y prolonga la vida útil de su lavadora.

• Limpieza del cajón del detergente: Retire y limpie periódicamente el cajón del detergente para evitar la acumulación de residuos.
• Limpieza del tambor: Run a maintenance wash cycle (e.g., a hot cotton cycle with no laundry and a descaling agent) regularly to clean the drum.
• Limpieza del filtro: The drain pump filter should be cleaned periodically to remove lint and small objects. Refer to the full manual for location and cleaning instructions.
• Limpieza exterior: Limpie las superficies exteriores con un paño suave, damp Paño. No utilice limpiadores abrasivos.

6. Solución de problemas

If you encounter issues with your washing machine, consult the following common troubleshooting tips. The fault detection system may display error codes on the screen.

• La máquina no arranca: Check if the power cord is properly plugged in, the door is securely closed, and the water supply is open.
• El agua no drena: Check the drain hose for kinks or blockages. Clean the drain pump filter.
• Vibración/ruido excesivo: Ensure the machine is level and all transit bolts have been removed. The load balancing system helps minimize vibration.
• Excessive foam: Reduce the amount of detergent used. The anti-foam protection system will activate if too much foam is detected.

For persistent issues or error codes not listed, contact customer support.

7. Especificaciones

8. Garantía y soporte

For warranty information and terms, please refer to the warranty card included with your appliance or contact Schaub Lorenz customer service. Keep your proof of purchase for any warranty claims.

For technical support or service requests, please contact the authorized service center in your region. Contact details can typically be found on the manufacturer's websitio o en la documentación del producto.
