1. Introducción
Este manual proporciona instrucciones completas para el sistema de aire acondicionado/calefacción con bomba de calor central dividida Goodman 15 SEER2, modelo GLZS4BA3610 / AMST36CU1300. Abarca más deview, installation, operation, maintenance, troubleshooting, and detailed specifications to ensure safe and efficient use. Please read this manual thoroughly before installation and operation.
2. Componentes del producto
The Goodman 15 SEER2 Central Split Unit Heat Pump AC/Heating System includes the following primary components:
- Heat Pump Condenser: An outdoor unit designed for efficient heating and cooling, providing year-round climate control.
- Aire acondicionado: An indoor unit featuring an ECM blower motor, an all-aluminum evaporator, and a factory-installed TXV kit for optimal performance and efficiency.
- Kit de instalacion: A comprehensive kit including a 3/8" LL x 7/8" SL x 3/8" line set, a 1/2" X 4' 10 gauge whip, a non-fuse 60A disconnect switch, a 2 heat / 1 cool non-programmable thermostat, a 36" x 36" x 3" e-lite pad, and a fitting coupling kit set.
- 10kW Backup Heat Kit: Provides supplemental heating capacity.
Imagen 2.1: Másview of the Goodman 15 SEER2 Central Split Unit Heat Pump AC/Heating System, showing the outdoor condenser, indoor air handler, and the installation kit.
Imagen 2.2: Detallada view of the installation kit components, including line set, electrical whip, disconnect switch, thermostat, and e-lite pad.
3. Configuración e instalación
Installation of this HVAC system requires specialized knowledge and tools. It is strongly recommended that installation be performed by a qualified HVAC technician to ensure proper function, safety, and warranty validity.
3.1 Comprobaciones previas a la instalación
- Verify that the electrical supply matches the unit's requirements (208/230 V, 1 Ph, 60 Hz).
- Ensure adequate space for both the outdoor condenser and indoor air handler, allowing for proper airflow and maintenance access.
- Confirm all components of the installation kit are present and undamaged.
3.2 Pasos de instalación (másview for Professional Installers)
- Position the outdoor condenser on a stable, level surface, such as the provided 36" x 36" x 3" e-lite pad.
- Install the indoor air handler in the designated location, ensuring proper ductwork connection.
- Connect the refrigerant line set (3/8" LL x 7/8" SL x 3/8") between the condenser and air handler. Ensure proper evacuation and charging with R32 refrigerant.
- Perform electrical wiring connections, including the 1/2" X 4' 10 gauge whip and the non-fuse 60A disconnect switch, adhering to all local electrical codes.
- Install the 10kW backup heat kit within the air handler, following manufacturer guidelines.
- Mount and wire the non-programmable thermostat.
- Conduct system startup and testing to verify proper operation in both heating and cooling modes.
Advertencia: Improper installation can lead to equipment damage, personal injury, and void the product warranty. Always consult with a certified HVAC professional.
4. Operación
Your Goodman Heat Pump AC/Heating System is designed for user-friendly operation via the included non-programmable thermostat. Once installed and powered, the system will respond to your thermostat settings to maintain desired indoor temperatures.
4.1 Control de termostato
- Selección de modo: Use the thermostat to select between "Heat," "Cool," or "Off" modes.
- Ajuste de temperatura: Adjust the desired temperature using the up/down arrows on the thermostat.
- Control del ventilador: Set the fan to "Auto" (runs only when heating or cooling) or "On" (runs continuously).
The system will automatically switch between heat pump operation and supplemental heat (from the 10kW backup heat kit) as needed to efficiently maintain your set temperature, especially in colder conditions.
5. Mantenimiento
Regular maintenance is crucial for the longevity and efficient operation of your HVAC system. It is recommended to schedule annual professional inspections and perform routine user maintenance.
5.1 Mantenimiento del usuario
- Reemplazo del filtro de aire: Regularly check and replace the air filter in your air handler (filter size: 19.5" W x 20" L). A dirty filter restricts airflow and reduces efficiency.
- Limpieza de la unidad exterior: Keep the area around the outdoor condenser clear of debris, leaves, and vegetation to ensure proper airflow. Gently clean the coil fins if they become dirty.
- Drain Pan Check: Periodically inspect the condensate drain pan and line for blockages, especially during cooling season.
5.2 Mantenimiento profesional
An HVAC technician can perform more in-depth checks, including refrigerant levels, electrical connections, coil cleaning, and overall system performance tuning. This helps prevent breakdowns and ensures optimal energy efficiency.
6. Solución de problemas
Before calling for service, consider these common issues and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| El sistema no se enciende | Thermostat off, power outage, tripped circuit breaker, disconnect switch off. | Check thermostat settings, verify power, reset breaker, ensure disconnect switch is ON. |
| Calefacción/refrigeración insuficiente | Dirty air filter, blocked outdoor unit, incorrect thermostat setting, low refrigerant. | Replace air filter, clear debris from outdoor unit, adjust thermostat, contact technician for refrigerant check. |
| Ruidos inusuales | Piezas sueltas, obstrucción del ventilador, problema del compresor. | Inspect for loose panels or debris. If persistent, contact a qualified technician. |
| Fuga de agua | Clogged condensate drain line, frozen evaporator coil. | Clear drain line. If coil is frozen, turn off system and contact technician. |
If these steps do not resolve the issue, please contact a qualified HVAC service professional.
7. Especificaciones
Detailed technical specifications for the Goodman 15 SEER2 Central Split Unit Heat Pump AC/Heating System (Model: GLZS4BA3610 / AMST36CU1300):

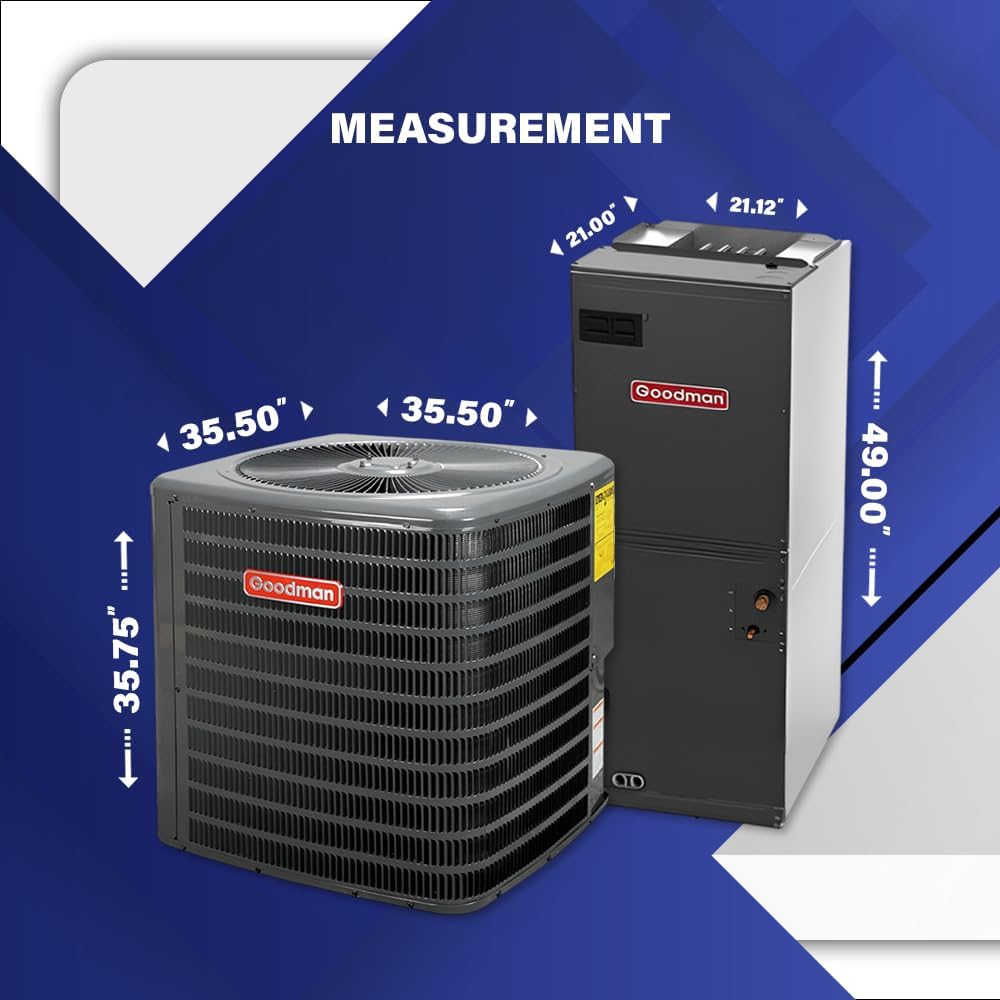

Image 7.1: Dimensions of the Goodman outdoor condenser and indoor air handler units.
| Característica | Detalle |
|---|---|
| Números de modelo | GLZS4BA3610 (Condenser) / AMST36CU1300 (Air Handler) |
| Cool/Heat Tonnage | 3 toneladas |
| Cool/Heat Output | 36,000 BTU/h |
| AC Efficiency (SEER2) | 14.3 - 15.2 |
| Heat Efficiency (HSPF2) | 7.5 - 7.8 |
| Información eléctrica | 208/230 V, 1 Ph, 60 Hz, 15 Amps |
| Operación de sonido | 75.0 dBA (Lvl) |
| Peso del equipo | 196 libras |
| Condensador Stage | Soltero Stage |
| Tipo de compresor | Tipo de desplazamiento |
| Refrigerante | R32 (Pre-charged with enough R32 to fill itself, a coil, and 15ft of line set) |
| Tamaño de la línea de refrigerante | Línea de líquido de 3/8" (9.52 mm) de diámetro exterior, línea de succión de 7/8" (22.22 mm) de diámetro exterior |
| Air Handler Blower Motor | Multi-Speed Direct Drive ECM, 3/4 Horsepower, 1830 CFM |
| Air Handler Evaporator Coil | All-aluminum build |
| Air Handler Filter Size | 19.5" de ancho x 20" de largo (ALFH1912201E) |
| Air Handler Multi-Positional | Upflow, Downflow, or Horizontal |
| Backup Heat Kit Options (This unit includes 10kW) | 5 kW (16,200 BTU/30 Amps), 10 kW (34,100 BTU / 60 Amps), 15 kW (51,150 BTU / 90 Amps), 20 kW (68,200 BTU / 120 Amps) |
| Certificaciones | Certificado por AHRI, listado por ETL |
Image 7.2: Key feature details and refrigeration data for the Goodman heat pump.
Image 7.3: Detailed specifications for the Goodman air handler, including blower motor and evaporator coil information.
8. Energy Efficiency and Heat Pump Technology
8.1 Understanding the Energy Guide
The Energy Guide label provides valuable information regarding the energy consumption and estimated operating costs of your heat pump system. It helps compare the efficiency of various HVAC units.
Image 8.1: Explanation of the Energy Guide label, detailing how to interpret cooling efficiency (SEER2) and heating efficiency (HSPF2) ratings.
8.2 Heat Pump vs. AC Only Systems
Heat pumps offer both heating and cooling capabilities, making them a versatile choice for year-round climate control. They efficiently generate heat even in outdoor temperatures as low as 32°F. While initial costs may be higher than AC-only units, heat pumps can lead to significant long-term savings on utility bills, especially in milder climates, by transferring heat rather than generating it.
Image 8.2: Visual comparison highlighting the components and operational differences between a heat pump and an AC-only system.
9. Garantía y soporte
Your Goodman HVAC system comes with a manufacturer's warranty to protect your investment.
9.1 Condiciones de garantía
A 10 años de garantía de piezas is provided when the unit is installed by a qualified technician and registered online with the manufacturer at no additional charge. Please retain your proof of purchase and installation records.
9.2 Atención al cliente
For technical assistance, warranty claims, or to locate a certified service provider, please contact Goodman customer support or the authorized dealer from whom you purchased the system. Ensure you have your model and serial numbers available when contacting support.
You can find more information and register your product on the official Goodman websitio.
