GROOVE HCB002 Multi-Function Jump Starter & Tire Inflator User Manual

1. Producto terminadoview

The GROOVE HCB002 is an essential multi-purpose device for automotive emergencies and daily convenience. It combines a powerful jump starter, a high-performance tire inflator, a portable power bank, and an emergency LED light, all in one compact unit. Its robust design and intelligent features ensure reliable operation in various conditions.

Características principales:

• High Capacity Jump Starter: 22000mAh battery with 2500A peak current, capable of starting up to 8.5L gasoline and 8.0L diesel engines.
• Inflador de neumáticos integrado: Built-in air compressor with up to 150 PSI pressure, suitable for car tires, motorcycles, bicycles, and sports equipment. Features intelligent pressure detection and preset modes.
• Banco de energía portátil: 81.4Wh capacity with USB-C and USB-A outputs to charge smartphones, tablets, laptops, and other electronic devices.
• Luz LED multimodo: Includes flashlight, strobe, and SOS modes for emergency illumination.
• Protecciones de seguridad avanzadas: Equipped with reverse polarity, overcharge, spark-proof, high/low temperature, over-inflation, short circuit, and pressure detection safeguards.
• Tiempo de espera largo: Maintains charge for up to 365 days on a full charge.

Image 1.1: The GROOVE HCB002 device with its jump starter clamps and tire inflation hose, showcasing su diseño multifuncional.

2. Contenido del paquete

Verifique el contenido del paquete al desembalarlo para asegurarse de que todos los artículos estén presentes y en buenas condiciones:

• GROOVE HCB002 Jump Starter & Tire Inflator Unit
• Cables de arranque inteligentes con Clamps
• Air Hose with Threaded Connector
• Varios adaptadores de boquillas (para pelotas, bicicletas, etc.)
• Cable de carga USB-C
• Estuche de almacenamiento
• Manual de usuario

3. Instrucciones de seguridad

Read all safety warnings and instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• No exponga el dispositivo a la lluvia ni a condiciones de humedad.
• No utilice el dispositivo si se ha caído o está dañado.
• Mantener fuera del alcance de los niños.
• Ensure proper polarity when connecting jump cables to the vehicle battery. Reverse polarity can cause damage.
• No arranque una batería congelada.
• Do not over-inflate tires. Always refer to the vehicle or tire manufacturer's recommended pressure.
• Avoid prolonged operation of the air compressor to prevent overheating. Allow for cool-down periods.
• Guarde el dispositivo en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.

Image 3.1: Visual representation of the advanced protection features, including reverse polarity, overcharge, spark-proof, high/low temperature, over-inflation, short circuit, and pressure detection.

4. Configuración

Before first use, fully charge the GROOVE HCB002 unit. Connect the provided USB-C charging cable to the device's input port and a suitable USB power adapter (not included). The LCD screen will indicate the charging status.

• Carga inicial: Charge the device until the battery indicator shows full. This may take several hours.
• Conexión de accesorios: Familiarize yourself with the connection points for the jump cables and air hose.

5. Instrucciones de funcionamiento

5.1. Using as a Jump Starter

Use this function to start vehicles with a dead battery.

1. Ensure the jump starter unit has sufficient charge (at least 50%).
2. Connect the smart jump cables to the jump starter unit.
3. Conectar el ROJO (+) clamp al terminal positivo de la batería del vehículo.
4. Conectar el NEGRO (-) clamp to the negative terminal of the vehicle battery or a solid metal part of the engine block (away from the battery).
5. Ensure the indicator light on the smart cable is green. If it's red or flashing, check connections.
6. Arranque el motor del vehículo.
7. Una vez que el motor arranque, desconecte inmediatamente el cable deamps from the vehicle battery (first BLACK, then RED), then disconnect the cables from the jump starter unit.

Image 5.1: Visual instructions for connecting the jump starter cables and starting a vehicle, along with steps for tire inflation.

5.2. Using as a Tire Inflator

Inflate tires and other inflatables to the desired pressure.

1. Screw the air hose onto the inflation port of the unit.
2. Attach the other end of the air hose to the tire valve stem. Ensure a secure connection.
3. The LCD screen will display the current tire pressure.
4. Presione el botón 'M' para seleccionar el modo de inflado deseado (automóvil, motocicleta, bicicleta, balón).
5. Utilice los botones '+' y '-' para establecer la presión objetivo.
6. Pulse el botón «OK» para iniciar el inflado. El compresor se detendrá automáticamente al alcanzar la presión deseada.
7. Disconnect the air hose from the tire valve and then from the unit.

Image 5.2: The GROOVE HCB002 displaying its smart tire inflation feature with a maximum pressure of 150 PSI, suitable for various tire types.

5.3. Usar como banco de energía

The HCB002 can charge your electronic devices on the go.

• Connect your device's charging cable to the USB-A or USB-C output port on the HCB002.
• The HCB002 will automatically begin charging your device.

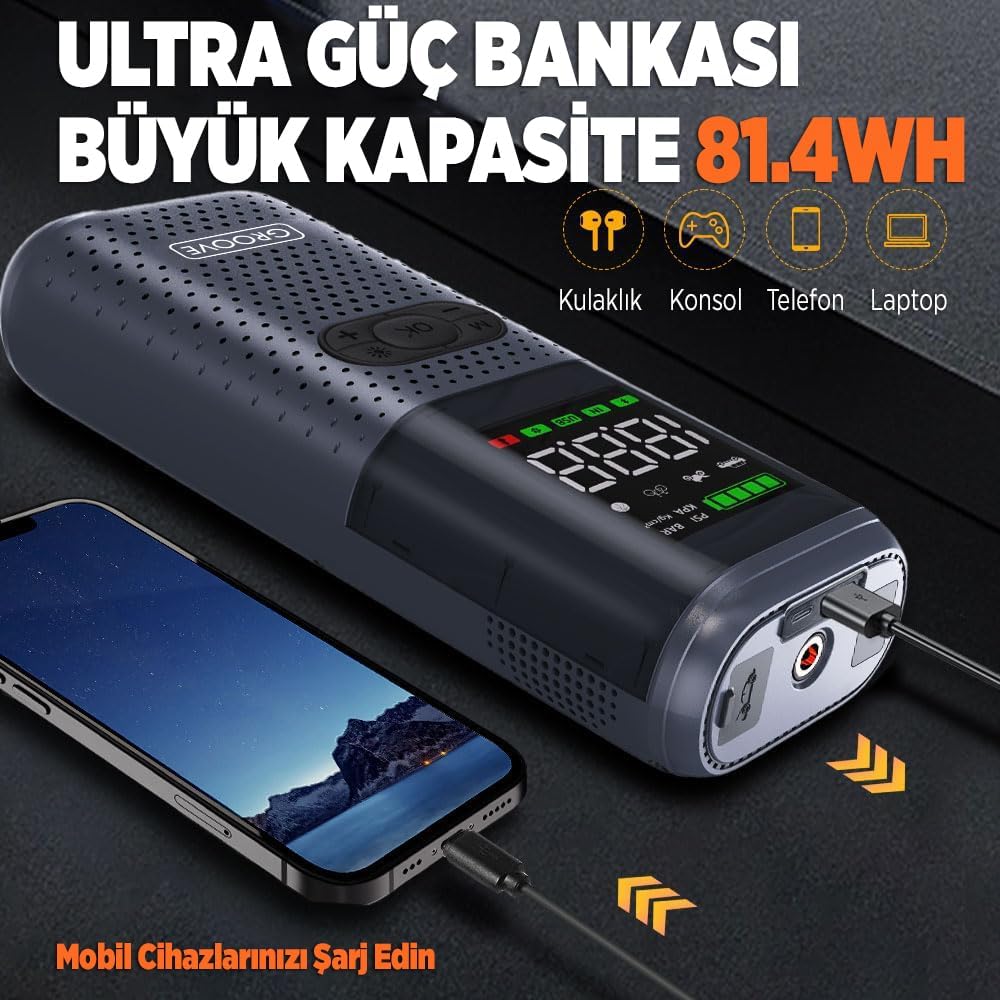

Image 5.3: The GROOVE HCB002 connected to a smartphone, demonstrating its power bank functionality.

5.4. Funciones de la luz LED

La luz LED incorporada proporciona iluminación para diversas situaciones.

• Modo linterna: Press and hold the light button to turn on the steady flashlight.
• Modo estroboscópico: Press the light button again to switch to strobe mode.
• Modo SOS: Press the light button a third time for SOS signaling.
• Presione el botón de luz nuevamente para apagar la luz.

Image 5.4: The GROOVE HCB002's LED light demonstrating its SOS signaling capability.

6. Mantenimiento

Proper maintenance ensures the longevity and optimal performance of your GROOVE HCB002.

• Limpieza: Limpie la unidad con un paño suave y seco. No utilice productos químicos agresivos ni limpiadores abrasivos.
• Almacenamiento: Store the device in its carrying case in a cool, dry place when not in use. Avoid extreme temperatures.
• Cuidado de la batería: For optimal battery life, recharge the unit every 3-6 months, even if not used, to maintain battery health.

7. Solución de problemas

If you encounter issues with your GROOVE HCB002, refer to the table below for common problems and solutions.

8. Especificaciones

9. Garantía y soporte

GROOVE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included in your package or contact the seller directly through the platform where you purchased the product. Please have your model number (HCB002) and purchase details ready when contacting support.
