1. Introducción
Thank you for choosing the ECO-WORTHY 12V 300Ah LiFePO4 Bluetooth Battery. This battery is designed for reliable power storage in various applications, including RVs, solar power systems, and other off-grid setups. It features advanced Bluetooth monitoring, a robust 200A Battery Management System (BMS), and low-temperature protection for enhanced safety and longevity. Please read this manual thoroughly before installation and operation to ensure proper use and maximum performance.
2. Información de seguridad
Always prioritize safety when handling batteries. Failure to follow these instructions can result in serious injury or damage to the battery and connected equipment.
- Do not use this battery to start a vehicle. It is designed for deep cycle applications, not engine starting.
- Asegúrese de que haya una ventilación adecuada durante la carga y descarga para evitar la acumulación de calor.
- Evite cortocircuitar los terminales de la batería. Utilice herramientas aisladas.
- Utilice equipo de protección personal (EPP) adecuado, incluidas gafas y guantes de seguridad, cuando trabaje con baterías.
- Mantenga la batería alejada de llamas abiertas, fuentes de calor y materiales inflamables.
- No desmonte, perfore ni modifique la batería.
- Charge the battery only with a compatible LiFePO4 charger.
- Mantener fuera del alcance de los niños.
Image: The ECO-WORTHY LiFePO4 battery emphasizing its safety features, including BMS protection, a fireproof casing, and an audible alarm system for a safer user experience.
3. Producto terminadoview
Características principales:
- Pantalla LED inteligente: Unique SOC (State of Charge) and status indicator lights for quick detection of battery level and condition. Easier troubleshooting with automatic alarms for abnormal states, which can be deactivated via the APP or control panel.
- Bluetooth Real-time Monitoring: Monitor various battery data (SOC, voltage, current, capacity) in real-time via the "ECO-WORTHY" APP. The APP supports 9 languages. Bluetooth connection range: within 25m in a straight line without obstacles.
- 200A BMS with Low-Temperature Cutoff: Integrated Battery Management System provides protection against over-voltage, bajo voltage, over-current, high temperature, short circuits, and low-temperature cutoff. Charging stops at -7°C, discharging stops below -20°C, and charging resumes at ≥0°C, preventing damage and extending battery life.
- Almacenamiento de energía escalable: Supports up to 4 batteries in parallel and 2 in series (4P2S), allowing for a maximum energy storage of 30.72 kWh for stable power in home storage or complete solar kits.
- Ignífugo Casing and Metal Fixings: Designed to contain fire and prevent swelling, enhancing overall safety.
Componentes:
- Positive (+) and Negative (-) Terminals
- Integrated LED Display Panel
- Power Button (for storage mode)
- Bluetooth Module (internal)

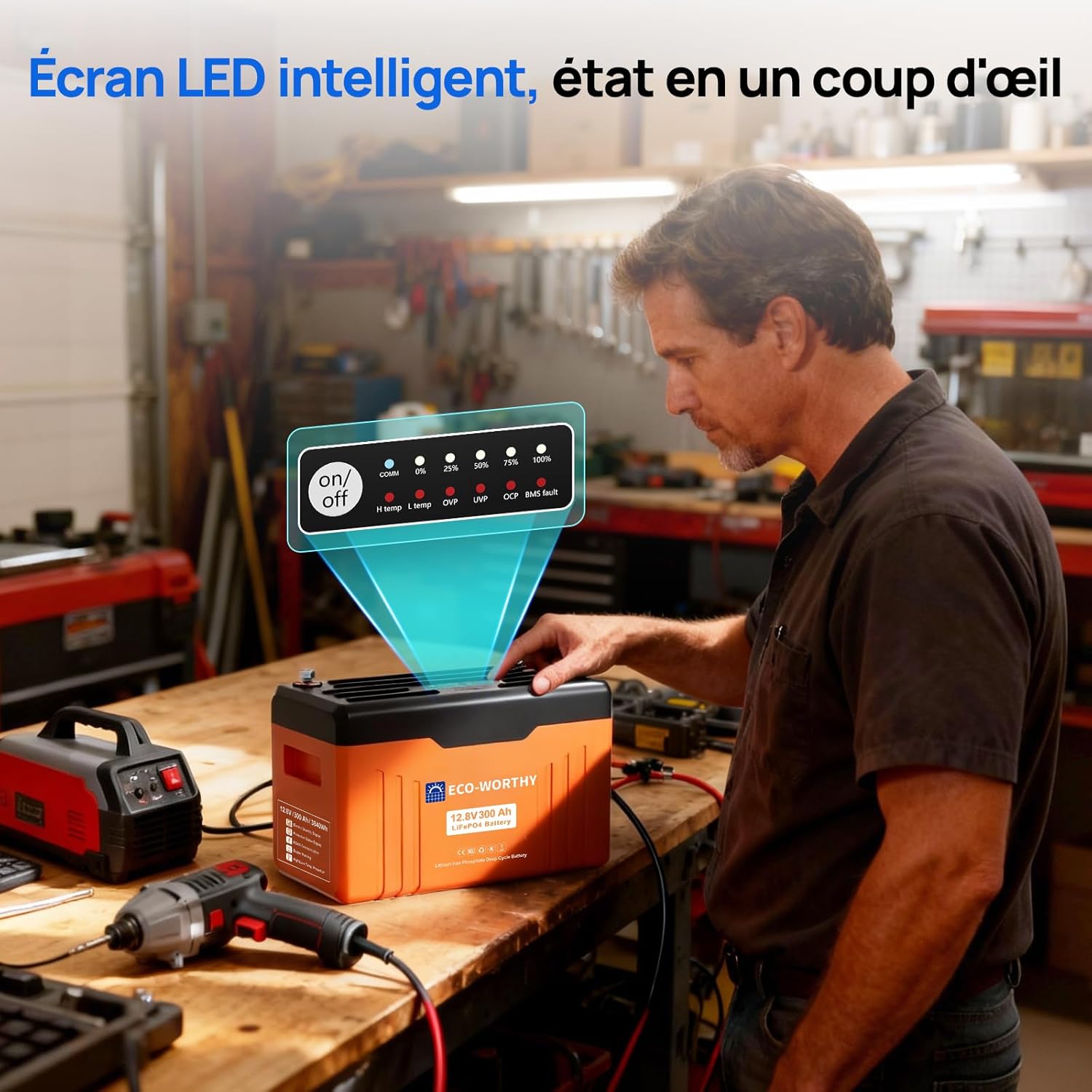

Image: A user observing the intelligent LED display on the ECO-WORTHY LiFePO4 battery, which projects State of Charge (SOC) and various status indicators for quick diagnostics.
4. Configuración
4.1 Inspección inicial
Al recibir la batería, inspecciónela para detectar cualquier daño visible. Si encuentra algún daño, contacte con atención al cliente inmediatamente.
4.2 Carga
Before first use, fully charge the battery using a compatible LiFePO4 charger. Ensure the charger's voltagLos ajustes de corriente y voltaje son apropiados para una batería LiFePO4 de 12 V.
4.3 Conexión de la batería
- Connect the positive (+) terminal of the battery to the positive terminal of your load/charger.
- Connect the negative (-) terminal of the battery to the negative terminal of your load/charger.
- Ensure all connections are secure and tight to prevent resistance and overheating.
4.4 Conexión en paralelo y en serie
This battery supports up to 4 batteries in parallel and 2 in series (4P2S) for increased capacity and voltage. When connecting multiple batteries:
- Use batteries of the same model, capacity, and age.
- Ensure all batteries are fully charged to the same voltagy antes de conectar.
- Use appropriate cables and fuses for the combined current.
- For parallel connections, connect positive to positive and negative to negative.
- For series connections, connect the positive of one battery to the negative of the next.
4.5 Bluetooth APP Installation
Download the "ECO-WORTHY" APP from your smartphone's app store. Follow the in-app instructions to connect to your battery via Bluetooth for real-time monitoring.
Image: The ECO-WORTHY LiFePO4 battery shown with a smartphone running the ECO-WORTHY app, demonstrating real-time Bluetooth monitoring capabilities, alongside a traditional multimeter for visual comparison.
5. Instrucciones de funcionamiento
5.1 Monitoreo del estado de la batería
You can monitor the battery's State of Charge (SOC) and other parameters using two methods:
- Pantalla LED integrada: The display on the battery provides a quick visual indication of SOC (0-100%) and alerts for high/low temperature, over/under voltage, overcurrent, and BMS faults.
- ECO-WORTHY APP: For detailed real-time data, including voltage, current, capacity, and individual cell information, use the Bluetooth APP.
5.2 Modo de almacenamiento
The battery features a storage mode to minimize self-discharge during periods of inactivity, preserving battery life.
- Activación: Press and hold the power button for 3 seconds to activate storage mode.
- Desactivación: Press the power button once to exit storage mode.
Image: A cutaway diagram of the ECO-WORTHY LiFePO4 battery, visually comparing its internal state in 'Normal Mode' versus 'Storage Mode' to highlight the reduced self-discharge feature.
6. Mantenimiento
Un mantenimiento adecuado garantiza la longevidad y el rendimiento óptimo de su batería ECO-WORTHY LiFePO4.
- Inspección regular: Revise periódicamente los terminales de la batería para detectar corrosión o conexiones sueltas. Limpie los terminales si es necesario.
- Limpieza: Limpie la batería casinLimpie con un paño seco y limpio. No utilice disolventes ni limpiadores abrasivos.
- Cargando: Always ensure the battery is charged within its specified voltagy rangos de temperatura.
- Almacenamiento: For long-term storage, activate the storage mode and store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to store the battery at approximately 50% SOC.
Imagen: Un corte detallado view of the ECO-WORTHY LiFePO4 battery, illustrating its robust fireproof casing and internal metal fixings designed for enhanced safety and structural integrity.
7. Solución de problemas
The integrated BMS and intelligent display provide alerts for various conditions. Refer to the table below for common issues and their solutions.
| Indicador/Síntoma | Posible causa | Solución |
|---|---|---|
| High Temp (H temp) alarm | Battery operating in high temperature environment. | Move battery to a cooler location or improve ventilation. Allow battery to cool down. |
| Low Temp (L temp) alarm | Battery operating in low temperature environment. Charging/discharging may be inhibited. | Move battery to a warmer environment. Charging resumes at ≥0°C, discharging above -20°C. |
| Sobre Voltage (OVP) alarm | Vol. De cargatage es demasiado alto. | Check charger settings and ensure it is compatible with LiFePO4 batteries. Disconnect charger if necessary. |
| Bajo Voltage (UVP) alarm | La batería está muy descargada. | Charge the battery immediately. Disconnect loads to prevent further discharge. |
| Over Current (OCP) alarm | Load drawing too much current. | Reduce the load or check for short circuits in the system. |
| BMS Fault (BMS fault) alarm | Internal BMS error. | Disconnect all connections and contact ECO-WORTHY customer support. Do not attempt to repair. |
| La batería no se carga | Charger issue, low temperature, or BMS protection active. | Check charger functionality. Ensure battery temperature is above 0°C. Check for OVP or BMS fault alarms. |
| La bateria no se descarga | Load issue, low temperature, or BMS protection active. | Check load connections. Ensure battery temperature is above -20°C. Check for UVP or OCP alarms. |
Image: The ECO-WORTHY LiFePO4 battery depicted in a winter setting, highlighting its low-temperature protection capabilities, including automatic cutoff for charging at -7°C, discharging at -20°C, and charging resumption at 0°C.
8. Especificaciones
| Especificación | Valor |
|---|---|
| Marca | ECOLÓGICO |
| Nombre del modelo | 300 Ah 12 V |
| Tipo de batería | Fosfato de hierro y litio (LiFePO4) |
| Vol nominaltage | 12.8 voltios |
| Capacidad | 300 Amphoras antes (Ah) |
| Almacenamiento de energía | 3840 Wh |
| Corriente BMS | 200A |
| Ciclos máximos | Hasta 15,000 ciclos |
| Dimensiones (L x An x Al) | 41.4 x 21.5 x 26 cm (16.3 x 8.5 x 10.2 pulgadas) |
| Peso | 27.4 kilogramos (60.4 libras) |
| Usos recomendados | RV, Power Tool, Solar System |
| Parallel/Series Support | Up to 4P2S (Max 30.72 kWh) |
Image: The ECO-WORTHY LiFePO4 battery showcasing its compact dimensions (41.4cm length, 21.5cm width, 26cm height) and weight (27.4kg), positioned in front of an RV to illustrate its suitability for mobile applications.
9. Garantía y soporte
9.1 Garantía
The ECO-WORTHY 12V 300Ah LiFePO4 Bluetooth Battery comes with a Garantía del fabricante de 3 añosEsta garantía cubre defectos de materiales y mano de obra en condiciones normales de uso. Conserve su comprobante de compra para reclamaciones de garantía.
9.2 Atención al cliente
For technical assistance, troubleshooting, or warranty inquiries, please contact ECO-WORTHY customer support. Our specialized support team is available to help you.
- Soporte en línea: Visit the official ECO-WORTHY webSitio para preguntas frecuentes, recursos de soporte y formularios de contacto.
- Soporte por correo electrónico: Refer to your product packaging or the ECO-WORTHY webSitio para la dirección de correo electrónico de soporte dedicada.
