SENGBIRCH iPad Air 13 M3/M2 Keyboard Case

Manual de usuario de la funda con teclado para iPad Air de 13 pulgadas de SENGBIRCH

Model: iPad Air 13 M3/M2 (A2898/A2899/A2900)

Brand: SENGBIRCH

1. Introducción y másview

This manual provides instructions for the SENGBIRCH Detachable Wireless Keyboard Case designed for the iPad Air 13 inch. This product combines a protective case with a magnetic, detachable Bluetooth keyboard, enhancing your tablet's functionality for typing, viewing, and portability. Key features include a built-in Apple Pencil slot, multiple viewing angles, and an automatic sleep/wake function.

SENGBIRCH iPad Air 13 inch Case Keyboard in Navy Blue

Image 1.1: The SENGBIRCH iPad Air 13 inch Case Keyboard in Navy Blue, shown with an iPad inserted and the keyboard detached.

2. Compatibilidad

Esta funda con teclado está diseñada específicamente para los siguientes modelos de iPad:

  • iPad Air 13 inch (M3, 2025)
  • iPad Air 13 inch (M2, 2024)

Compatible model numbers include: A2898, A2899, A2900. Please verify the model number on the back of your iPad before use. This product is NO compatible with the iPad Pro 13-inch (M4) 2024 or any other iPad models.

Compatibility chart for iPad Air 13 inch models

Image 2.1: Visual guide indicating compatibility with iPad Air 13 inch (M3, 2025) and iPad Air 13 inch (M2, 2024) models A2898, A2899, A2900.

3. Contenido del paquete

Asegúrese de que todos los artículos estén presentes en el paquete:

  • 1 x Case for iPad Air 13 inch 2025/2024
  • 1 x Keyboard for iPad Air 13 inch 2025/2024
  • 1 x cable USB
  • 1 x Manual de usuario

Note: Tablet and Apple Pencil are not included.

4. Instrucciones de configuración

4.1 Installing the iPad into the Case

  1. Gently align your iPad Air 13 inch with the case.
  2. Press the iPad firmly into the protective shell, ensuring all edges are securely seated. The precision cutouts provide access to all ports, buttons, and the camera.

4.2 Carga del teclado

The keyboard features a built-in rechargeable battery. Use the provided USB cable to charge the keyboard. Connect one end to the keyboard's Type-C charging port and the other end to a USB power source. A full charge typically takes 2-3 hours and provides approximately 70 hours of continuous use.

4.3 Connecting the Wireless Keyboard (Bluetooth Pairing)

  1. Ensure the keyboard is charged. Locate the power switch on the keyboard and slide it to the 'ON' position. The power indicator light will illuminate.
  2. Presione el botón "Conectar" en el teclado. El indicador de Bluetooth comenzará a parpadear, indicando que está en modo de emparejamiento.
  3. En tu iPad, ve a Configuración > Bluetooth y activa el Bluetooth.
  4. Your iPad will search for available devices. Select the keyboard (e.g., 'Bluetooth Keyboard') from the list to pair.
  5. Una vez emparejado, la luz indicadora de Bluetooth en el teclado dejará de parpadear.
Bluetooth Detachable Keyboard with iPad in case

Image 4.1: The detachable Bluetooth keyboard connected to the iPad case, highlighting the Type-C charging port and scissor key structure.

Steps for connecting the magnetic Bluetooth keyboard

Image 4.2: Detailed steps for pairing the magnetic Bluetooth keyboard with the iPad.

5. Instrucciones de funcionamiento

5.1 Detachable Keyboard Functionality

The keyboard is magnetically attached to the case, allowing for easy detachment and reattachment. This enables seamless switching between tablet mode and laptop mode, or using the iPad independently while the keyboard is stored or used separately.

5.2 ajustable Viewángulos de ing

The case features three built-in anti-slip grooves, providing multiple viewing angles (e.g., 110°, 120°, 130°). Adjust the iPad to your preferred angle for typing, watching videos, or reading.

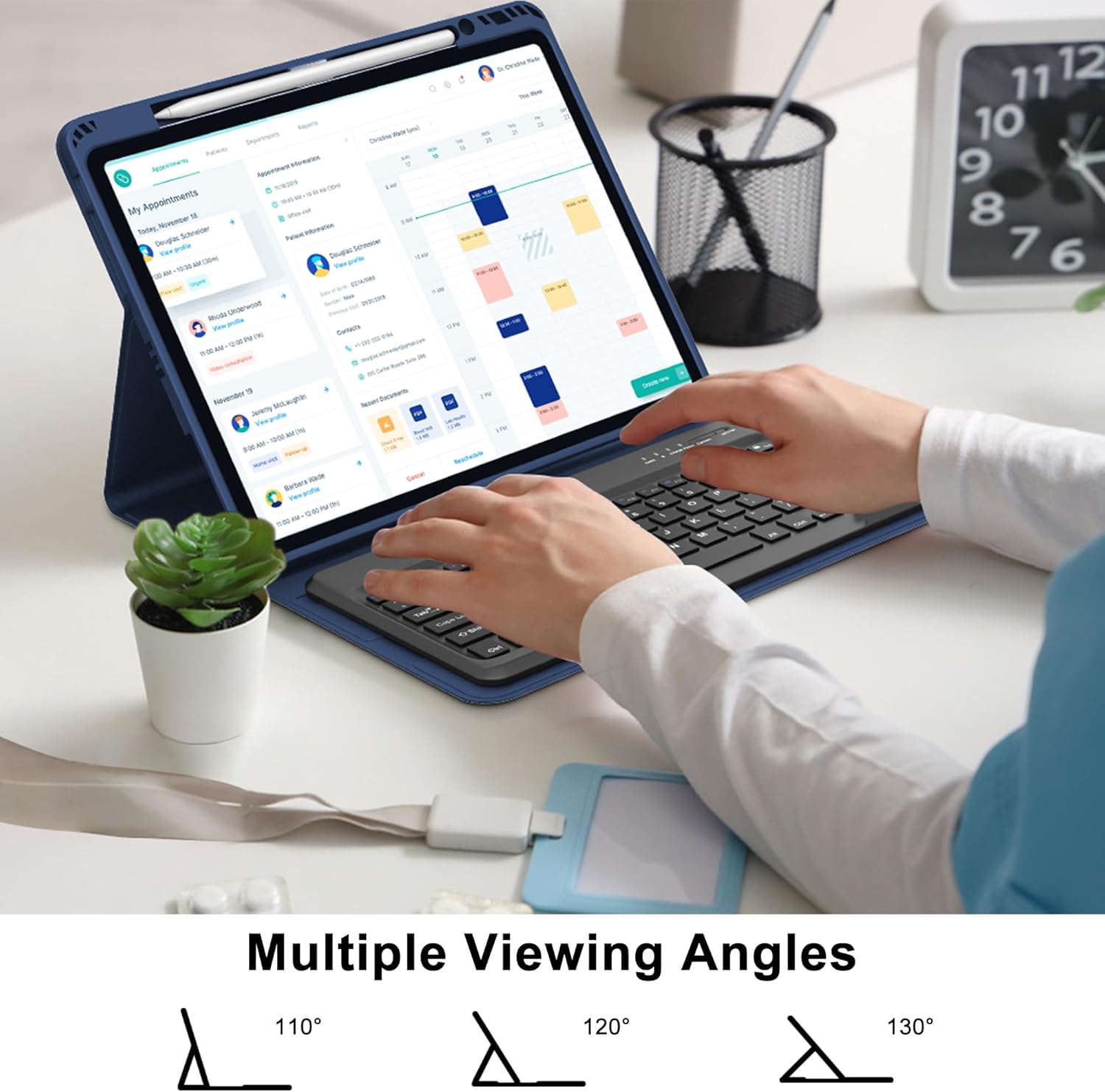

iPad case demonstrating multiple viewángulos de ing

Imagen 5.1: Ilustración de los tres ajustables viewing angles provided by the case's anti-slip grooves.

5.3 teclas de acceso directo

The keyboard includes a row of function keys that provide convenient shortcuts for common iPad operations, such as volume control, media playback, and screen lock. Refer to the keyboard layout for specific key functions.

Keyboard with multi-function shortcut keys highlighted

Image 5.2: A close-up of the keyboard, showing the dedicated multi-function shortcut keys for enhanced productivity.

5.4 Auto Sleep & Wake Function

The smart folio case automatically puts your iPad to sleep when closed and wakes it up when opened. This feature helps conserve battery life for your iPad.

Diagram showing auto sleep and wake function of the folio case

Image 5.3: Visual representation of the automatic sleep and wake functionality when opening and closing the case.

5.5 Apple Pencil Slot

The case includes a dedicated slot for your Apple Pencil, ensuring it is securely stored and readily accessible. This prevents loss and keeps your pencil charged if it supports magnetic charging.

6. Mantenimiento

6.1 Limpieza de la carcasa y el teclado

  • Limpie el exterior del estuche con un paño suave y húmedo.amp paño. Evite productos químicos agresivos o limpiadores abrasivos.
  • For the keyboard, use a soft, dry cloth. A can of compressed air can be used to remove debris from between the keys.

6.2 Cuidado de la batería

  • Cargue el teclado periódicamente para mantener el rendimiento óptimo de la batería.
  • Evite descargar completamente la batería con frecuencia.
  • If storing the keyboard for an extended period, charge it to about 50% to prevent deep discharge.

7. Solución de problemas

7.1 El teclado no se conecta a través de Bluetooth

  • Comprobar potencia: Asegúrese de que el teclado esté encendido y tenga suficiente carga de batería.
  • Reparar: Turn off Bluetooth on your iPad, then turn it back on. Repeat the pairing steps (Section 4.3).
  • Olvidar dispositivo: On your iPad, go to Bluetooth settings, tap the 'i' icon next to the keyboard name, and select 'Forget This Device'. Then, attempt to re-pair.
  • Reiniciar dispositivos: Reinicie tanto el iPad como el teclado.

7.2 Auto Sleep/Wake Function Not Working

  • Check iPad Placement: Ensure your iPad is correctly and fully seated within the case.
  • Interferencia magnética: Ensure no other magnetic objects are interfering with the case's sensors.
  • iPad Settings: Verify that 'Lock/Unlock' is enabled in your iPad's display settings (Settings > Display & Brightness > Lock/Unlock).

7.3 Keyboard Keys Not Responding

  • Recargar teclado: La batería puede estar baja.
  • Restablecer la conexión: Desconecte y vuelva a conectar la conexión Bluetooth.

8. Especificaciones

  • Peso del artículo: 2.2 libras
  • Baterías: 1 batería de iones de litio (incluida)
  • Tecnología de conectividad: Bluetooth
  • Descripción del teclado: Detachable / Wireless Bluetooth / Magnetic
  • Características especiales: Lightweight, Multiple Viewing Angles, Portable, Rechargeable, Wireless Keyboard
  • Material: Acrylonitrile Butadiene Styrene, Polyurethane (PU), Synthetic Leather, Thermoplastic Polyurethane (TPU)
  • Tiempo de carga: 2-3 horas
  • Tiempo de uso: Aproximadamente 70 horas

9. Garantía y soporte

SENGBIRCH provides a 1-year worry-free warranty and a 30-day money-back guarantee for this product. If you encounter any issues or have questions regarding your SENGBIRCH iPad Air 13 inch Case Keyboard, please contact our customer support team. We aim to provide a solution within 24 hours.

For support, please visit the official SENGBIRCH store or contact us through the platform where you purchased the product.
