Nippon America Automático VoltagManual del usuario del regulador electrónico ATVR-500

1. Introducción

This manual provides essential instructions for the safe and efficient operation of your Nippon America Automatic Voltage Regulator, model ATVR-500. Please read this manual thoroughly before installation and use, and retain it for future reference. This device is designed to regulate voltage fluctuations, providing a stable power supply to connected appliances.

Precauciones de seguridad

• Do not open the unit. Servicing should only be performed by qualified technicians.
• Asegure una ventilación adecuada alrededor de la unidad para evitar el sobrecalentamiento.
• No exponga la unidad a la humedad ni a temperaturas extremas.
• Conecte la unidad a una toma de corriente con conexión a tierra adecuada.
• Verificar el volumen de entrada y salidatage settings match your requirements before connecting appliances.
• The total power consumption of connected appliances must not exceed the regulator's maximum capacity of 500 watts.

2. Producto terminadoview

The ATVR-500 is an automatic voltage regulator designed to protect your electronic devices from voltage fluctuations. It features a CPU control circuit, delay function, and multiple protection mechanisms.

Características principales

• Capacidad de 500 vatios: Provides stable power for various appliances.
• Circuito de control de CPU avanzado: Monitors input voltage and disconnects power if voltage supera los 279 V, reactivándose cuando sea seguro.
• Función de retardo de 3 minutos: Protects motors and compressors from frequent switching damage.
• Circuito de protección de temperatura: Protege el transformador contra el sobrecalentamiento.
• Alto volumen de salidatagy Protección: Protege los electrodomésticos del voltage por encima de 250 V.
• Volumen de entrada y salidatagPantalla: Allows real-time monitoring of voltagy niveles.
• Indicadores LED: Shows AC input voltage and delay mode status.
• Disipación de calor eficiente: Large-area heat dissipation holes ensure stable operation.
• Mango cómodo: Para una fácil portabilidad.

Identificación de componentes

Figura 2.1: Frente view of the ATVR-500 Automatic Voltage Regulator. This image displays the overall design, including the front panel with meters and switches, and the carrying handle on top.

Figura 2.2: Close-up of the ATVR-500 front panel. This detailed view muestra el volumen de entradatage meter, output voltage meter, power ON/OFF switch, LED indicators for power, time delay, protect, and input voltage ranges (80-140V, 140-260V), and delay settings (180s, 6s).

Figura 2.3: Rear panel of the ATVR-500. This image highlights the output sockets for AC 220V and AC 110V, the input power cord, a circuit breaker (press to reset), a temperature-activated fan, and a caution label regarding electric shock and servicing.

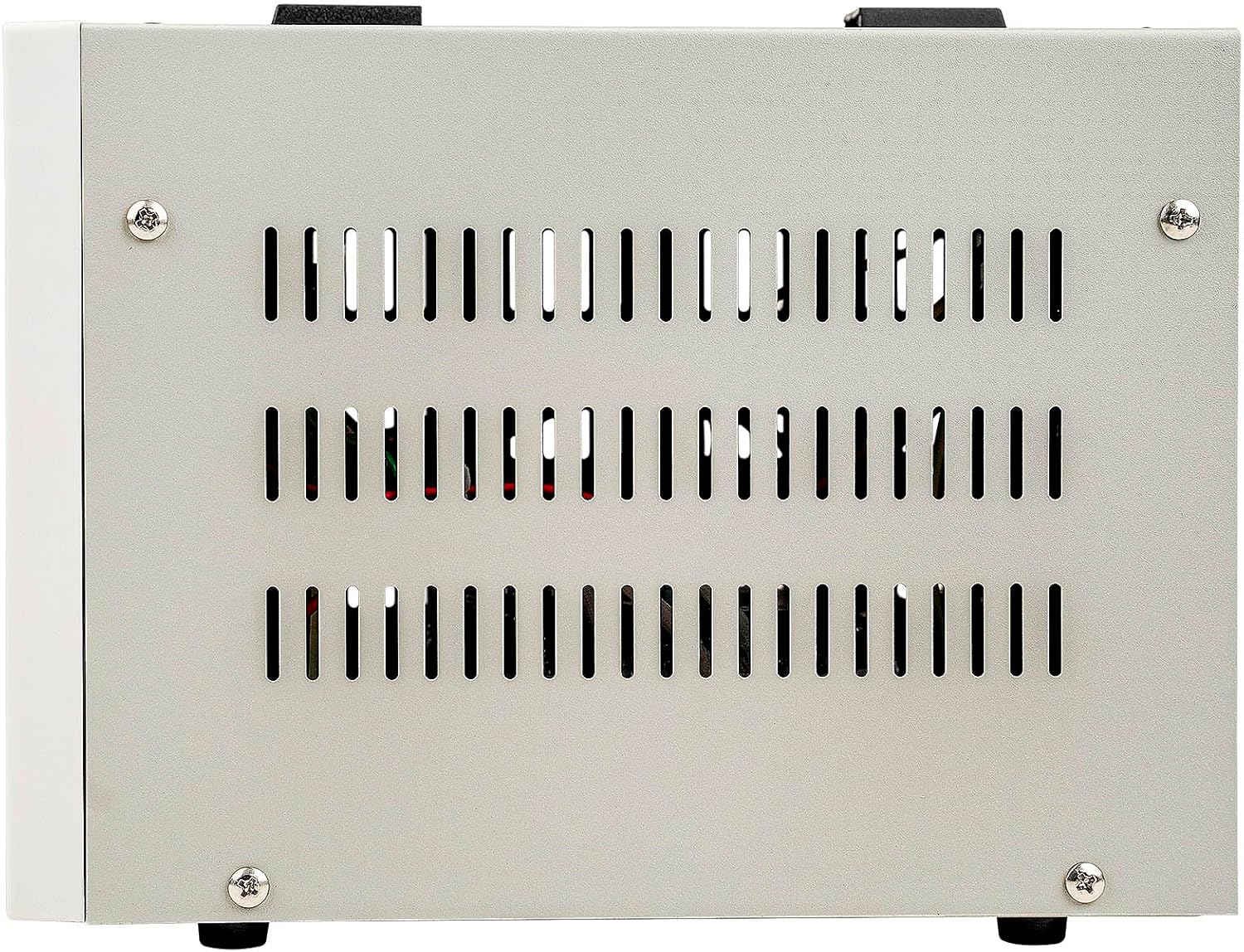

Figura 2.4: Lado view of the ATVR-500, showing the ventilation grilles. These grilles are part of the efficient heat dissipation design, crucial for maintaining stable internal temperatures during operation.

3. Configuración

3.1 Colocación

• Place the ATVR-500 on a stable, flat surface.
• Ensure adequate space around the unit for proper ventilation. Do not block the heat dissipation holes on the sides and rear.
• Evite colocar la unidad bajo la luz solar directa, cerca de fuentes de calor o en áreas con alta humedad o polvo.

3.2 Connecting the Regulator

1. Potencia de entrada: Connect the ATVR-500's integrated power cord to a suitable wall outlet. Ensure the wall outlet provides the correct input voltage (80-140V or 140-260V) as indicated on the unit.
2. Vol de salidatage Selección: The unit provides both 110V and 220V output sockets. Identify the correct output socket for your appliance based on its voltagy requisitos.
3. Conexión de electrodomésticos: Plug your electronic appliances into the appropriate output sockets on the rear panel of the ATVR-500. Ensure the total wattagLa potencia de todos los dispositivos conectados no supera los 500 vatios.

4. Operación

4.1 Encendido / Apagado

• To power on the unit, press the red ON/OFF switch on the front panel to the 'ON' position.
• The "POWER ON" LED indicator will illuminate.
• To power off, press the switch to the 'OFF' position.

4.2 Volumen de monitoreotage

• The front panel features an Vol de entradatage meter and an Vol de salidatage meter. These displays show the real-time voltagy niveles.
• The LED indicators for "IN 80-140V" and "IN 140-260V" will light up to indicate the current input voltage rango.

4.3 Función de retardo

• Upon powering on, the unit initiates a 3-minute (180 seconds) delay. This is indicated by the "TIME DELAY" LED.
• This delay protects sensitive appliances, especially those with motors or compressors, from damage caused by immediate power restoration after an interruption.
• After the delay, power will be supplied to the output sockets.
• A shorter 6-second delay option is also available, typically for 220V output only, as indicated by the "DELAY (6s)" LED.

4.4 Funciones de protección

• exceso de volumentagy Protección: Si el volumen de entradatage exceeds 279V or the output voltage exceeds 250V, the unit will automatically cut off power to protect connected devices. The "PROTECT" LED may illuminate.
• Protección de temperatura: An internal circuit protects the transformer from overheating. If the internal temperature becomes too high, the unit will temporarily shut down.
• Corta circuitos: The rear panel includes a resettable circuit breaker. If an overload occurs, the breaker will trip.

5. Mantenimiento

5.1 Limpieza

• Asegúrese de que la unidad esté apagada y desenchufada antes de limpiarla.
• Utilice un paño suave y seco para limpiar las superficies exteriores.
• No utilice limpiadores líquidos ni materiales abrasivos.
• Mantenga las aberturas de ventilación libres de polvo y residuos.

5.2 Reinicio del disyuntor

• If the unit stops providing power due to an overload, the circuit breaker on the rear panel may have tripped.
• Disconnect all connected appliances.
• Press the circuit breaker button to reset it.
• Reconnect appliances one by one, ensuring the total load does not exceed 500 watts.

6. Solución de problemas

7. Especificaciones

8. Garantía y soporte

For warranty information and technical support, please refer to the warranty card included with your product or contact Nippon America customer service directly. Contact details can typically be found on the manufacturer's official websitio o embalaje del producto.

Número de serie: 0524ATVR50000180
