Manual del usuario del sistema de cámara solar de respaldo inalámbrica VASTEND VS-7A

1. Producto terminadoview

The VASTEND VS-7A is a state-of-the-art wireless solar backup camera system designed for various vehicles including cars, RVs, trucks, trailers, and campers. It features a magnetic mount for easy installation, a 10,000 mAh battery, a 7-inch wireless monitor, and IP69 waterproofing for reliable performance in all conditions. This system aims to provide reliable vision for safer drives.

Image: The VASTEND VS-7A Wireless Solar Backup Camera System, showing the 7-inch monitor and the solar-powered magnetic camera.

2. Contenido del paquete

Verifique que todos los artículos enumerados a continuación estén incluidos en su paquete:

Image: This image displays all components included in the VASTEND VS-7A package: 1 Monitor, 1 Camera, 1 Sunshade, 1 U-bracket, 1 Power Cable, 1 USB Type-C Cable, 3 Antennas, 1 Instruction Manual, 1 Screw Set, and 1 Cigarette Lighter Adapter.

• 1 monitor de 7 pulgadas
• 1 x Wireless Solar Backup Camera
• 1 x sombrilla
• 1 x soporte en U
• 1 x cable de alimentación
• 1 x cable USB tipo C
• 3 x Antenas
• 1 x Manual de instrucciones
• 1 x Juego de tornillos
• 1 x adaptador de encendedor de cigarrillos

3. Configuración e instalación

1-Minute Easy Installation

The VASTEND VS-7A system is designed for quick and easy DIY installation without the need for drilling or complex wiring.

Image: This image illustrates the two simple steps for installing the VASTEND VS-7A system. Step 1 shows the magnetic camera attaching to a metal surface on the rear of a truck. Step 2 shows the monitor being mounted on the dashboard and plugged into the cigarette lighter adapter inside a vehicle.

1. Paso 1: Montaje de la cámara
   Attach the VS-7A magnetic wireless backup camera firmly to any metal surface on the rear of your vehicle. The integrated magnetic base ensures a secure fit without the need for drilling or additional wiring.
2. Paso 2: Configuración del monitor
   Mount the 7-inch monitor to your dashboard using the provided U-bracket. Plug the monitor's power cable into your vehicle's cigarette lighter adapter. The system will automatically pair.

4. Operación de su sistema

Encender la cámara

The camera is equipped with a high-capacity 10,000 mAh battery, providing over 30 hours of continuous operation on a single full charge. It supports multiple convenient charging methods:

Image: This image demonstrates the multiple power supply options for the VASTEND VS-7A camera. It shows the camera being charged in a car, at home via a wall adapter, and portably with a power bank. The camera features a 10,000 mAh battery for extended use.

• Carga solar: The integrated large-area solar panel efficiently captures sunlight to maximize charging efficiency.
• Carga en el coche: Use the provided cables to charge the camera directly from your vehicle's power source.
• Carga en casa: Charge the camera using a standard USB wall adapter.
• Carga portátil: Connect to a power bank for charging on the go.

Funciones de monitorización

The 7-inch monitor provides a clear and wide display of the camera feed. It features intuitive touch keys for easy navigation and settings adjustment.

Image: This image shows the 7-inch monitor displaying both full-screen and split-screen views. It also indicates the wireless transmission range of 320ft between the camera and monitor, and suggests contacting support for adding a second camera.

• Modos de visualización: Switch between full-screen and split-screen views según sea necesario.
• Ajustes: Access various settings such as brightness, contrast, and image orientation via the touch keys.

Grabación en bucle

The integrated high-performance camera supports loop recording. To enable this feature, insert an SD card (up to 512GB, not included) into the monitor. This allows for continuous recording and convenient video playback.

5. Características principales

1080P Wireless Camera & Stable Transmission

The system utilizes a 1080P AHD image sensor and a 1080P color chip to reproduce true colors and provide a clear, wide-angle view behind your vehicle. It employs 2.4 GHz WiFi for stable, interference-free wireless transmission, effectively reducing the risk of traffic accidents. The signal can be transmitted over an open area of up to 500 meters (approximately 1640 feet).

IP69 Waterproof & Super Night Vision

The camera boasts an IP69 waterproof rating, featuring upgraded sealing materials to withstand all weather conditions, from heavy rain to extreme temperatures.

Image: This image depicts the VASTEND VS-7A camera mounted on the rear of an RV in rainy conditions, highlighting its IP69 waterproof rating and 170-degree wide-angle view. Infrared LEDs are visible, indicating night vision capability.

Additionally, it is equipped with infrared night vision LEDs that provide clear images even in complete darkness, ensuring safety during nighttime maneuvers.

Modos de imagen

The monitor supports various image display modes to suit your preference and vehicle type:

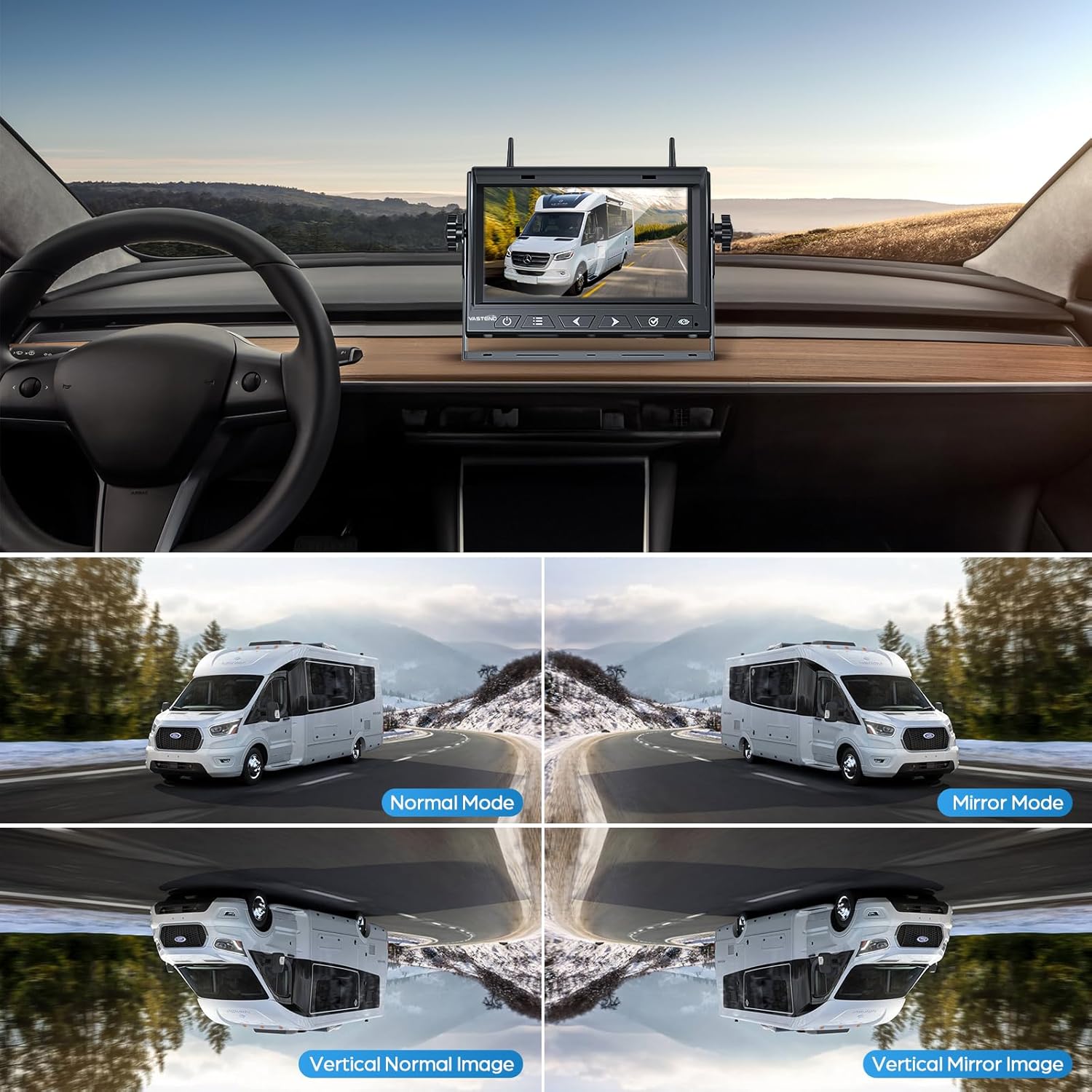

Image: This image displays the various image display modes available on the VASTEND VS-7A monitor: Normal Mode, Mirror Mode, Vertical Normal Image, and Vertical Mirror Image, allowing users to adjust the view según sea necesario.

• Modo normal: Estándar view.
• Modo espejo: Flips the image horizontally, useful for rearview aplicaciones.
• Vertical Normal Image: Voltea la imagen verticalmente.
• Vertical Mirror Image: Flips the image both horizontally and vertically.

6. Mantenimiento

To ensure optimal performance and longevity of your VASTEND VS-7A system, follow these maintenance guidelines:

• Limpiar la lente de la cámara y el panel solar: Limpie periódicamente la lente de la cámara y el panel solar con un paño suave.amp Paño para garantizar una visión clara y una carga solar eficiente. Evite los limpiadores abrasivos.
• Clean Monitor Screen: Keep the monitor screen clean and free from dust and smudges using a microfiber cloth.
• Comprobar conexiones: Inspeccione periódicamente todas las conexiones de cables para asegurarse de que estén seguras y libres de daños.
• Almacenamiento: Cuando no utilice el sistema durante períodos prolongados, guárdelo en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.

7. Solución de problemas

If you encounter issues with your VASTEND VS-7A system, refer to the following common solutions:

8. Especificaciones del producto

9. Garantía y soporte

VASTEND is committed to providing high-quality products and excellent customer service. Your VS-7A Wireless Solar Backup Camera System comes with:

• Two-Year Free Warranty Service: Enjoy peace of mind with a comprehensive warranty covering manufacturing defects for two years from the date of purchase.
• Soporte técnico de por vida: VASTEND offers lifetime technical assistance to help you with any questions or issues you may encounter with your product.

For any questions, technical support, or warranty claims, please contact us via the email address provided in your product's instruction manual. We are dedicated to ensuring your satisfaction.
