1. Introducción y másview
The HALO 28L Hybrid Cooler & Warmer Bag is designed for versatile temperature control, allowing you to keep items either cold or warm. Utilizing thermoelectric technology, it can refrigerate contents up to 27°F below ambient temperature or heat them up to 140°F. This iceless design maximizes internal space for food and drinks, eliminating the need for traditional ice.
With a generous 28-liter capacity, it can accommodate up to 46 standard 12-oz cans, making it suitable for various outings. Its functional design includes expandable mesh pockets for additional storage, a whisper-quiet cooling fan, and a collapsible structure for easy storage when not in use. The cooler is powered via an included 12V DC car power cord or an AC wall outlet adapter.

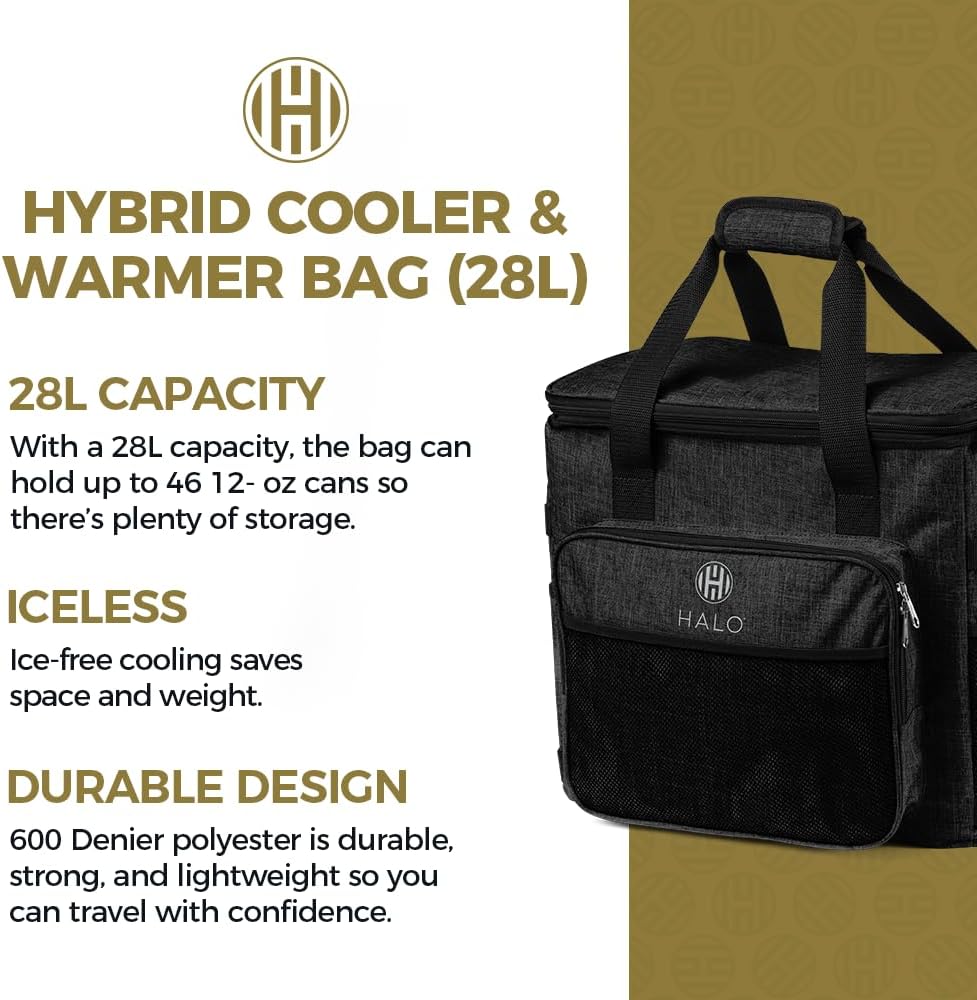

Image 1.1: The HALO 28L Hybrid Cooler & Warmer Bag in black, showcasing its overall design and portability.
2. Configuración
2.1 Unpacking and Expanding
Your HALO Hybrid Cooler & Warmer Bag comes in a collapsed state for compact shipping and storage. To expand the bag, simply unfold it and ensure the internal structure is fully extended. The soft-sided design allows for flexibility.
Image 2.1: The cooler shown in its collapsed state, emphasizing its space-saving design for storage and transport.
2.2 Conexión de la alimentación
The cooler can be powered using two methods:
- Alimentación CC (uso en vehículos): Connect the included 12V DC car charging adapter to the cooler's power port and then into your vehicle's cigarette lighter socket.
- AC Power (Home/Office Use): Connect the included AC wall charging adapter to the cooler's power port and then into a standard wall outlet.
Ensure the power connection is secure before operating the unit.
2.3 Attaching Shoulder Strap
Attach the adjustable shoulder strap to the designated D-rings on the sides of the cooler bag for convenient carrying.
Image 2.2: An illustration detailing the components included with the cooler: the bag itself, DC power cord, AC adapter, and shoulder strap.
3. Instrucciones de funcionamiento
3.1 Función de enfriamiento
To activate the cooling function, ensure the cooler is properly powered. The thermoelectric unit will begin to cool the interior to approximately 27°F below the ambient temperature. For optimal cooling, pre-chill items before placing them in the bag and avoid overfilling.
3.2 Función de calentamiento
To activate the warming function, ensure the cooler is properly powered. The thermoelectric unit will heat the interior up to approximately 140°F. For best warming results, place pre-heated items into the bag. Do not place cold items expecting them to heat up quickly from a cold state.
Imagen 3.1: Interior view of the cooler filled with cans, demonstrating its capacity and the thermoelectric cooling/warming unit.
3.3 Carga de contenidos
Arrange items inside the cooler to allow for proper air circulation around the thermoelectric unit. Avoid blocking the internal fan or vents. The soft-sided and insulated design helps maintain temperature effectively.
Imagen 3.2: Primer plano view of the cooler's insulated, soft-sided interior, highlighting its flexible design for easy packing.
3.4 Demostración en vídeo
Video 3.1: This video demonstrates the features and operation of a similar electric cooler bag, showcasing how to connect it to a power source and its internal capacity for keeping items cool.
4. Mantenimiento
4.1 Limpieza
Para limpiar el interior, limpie con publicidad.amp cloth and mild soap. Do not submerge the unit in water. For the exterior, wipe with a soft, dry cloth. Ensure the unit is completely dry before storing.
4.2 Almacenamiento
When not in use, ensure the cooler is empty and dry. The collapsible design allows it to be folded flat for convenient storage in small spaces.
4.3 Fan and Vent Care
Regularly check that the cooling fan and vents are free from dust, debris, or any obstructions to ensure efficient operation and prevent overheating.
5. Solución de problemas
- Unit Not Cooling/Warming: Check that the power cord is securely connected to both the cooler and the power source (vehicle socket or wall outlet). Ensure the power source is active.
- Rendimiento reducido: Verify that the lid is properly closed and sealed. Ensure the internal fan and external vents are not blocked. Avoid overfilling the cooler, as this can impede air circulation.
- Ruido inusual: A whisper-quiet fan is normal during operation. If you hear excessive or unusual noise, check for any obstructions in the fan or vents.
6. Especificaciones
| Característica | Detalle |
|---|---|
| Marca | HALO |
| Nombre del modelo | HAL-CLR-0005 |
| Capacidad | 28 litros |
| Rendimiento de refrigeración | Up to 27°F below ambient temperature |
| Rendimiento de calentamiento | Hasta 140°F |
| Dimensiones ampliadas | 15.4 x 12 x 14.2 pulgadas |
| Dimensiones contraídas | 15.4 x 6 x 14.2 pulgadas |
| Peso | 5.34 libras |
| Material | Low Density Polyethylene (LDPE), Polyester |
| Fuente de poder | 12V DC (car), AC (wall outlet) |
7. Qué incluye
- 1x HALO 28L Hybrid Cooler & Warmer Bag
- 1x 12V DC Car Charging Adapter
- 1x AC Wall Charging Adapter
- 1x correa de hombro
8. Garantía y soporte
8.1 Información de garantía
This HALO 28L Hybrid Cooler & Warmer Bag comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for any warranty claims.
8.2 Atención al cliente
For any questions, technical assistance, or warranty claims, please contact HALO customer support. Refer to the contact information provided in your product packaging or visit the official HALO websitio para más detalles.
