Infanti Mundi 360° Car Seat Instruction Manual

Introducción

The Infanti Mundi 360° Car Seat is designed to provide maximum safety and comfort for your child from birth up to 36 kg. This versatile car seat features a 360° rotation system for easy access, secure ISOFIX and Top Tether installation, and multiple recline positions to accommodate different age groups and comfort needs. Please read this manual carefully before installation and use to ensure proper operation and safety.

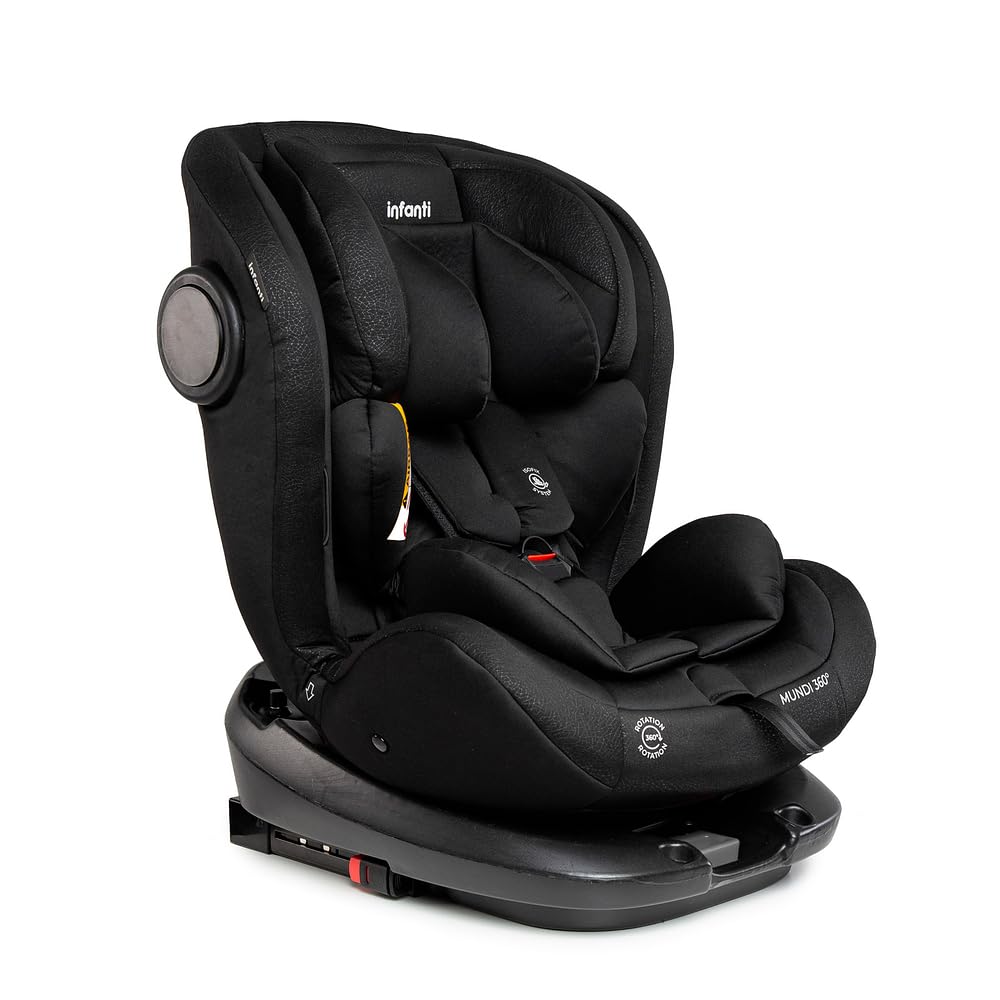

Figure 1: Infanti Mundi 360° Car Seat, showcasing su diseño y características.

Pautas de seguridad

• Always ensure the car seat is correctly installed according to the instructions provided in this manual and your vehicle's owner's manual.
• Children should remain in the rear-facing position for as long as possible, ideally up to 18 kg, as this offers superior protection for infants and toddlers.
• Never place the car seat on a front passenger seat with an active airbag.
• Regularly check that all harnesses and belts are securely fastened and adjusted to fit your child snugly.
• Do not modify the car seat in any way. Use only original Infanti accessories and replacement parts.
• In the event of a car accident, even a minor one, the car seat should be replaced as its structural integrity may be compromised.

Figure 2: The car seat features integrated side protection for enhanced safety during lateral impacts.

Configuración e instalación

1. Instalación de ISOFIX y Top Tether

The Mundi 360° Car Seat utilizes the ISOFIX system combined with a Top Tether for secure installation in your vehicle. Always consult your vehicle's manual for ISOFIX compatibility and proper anchor point locations.

1. Localice los puntos de anclaje ISOFIX en el asiento trasero de su vehículo.
2. Extend the ISOFIX connectors from the car seat base by pressing the release button (usually red).
3. Align the ISOFIX connectors with the vehicle's anchor points and push firmly until you hear a click and the indicators turn green, confirming a secure connection.
4. Empuje el asiento del automóvil firmemente contra el respaldo del asiento del vehículo para eliminar cualquier holgura.
5. Attach the Top Tether strap to the designated anchor point in your vehicle (usually on the back of the seat or in the trunk area). Tighten the strap until it is taut, ensuring the indicator is green.

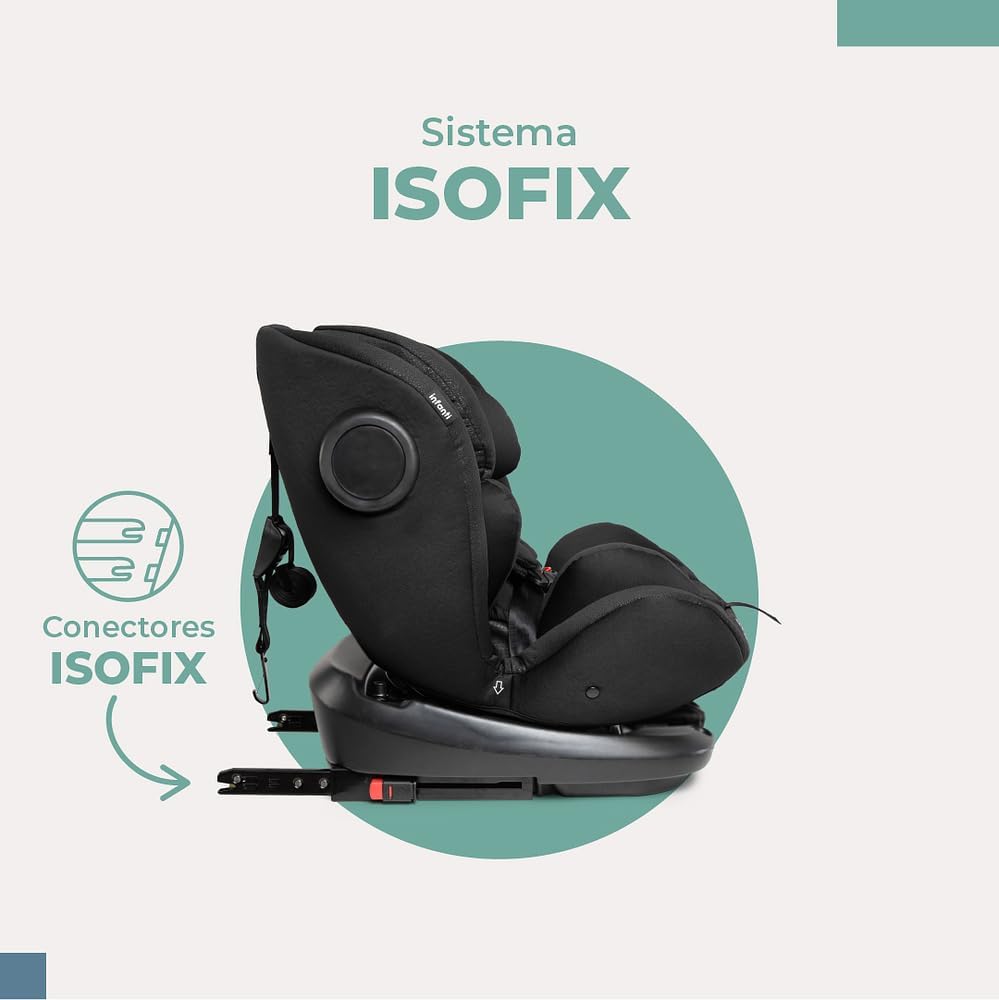

Figure 3: Detail of the ISOFIX connectors on the car seat base.

Figure 4: Close-up of the ISOFIX system label on the car seat harness.

2. 360° Rotation Feature

The 360° rotation feature allows you to easily turn the car seat towards the car door for convenient placement and removal of your child. It also facilitates switching between rear-facing and forward-facing positions without uninstalling the seat.

1. To rotate the seat, locate the rotation release lever or button on the base (refer to Figure 5).
2. Press the lever/button and rotate the seat to the desired position. Ensure it locks securely into place before driving.

Figure 5: The 360° rotation mechanism for easy access and position changes.

Figure 6: Close-up of the 360° rotation indicator on the car seat base.

Instrucciones de funcionamiento

1. Colocación y arneses para niños

To place your child in the car seat:

1. Rotate the car seat towards the car door for easy access.
2. Place your child in the seat, ensuring their back is flat against the backrest.
3. Bring the shoulder straps over your child's shoulders and connect the buckle tongues into the central buckle until you hear a click.
4. Tighten the harness straps until they are snug against your child's body, with no more than two fingers fitting between the strap and your child's collarbone.
5. Asegúrese de que el clip del pecho esté ubicado al nivel de la axila.
6. Rotate the car seat back to the correct driving position (rear-facing or forward-facing) and ensure it is locked.

Figure 7: Close-up of the 5-point harness buckle system.

2. Posiciones de reclinación

The car seat offers multiple recline positions to ensure your child's comfort and proper ergonomic support, especially for newborns. There are 5 recline positions: 4 forward-facing and 1 rear-facing, with a special position for newborns.

1. To adjust the recline, locate the recline adjustment lever (refer to Figure 8).
2. Press the lever and adjust the seat to the desired recline angle. Release the lever to lock the position.
3. For newborns, use the most reclined position with the included padded reducer cushions.

Figure 8: Illustration of the 5 recline positions, including the rear-facing option.

Figura 9: Lado view showing the recline mechanism and extended ISOFIX connectors.

3. Headrest and Harness Height Adjustment

The headrest and harness height can be adjusted simultaneously to grow with your child, eliminating the need to rethread the harness.

1. Locate the headrest adjustment lever at the top of the headrest (refer to Figure 10).
2. Squeeze the lever and slide the headrest up or down to the appropriate height. The shoulder straps should be at or just below your child's shoulders when rear-facing, and at or just above when forward-facing.
3. Release the lever to lock the headrest in place.

Figura 10: Frente view of the car seat showing the adjustable headrest and harness.

4. Usage by Weight Groups

The Mundi 360° Car Seat is designed to adapt to your child's growth through different stages:

• Group 0 (0-13 kg): Rear-facing position with the 5-point harness and infant reducer cushions.
• Group 1 (9-18 kg): Rear-facing or forward-facing position with the 5-point harness. Rear-facing is recommended for as long as possible.
• Group 2 (15-25 kg): Forward-facing position using the vehicle's 3-point seat belt and the car seat's internal harness stored. ISOFIX anchors are optional for this group.
• Group 3 (22-36 kg): Forward-facing position using the vehicle's 3-point seat belt and the car seat's internal harness stored. ISOFIX anchors are optional for this group.

Figure 11: Visual guide for car seat configuration across different child weight groups.

Mantenimiento

Proper maintenance ensures the longevity and safety of your Infanti Mundi 360° Car Seat.

• Limpieza de la tela: The fabric covers can be removed for cleaning. Refer to the care label on the fabric for specific washing instructions. Typically, machine wash on a delicate cycle with cold water and mild detergent, or hand wash. Do not bleach or tumble dry. Air dry away from direct sunlight.
• Cleaning the Harness: Limpie las correas del arnés con publicidad.amp cloth and mild soap. Do not immerse the harness in water or use harsh chemicals, as this can weaken the webbing
• Limpieza de la carcasa: Limpie las partes plásticas y metálicas de la carcasa del asiento del automóvil con adamp paño y jabón suave. No utilice limpiadores abrasivos.
• Almacenamiento: Cuando no esté en uso, guarde el asiento del automóvil en un lugar fresco y seco, alejado de la luz solar directa.

Solución de problemas

If you encounter any issues with your Infanti Mundi 360° Car Seat, please refer to the following common solutions:

• El asiento del automóvil se siente suelto después de la instalación: Ensure the ISOFIX connectors are fully engaged (green indicators visible) and the Top Tether is taut. Push the car seat firmly into the vehicle seat to remove any remaining slack.
• El arnés es difícil de ajustar: Check for any twists in the harness straps. Ensure the harness adjuster strap is not caught or obstructed.
• Seat Does Not Rotate: Ensure the rotation release lever is fully engaged. The seat may not rotate if it is in a reclined position that obstructs the rotation mechanism. Adjust the recline if necessary.
• Buckle is Stiff: Clean the buckle area to remove any debris. If the buckle remains stiff or does not function correctly, contact customer support.

For further assistance, please contact Infanti customer support or consult the comprehensive manual included with your product.

Presupuesto

Vídeo oficial del producto

Garantía y soporte

For warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Infanti webSitio. Conserve su comprobante de compra para cualquier reclamación de garantía.

You can visit the Infanti store for more products and support: Infanti Store
