Srygery BSV-IC201
Manual del usuario del kit de riego por goteo automático Srygery
Model: BSV-IC201 | Brand: Srygery
Producto terminadoview
The Srygery Automatic Drip Irrigation Kit is designed to provide precise and worry-free hydration for your plants, making gardening easier, especially for balconies, patios, and small gardens without direct faucet access. This system automates watering at preset volumes and time intervals.

Image: The Srygery Automatic Drip Irrigation System, showcasing its application with several potted plants, highlighting features like LCD Display, USB Charging, Automatic Timer, and Hands-Free operation.
Características principales:
- Riego automático: Delivers water at preset volumes and time intervals.
- Pantalla LCD: Simplifies setup and programming for user convenience.
- USB Charging & Backup Battery: Powered by USB charging with a 2200mAh backup battery, providing up to 90 days of continuous use.
- Tap-Free Operation: Draws water directly from containers like buckets, eliminating the need for a tap connection.
- Diseño personalizable: Includes water tubing, T-Joints, and Drip-Stakes for flexible system configuration.
- Resistente al agua IP65: Designed to withstand outdoor conditions, providing protection against water splashes.
Información de seguridad
For safe operation of your Srygery Automatic Drip Irrigation Kit, please adhere to the following guidelines:
- Ensure proper connection to a stable water source.
- Install the anti-siphon mechanism correctly to prevent backflow and contamination.
- Follow all handling and usage instructions for the rechargeable battery to prevent damage or hazards.
- Keep the device and its components away from extreme temperatures and direct sunlight for prolonged periods.
- Do not submerge the main control unit in water, despite its IP65 rating, as this rating applies to splashes, not submersion.
Contenido del paquete
Verifique que todos los componentes enumerados a continuación estén incluidos en su paquete:

Image: A visual representation of all items included in the Srygery Automatic Drip Irrigation Kit package, such as the programmer, USB cable, drippers, T-barb fittings, water pipe, filter, hook, screws, and anti-siphon accessories.
| Artículo | Cantidad |
|---|---|
| Programmer (Main Control Unit) | 1 |
| Cable USB | 1 |
| Anti-Siphon Accessories | 1 |
| Water Pipe (32.8 Feet) | 1 |
| Gotero | 10 |
| Juntas en T | 10 |
| Filtrar | 1 |
| Tornillo | 2 |
| Gancho | 1 |
| Manual de usuario | 1 |
Configuración e instalación
Follow these steps to set up your automatic drip irrigation system:

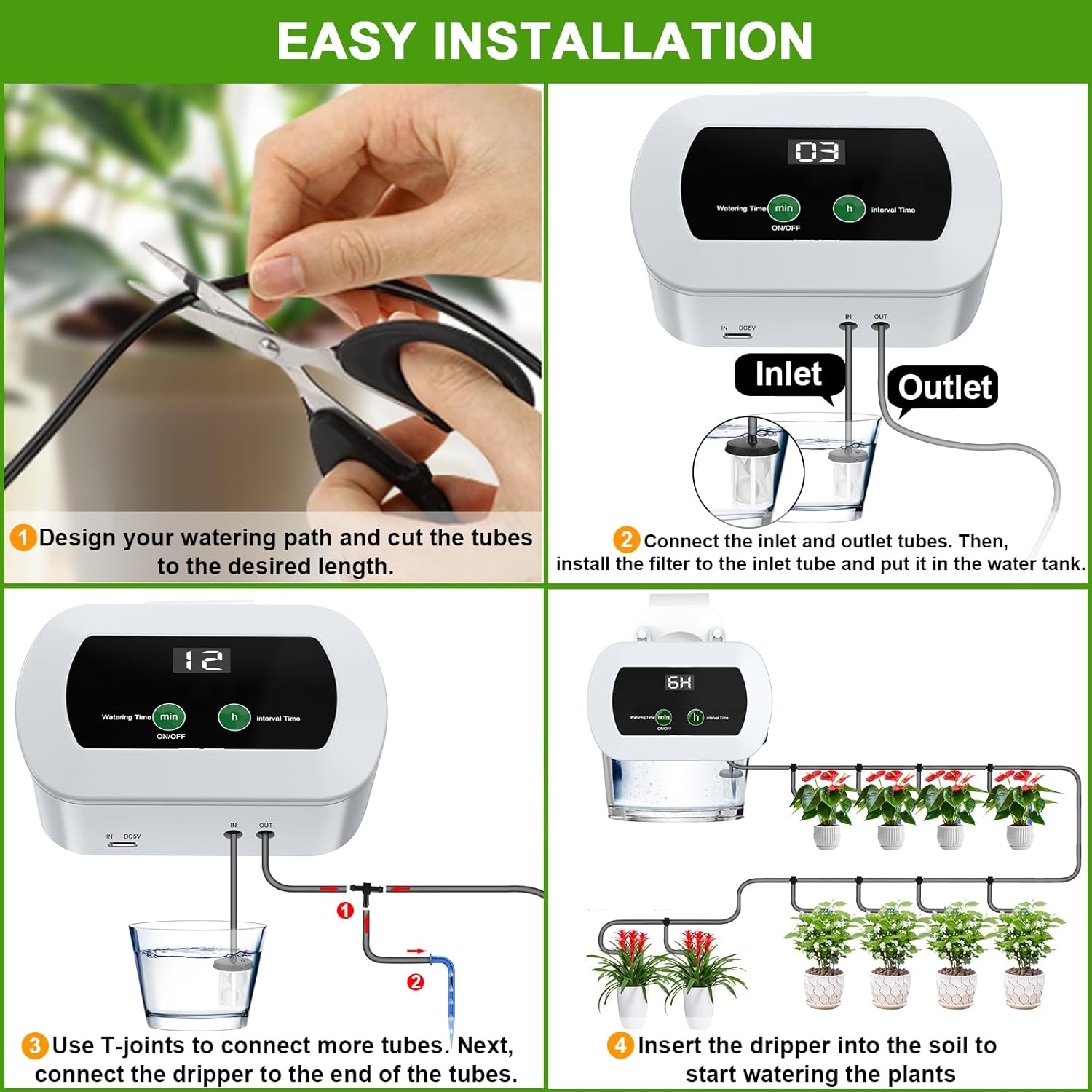

Image: A four-step visual guide demonstrating the installation process, including designing the watering path, connecting tubes and filter, using T-joints, and inserting drippers into soil.
- Diseña tu camino de riego: Plan the layout of your tubing to reach all plants. Cut the 32.8 feet water pipe to the desired lengths using scissors. Ensure the path allows for efficient water delivery to each dripper.
- Conecte los tubos de entrada y salida: Connect one end of a cut tube to the "IN" port and another to the "OUT" port on the programmer unit. Install the filter onto the end of the inlet tube that will be submerged in your water reservoir (e.g., a bucket). Place the filter end into the water tank.
- Assemble Drippers with T-joints: Use the T-joints to create branches from the main water pipe. Connect the drippers to the ends of these branches. The system supports watering up to 10 potted plants simultaneously.
- Insert Drippers into Soil: Carefully insert the drippers into the soil of each potted plant. Ensure they are securely placed near the plant's base for effective watering.
- Install Anti-Siphon Accessory: Connect the anti-siphon accessory to the system as indicated in the diagram (usually on the outlet line or near the water source) to prevent water backflow.
- Mount the Programmer: Use the provided hook and screws to mount the programmer unit securely near your water source and plants.

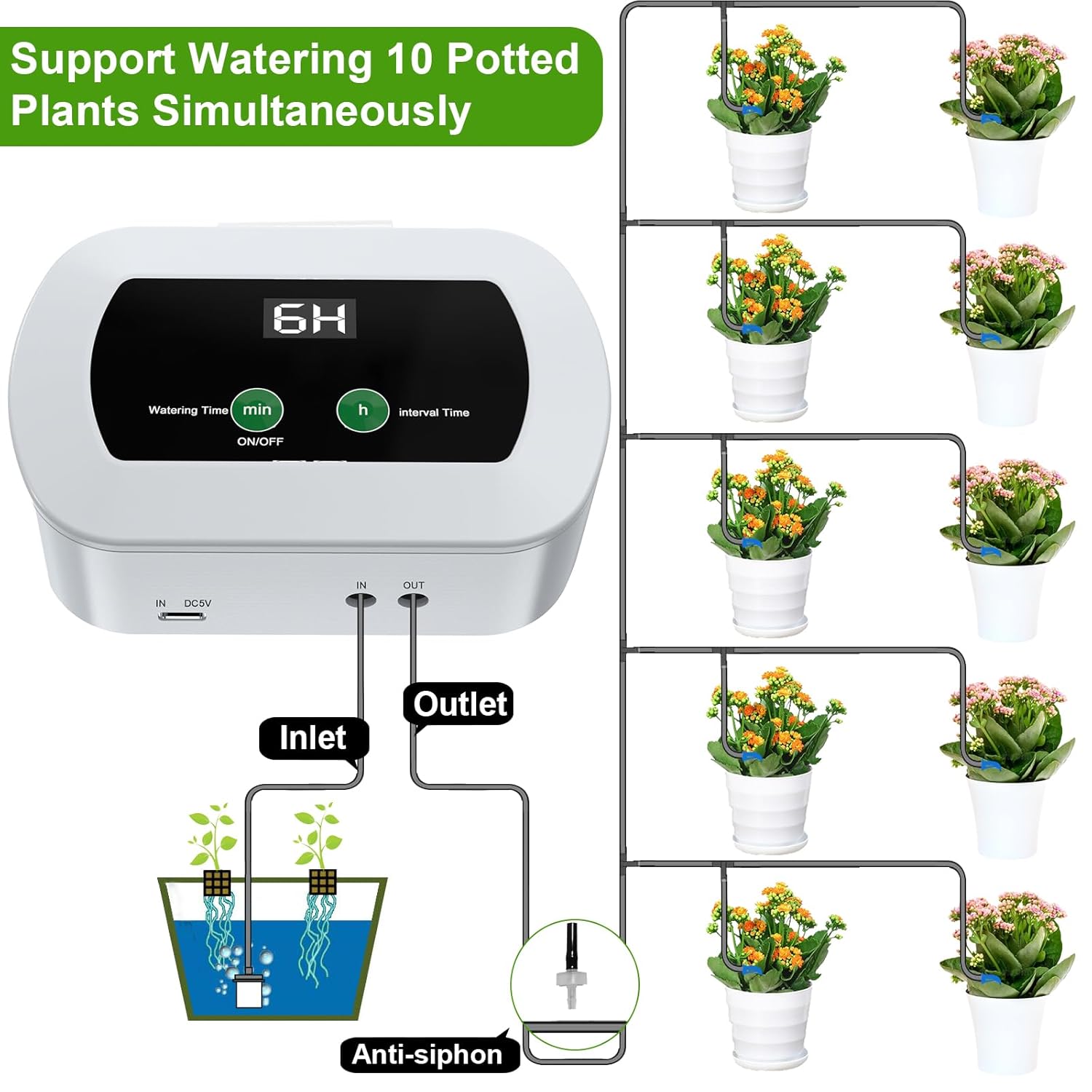

Image: A detailed diagram illustrating how the Srygery system can support watering up to 10 potted plants simultaneously, including the inlet, outlet, and anti-siphon connections.
Instrucciones de funcionamiento
The Srygery Automatic Drip Irrigation Kit features an intuitive LCD display for easy programming.

Image: The control unit's LCD display, illustrating the settings for "Watering Time" (1-30 minutes) and "Interval Time" (3 hours - 7 days), indicating ease of operation.
- Encendido/apagado: Press the "ON/OFF" button to turn the unit on or off.
- Set Watering Time:
- Press the button labeled "min" (or similar, referring to watering time) to adjust the duration of each watering cycle.
- The watering time can be set from 1 minute to 30 minutes.
- Set Interval Time:
- Press the button labeled "h" (or similar, referring to interval time) to adjust the frequency between watering cycles.
- The interval can be set from 3 hours to 7 days.
- Cargando: Connect the provided USB cable to the unit's charging port and a standard USB power adapter (not included) to charge the internal 2200mAh battery. A full charge provides up to 90 days of standby time.

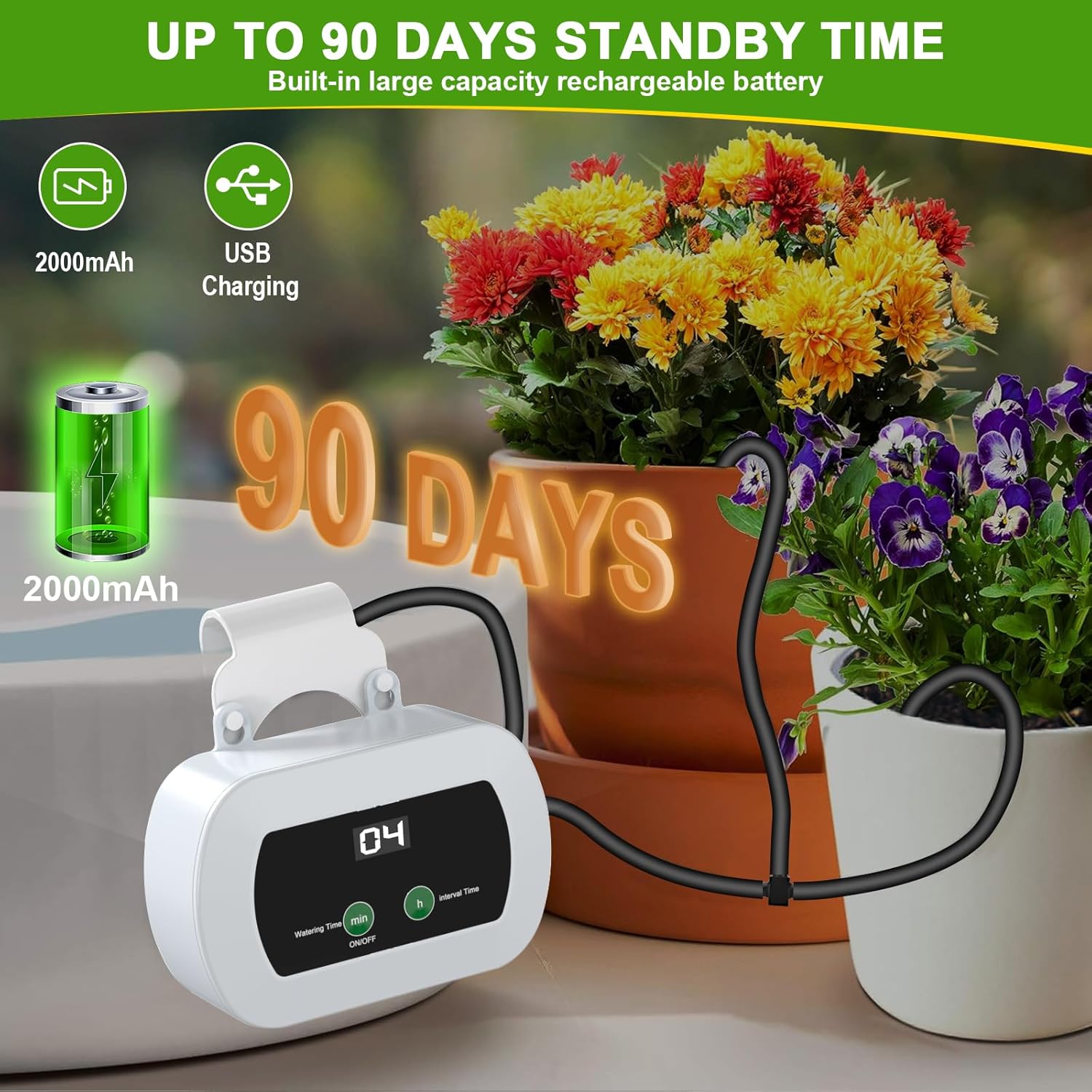

Image: The Srygery Drip Irrigation System unit positioned near potted plants, emphasizing its 2000mAh battery and up to 90 days of standby time, powered by USB charging.
Mantenimiento
El mantenimiento regular garantiza la longevidad y el rendimiento óptimo de su sistema de riego.
- Limpieza del filtro: Periodically check and clean the water filter to prevent blockages and ensure consistent water flow. Rinse it under running water to remove any debris.
- Inspección de tuberías: Inspect the water tubing and drippers regularly for any kinks, blockages, or damage. Clear any obstructions and replace damaged sections as needed.
- Reserva de agua: Ensure your water reservoir is clean and free of algae or sediment that could clog the system. Refill as necessary.
- Cuidado de la batería: If storing the unit for an extended period, ensure the battery is fully charged before storage and recharge it every few months to maintain battery health.
- Preparación para el invierno (si corresponde): If using outdoors in freezing climates, drain all water from the system and store components indoors to prevent damage from ice expansion.
- Limpieza general: Wipe the main control unit with a damp cloth to keep it clean. Do not use harsh chemicals or abrasive cleaners.

Image: The Srygery Drip Irrigation System unit outdoors, with water droplets on its surface, illustrating its IP65 waterproof rating and suitability for various weather conditions.
Solución de problemas
If you encounter issues with your Srygery Automatic Drip Irrigation Kit, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| No hay flujo de agua / Flujo débil |
|
|
| El sistema no se enciende |
|
|
| Incorrect watering schedule |
|
|
| Fuga de agua |
|
|
Presupuesto
| Característica | Detalle |
|---|---|
| Número de modelo | BSV-IC201 |
| Color | Blanco |
| Volumentage | 5V |
| Capacidad de la batería | 2200 mAh (hasta 90 días en espera) |
| Watering Time Range | 1 - 30 minutos |
| Interval Time Range | 3 Hours - 7 Days |
| Longitud de la manguera | 32.8 pies (10 metros) |
| Material | Plástico |
| Dimensiones del producto (L x An x Al) | 21.5 x 17.8 x 5.5 cm (aprox. 8.46 x 7 x 2.16 pulgadas) |
| Peso | 499 g (aprox. 1.15 libra) |
| Clasificación de impermeabilidad | IP65 |
Atención al cliente
For any questions, technical assistance, or warranty inquiries regarding your Srygery Automatic Drip Irrigation Kit, please contact Srygery customer support. Refer to the product packaging or the official Srygery webSitio para obtener la información de contacto más actualizada.
Please have your model number (BSV-IC201) and purchase details ready when contacting support.
