Yottamaster DS03CS 10-in-1 USB C Hub with M.2 NVMe SSD Enclosure User Manual

Producto terminadoview

The Yottamaster DS03CS is a versatile 10-in-1 USB C Hub that integrates an M.2 NVMe SSD enclosure. This device expands the connectivity of your USB-C enabled laptop or device, offering multiple ports for data transfer, display output, power delivery, and network access, alongside a storage solution for NVMe M.2 SSDs.

Imagen: Frontal y lateral view of the Yottamaster DS03CS USB C Hub with M.2 NVMe SSD Enclosure.

Contenido del paquete

Por favor verifique que todos los artículos estén presentes en el paquete:

• One USB-C Hub with M.2 NVMe Enclosure
• One external silicone case
• One 10Gbps USB C to C cable
• One silicone thermal pad
• One screwdriver
• Un manual de usuario

Instrucciones de instalación

1. SSD Installation (for M.2 NVMe SSD Enclosure)

This enclosure is designed exclusively for NVMe M-Key M.2 SSDs (PCIe-based) up to 8TB, compatible with sizes 2230, 2242, 2260, and 2280. It does not support M.2 SATA-based SSDs, M.2 PCIe AHCI SSDs, or any SSDs from Mac.

1. Unscrew the cover: Use the provided screwdriver to carefully remove the cover of the enclosure.
2. Attach the silicone sticker: Apply the silicone thermal pad to your M.2 NVMe SSD. This helps with heat dissipation.
3. Insert the hard disk: Gently insert the M.2 NVMe SSD into the slot and secure it with the buckle.
4. Screw back the cover lid: Replace the cover and fasten it with the screws.

Image: Step-by-step guide illustrating the installation of an M.2 NVMe SSD into the enclosure.

2. Connecting the Hub to Your Device

Connect the Yottamaster DS03CS hub to your laptop or compatible device using the provided USB C to C cable. The hub is plug-and-play and driver-free for Windows, Mac OS, and Android systems.

Image: The Yottamaster DS03CS hub connected to a laptop, demonstrating its use with an external monitor and other peripherals.

Instrucciones de funcionamiento

The Yottamaster DS03CS provides 10 distinct functions through its various ports:

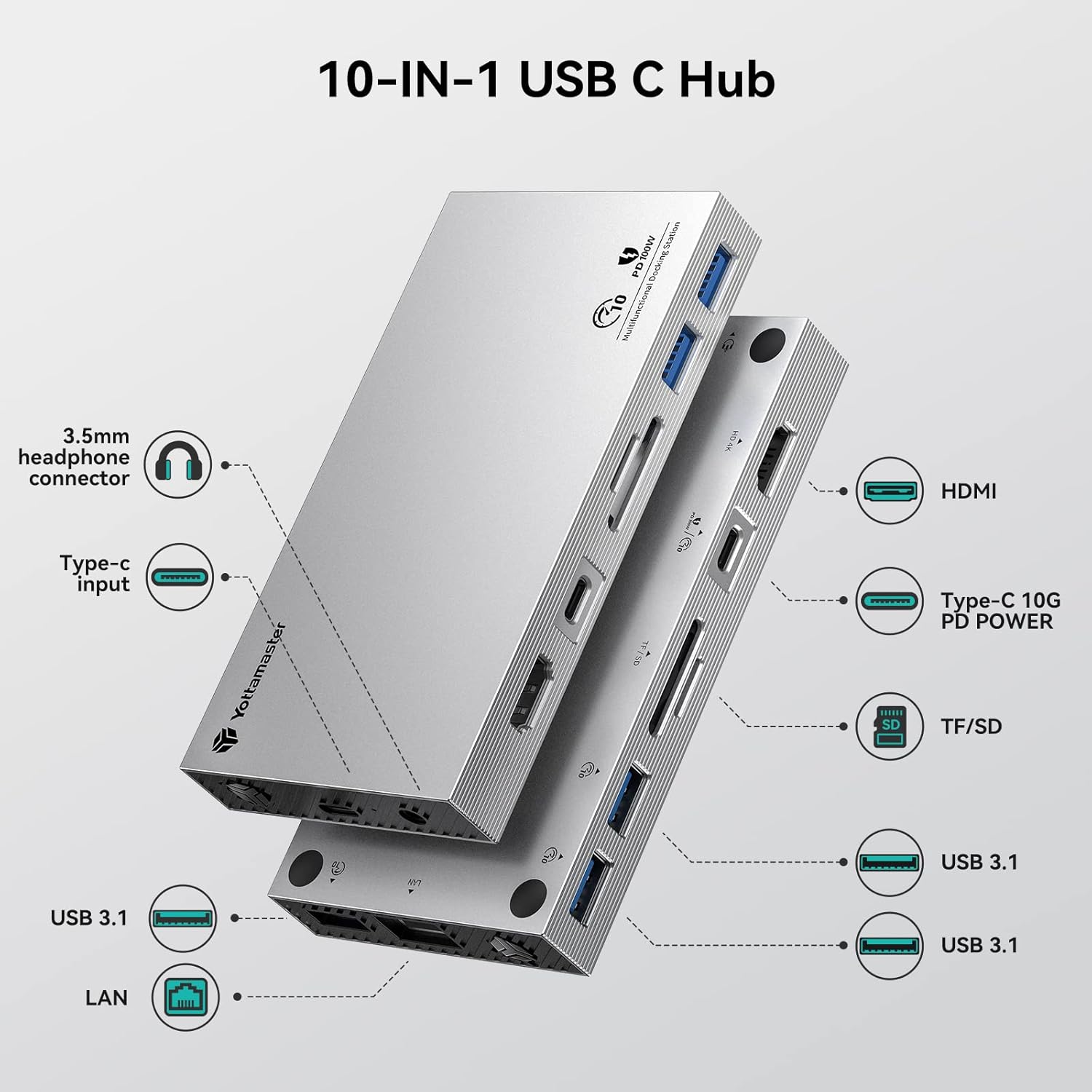

Image: A detailed diagram highlighting each of the 10 ports on the Yottamaster DS03CS and their respective functions.

• Puerto HDMI: Connect an external display (HDTV, monitor, or projector) to mirror or extend your screen. Supports 4K resolution at 30Hz.
• USB 3.1-A Ports (x3): These ports support data transfer speeds up to 10Gbps. Connect USB devices such as external hard drives, flash drives, keyboards, and mice.
• Puerto USB-C PD100W: This port supports both data transfer and Power Delivery 3.0, allowing fast charging of your laptop up to 100W (20V/5A). Ensure your power adapter supports PD.
• Ranuras para tarjetas SD/TF: Transferir files from SD and TF (Micro SD) cards. Note that TF and SD cards cannot be used simultaneously. The card reader supports USB 2.0 speeds.
• Gigabit Ethernet (RJ45) Port: Provides a stable wired network connection with transfer rates up to 1000Mbps, compatible with 10/100 Ethernet standards.
• 3.5mm Audio In&Output Combo: Connect headphones or speakers for audio output, or a microphone for audio input.
• Ranura para SSD M.2 NVMe: Functions as a portable SSD with data transfer speeds up to 10Gbps, depending on the SSD and USB connection.

Transferencia de datos

The USB A ports, USB C port, and the built-in M.2 NVMe SSD slot utilize the USB 3.2 Gen2 protocol, supporting 10Gbps data transfer. This provides significantly faster speeds compared to USB 3.0. Actual transfer speeds may vary based on the SSD speed and the type of USB connection used.

Image: Visual representation of the 10Gbps high-speed data transfer capability of the hub.

Salida de pantalla

The HDMI port allows you to connect an external display for extended or mirrored desktop modes. Enjoy content on a larger screen with 4K@30Hz resolution.

Image: A laptop connected to an external monitor through the Yottamaster DS03CS, demonstrating 4K@30Hz display output.

Entrega de potencia

The USB-C PD port supports up to 100W power delivery, enabling fast charging for compatible laptops. Connect your laptop's original power adapter to this port to charge your laptop while using the hub's other functions.

Image: The Yottamaster DS03CS hub connected to a power adapter, illustrating its 100W fast charging capability.

Mantenimiento

To ensure optimal performance and longevity of your Yottamaster DS03CS hub, follow these maintenance guidelines:

• Limpieza: Use a soft, dry cloth to wipe the exterior of the device. Avoid using liquid cleaners or solvents, as they may damage the aluminum finish or internal components.
• Almacenamiento: Cuando no esté en uso, guarde el concentrador en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Manejo: Manipule el dispositivo con cuidado para evitar daños físicos. Evite dejarlo caer o someterlo a impactos fuertes.
• Ventilación: Ensure the hub's ventilation holes are not obstructed to allow for proper heat dissipation, especially during prolonged use or heavy data transfer.

Solución de problemas

If you encounter issues with your Yottamaster DS03CS, refer to the following common problems and solutions:

• Dispositivo no reconocido:
  • Ensure the USB-C cable is securely connected to both the hub and your host device.
  • Intente conectar el concentrador a un puerto USB-C diferente en su dispositivo host.
  • Reinicie su computadora o dispositivo host.
• SSD no detectado:
  • Verify that the SSD is correctly installed in the enclosure and secured.
  • Confirm that your SSD is an NVMe M-Key M.2 SSD (PCIe-based). SATA-based M.2 SSDs are not supported.
  • For new SSDs, ensure they are initialized and formatted in your operating system's Disk Management (Windows) or Disk Utility (Mac OS).
• Velocidades de transferencia de datos lentas:
  • Ensure your host device's USB-C port supports USB 3.2 Gen2 (10Gbps) for optimal speeds.
  • The actual transfer speed may vary depending on the speed of the SSD and the type of USB connection used.
  • Avoid using long or low-quality USB-C cables, which can degrade performance.
• HDMI display issues:
  • Verifique la conexión del cable HDMI entre el concentrador y el monitor.
  • Ensure your host device's USB-C port supports DisplayPort Alternate Mode (DP Alt Mode).
  • Ajuste la configuración de pantalla en su sistema operativo.
• SD/TF card not working:
  • Ensure only one card (SD or TF) is inserted at a time, as simultaneous use is not supported.
  • Check if the card is inserted correctly and fully.
  • Pruebe la tarjeta en otro dispositivo para descartar un mal funcionamiento de la misma.
• Entrega de potencia (PD) no se carga:
  • Ensure your power adapter is connected to the hub's PD USB-C port and is a PD-compatible charger.
  • Verify that your laptop supports charging via USB-C PD.
  • Verifique el voltaje del adaptador de corrientetage; it should be sufficient for your laptop's charging requirements.

Presupuesto

Información de garantía

The Yottamaster DS03CS comes with an Garantía de 18 meses A partir de la fecha de compra. Esta garantía cubre defectos de fabricación y mal funcionamiento en condiciones normales de uso. Conserve su comprobante de compra para reclamaciones de garantía.

La garantía no cubre daños causados ​​por:

• Improper installation or operation
• Modificaciones o reparaciones no autorizadas
• Daños accidentales, mal uso o negligencia
• Natural disasters or external factors

Atención al cliente

For technical assistance, warranty claims, or any questions regarding your Yottamaster DS03CS, please contact Yottamaster customer support. Refer to the contact information provided on the product packaging or the official Yottamaster websitio.

When contacting support, please have your product model number (DS03CS) and proof of purchase readily available.
